Summary of Contents for Bartscher IK 70dpZ-EB

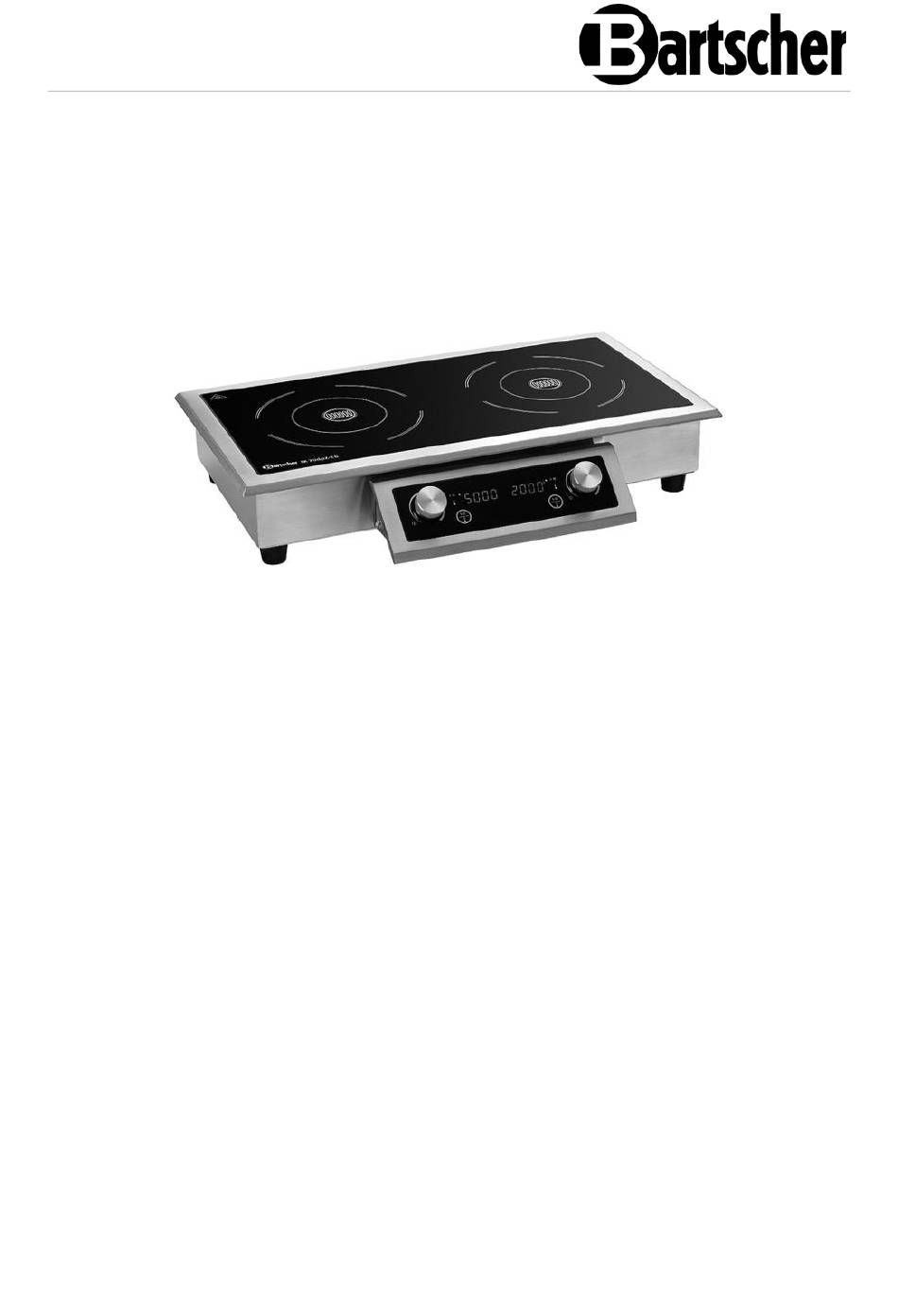

- Page 1 IK 70dpZ-EB 105893...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 2.0 Date of preparation: 2025-03-27...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Do not bend, pinch nor knot the power cord. • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. •...
- Page 7 Safety • In order to avoid overheating, do not place any aluminium foil or metal plates on the heating surface of the appliance. • Do not heat up sealed containers, e.g. canned food, on the heating area of the induction cooker. Resulting overpressure may cause explosion (rupture) of a container or a can.
- Page 8 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 9: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. -
Page 10: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction cooker IK 70dpZ-EB 105893 Art. No.: Material: stainless steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 645 x 315 Left-hand side hob max. diameter, in mm: Right-hand side hob max. -
Page 13: Functions Of The Appliance
Technical Data Version / Characteristics • Equipment connection: 3 NAC • Type of hobs: induction • Arrangement of hobs: side-by-side • Control: electronic, knob, touch • Regulation of: – power output – temperature • Cookware detection • Digital display • Overheating protection •... -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Left hob 2. Right hob 3. Glass heating plate 4. Housing 5. Feet (5 pcs) 6. Control unit fixing 7. Cable connecting the appliance and 8. Control unit connection the separate control unit 9. -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing packaging materials, for instance: plastic bags and EPS elements. •... - Page 16 Installation and operation Appliance Flush Mounting The induction cooker may be used as a table-top appliance or be flush-mounted in a work top / cabinet. Control Unit Removal If the appliance is to be flush-mounted, it is necessary to remove the control unit off of it.
- Page 17 Installation and operation 3. Cut the opening in the work top board according to the figure below. Fig. 2 4. On the surface prepared for mounting, place the template of the induction cooker. Align and centre the template, and leave at least 100 mm of free space from each side of the appliance on the work top.
- Page 18 Installation and operation ATTENTION! There has to be at least a 250 mm clearance below the flush-mounted appliance. If the induction cooker is to be flush-mounted in a cupboard, it is necessary to provide ventilation openings (Fig. 2). The temperature inside the cupboard may not exceed 32°C. 8.
- Page 19 Installation and operation 2. Mark the necessary recess. 3. Cut out the marked surface in the selected location. The cut-out for the control unit should be 340 mm in length and 105 mm in width. 4. Insert the control unit in the recess. 5.
-
Page 20: Operation
Installation and operation Operation Method of operation of heating plates In induction cookers the electric voltage is applied to a conductive coil under the glass. This generates magnetic field, which being a physical effect, heats the bottom of a cookware directly. This translates to savings of time and energy, as —... - Page 21 Installation and operation Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm 5.1 litre, 24 cm diameter, H 11.5 cm 6.1 litre, 20 cm diameter, H 20.0 cm...
- Page 22 Installation and operation Control Elements / Indicator Lights Fig. 5 1. Left hob rotary adjustment knob 2. Power output and temperature LED control lights of the left hob 3. Left hob digital display 4. Right hob digital display 5. Power output and temperature LED 6.
- Page 23 Installation and operation Settings Power Output 1. Set the required power output using the rotary controller. 2. Rotate the rotary controller clockwise to increase the power output and counter- clockwise - to decrease the power output. for the left hob in the range of 1–11 (800 W, 1,800 W, 2,000 W, 2,200 W, 2,400 W, 2,600 W, 2,800 W, 3,000 W, 3,200 W, 3,500 W, 5,000 W) for the right hob in the range of 1–10 (800 W, 1,800 W, 2,000 W, 2,200 W, 2,400 W, 2,600 W, 2,800 W, 3,000 W, 3,200 W, 3,500 W)
- Page 24 Installation and operation NOTE! Any time during the operation, you may switch between the power output mode and temperature mode by pressing the function selection key for the corresponding hob and selecting the desired mode, power output or temperature, using the rotary controller. Switching the Appliance Off 1.
-
Page 25: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 26: Disposal
Disposal Error Code Cause Solution No cookware on the hob Use only suitable cookware or inappropriate cookware Appliance is getting too Open the passage through ventilation hot (e.g., due to openings. Leave the appliance to cool obstructed ventilation down and restart. If the error code is openings) still shown in the digital display, contact the service company...
