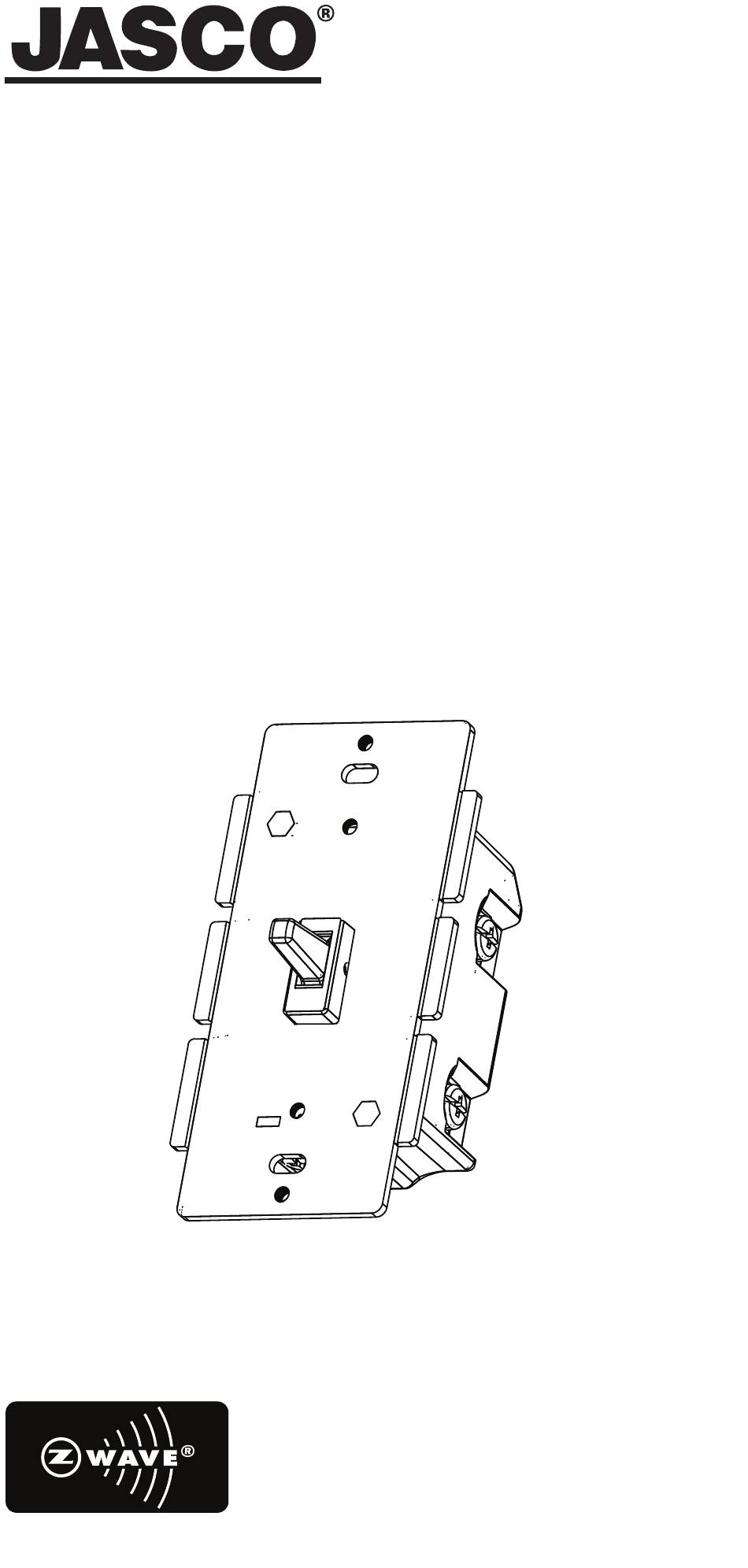

- Page 1 Z-Wave Certified ® Wireless Lighting Control On/Off Relay Switch and 3-Way Switch Kit Control the On/Off status of permanently installed lighting, fans and more! 45740_45760 ZW4003 www.easyzwave.com Made in China...
- Page 2 On/Off Relay Switch and 3-Way Switch Kit Introduction Thank you for your purchase of a JASCO Z-Wave® control device. Z-Wave technology is designed to automate lighting/home control and provide easy remote operation of all your Z-Wave enabled devices. The JASCO Z-Wave product family includes a variety of devices to control lighting in your home.
-
Page 3: Wireless Range
For these reasons, we recommend the following: 1. Assign Z-Wave controlled appliances to device num- bers 10 – 18 on the JASCO remote. The likelihood of unintentionally turning on the appliance will be reduced significantly because the “Shift” button will need to be pressed before pressing device numbers 10-18. - Page 4 Things to consider regarding RF range: • Each wall or obstacle (i.e.: refrigerator, big screen TV, etc.) between the remote or Z-Wave device and the destination device will reduce the maximum range by approximately 25- 30%. • Brick, tile or concrete walls block more of the RF signal than walls made of wooden studs and plasterboard (drywall).
-
Page 5: Installation
One of the ways to wire a two-switch/one-load circuit is to route the incoming power through the first switch, then to the second switch and then to the load. Although very common and by no means a standard, it is the easiest to convert to Z-Wave control. With this type of circuit, Switch 1 is replaced by the Z-Wave auxiliary switch and Switch 2 is replaced with the primary Z-Wave switch. - Page 6 3-Way Wiring Schematic using one primary and one auxiliary White (Neutral) Traveler - Colored (Not Green) Black (Load) Wave Wave Primary Auxiliary Green (Ground) Black (Line / Hot) 4-Way Wiring Schematic using one primary and two auxiliaries Traveler - Colored (Not Green) Z-Wave Wave...
- Page 7 Single, Dual and Triple Gang Boxes Tabs Tabs When installing the 45740/45760 in multiple gang boxes it may be necessary to break off one or both of the scored tabs on the front yoke. This does not affect the electrical rating of the 45740/45760.
- Page 8 11. OPTIONAL for 3 or 4-way control): Connect the Traveler wire (usually Red) to the screw terminal marked TRAVELER. The other end of this Traveler wire connects to the TRAVELER screw terminal on the Auxiliary Switch. See the following section for information about wiring the Auxiliary Switch.
-
Page 9: Basic Operation
Manual On/Off control with the front panel rocker BASIC OPERATION Remote Control JASCO Z-Wave remotes provide control of an Individual device, Groups of devices and Scenes. Other brands of Z-Wave Certified remotes may not offer as much flexibility in how you can set up your lighting control network. -
Page 10: Advanced Operation
ADVANCED OPERATION The following Advanced Operation parameters require that you have an advanced controller like the JASCO model 45601 LCD remote. Advanced remotes from other manufacturers may also be able to change these settings; however, basic remotes do not have this capability. -
Page 11: Warranty
Z-wave devices. As an example, the JASCO 45600 basic remote is designed only for controlling Z-Wave devices using the lighting control classification. The JASCO 45601 deluxe remote with LCD readout can control other Z-Wave certified devices like thermo- stats as well as lighting. -
Page 12: Specifications
Compliance with IC Rules and Regulations IC: 6924A-ZW4003 Jasco Products Company Model: 45740 ZW4003 ICES-3(B) / NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. - Page 13 Jasco Products Company LLC, 10 E. Memorial Road, Oklahoma City, OK 73114. www.jascoproducts.com © 2013 JascoProducts 45740_45760 ZW4003 rev. 09/06/13...
