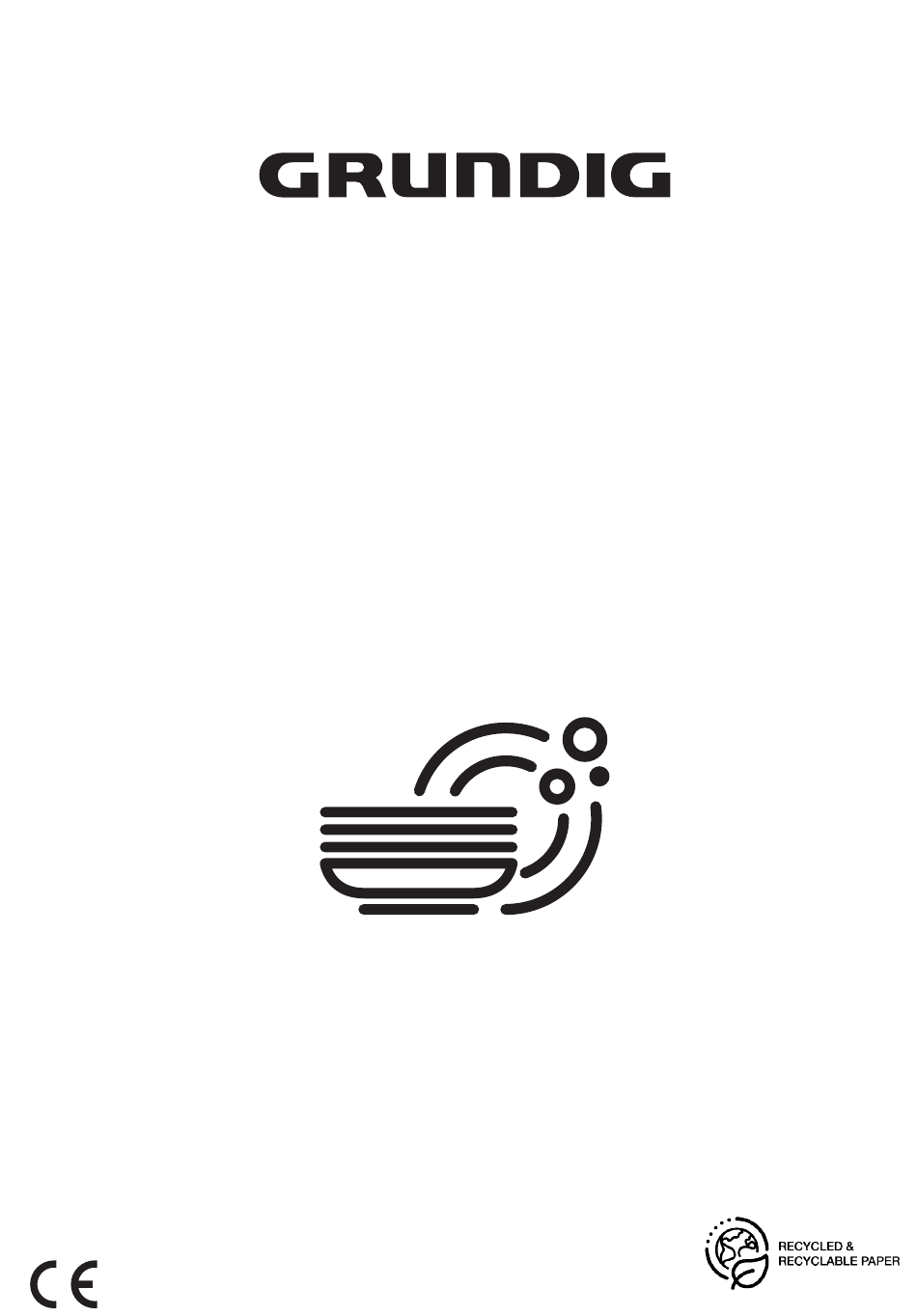

- Page 1 Dishwasher User’s Manual EGNUP... GNUP... 17 9312 0100_AB_GRUNDIG_B7_EN/ 22-05-24.(11:38)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS Adjusting the height of the upper basket ..27 Upper basket multi-function service rack..28 Intended Use ............. 4 Collapsible upper basket wires ......29 Safety for children, vulnerable persons and pets 4 Height setting with empty basket ..... 29 Electrical safety .......... -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
door should not be left in the excessively, pinched or come open position since this could into contact with any heat present a tripping hazard. sources. Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. -
Page 6: Installation Safety
NOTICE Make sure that Otherwise, it might cause the hoses do not get kinked, serious burns and injuries, squeezed or crushed while and harm your furniture. placing the product into its Do not install the product location after installation or close to heat sources (heater, cleaning procedures. -
Page 7: Operational Safety
hose set. Do not make extension otherwise, the product may at the hoses. tilt. Maximum washing capacity NOTICE Connect the water inlet of the product is stated in the hose directly to the water tap. section called “Technical Pressure coming from the tap Specifications”. -
Page 8: Maintenance And Cleaning Safety
Environmental the tap if you are not going to use it for a long time. Instructions Maintenance and cleaning Compliance with WEEE safety Directive and Disposing of Do not wash the product by the Waste Product spreading or pouring water This product complies with onto it. -
Page 9: Package Information
Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. -
Page 10: Technical Specifications
Technical specifications Note for test institutions: Data required for performance tests shall be provided upon request. Requests can Maximum washing capacity (check the be e-mailed to the following address: energy label and Programme data and dishwasher@standardloading.com average consumption values table given Do not forget to provide the code, stock on Quick Guide. -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Waterprotect
WaterProtect+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with WaterProtect+; please refer to The WaterProtect+ system protects against WaterProtect+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Preparation
Preparation Read “Quick Guide - Adjusting Water Softening System” before this section! The regeneration of the water softening Read “Safety Instructions” section first! system can be done in all programmes Tips for energy saving during drying step. When regeneration occurs, duration, energy and water Following information will help you use the consumption of the programme increase. -
Page 16: Adding Salt
Adding salt Water softening system needs to be regenerated in order for the product to operate with the same performance continuously. Dishwasher salt is used for this purpose. Use only special softening salts produced particularly for the dishwashers in your machine. You can put about 2 kg of softening It is recommended to use granule- or salt into the salt reservoir. - Page 17 further questions. Do not put solvents into the detergent dispenser. There is the risk of explosion! Put the detergent into the detergent dispenser just before operating the machine as illustrated below. 1. Push the latch to right to open the detergent dispenser lid (A).
-
Page 18: Tablet Detergents
Tablet detergents 3. After the empty washing cycle, review the user manual and readjust the water In addition to the conventional tablet hardness level so as to suit the water detergents, there are also commercially supply. available detergent tablets that show water 4. -
Page 19: Items Not Suitable For Washing In The Dishwasher
3. Slightly press the point (B) of the Decorative prints of chinaware as well reservoir lid to close it. as aluminium and silver items may get discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. - Page 20 Suggestionsforloadingthedishwasher ImproperLoadingOfDishware Lowerbasket Upperbasket ImproperLoadingOfDishware 20/EN...
-
Page 21: Cutlery Basket
Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 22: Collapsible Lower Basket Tines
Collapsible lower basket tines Collapsible lower basket tines (depends on model) (depends on model) There are foldable tines (A) located at There are foldable tines (A) located at the lower basket of the machine are the lower basket of the machine are designed for an easier placement of large designed for an easier placement of large pieces such as pans, bowls, etc. -
Page 23: Tray Wash Supports
SoftTouch Accessory Tray Wash Supports (depends on model) (depends on model) The SoftTouch Accessory found in the Use the supports to wash trays in the lower basket of your machine enables a bottom basket. safe washing for your fragile glasses. See the Auxiliary functions section for appropriate programme and function selection. - Page 24 Tray Washing Support Bottle and Dish Holder on the (depends on model) Lower Basket You may use the tray washing supports (depends on model) if you want to wash a tray on your lower Bottle and dish holder (A) on the lower basket.
-
Page 25: Lower Basket Multipurpose / Height Adjustable Service Rack
Lower basket multipurpose / To close the racks: 1. Fold the rack (A). height adjustable service rack 2. Slide the rack up (B). (depends on model) This accessory located at the lower basket 3. Put the rack in vertical position (C). of your machine allows you to easily wash 4. -
Page 26: Lower Basket Bottle Wire
Lower basket bottle wire Upper basket multipurpose service rack (depends on model) The bottle wire is designed for easier (depends on model) washing of long pieces with wide mouths. This accessory located at the upper basket You may take out the bottle wire from the of your machine allows you to easily wash basket when not in use by pulling it out pieces such as extra long ladles and bread... - Page 27 Upper basket multi-function service rack (depends on model) Thanks to the upper basket multi-function service rack on the upper basket of your appliance, you may load and wash long service-ware and kitchen-ware easily. Also, the wineglass securing compartments available on the front side of this accessory allows easier placing of the stemware with proper sizes on the upper basket.
-
Page 28: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper Repeat the same operation if the height is not adequate. basket (depends on model) Upper basket height adjustment mechanism is designed so that you can create wide spaces on the upper or lower compartment of the machine by adjusting the basket upwards or downwards either while it is empty or full. -
Page 29: Collapsible Upper Basket Wires
Collapsible upper basket wires Height setting with empty basket (depends on model) (depends on model) You can use collapsible wires when you In this model, the height setting of the need a larger space for your dishes in the upper basket may be changed using the upper basket of your machine. -
Page 30: Ceiling Cutlery Basket
Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 31: Operation Of The Product
Operation of the product 3. Ensure that lower and upper propellers Read “Safety Instructions” section first! are rotating freely. Read “Quick Quide” before this 4. Add adequate amount of detergent in section. the detergent compartment. Do not touch machine screen with wet Program selection hands. - Page 32 Half Load function (Y) Functions that can be used in washing (depends on the model) programs are shown with letters It is used when you want to run your such as " A,B,D,E,G,F,K..." in the machine without fully fill it. "Program information and average 1.
- Page 33 Depending on the control system of TurboWash Do not attempt to remove your machine, if the Tablet Detergent the impeller part! function is not available in the program you selected, its indicator turns TurboWash Function (U) off. You can find the information in (depends on the model) which programs the tablet detergent In the selected program, the lower impeller...
-
Page 34: Interior Illumination
TrayMaster Function (U) pressing on/off key of your machine (depends on the model) for 3 seconds. Your settings shall be For this function to work, select the saved automatically. Intensive 70°C program and press the function key. Doormatic Function (K) Express function (F) (Depends on the Model) (depends on the model) - Page 35 Delay function Child (Key) Lock Function (depends on the model) (Depends on the Model) If there is an economic electricity tariff in You may prevent other persons from your area, you can use the delay function affecting and changing the program flow to wash your dishes at respective hours.
-
Page 36: Starting Of The Program
Starting of the program Low Salt Warning indicator ( Close the door to start your machine after Check the low salt warning indicator on the selecting the program and additional display to determine if the softening salt functions. available in your machine is adequate. You Machine softens the water as per shall add salt to the salt compartment when the hardness of the mains water. -
Page 37: Selfcare
End of programme SelfCare For energy saving, the machine is (depends on model) automatically turned off following the This programme is recommended to be completion of the programme or if the operated on each 1-2 months for machine programme is not started. cleaning and necessary hygiene. -
Page 38: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 39: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 40: Cleaning The Impellers
Cleaning the impellers impeller assembly. Clean the impellers at least once a week in order for the machine operates efficiently. Lower impeller Check if the holes on the lower impeller (1) Do not try to rotate the impeller by are clogged. If they are clogged, remove holding its ends. -
Page 41: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 42 • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 43 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 44 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 45 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
