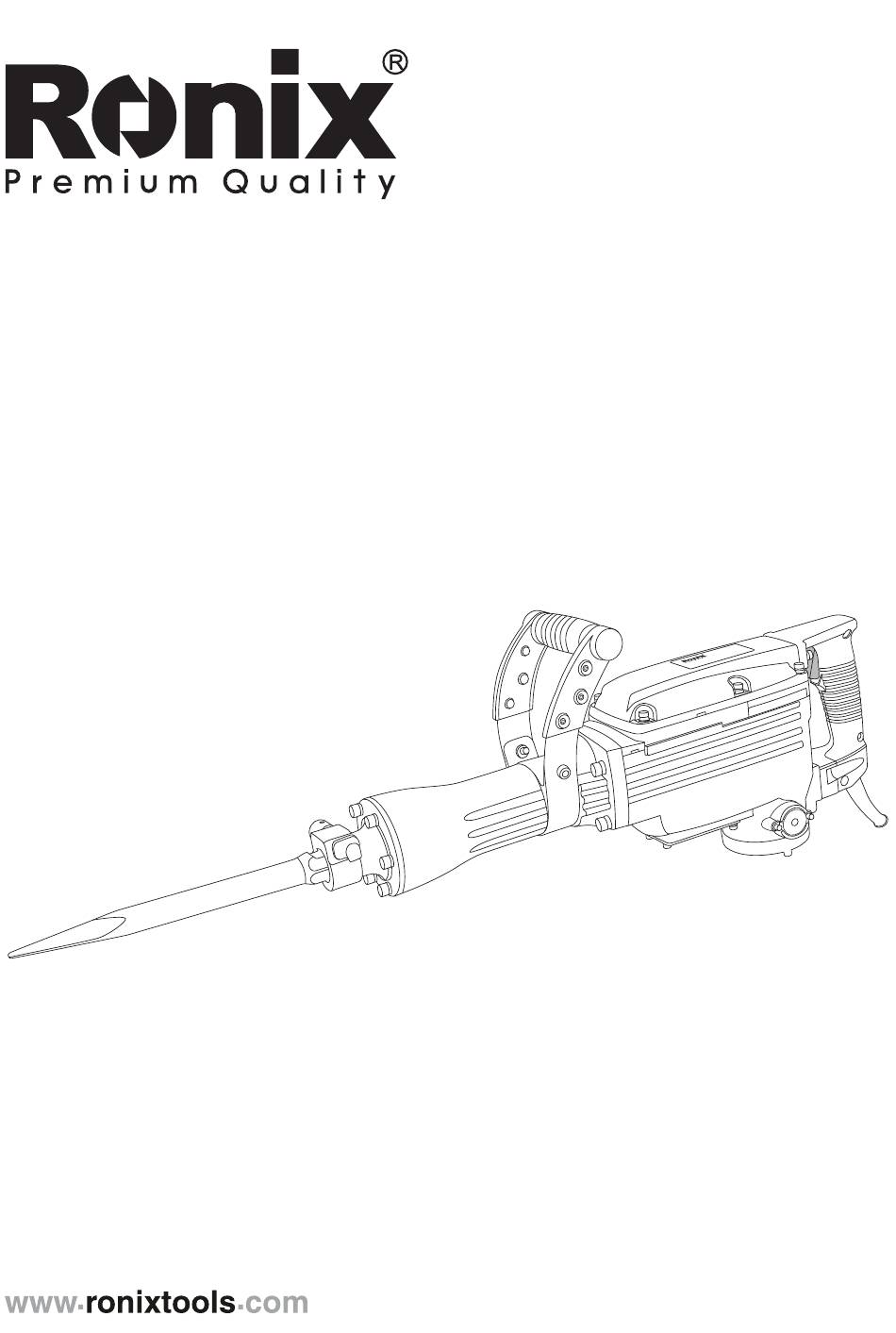

- Page 1 DEMOLITION HAMMER 2814L...
-
Page 2: Technical Specification
Chuck Type 30 HEX Impact Energy Max Impact Rate 1500BPM Weight 14.1kg Supplied in Ronix Metal Box Includes Auxiliary handle, hex flat chisel 30×400mm, hex pointed chiel 30×400mm, oil bottle, Wrench Pair of carbon brushes STANDARD ACCESSORIES 1 bottle 1 couple... -
Page 3: Parts List
PARTS LIST 1) Retainer 2) Front cover 3) Aluminum head 4) Side handle 5) Encloser 6) Fan cover 7) Switch 8) Handle APPLICATION This hammer should be applied to breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles in installation of piping and wiring, unitary facility installation, machinery installation water supply, and drainage work, interior jobs, harbor facilities and other civil engineering work etc. -
Page 4: General Power Tool Safety Warnings
Double insulation Wear ear and eye protection. Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. Indicate electrical shock hazard. Immediately unplug the plug from the main electricity in the case that the cord gets damage and during maintenance. -
Page 5: Electrical Safety
ELECTRICAL SAFETY -Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. -Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. - Page 6 -Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. -Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 SERVICE -Have your power tool serviced by a qualified repair person using only identical replacement parts RONIX SERVICE after sales centers. This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY RULES FOR HAMMER 1) Wear ear protectors.
-
Page 8: Residual Risks
14) Any damage and abnormal happen, please stop to use immediately and disconnect it, ask RONIX SERVICE authorized centers to check and repair. 15) Right use accessories and parts: Don’t use other parts and accessories... -
Page 9: Switch Operation
Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. 2) Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident! -
Page 10: Optional Accessories
OPTIONAL ACCESSORIES (sold separately) Notice: Optional accessories (sold separately) are recommended only for RONIX tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1) Point chisel Hexagon size30x410 mm 2) Flat chisel Hexagon size30x410 mm MAINTENANCE AND INSPECTION Before doing any maintenance, ensure to unplug the machine. -
Page 11: Warranty
Faulty and /or discarded electrical or electronic apparatus have to be collected at the appropriate recycling location. CAUTION: Repair, modification and inspection of RONIX Power tools must be carried out by a RONIX SERVICE Authorized Centers. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
