Ronix 2830 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DEMOLITION HAMMER
2830

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2830 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 2830

Summary of Contents for Ronix 2830

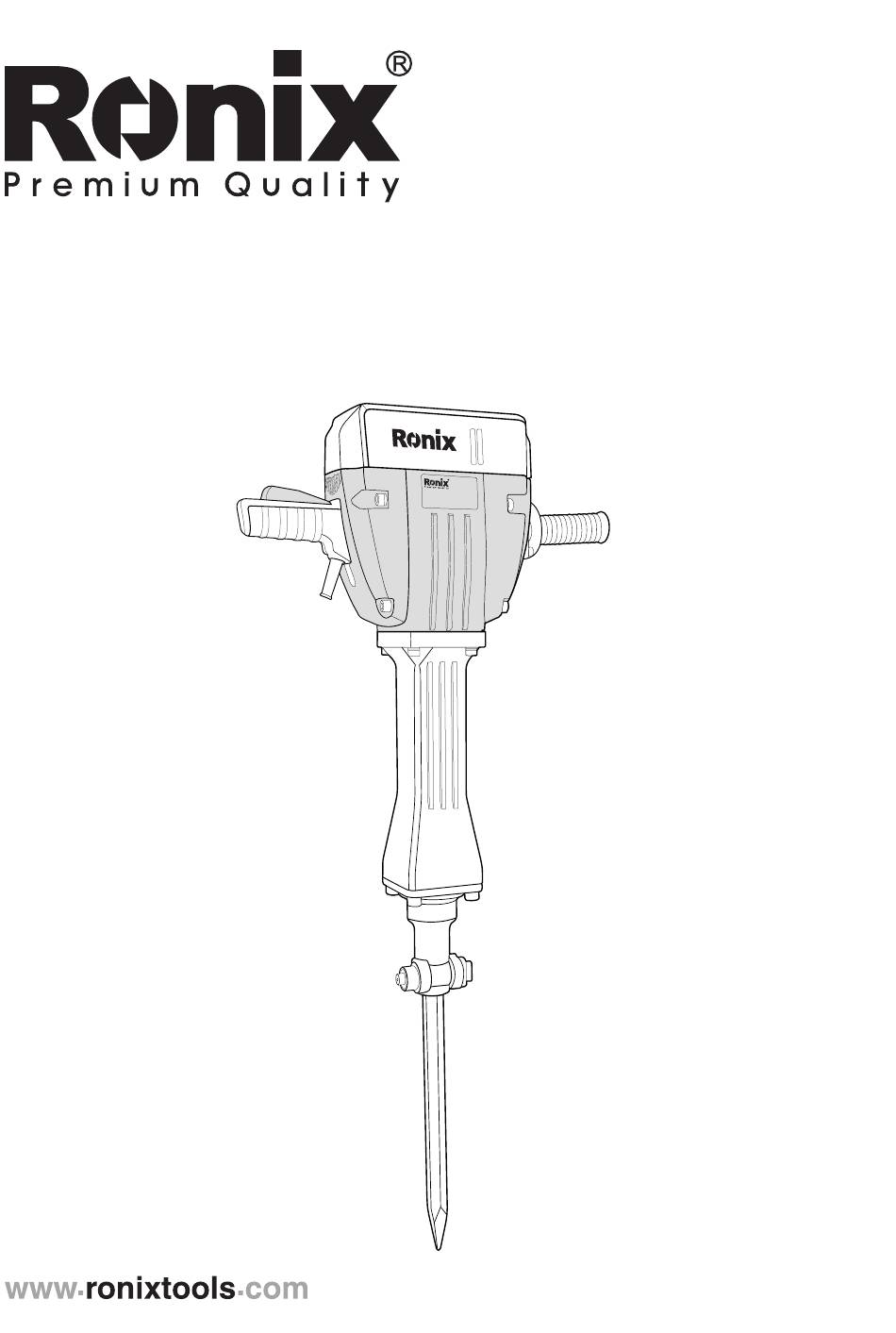

  • Page 1 DEMOLITION HAMMER 2830...

  • Page 2: Specifications

    SPECIFICATIONS Model 2830 Power 2200W Voltage 240-220V Frequency 60-50Hz Chuck Type Chuck Size 28 mm Impact Energy Max Impact Rate 950 BPM Weight 30kg Supplied in Ronix trolley Includes Auxiliary Ronix-design handle, Grease tube, hex flat chisel, hex pointed chisel,...

  • Page 3: Parts List

    PARTS LIST Cover Switch tigger Handel Side Handel Switch lock pin Housing Aluminum encloser Front cover Retainer APPLICATION This hammer should be applied to breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles in installation of piping and wiring, unitary facility installation, machinery installation water supply, and drainage work, interior jobs, harbor facilities and other civil engineering work etc...

  • Page 4: General Power Tool Safety Warnings

    Double insulation Wear ear and eye protection. Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. Indicate electrical shock hazard. Immediately unplug the plug from the main electricity in the case that the cord gets damage and during maintenance.

  • Page 5: Electrical Safety

    ELECTRICAL SAFETY a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 6 switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 7 SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts in RONIX PLUS after sales centers. This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY RULES FOR HAMMER 1) Wear ear protectors with impact drills.
  • Page 8 3) Any damage and abnormal happen, please stop to use immediately and disconnect it, ask RONIX PLUS authorized service center to check and repair. 4) Parts replace: Only original parts can be used to replace by authorized RONIX PLUS service center.

  • Page 9: Switch Operation

    OPERATION INSTRUCTION 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. 2. Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident!
  • Page 10 2. Operate this demolition hammer by utilizing it’s own weight. The performance will not be better if it is pressed or thrust forcibly against the work surface. Hold with a force just sufficient to counteract the reaction. NOTE Sometime the power tool does not begin the striking the stroke. Even the motor keep running, because oil inside become thick.

  • Page 11: Maintenance And Inspection

    The retainer may become loose due to excessive use. Make sure the bit shank position is holded securely, if any wear or damage is found, ask the RONIX PLUS authorized service people to maintenance. 4. Maintenance the motor The motor is the heart of the machine; please avoid any damage to the winding, or any water and oil to wet it.
  • Page 12 Carbon brushes are consumable parts, when it becomes worn or “limit worn” it can cause motor trouble, we use auto-stop carbon brush, and it stopped automatically when carbon brush worn out, at that time, replace a new couple of them by RONIX PLUS authorized after sales services. CLEANING Clean the machine regularly with a soft cloth, preferably after each use.
