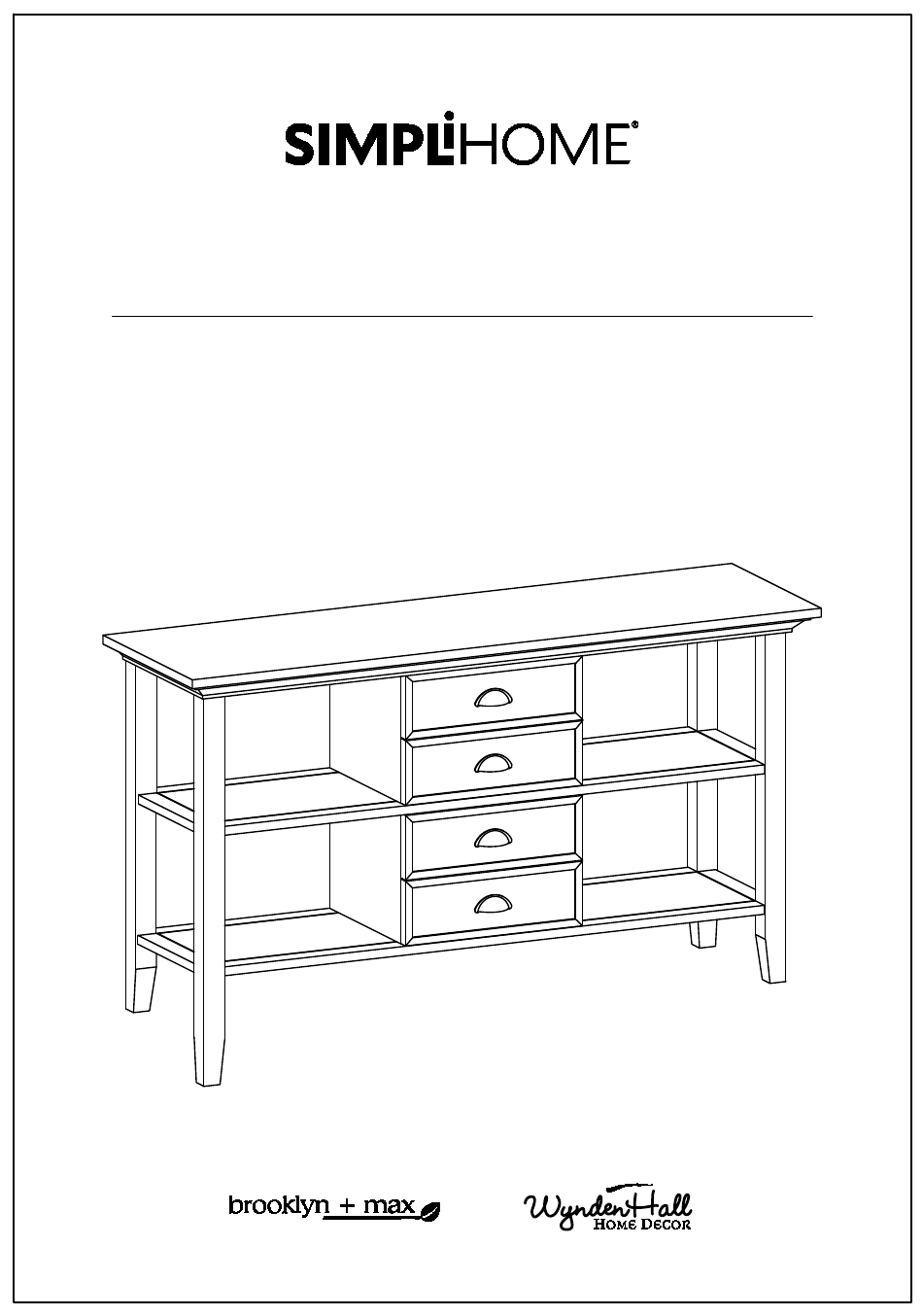

- Page 1 Redmond / Mansfield / Stanwick Console Sofa Table Model # AXCADM-03FG...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Drawer Bottom
Pre-Assembly Information Model # AXCADM-03FG Part Description SIDE (L&R Same) SHELF QTY 2 QTY 1 QTY 2 DRAWER FRONT LEFT DIVIDER RIGHT DIVIDER QTY 4 QTY 1 QTY 1 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 4 QTY 4 QTY 4 DRAWER BOTTOM BACK PANEL... - Page 8 Pre-Assembly Information Model # AXCADM-03FG Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm ALLEN KEY CAM LOCK QTY 32 QTY 1 QTY 28 SETS PHILLIPS SCREW Required - HANDLE ROUND HEAD Flathead screwdriver M4 X 10mm M4 X 15mm Phillips screwdriver QTY 4 SETS QTY 10...
- Page 9 Components - Key Diagram Model # AXCADM-03FG...
- Page 10 Assembly Model # AXCADM-03FG Step 1 1. Attach four Cam Lock Pins 3 to back of Drawer Front E . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides FL , FR . 3. Insert two Cam Locks 3 into pre-drilled holes on each Drawer Side FL , FR . 4.
- Page 11 Assembly Model # AXCADM-03FG Step 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot. 2. Attach Drawer Back G using two Allen Key Screws 1 through pre-drilled holes on each Side FL , FR . 3.
- Page 12 Assembly Model # AXCADM-03FG Step 5 1. Attach Dividers DL , DR to Shelf C using four Allen Key Screws 1 (two screws on each Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 6 1. Attach other Shelf C to Dividers DL , DR using four Allen Key Screws 1 (two screws on each divider).
- Page 13 Assembly Model # AXCADM-03FG Step 7 1. Attach six Cam Lock Pins 3 to each Side A . 2. Align Cam Lock Pins with pre-drilled holes and attach Shelfs C . 3. Insert six Cam Locks 3 into pre-drilled holes on each Shelf C . 4.
- Page 14 Assembly Model # AXCADM-03FG Step 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Back Panel I to back frame of console table using ten Phillips Screws Round Head 5 through pre-drilled holes. 2. Use Phillips screwdriver to snugly tighten screws. Step 10 1.
