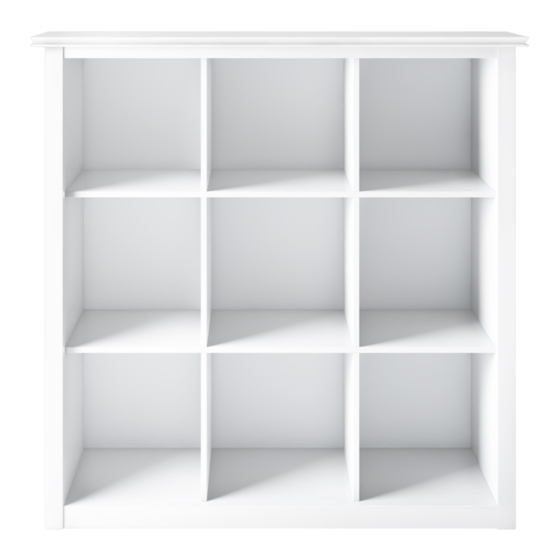

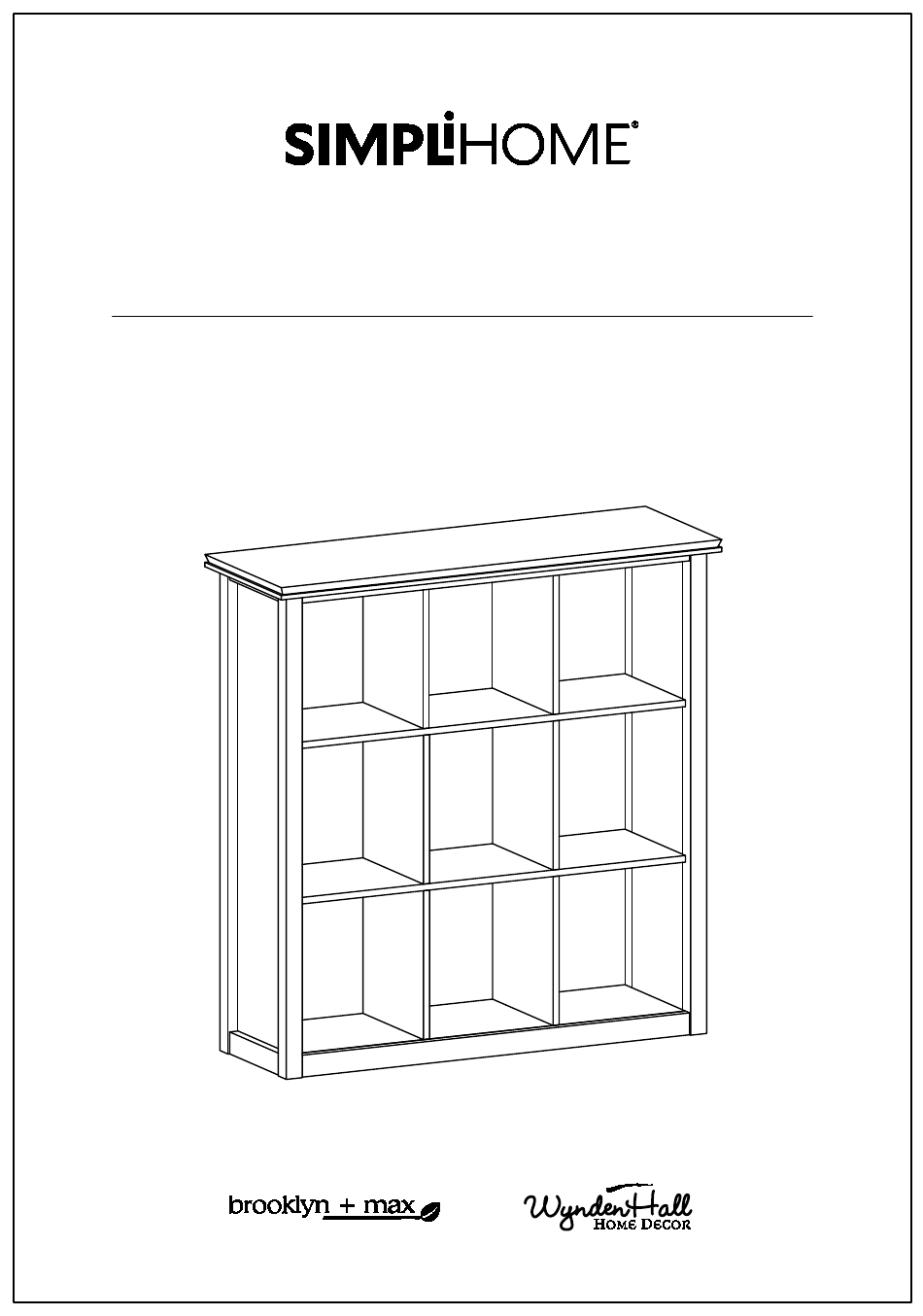

- Page 1 Artisan / Holden / Stratford 9 Cube Bookcase and Storage Unit Model # AXCART21-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCART21-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM DIVIDER (L&R Same) MIDDLE DIVIDER (L&R Same) TOP DIVIDER (L&R Same) QTY 2 QTY 2 QTY 2 TOP SHELF BOTTOM SHELF LEFT BACK PANEL QTY 2 QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCART21-WH Hardware Description CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY QTY 30 SETS QTY 6 QTY 1 PHILLIPS SCREW ROUND HEAD FURNITURE TIP OVER RESTRAINT M4 X 15mm QTY 1 SET QTY 36 Required - Flathead screwdriver...
- Page 9 Components - Key Diagram Model # AXCART21-WH...
- Page 10 Assembly Model # AXCART21-WH Step 1 1. Attach Bottom Dividers C to Bottom Shelf E using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten Screws and Bolts. Do not over-tighten. Step 2 1. Align Wood Dowels with guide holes on first Top Shelf D and attach Top Shelf D to Bottom Dividers C .
- Page 11 Assembly Model # AXCART21-WH Step 3 1. Align Wood Dowels with guide holes on Top Shelf D and attach Middle Dividers C1 to Top Shelf D . Step 4 1. Align Wood Dowels with guide holes on second Top Shelf D and attach Top Shelf D to Middle Dividers C1 .
- Page 12 Assembly Model # AXCART21-WH Step 5 1. Attach nine Cam Lock Pins 2 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 13 Assembly Model # AXCART21-WH Step 6 1. Align Cam Lock Pin with guide holes on parts D , E and attach Right Side BR to parts D , E . 2. Insert three Cam Locks 2 into guide holes on each part D , E . 3.
- Page 14 Assembly Model # AXCART21-WH Step 7 1. Repeat Step 6 for Left Side BL .
- Page 15 Assembly Model # AXCART21-WH Step 8 1. Align Wood Dowels with guide holes on Top Shelf D and attach Top Dividers C2 to Top Shelf D . Step 9 1. Attach twelve Cam Lock Pins 2 into pre-drilled holes on Top A . 2.
- Page 16 Assembly Model # AXCART21-WH Step 10 1. Align Cam Lock Pin with guide holes on parts BL , BR , C2 and attach Top A to parts BL , BR , C2 . 2. Insert three Cam Locks 2 into guide holes on each part BL , BR , C2 . 3.
- Page 17 Assembly Model # AXCART21-WH Step 11 Warning Label Note: 1. Attach the Back Panels FL , FR , F1 to back of cabinet using Phillips Screws Round Head 4 into guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 18 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 19 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
