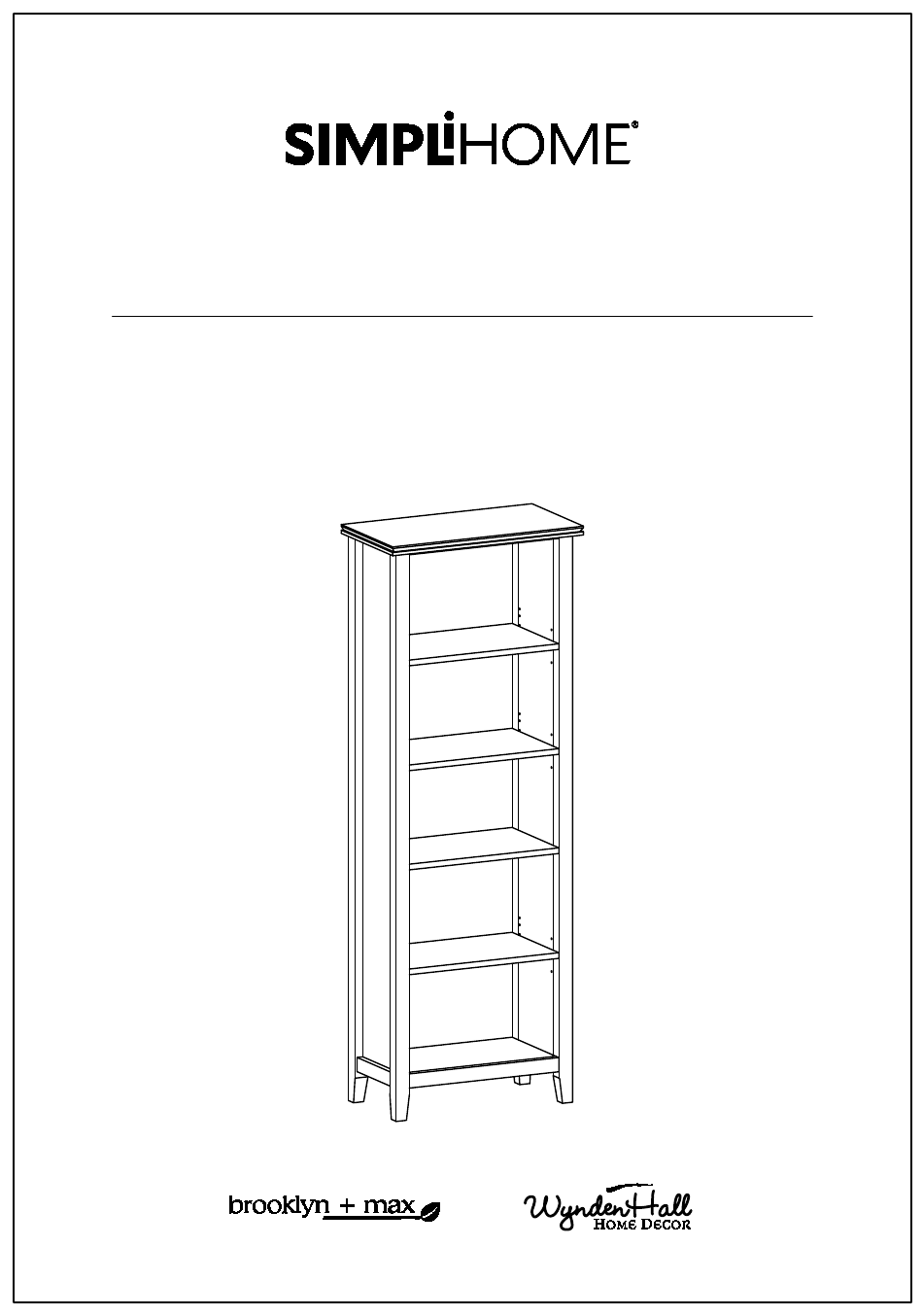

- Page 1 Artisan / Holden / Stratford 5 Shelf Bookcase Model # AXCART09-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCART09-BL Part Description Warning Label LEFT SIDE RIGHT SIDE BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM SHELF MIDDLE SHELF SHELF QTY 1 QTY 1 QTY 1 QTY 3...
- Page 8 Pre-Assembly Information Model # AXCART09-BL Hardware Description PHILLIPS SCREW ROUND HEAD CAM LOCK PIN M4 X 15mm CAM LOCK QTY 26 QTY 18 SETS SHELF SUPPORT FURNITURE TIP OVER RESTRAINT QTY 18 QTY 1 SET Required - Flathead screwdriver Phillips screwdriver Not Included...
- Page 9 Components - Key Diagram Model # AXCART09-BL...
- Page 10 Assembly Model # AXCART09-BL Step 1 1. Attach six Cam Lock Pins 1 into pre-drilled holes on each part AL , AR , C . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCART09-BL Step 2 1. Align Cam Lock Pins with guide holes and attach Middle Shelf E and Bottom Shelf D to Right Side AR . 2. Insert three Cam Locks 1 into guide holes on each part E , D . 3.
- Page 12 Assembly Model # AXCART09-BL Step 3 1. Repeat Step 2 for Left Side AL .
- Page 13 Assembly Model # AXCART09-BL Step 4 1. Align Cam Lock Pins with guide holes and attach Top A to parts AL , AR . 2. Insert three Cam Locks 1 into guide holes on each part AL , AR . 3.
- Page 14 Assembly Model # AXCART09-BL Step 5 Note: Warning Label 1. Attach the Back Panel B to back frame using Phillips Screws Round Head 2 through guide holes from Back Panel. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten...
- Page 15 Assembly Model # AXCART09-BL Step 6 shelf level 1 shelf support shelf level 2 anti - tipping shelf level 3 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
