SIMPLIHOME brooklyn + max WyndenHall AXCAMH72-FOG Manual

Amherst / halifax / washington 72 inch wide tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual

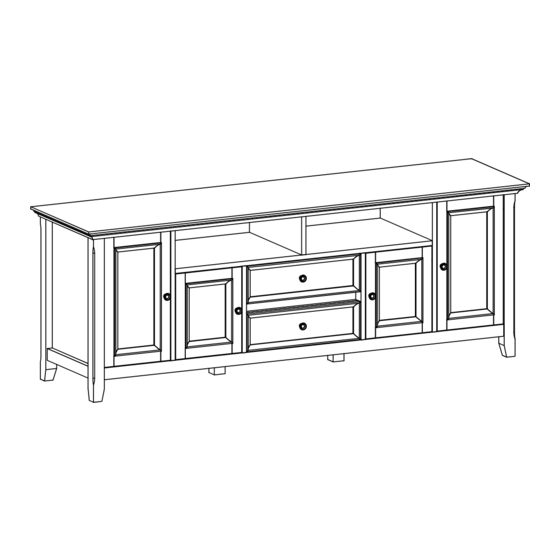

Amherst / Halifax / Washington
72 inch Wide TV Media Stand
Model # AXCAMH72-FOG
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCAMH72-FOG and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCAMH72-FOG

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCAMH72-FOG

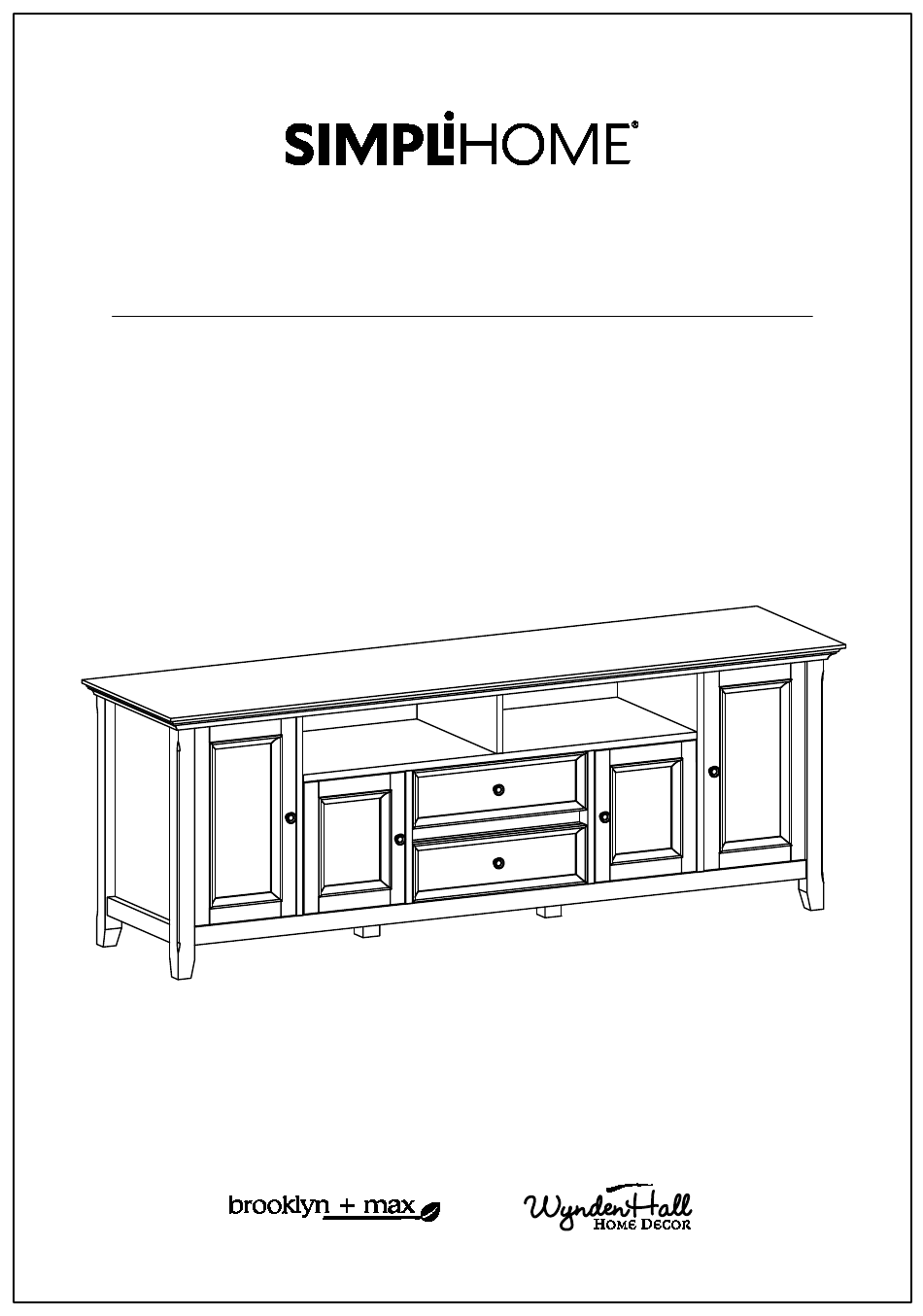

  • Page 1 Amherst / Halifax / Washington 72 inch Wide TV Media Stand Model # AXCAMH72-FOG...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Maximum Load 25 Lbs

    WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.

  • Page 8: Bottom Shelf

    Pre-Assembly Information Model # AXCAMH72-FOG Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CENTRE SHELF BOTTOM SHELF TOP SHELF QTY 1 QTY 1 QTY 1 TOP DIVIDER LEFT MIDDLE DIVIDER RIGHT MIDDLE DIVIDER QTY 1 QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCAMH72-FOG Part Description LEFT DIVIDER RIGHT DIVIDER SHELF QTY 1 QTY 1 QTY 2 LEFT BACK PANEL LARGE DOOR (L&R Same) SMALL DOOR (L&R Same) QTY 1 QTY 2 QTY 2 Warning Label RIGHT BACK PANEL TOP BACK PANEL BOTTOM BACK PANEL QTY 1...
  • Page 10 Pre-Assembly Information Model # AXCAMH72-FOG Part Description BOTTOM SUPPORT LEG FLIP DOWN DOOR DRAWER FRONT QTY 2 QTY 1 QTY 1 DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BOTTOM QTY 1...
  • Page 11 Pre-Assembly Information Model # AXCAMH72-FOG Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY Ø8 X 30mm QTY 22 SETS QTY 34 QTY 1 QTY 22 PHILLIPS SCREW HANDLE ROUND HEAD M4 X 25 mm M4 X 15mm SHELF SUPPORT MAGNET AND PLATE...
  • Page 12 Components - Key Diagram Model # AXCAMH72-FOG...
  • Page 13 Assembly Model # AXCAMH72-FOG Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front O . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 14 Assembly Model # AXCAMH72-FOG Step 3 Step 4 1. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side PL , PR . 3.
  • Page 15 Assembly Model # AXCAMH72-FOG Step 6 1. Insert six Dowels 3 into guide holes on Centre Shelf E . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach Hinge 10 to Centre Shelf E by using Phillips Screws 11 to attach Centre Shelf E through guide holes.
  • Page 16 Assembly Model # AXCAMH72-FOG Step 8 1. Align Wood Dowels with guide holes and attach Centre Shelf E to Dividers GL , GR .
  • Page 17 Assembly Model # AXCAMH72-FOG Step 9 1. Attach six Cam Lock Pins 2 into pre-drilled holes on Top Shelf D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 10 1. Use three Allen Key Screws 1 to attach Top Divider F through guide holes from Top Shelf D to pre-drilled holes of Top Divider F .
  • Page 18 Assembly Model # AXCAMH72-FOG Step 11 1. Align Cam Lock Pin with guide holes on Middle Dividers GL , GR and attach Middle Dividers GL , GR to Top Shelf D . 2. Insert six Cam Locks 2 into guide holes on Middle Dividers GL , GR (3 Cam Locks on each Middle Divider ).
  • Page 19 Assembly Model # AXCAMH72-FOG Step 12 1. Insert two Dowels 3 into guide holes on each Divider HL , HR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 20 Assembly Model # AXCAMH72-FOG Step 14 1. Align Cam Lock Pins with guide holes on Top Shelf D and attach Dividers HL , HR to Top Shelf D . 2. Insert six Cam Locks 2 into guide holes on Top Shelf D . 3.
  • Page 21 Assembly Model # AXCAMH72-FOG Step 15 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach parts HL , HR , GL , GR to Bottom Shelf C . 2. Use three Allen Key Screws 1 to attach each part HL , HR , GL , GR through guide holes from Bottom Shelf C to pre-drilled holes of parts HL , HR , GL , GR .
  • Page 22 Assembly Model # AXCAMH72-FOG Step 16 1. Insert two Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 23 Assembly Model # AXCAMH72-FOG Step 17 1. Align Wood Dowels and Cam Lock Pins with guide holes on Bottom Shelf C and attach Sides BL , BR to Bottom Shelf C . 2. Insert six Cam Locks 2 into guide holes on Bottom Shelf C . 3.
  • Page 24 Assembly Model # AXCAMH72-FOG Step 18 1. Align Wood Dowels with guide holes on Top A and attach parts BL , BR , HL , HR , F to Top A . 2. Use three Allen Key Screws 1 to attach each part BL , BR , HL , HR , F through guide holes each part BL , BR , HL , HR , F to pre-drilled holes of Top A .
  • Page 25 Assembly Model # AXCAMH72-FOG Step 19 1. Align two Bottom Support Legs M with pre-drilled holes on back of Bottom Shelf C . Use Phillips Screwdriver to tighten four Phillips Screws 16 .
  • Page 26 Assembly Model # AXCAMH72-FOG Step 20 Warning Label Note: 1. Attach the Back Panels LL , LR , L1 , L2 to back frame using Phillips Screws Round Head 5 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 27 Assembly Model # AXCAMH72-FOG Step 21 1. Attach Adjustable Hinges 14 to Doors J , K using Phillips Screws 15 into pre-drilled holes on Doors J , K . Step 22 1. Attach Adjustable Hinges 14 on Doors J , K to parts BL , BR , HL , HR using Phillips Screws 15 into pre-drilled holes on parts BL , BR , HL , HR .
  • Page 28 Assembly Model # AXCAMH72-FOG Step 23...

  • Page 29: Important Note

    Assembly Model # AXCAMH72-FOG IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 30 Assembly Model # AXCAMH72-FOG Step 24 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf I in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf I as a tipping restraint.
  • Page 31 Assembly Model # AXCAMH72-FOG Step 25 1. Insert assembled drawer into glides on assembled TV.
  • Page 32 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 26 NOTE: The screwdriver is not included in the hardware pack.
  • Page 33 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
