Roland UM-ONE Manual

What is MIDI?

MIDI is an internationally recognized standard for exchanging performance information between electronic musical instruments and computers.

For example, in the illustration below, a MIDI signal meaning "the 'C' key on the MIDI keyboard was pressed" passes through the UM-ONE and is received by the computer's software sound module, and then the software sound module plays the note "C."

In this way, MIDI is used to send performance information to other instruments; for example "the 'C' key was pressed with a certain amount of force," "the instrument was changed to a violin sound," "the volume was raised/lowered," "the pitch was raised/lowered," etc. In other words, MIDI is the "language of musical instruments."

MIDI signals are merely performance instructions, therefore a MIDI sound module, such as a software sound module, is required to produce sound.

All software sound modules and DAW (Digital Audio Workstation) software support MIDI.

* DAW software is a term that refers to music production software.

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES". These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this Owner's Manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

IMPORTANT NOTES

Placement

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not put anything that contains water (e.g., flower vases) on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using its jacks and connectors. Rough handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

Panel Descriptions

Note
Do not connect the UM-ONE to the computer until the driver has been installed.

Installing the Dedicated Driver

Note
Do not connect the UM-ONE to the computer until you are directed to do so.

Download the USB driver from the Roland website. For details, refer to Readme.htm which is included in the download.

http://www.roland.com/support/

Basic Use

Precautions Concerning the Use of Software

Before using the UM-ONE with your software, please note the following points.

• Connect the UM-ONE to the computer before starting the software.
• Do not disconnect the UM-ONE from the computer while the software is running. After exiting the software, disconnect the UM-ONE.
• Select the UM-ONE for the software's MIDI device setting.
• The UM-ONE will not operate in the Mac OS X Classic environment. Use the UM-ONE when the Classic environment is not running.

Recording MIDI Data, Playing a Software Sound Module

To transmit MIDI messages from a MIDI keyboard or digital piano in order to record MIDI data using DAW software or play a software sound module, make the following connections and settings.

* When connecting other devices, always be sure to turn the volume down before connecting or disconnecting cables to prevent damage to speakers.

Playing Back MIDI Data

To send MIDI messages that were recorded using DAW software to a MIDI sound module or software sound module, make the following connections and settings.

* When connecting other devices, always be sure to turn the volume down before connecting or disconnecting cables to prevent damage to speakers.

To play a MIDI keyboard and use a MIDI sound module as the instrument, turn on the software's MIDI THRU feature.

Connecting the External Equipment to UM-ONE

The [COMP/TAB] switch needs to be placed at the setting that's appropriate for the device to which you're connecting the UM-ONE.

Using the UM-ONE with a Computer

If using the UM-ONE while connected to a computer, set the UM-ONE's [COMP/TAB] switch to the "COMP" position.

1. Set the UM-ONE's [COMP/TAB] switch to the "COMP" position.
2. Connect the UM-ONE to the computer.

MEMO
If you want to connect the UM-ONE to a computer in which the USB driver has not been installed, disconnect the UM-ONE's USB cable from the computer, and install the USB driver in the computer as described in the section "Driver Installation" in the UM-ONE owner's manual.

Using the UM-ONE with an iPad

If using the UM-ONE with an iPad, set the UM-ONE's [COMP/TAB] switch to the "TAB" position.

Before you continue, please make sure to access the following URL and check the operating requirements and other relevant information.

https://roland.cm/ios_info

NOTE

• The first-generation iPad cannot be used.
• The iPad app you're using must support CoreMIDI.

You'll need to provide the following items

• iPad (made by the Apple Inc.)
• Apple iPad Camera Connection Kit (Camera Connector; made by the Apple Inc.)
• USB hub (commercially available; a type to which an AC adaptor or other power supply is connected)
• USB cable (commercially available)

1. Power up your USB hub (connect the AC adaptor to the USB hub).
2. Connect the USB hub to the iPad using the Camera Connector of the Apple iPad Camera Connection Kit.
3. Set the UM-ONE's [COMP/TAB] switch to the "TAB" position.
4. Connect the UM-ONE to the USB hub.

MEMO
Operation may be unstable if you use a USB hub of a type that does not have a connected power supply, or if you connect the UM-ONE directly to the iPad.

Troubleshooting

If you experience problems, read this chapter first. It contains tips for solving most problems. If this chapter cannot help you solve a problem, please refer to the support section of our website. If the problem is not resolved, refer to the contact information listed at the end of this document.

Roland support website:

http://www.roland.com/support/

Driver Installation

Using the UM-ONE

Main Specifications

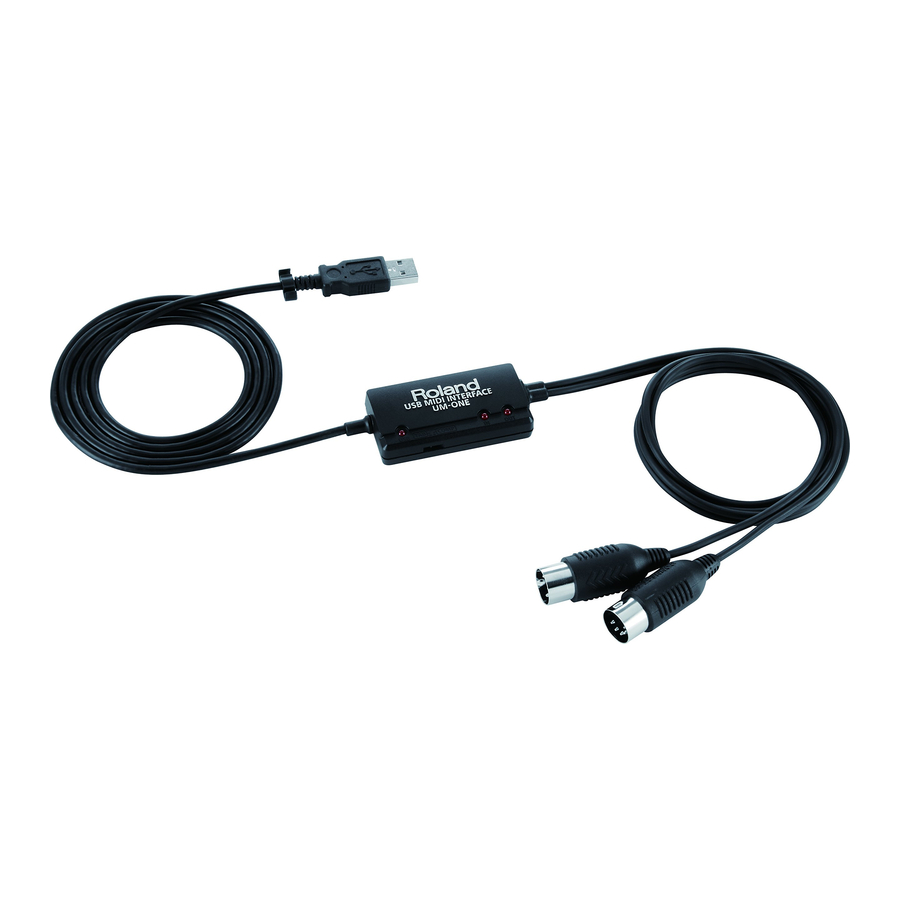

UM-ONE: USB MIDI Interface

* In the interest of product improvement, the specifications, appearance, and/or contents of this unit are subject to change without prior notice.

Service

When you need repair service, access this URL and find your nearest Roland Service Center or authorized Roland distributor in your country.

http://roland.cm/service

USING THE UNIT SAFETY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About WARNING and CAUTION Notices

	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

•
  Do not open or perform any internal modifications on the unit.
•
  Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.
• Never install the unit in any of the following locations.
  • Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
  •
    Damp (e.g., baths, washrooms, on wet floors); or are
  • Exposed to steam or smoke; or are
  • Subject to salt exposure; or are
  • Humid; or are
  • Exposed to rain; or are
  • Dusty or sandy; or are
  • Subject to high levels of vibration and shakiness.
•
  Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.
•
  Immediately disconnect the USB cable, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:
  • Objects have fallen into, or liquid has been spilled onto the unit; or
  • If smoke or unusual odor occurs
  • The unit has been exposed to rain (or otherwise has become wet); or
  • The unit does not appear to operate normally or exhibits a marked change in performance.
•
  In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.
•
  Protect the unit from strong impact. (Do not drop it!)

•
  Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
•
  Never climb on top of, nor place heavy objects on the unit.
•
  Disconnect all cords coming from external devices before moving the unit.
