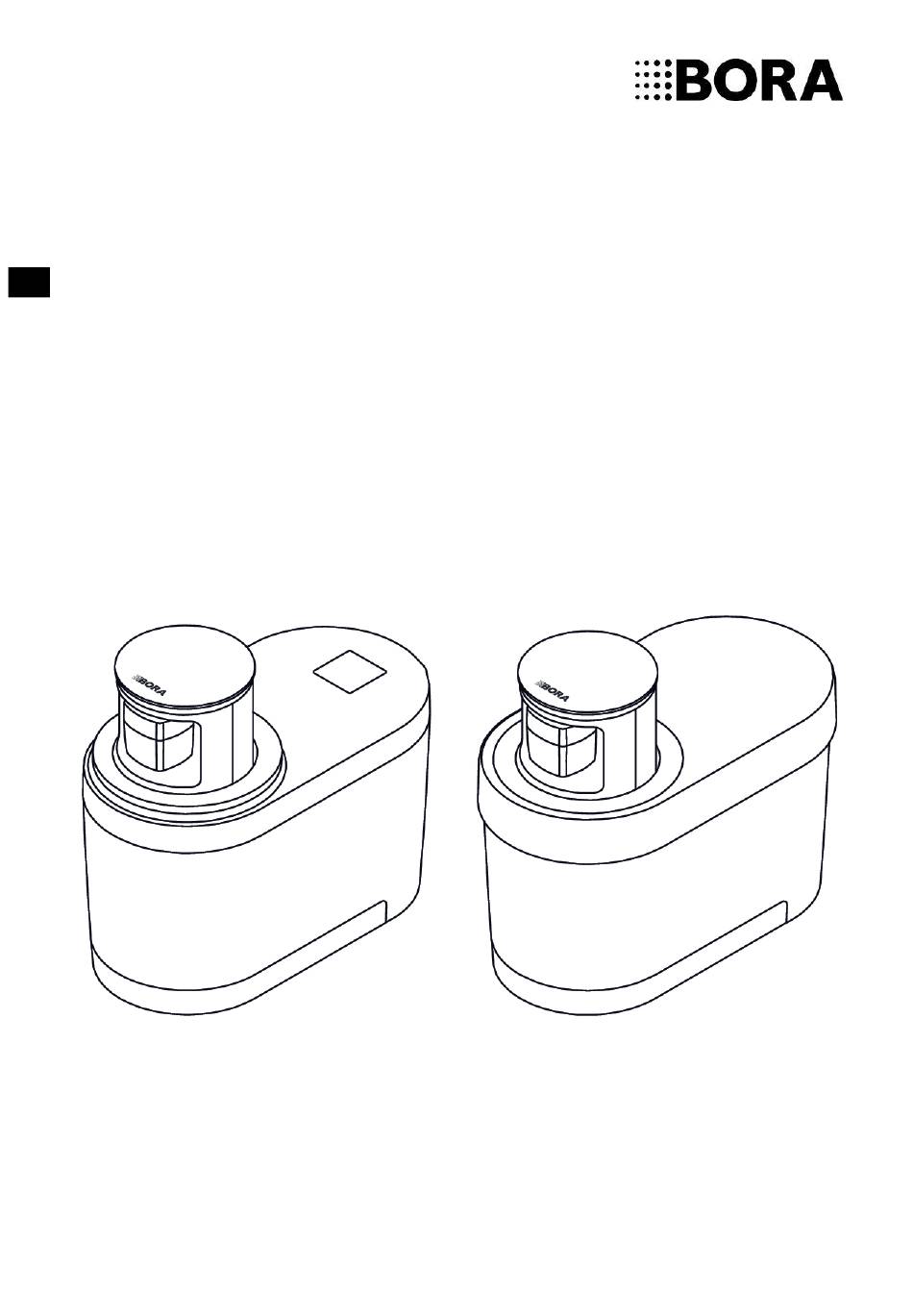

- Page 1 Operating and installation instructions QVac / QVac Move UMIM-QVAC-10002-01-EN bora.com...
-
Page 2: Table Of Contents
How to use the vacuum seal (power setting) ..10 How to use the marinating ring (for fast marinating) ..................10 How to transport the QVac Move ......11 Cleaning and maintenance How to clean vacuum bags ........12 How to clean the vacuum boxes ......12 How to clean the moisture trap ......12... -
Page 3: General Information
Note Indicates a potentially hazardous situation which can cause property . BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC damage if not respected. Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as Meaning of the warning symbols and signal words Tab. 1.1... -
Page 4: Safety
If the QVac built-in vacuum sealer is used as a freestanding appliance Store all packaging components out of reach of children. (that is, not built in), this is considered to be technically incorrect Dispose of the packaging properly and immediately. -
Page 5: Safety Information For Installation
ö bags, vacuum boxes or other accessories. DANGER Only use original BORA accessories. Risk of electric shock from damaged appliance Only use clean vacuum bags, vacuum boxes and other A damaged appliance can cause an electric shock. -
Page 6: Technical Data
(UK / IE) Suction power ≈ 10 L/min Maximum vacuum pressure -90 kPa Dimensions (width × depth × height) QVac: 239 × 124 × 142 mm QVac Move: 245 × 130 × Fig. 3.3 QVac side view 150 mm Weight (incl. accessories/packaging) QVac: 3.48 kg QVac Move appliance QVac Move: 3.6 kg... -
Page 7: Appliance Description
Pull-out suction head (400 mm) Marinating ring 3 function buttons for different vacuum-sealing programmes Grip seal Audiovisual operating concept Valve Cable tie on power supply for optimum cable management (QVac Vacuum seal Move) 2-litre vacuum box QVac structure Function button... - Page 8 Appliance description Dispose of transport packaging in the proper manner (see "9 Decommissioning, disassembly and disposal"). bora.com...
-
Page 9: Functions And Operation
How to use the vacuum bags How to use the vacuum boxes Do not use vacuum bags to store liquids! QVac vacuum boxes are perfect for storing liquids as well as dry or soft products (e.g. berries). bora.com... -
Page 10: How To Use The Vacuum Seal (Power Setting)
Place the food to be vacuum sealed in the vacuum box. Please observe the maximum fill level. The QVac vacuum seal can be used with conventional glass bottles or There must be a distance of at least 0.5 cm between the underside strong PET bottles with an opening diameter of 17 to 22 mm. -
Page 11: How To Transport The Qvac Move
Functions and operation How to transport the QVac Move Always transport the appliance upright and ensure that it is upright during storage. Placing it on its side can enable liquid to get inside it. Before transporting it or putting it away, check for any liquid in the moisture trap and drip tray. -
Page 12: Cleaning And Maintenance
How to clean the vacuum boxes QVac vacuum boxes can be cleaned in the dishwasher (programmes up to 65 °C). The seal can also be taken out of the lid and cleaned with a mild cleaning product (e.g. warm water and washing-up liquid). -
Page 13: How To Remove Water From The Appliance
Ensure that the appliance is on a flat surface. Grip the appliance tightly. Pull the drip tray out and empty it. Clean the drip tray and put it back in the housing. Fig. 6.6 How to pull out the drip tray from the QVac Move bora.com... -
Page 14: Troubleshooting
Ensure that the moisture trap is clean and that the safety valve is not stuck. Contact the BORA Service Team. The appliance is not sucking air out of the The grip seal on the bag is not airtight or is faulty Check that the grip seal is closed properly. -
Page 15: How To Install The Qvac Built-In Vacuum Sealer
How to install the QVac built-in vacuum sealer The housing can be installed independently of the pop-up unit in any How to install the direction. This makes it easier to find a suitable place in the kitchen QVac built-in for installation. -
Page 16: Installing The Appliance
How to install the QVac built-in vacuum sealer Flush installation How to disassemble the housing How to disassemble the pop-up unit Carefully remove the vacuum hose and the 2 electrical connections from the base unit. Turn the mounting ring and remove it from the pop-up unit. - Page 17 How to install the QVac built-in vacuum sealer This will enable you to temporarily attach the base unit to the underside of the worktop and will make installation easier. Fig. 8.14 Remove the film from the base unit Fig. 8.17 Connect the vacuum hose and fix in place with the clips Push the base unit over the pop-up unit cylinder under the worktop.
-
Page 18: Initial Operation
How to install the QVac built-in vacuum sealer How to connect the power supply Connect the mains adapter to the base unit. Connect the mains adapter to the power grid. Fig. 8.20 How to connect the mains adapter Initial operation Function Test Press the round cover on the pop-up unit. -
Page 19: Decommissioning, Disassembly And Disposal
However, they also contain harmful substances that were necessary to make them work and ensure their safety. If placed in the household waste or handled incorrectly, they may harm human health and damage the environment. Never dispose of your old appliance in the household waste. bora.com... -
Page 20: Warranty, Technical Service, Full
Damage caused by repairs carried out by the owner, repairs or QVac vacuum bag set (5 × 0.6 L, 5 × 1.5 L, 5 × 2.1 L) QVACVBES attempts to repair carried out by staff not authorised by BORA or QVac type G power supply QVACNLG (UK, IE) companies not authorised by BORA . - Page 21 Notes Notes bora.com...
- Page 22 Notes bora.com...
- Page 23 Notes bora.com...
- Page 24 BORA Lüftungstechnik GmbH BORA Vertriebs GmbH & Co KG BORA Holding GmbH BORA APAC Pty Ltd Rosenheimer Str. 33 Innstraße 1 Innstraße 1 100 Victoria Road 83064 Raubling 6342 Niederndorf 6342 Niederndorf Drummoyne NSW 2047 Deutschland Österreich Austria Australia T +49 (0) 8035 / 9840-0...
