Summary of Contents for bora QVAC

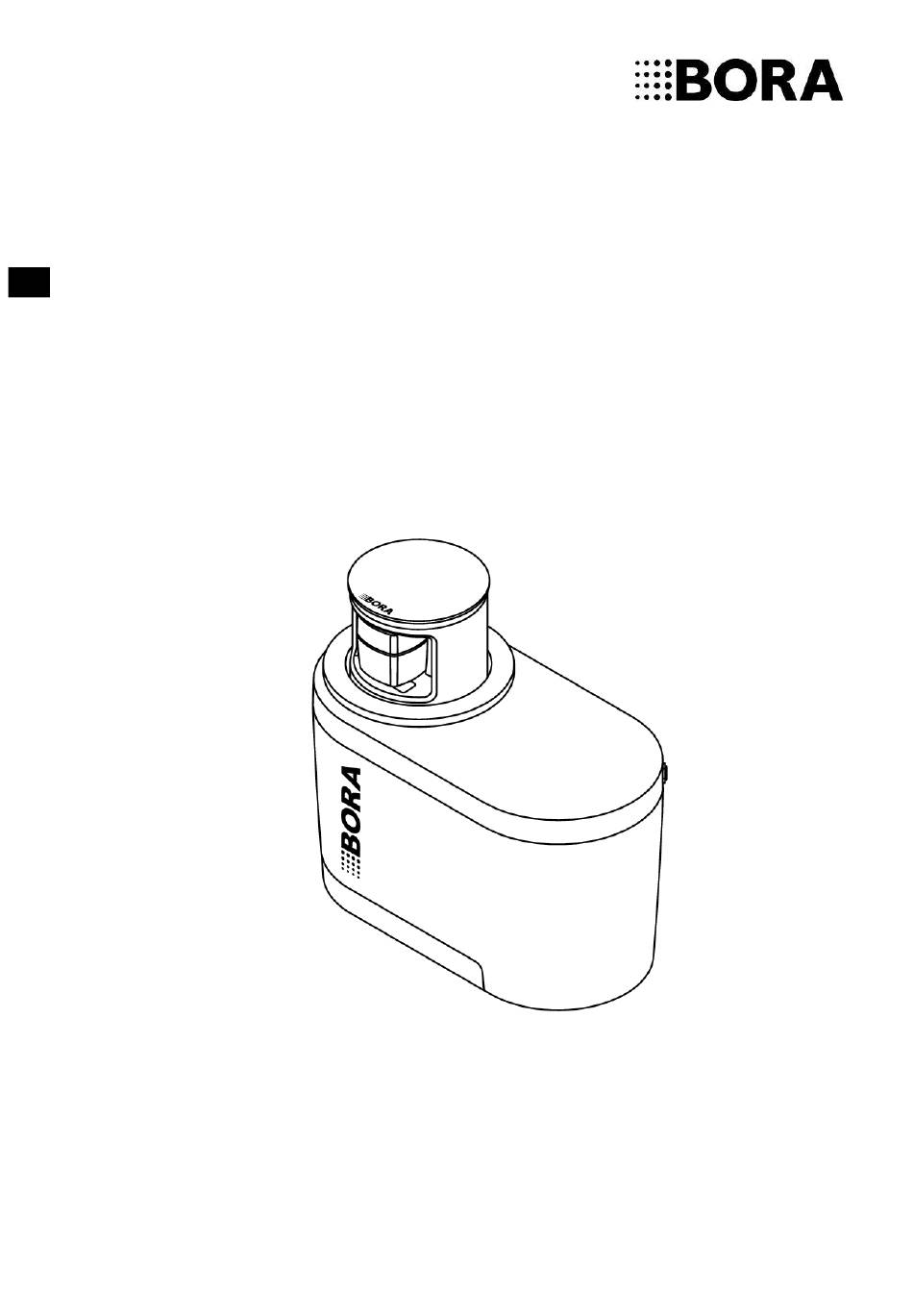

- Page 1 Operating and installation instructions QVAC UMIM-QVAC-01-EN bora.com...
-
Page 2: Table Of Contents
Safety information for installation ......5 Safety instructions – operation......... 5 Safety instructions – cleaning and maintenance ..6 Technical data QVac appliance dimensions ........7 Appliance description System description ............ 8 Functions and operation How to use the appliance .......... 9 How to use the vacuum bags ........ -
Page 3: Validity Of The Operating And Installation
Note Indicates a potentially hazardous . BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC situation which can cause property Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as damage if not respected. -
Page 4: Safety
Do not try to repair any damage to the appliance If the QVac built-in vacuum sealer is used as a freestanding appliance yourself. (that is, not built in), this is considered to be technically incorrect Contact the BORA Service Team. -
Page 5: Safety Information For Installation
“Troubleshooting” chapter. the section “Vacuum sealing and food safety” in In the event of any faults or errors that are not these instructions. mentioned, switch the appliance off and contact BORA Service. ö WARNING PLEASE NOTE Risk of food poisoning Improperly stored food may spoil. -
Page 6: Safety Instructions - Cleaning And Maintenance
Only use original BORA accessories. Only use clean vacuum bags, vacuum boxes and other accessories. Do not use damaged, brittle or worn accessories. -
Page 7: Technical Data
Dimensions (width x depth x height) 239 × 124 × 142 mm Weight (incl. accessories/ 3.48 kg packaging) Fig. 3.3 QVac side view Surface material stainless steel Vacuum hose extension length 400 mm Technical data for QVac Tab. 3.1 QVac appliance dimensions Fig. 3.1 QVac front view Fig. 3.2 QVac top view bora.com... -
Page 8: Appliance Description
Accessories during operation. These liquids are trapped and when the container is 1-litre vacuum box full, the appliance automatically switches off. Lid with seal QVac built-in vacuum sealer Valve and button to release the vacuum Marinating ring Grip seal Valve... -
Page 9: Functions And Operation
How to use the vacuum boxes The vacuuming process can be stopped at any time by pressing the corresponding function button. QVac vacuum boxes are perfect for storing liquids as well as dry or soft products (e.g. berries). How to use the vacuum bags The power setting must not be used for vacuum boxes. -
Page 10: How To Use The Vacuum Seal (Power Setting)
The power setting generates maximum suction power and is only intended for vacuum seals. The QVac vacuum seal can be used with conventional glass bottles or strong PET bottles with an opening diameter of 17 to 22 mm. Bottles made of other materials can be crushed by the force generated by the vacuum. -
Page 11: Cleaning And Maintenance
How to clean the vacuum boxes QVac vacuum boxes can be cleaned in the dishwasher (programmes up to 65 °C). The seal can also be taken out of the lid and cleaned with a mild cleaning product (e.g. warm water and washing-up liquid). -
Page 12: How To Remove Water From The Appliance
The drip tray can only be accessed from under the worktop where the appliance has been attached. Pull the drip tray out and empty it. Clean the drip tray and put it back in the housing. Fig. 6.5 How to pull out the drip tray bora.com... -
Page 13: Troubleshooting
Ensure that the moisture trap is clean and that the safety valve is not stuck. Contact the BORA Service Team. The appliance is not sucking air out of the The grip seal on the bag is not airtight or is faulty Check that the grip seal is closed properly. -
Page 14: Installation
Make sure the delivery is complete and check it for damage. The housing can be installed independently of the pop-up unit in any Immediately notify the BORA Service TeamTeam if parts are direction. This makes it easier to find a suitable place in the kitchen missing or damaged. -
Page 15: Cut-Out Dimensions
Carefully remove the vacuum hose and the 2 electrical connections from the base unit. Turn the mounting ring and remove it from the pop-up unit. Take the pop-up unit out of the base unit. Fig. 8.7 Flush installation rebate dimensions Fig. 8.11 Remove the connections bora.com... -
Page 16: Standard Installation
Connect the two electrical connections on the base unit. The white cable must be plugged in with the safety clip facing outwards. If the white cable is not correctly plugged in, the appliance will not work. Fig. 8.14 Remove the film from the base unit bora.com... -
Page 17: Initial Operation
The appliance will pop up and the control unit with the extendable suction head will be accessible. Pull out the suction head. Press the function button The vacuum process will begin. Hold the suction head in your palm or on a hard surface. bora.com... -
Page 18: Decommissioning, Disassembly And Disposal
However, they also contain harmful substances that were necessary to make them work and ensure their safety. If placed in the household waste or handled incorrectly, they may harm human health and damage the environment. Never dispose of your old appliance in the household waste. bora.com... -
Page 19: Bora Manufacturer's Warranty
QVac vacuum bag (2.1 litres) Damage to the following components: QVac vacuum bag set (5 × 0.6 litres/5 × 1.5 litres/5 × 2.1 litres) vacuum valve, drip tray, decorative ring and decorative cover, plastic parts and other wearable parts... - Page 20 BORA Lüftungstechnik GmbH BORA Vertriebs GmbH & Co KG BORA Holding GmbH BORA APAC Pty Ltd Rosenheimer Str. 33 Innstraße 1 Innstraße 1 100 Victoria Road 83064 Raubling 6342 Niederndorf 6342 Niederndorf Drummoyne NSW 2047 Deutschland Österreich Austria Australia T +49 (0) 8035 / 9840-0...
