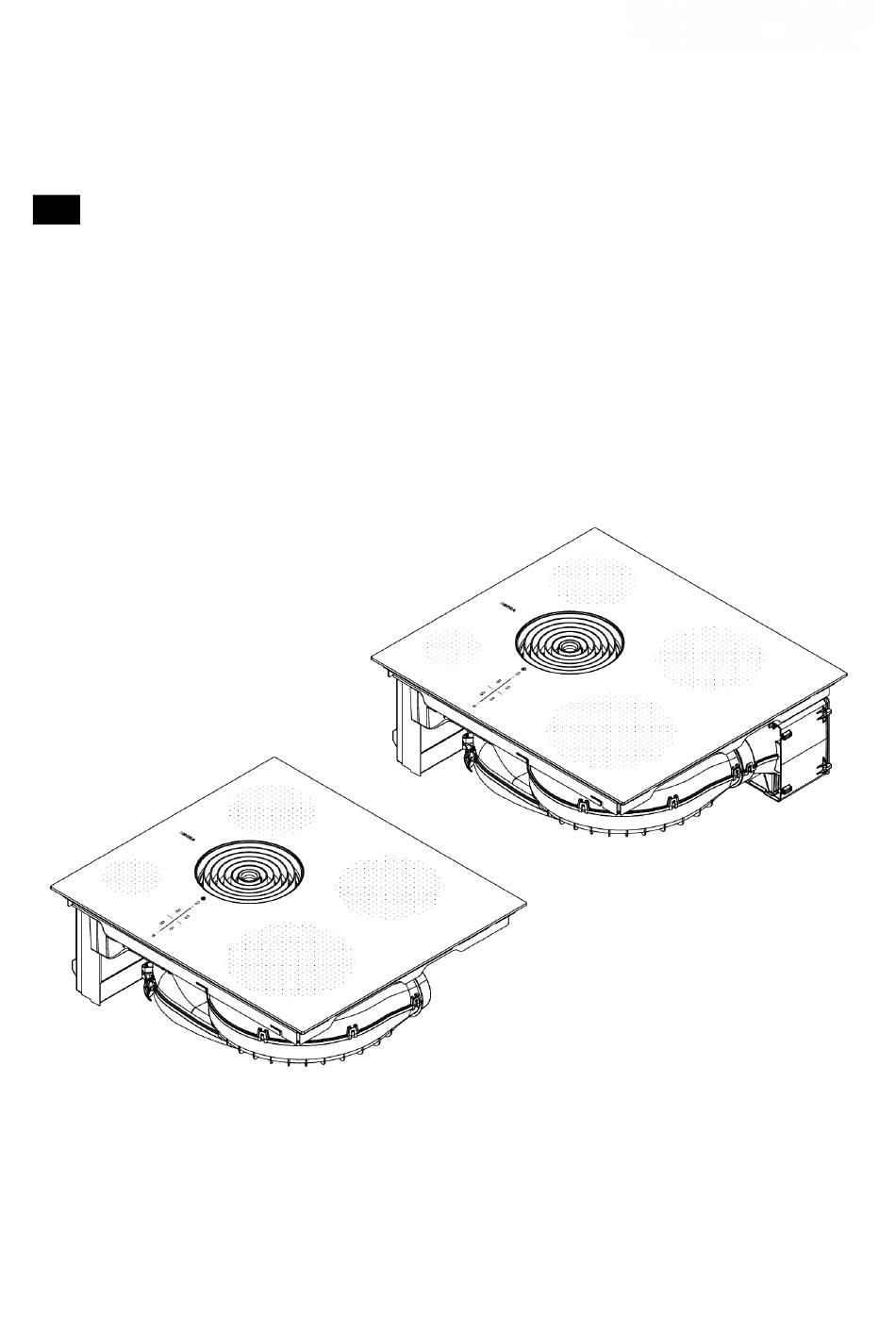

- Page 1 Operating and installation instructions S Pure 003284-10003...
-
Page 2: Table Of Contents
How the cooktop extractor works...107 Menu item 9: Safety shut-down..122 How the induction cooktop works ..108 6.10 Menu item A: Super simple mode..122 6.11 Menu item 0: Functions and operation General operating instructions ..110 Reset to factory settings....123 Touch control........110 bora.com... - Page 3 Energy data sheets exhaust air mode......134 12.1 Energy data sheet for PURSA...152 9.6.1 Preparing kitchen units for the 12.2 Energy data sheet for S Pure ...153 exhaust air model......134 9.6.2 Installation dimensions ..... 134 9.6.3 Preparing the cooktop....... 135 9.6.4 Inserting the cooktop ......
-
Page 4: General Information
The safety and warning instructions in this manual are emphasised with symbols and signal words. Safety and warning instructions are structured as follows: . BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH – ö... -
Page 5: Figures
Note Indicates a potentially hazardous situation which can cause property damage if not respected. Meaning of the warning symbols and signal Tab. 1.1 words 1.4.2 Figures All measurements are provided in millimetres. bora.com... -
Page 6: Safety
Any other use or any use that goes beyond that which is described here is classed as unintended. BORA does not assume any liability for damages caused by incorrect installation, improper use or incorrect operation. -
Page 7: General Safety Instructions
Only use stove guards and covers that are approved by the appliance manufacturer; otherwise, there is a risk of accidents. To choose a suitable stove guard, contact your specialist retailer or the BORA Service Team. General safety instructions ö DANGER Packaging components are a choking hazard Packaging components (e.g. - Page 8 Do not operate the appliance. Do not try to repair or replace damaged components yourself. Contact BORA Service. CAUTION Appliance components can cause injury if dropped Appliance components can cause injury if you drop them.
-
Page 9: Safety Information For Installation
In the case of faults and errors, follow the instructions in the “Troubleshooting” chapter. In the event of any faults or errors that are not mentioned, switch the appliance off and contact BORA Service. PLEASE NOTE Appliance damage caused by pets Pets may damage the appliance or injure themselves. - Page 10 Check the information on the identification plate and in the event of deviations, do not connect the appliance. Do not connect the appliance to the mains until the duct system has been installed or the recirculation filter has been fitted. Only use the connection cables supplied. bora.com...
-
Page 11: Safety Instructions - Cooktop Extractor Installation
Risk of injury due to turning fan wheel There is a risk of injury while the fan is turning. Only install the device with the power disconnected. Connect both sides of the fan to the duct system before commissioning. bora.com... -
Page 12: Safety Information For Cooktop Installation
Make sure that technical equipment is provided to enable all of the appliance’s poles to be disconnected from the mains with a contact opening width of at least 3 mm (circuit breaker and automatic circuit breakers, fuses, contactor). bora.com... -
Page 13: Safety Instructions - Operation
Risk of burns due to power cut During or after a power cut a cooktop that was previously in operation may still be hot. Do not touch the appliance while it is still hot. Keep children away from the hot appliance. bora.com... - Page 14 Make sure that the base of the cookware as well as the appliance surfaces are clean and dry. Always lift (do not drag) cookware to prevent scratching and abrasion on the appliance surface. Do not use the appliance as a storage surface. Always switch off the appliance after use. bora.com...
-
Page 15: Safety Instructions - Cooktop Extractor Operation
Small and light items, such as cleaning cloths made from material or paper, can be suctioned into the cooktop extractor. This can damage the fan or impair the exhaust performance. Do not store any items or paper on the cooktop extractor. Only operate the integrated cooktop extractor with the grease filter fitted. bora.com... -
Page 16: Safety Instructions - Cooktop Operation
Danger of explosion caused by flammable liquids Flammable liquids in the vicinity of a cooktop can explode and cause serious injury. Do not spray aerosols near the appliance when it is in use. Do not place any flammable liquids in the vicinity of a cooktop. bora.com... - Page 17 The cooking zones may affect pacemakers, hearing aids or metal implants negatively or disturb their function when in close proximity. If in doubt, contact the manufacturer of your medical device or your doctor. bora.com...
-
Page 18: Safety Instructions - Cleaning And Maintenance
Switch off the appliance and disconnect it from the mains before removing covers in the vicinity of the fan. PLEASE NOTE Appliance damage and malfunctions Soiled ventilation openings can lead to component damage and malfunctions. Keep all ventilation openings open and clean. bora.com... -
Page 19: Safety Instructions - Cleaning And Maintenance Of Cooktops
Incorrect components can lead to personal injury or damage to the appliance. Modifications, additions or alterations to the appliance can lead to safety risks. Only use original spare parts for repairs. Do not make any modifications, additions or alterations to the appliance. bora.com... -
Page 20: Safety Instructions - Disassembly And Disposal
Do not touch exposed contacts on the electronic unit as they may contain residual charge. ö DANGER Risk of electric shock from residual charge Electrical components in the appliance can contain residual charge and cause an electric shock. Do not touch any exposed contacts. bora.com... -
Page 21: Technical Data
Size of exhaust opening (W x H) 445 x 137 mm protection Activated charcoal filter service life 150 hrs (1 year) Two-phase power supply/fuse 2 x 16 A Technical data for S Pure protection Tab. 3.1 Single-phase power supply/fuse 1 x 32 A PURSA appliance dimensions protection... - Page 22 Technical data Fig. 3.3 PURSA side view PURSU appliance dimensions Fig. 3.4 PURSU top view Fig. 3.5 PURSU front view Fig. 3.6 PURSU side view bora.com...
-

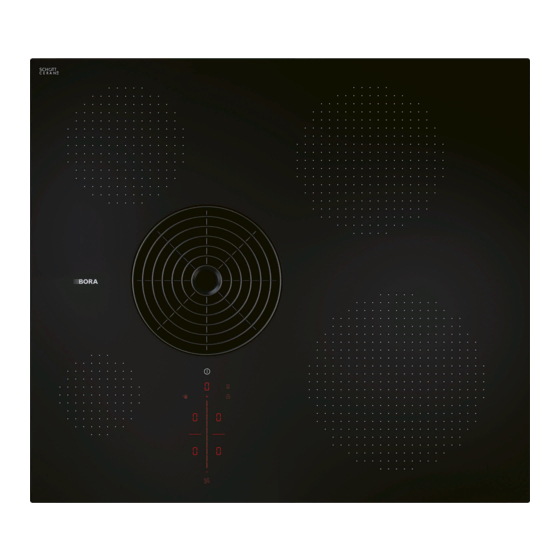

Page 23: Appliance Description
Observe all safety and warning information (see "2 Safety"). Model description Model Long description PURSA S Pure induction cooktop with integrated cooktop extractor – exhaust air PURSU S Pure induction cooktop with integrated cooktop extractor – recirculation Fig. 4.2 Rear view of PURSA Model description Tab. 4.1... -
Page 24: Symbols
[8] Heat retention function [9] Fan functions Timer button Setting the cooking zone timer [10] Cooking zone timer [11] Cleaning lock Warming button Heat retention function [12] Pause function activation/deactivation [13] Select fan/Call up menu Meaning of the symbols displayed (icons) Tab. 4.2 bora.com... -
Page 25: 7-Segment Display
If the exhaust air is to be directed into a smoke or exhaust gas flue that is not in use, the installation must be checked and approved by the responsible heating engineer. bora.com... -
Page 26: How The Induction Cooktop Works
Cooking zone Minimum cookware the cooking zone covered by the base of the pot is heated up. base diameter Observe the minimum pot base diameter. S Pure front left 70 mm rear left 80 mm Power levels The high power output of induction cooktops results in... - Page 27 The cooling fan switches on automatically if the cooktop is used intensively. You will hear a whirring sound. The cooling fan may continue to run after the appliance has been switched off. bora.com...
-
Page 28: Functions And Operation
0.3 s Long press Buttons + slider 1–8 s Swipe Slider 0.1–8 s Touch control Tab. 5.1 Function overview The S Pure cooktop with integrated cooktop extractor has the following functions: Global functions Electronic power adjustment Short-time timer (egg timer) bora.com... -
Page 29: Switching Off
Tap the short-time timer button The time flashes in the multi-function display above Long press on the lock button The operating panel display is dimmed. the slider in minutes ( The lock button lights up. The cooking zones in the display are dimmed. bora.com... -
Page 30: Cleaning Lock
The fan power levels can be adjusted in different ways: Deactivating the automatic extractor function: by tapping Swipe to a fan power level. adjustment using the slider by tapping a certain position on the slider tap the fan button bora.com... -
Page 31: Switching The Fan Off
The cooktop extractor after-run function is switched off. Do not simply rely on the pan size recognition function on induction cooktops; always switch BORA expressly recommends use of the the appliance off after use. cooktop extractor after-run function. 5.6.2 Selecting a cooking zone 5.5.6... -
Page 32: Setting Cooking Zone Power Levels
If the cooking zone power level is decreased appears in the cooking zone display. while the automatic heat up function is active, the automatic heat up function is deactivated. Deactivating the power setting the power setting is deactivated early if another power level is set. bora.com... -
Page 33: Cooking Zone Timer
The cooking zone timer is active and the time counts With the pause function all cooking zones can be down: quickly and easily deactivated temporarily. When the Tap the cooking zone function is cancelled, operation resumes at the original bora.com... -
Page 34: Heat Retention Function
(power level 0). The heat retention function is deactivated. Long press on the indicator . Selecting a power level also deactivates the heat The setting is saved and the operating panel switches retention function. to the standard display. bora.com... -
Page 35: Switching Off The Cooking Zone
(see "6.2 Menu item 2: Child lock") Hints and tips Deactivating the child lock for a cooking Coffee is ready too early: The filled water quantity is too low. session The set water quantity is to high. Long press on the lock button bora.com... -
Page 36: Residual Heat Indicator
Level 3 12:00 8:24 6:00 10:00 6:24 4:00 9:00 5:12 2:30 8:00 4:12 2:00 6:00 3:18 1:30 4:00 2:12 1:00 4:00 2:12 1:00 3:00 1:48 0:45 2:00 1:18 0:30 0:05 0:05 0:05 Safety shut-down on the different power Tab. 5.8 levels bora.com... -
Page 37: User Menu
Tap the top slider segment (1 long, 2 medium, 3 short) is displayed. Super simple mode Move to another menu item or close the menu. Reset to factory settings The child lock is permanently activated. User menu overview Tab. 6.1 bora.com... -
Page 38: Menu Item 3: Show Filter Status And Reset Filter Service Display
Move to another menu item or close the menu. brightness. The filter service indicator is no longer displayed when the cooktop extractor is switched on. Move to another menu item or close the menu. Fig. 6.4 Menu item 4: Duration of the automatic after- run function bora.com... -
Page 39: Touch Zone Reaction Speed
Tap the slider zone All indicators are displayed at 50 % brightness. Tap any indicator you wish. The selected indicator will be displayed at 100% brightness for one second. Any other indicators can be tested by touch as required. bora.com... -
Page 40: Show Software/Hardware Version
In super simple mode certain additional functions are deactivated and their indicators are faded out. Fig. 6.8 Menu item 8: Software/hardware version The following additional functions are deactivated in super simple mode: Cooking zone timer Short-time timer Cleaning lock Operating lock bora.com... -
Page 41: Reset To Factory Settings
Menu item 0: Reset to factory settings Menu item 0 enables all settings in the user menu to be reset to the factory settings. Resetting to factory settings Long press on the slider zone After resetting, the appliance is switched off. bora.com... -
Page 42: Cleaning And Maintenance
Remove stubborn residues of plastic, aluminium foil, and abrasion caused by the pot bases the sugar or sweet dishes from the hot cooking zone surface will become damaged and dark stains immediately using a glass ceramic scraper to prevent will occur. burning. bora.com... -
Page 43: Cleaning The Cooktop Extractor
Manual cleaning with your finger. Use a cleaner and degreaser in one. Pull the air inlet nozzle up and out. Rinse the components with hot water. Clean the components with a soft brush. Rinse the components well after cleaning. bora.com... -
Page 44: Fitting The Components
Clean the air guiding housing. To dry the activated charcoal filter and duct parts Fig. 7.3 Air guiding housing respectively, switch on the cooktop extractor at a minimum power level of 5. bora.com... -
Page 45: Replace The Activated Charcoal Filter
Take hold of the end of the activated charcoal filter You can obtain activated charcoal filters from and pull upwards and towards the left until it is your specialist supplier or from the BORA Shop completely out of the inlet opening. via the website at http://www.mybora.com. - Page 46 Inserting the activated charcoal filter through the vent opening Push the activated charcoal filter into the filter housing until it will go no further (to do this, you can place one finger between the slats and gradually push the filter into the housing). bora.com...
-
Page 47: Troubleshooting
Switch the automatic circuit breaker apartment and/or house is defective. back on. The fuse/automatic circuit breaker trips BORA Contact the Service Team. several times. The power supply is disconnected. Have a specialist electrician inspect the power supply. - Page 48 (recirculation only). charcoal filter" Troubleshooting Tab. 8.1 Faults and errors not covered: Switch off the appliance. Contact the BORA Service Team Team (see see "11 Warranty, technical service, spare parts, accessories") and enter the error number displayed and the appliance type. bora.com...
-
Page 49: Installation
In the event of overheating, the cooktop power is reduced or the appliance is switched off completely. If cable protection (false floor) is planned beneath the appliance, this must be fitted so it does not obstruct ventilation. bora.com... -
Page 50: Scope Of Delivery
Installation Immediately inform the BORA Service TeamTeam if parts are missing or damaged. Do not under any circumstances install parts which are damaged. Dispose of transport packaging in the proper manner (see "10 Decommissioning, disassembly and disposal"). Tools and aids Fig. 9.2 Exhaust air installation – correct... -
Page 51: Minimum Unit Dimensions For S Pure (Pursa, Pursu)
Installation 9.4.2 Minimum unit dimensions for 9.5.1 S Pure cut-out dimensions S Pure (PURSA, PURSU) S Pure surface mounting (PURSA, PURSU) 560 ± 2 Fig. 9.5 Cut-out dimensions for surface mounting Fig. 9.4 Minimum unit dimensions for S Pure screwdriver Worktop cut-out... -
Page 52: Installing The Appliance In Exhaust Air Mode
90° bends or 10 metres with two 90° bends can be installed. Not compatible with BORA Universal fans. Planning instructions for the installation of the exhaust air ducts are provided in the BORA planning guide. 9.6.1 Preparing kitchen units for... -
Page 53: Preparing The Cooktop
[4] Stainless steel grease filter [5] Worktop cut-out Fig. 9.10 Sealing tape in the case of surface mounting When aligning the cooktop, ensure that the holding [1] Black, heat-resistant silicone sealant clamps hold the cooktop in the worktop. [2] Sealing tape bora.com... -
Page 54: Connecting The Appliance To The Duct System
Height adjustment plates for flush installation Use only BORA Ecotube duct parts. (optional) Do not use flexible or fabric hoses. The height adjustment plates are self-adhesive to Pull the seal onto the exhaust opening on the prevent slipping during installation. -
Page 55: Installing The Appliance In Recirculation Mode
Decrease the height of the plinth panel or create No false floor is necessary below the cooktop. corresponding openings in the plinth. There must be a cut-out in the back panel. The cross-section of the return flow aperture must be ≥ 500 cm² for each cooktop extractor. bora.com... -
Page 56: Preparing The Kitchen Unit For Installation Variant A
No false floor is necessary below the cooktop. If cable protection (false floor) is planned, the following must be taken into account: it must be fitted in such a way that it can be removed for maintenance work. bora.com... -
Page 57: Installation Dimensions For Installation Variant A
Flush and surface mounting options must be taken into account when positioning the template. 125 mm from top edge of the cooktop to centre of cut-out. Fig. 9.20 Installation dimensions in the case of recirculated air, installation variant A Fig. 9.22 Template for back panel cut-out bora.com... -
Page 58: Preparing The Kitchen Unit For Installation Variant B
Before inserting the cooktop, remove the air inlet nozzle and the stainless steel grease filter. Remove the protective film from the adhesive tape Fig. 9.23 Installation dimensions for recirculation on the front of the telescopic pull-out. installation variant B, depth of worktop 600 mm bora.com... - Page 59 Inserting height adjustment plates When aligning the cooktop, ensure that the holding [1] Cooktop clamps hold the cooktop in the worktop. [2] Height adjustment plate Fig. 9.29 Height adjustment plates [1] Sealing tape [2] Height adjustment plate Fig. 9.27 Securing the cooktop bora.com...
-
Page 60: Making A Connection With The Back Panel In Installation Variant A
Activated charcoal filter [1] Activated charcoal filter [2] Grip strap Tilt the activated charcoal filter towards you slightly and insert it through the inlet opening. Guide the left end of the filter into the opening in the filter housing. bora.com... -
Page 61: Connecting The Power Supply
Switch off the main switch/automatic circuit breaker before connecting the cooktop. Secure the main switch/automatic circuit breaker against being switched back on without permission. Make sure the power to the appliance is disconnected. Fig. 9.35 Remove the filter replacement cover bora.com... - Page 62 Ensure that the cable is not trapped or damaged and is not able to come into contact with any hot areas Fig. 9.41 Electrical connections of the cooktop on the cooktop. Check that installation has been carried out [1] Power supply cover correctly. [2] Mounting eyes bora.com...
-
Page 63: Initial Operation
There are two operating modes to choose from: Below you will find explanations on how to use Operating mode : recirculation system (factory the menu and a description of the most setting) important menu items. Operating mode : exhaust air system bora.com... -
Page 64: Menu Item C: Power Management
3600 W 1 x 16 A mode. Power management Tab. 9.4 Select the corresponding operating mode (tap the corresponding segment on the slider ). Confirm and save the setting by moving to the next menu item (tap the multi-function display/indicator bora.com... -
Page 65: Function Test
Once all of the installation work is complete, seal the appliance with black, heat-resistant silicone sealant. Make sure that no silicone sealant gets under the cooktop. Fig. 9.47 Silicone sealant for surface mounting [1] Black, heat-resistant silicone sealant Fig. 9.48 Silicone sealant for flush installation [1] Black, heat-resistant silicone sealant bora.com... -
Page 66: Decommissioning, Disassembly And Disposal
Waste electrical and electronic appliances often still contain valuable materials. However, they also contain harmful substances that were necessary to make them work and ensure their safety. If placed in the household waste or handled incorrectly, they may harm human health and damage the environment. bora.com... - Page 67 Decommissioning, disassembly and disposal Never dispose of your old appliance in the household waste. Take the appliance to a regional collection point for the return and further processing of electrical and electronic components and other materials. bora.com...
-
Page 68: Warranty, Technical Service, Spare Parts, Accessories
11 Warranty, technical service, spare parts, accessories Observe all safety and warning information BORA will correct defects in BORA products at its own (see "2 Safety"). discretion by repairing or replacing the product. All costs for the correction of defects under the manufacturer’s warranty shall be assumed by... -
Page 69: Warranty Extension
11.3 Spare parts Only use original spare parts for repairs. Repairs may only be carried out by the BORA Service Team. Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. -
Page 70: 12 Energy Data Sheets
Energy data sheets 12 Energy data sheets 12.1 Energy data sheet for PURSA Product information according to Commission Delegated Regulation (EU) No. 65/2014 and Regulation (EU) No. 66/2014. Manufacturer BORA Model identification PURSA Symbol Value Unit Energy consumption Yearly power consumption 32.4... -
Page 71: Energy Data Sheet For S Pure
The sound pressure level has been determined from a distance of 1 m (distance-dependent level recording) on the basis of the sound power level established under EN 60704-2-13. 12.2 Energy data sheet for S Pure Product information according to Commission Delegated Regulation (EU) No. 65/2014 and Regulation (EU) No. 66/2014. Manufacturer... - Page 72 bora.com...
- Page 73 été mises en œuvre et que le contenu n’ait par conséquent pas encore été adapté. Nous vous prions de bien vouloir nous en excuser. Une version à jour peut être obtenue auprès de l’équipe du service technique de BORA. Sous réserve d’erreurs de contenu ou d’impression.
- Page 74 003284-10003 AU NZ BORA Lüftungstechnik GmbH BORA Vertriebs GmbH & Co KG BORA Holding GmbH BORA APAC Pty Ltd Rosenheimer Str. 33 Innstraße 1 Innstraße 1 100 Victoria Road 83064 Raubling 6342 Niederndorf 6342 Niederndorf Drummoyne NSW 2047 Deutschland Österreich...
