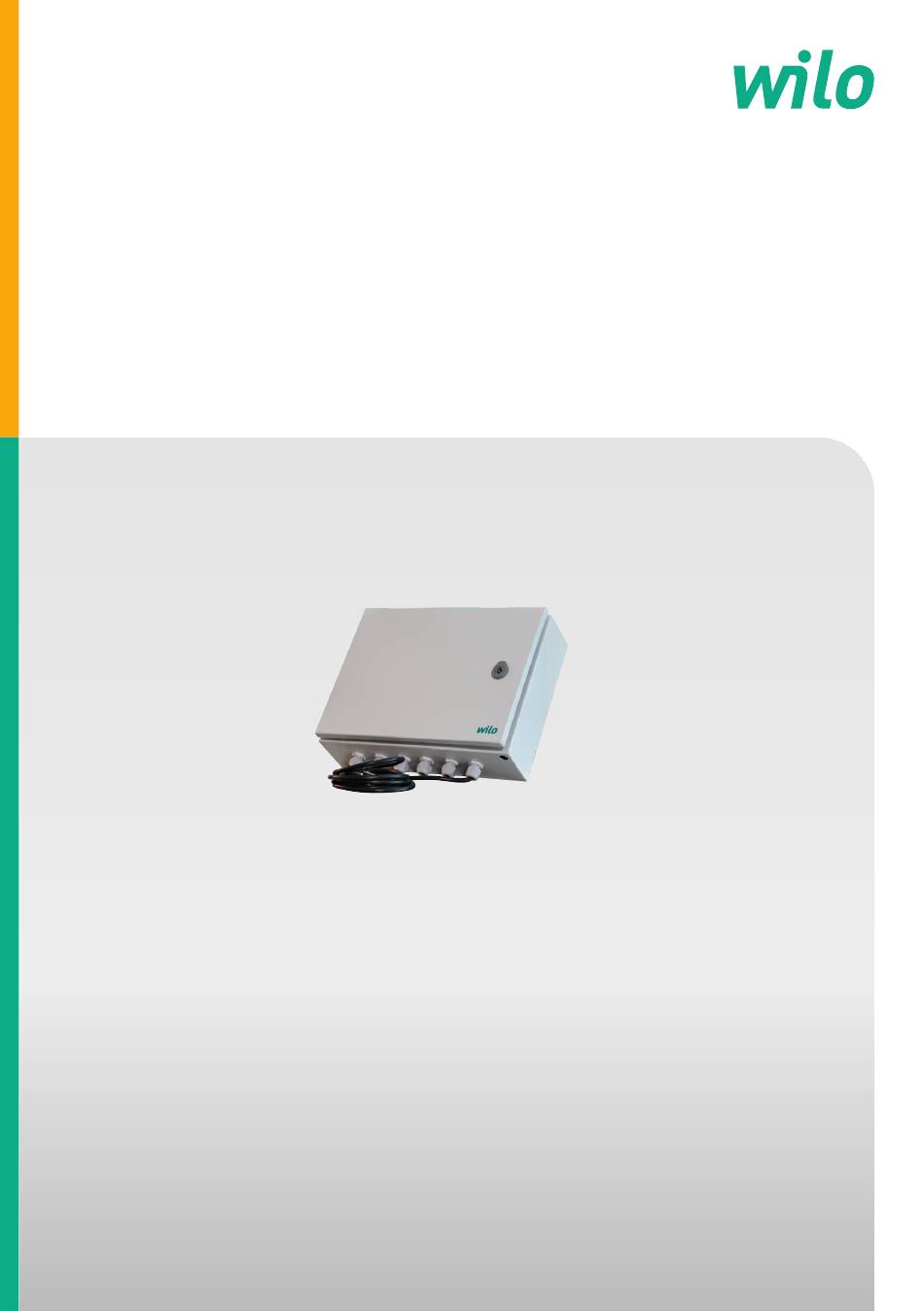

- Page 1 Pioneering for You Wilo-Monitor Hardware package A Installation and operating instructions 2240631 • Ed.01/2025-04...
-
Page 3: Table Of Contents
Transport ............ 9 Storage ............ 9 Installation............ 9 Installation types ........ 9 Operator responsibilities ...... 9 Installation .......... 10 Electrical connection....... 11 Commissioning.......... 13 Operator responsibilities ...... 13 Activating the device ...... 13 Shut-down............ 13 Personnel qualifications ...... 13 Operator responsibilities ...... 13 Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... -
Page 4: General
Adhere to protective measures specified in the current IT security requirements and applicable standards (e.g. setting up VPN for remote access). Wilo shall not be liable for damage to the product or damage caused by the product provided this comes as a result of the network connection or access to said network. -
Page 5: Safety
• Personnel have read and understood the installation and operating instructions. • Electrical work: qualified electrician Person with appropriate technical training, knowledge and experience who can identify and prevent elec- trical hazards. Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... -
Page 6: Electrical Work
The user must notify the person in charge of every fault or irregularity immediately. • In case of damage to the product or connection cable, switch off the product immediately. Maintenance tasks • Do not use any aggressive cleaners or scouring agents or fluids. Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... -
Page 7: Operator Responsibilities
18 years! Intended use and misuse Intended use The Wilo-Monitor hardware is used for remote monitoring of pumps and pump systems. Intended use also includes observance of these instructions. Any other use is regarded as non-compliant with the intended use. Misuse •... -
Page 8: Structure
The contacts are not potential-free and must be subjected to the 24V DC provided by the power supply unit. See also the description of the contacts in the Smart Gateway installation and operating instructions. Scope of delivery • Switchgear • Installation and operating instructions Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... -
Page 9: Transportation And Storage
The installation location is clean, dry, and free from vibrations and frost. • The installation location is flood-proof. • The switchgear is not exposed to direct sunlight. • Installation location outside the explosive atmosphere. Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... - Page 10 Check the switchgear for deformations! Housing cover must close exactly. Realign deformed switchgear (e.g. by placing alignment plates below it). NOTICE If the cover does not close correctly and unused cable inlets remain open, the IP protection class is compromised! Close the cover again. Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04...
-
Page 11: Electrical Connection
Insert the connection cables laid on-site through the threaded cable glands and secure. Connect the wires to the terminal strip according to the connection diagram. Mains connection 1~230 V: • Cable: 3-core • Wire: L, N, PE Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04... - Page 12 X3.1 In1 (Router Pin3) X3.2 In2 (Router Pin4) X3.3 In1 (Smart Gateway) X3.4 In2 (Smart Gateway) X4.1 RS485 A X4.2 RS485 B The aerial is connected to the socket Mobile- (Main) of the router. Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04...
-
Page 13: Commissioning
The switchgear is ready for operation. The initial configuration at the Smart Gateway can be performed via the LAN-1 interface with a direct connection to the notebook via the address: 192.168.10.1. → See Wilo- Smart Gateway installation and operating permit. -
Page 14: Decommissioning
Pull the shockproof plug out of the socket to shut the device down. The settings are stored retentively in the Wilo-Smart Gateway and router and are not deleted. This ensures that the switchgear is always ready for op- eration. Adhere to the following points during the standstill period: •... -
Page 15: Maintenance Intervals
Do not use any aggressive or scouring cleaners or fluids! Have electro-mechanical components checked for wear by a qualified electrician. If wear is ascertained, have the affected components replaced by an electrician or by the Wilo Customer Ser- vice. During a general overhaul, check all of the components, wiring and the housing for wear. Replace defective or worn components. - Page 16 Subject to change without prior notice! Installation and operating instructions • Wilo-Monitor • Ed.01/2025-04...
- Page 20 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
