YUAN High-Tech HD2SDI-S User Manual

Hdmi to sdi converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
HD2SDI-S
BOX
User Manual
Ver. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD2SDI-S and is the answer not in the manual?

Questions and answers

Related Manuals for YUAN High-Tech HD2SDI-S

Summary of Contents for YUAN High-Tech HD2SDI-S

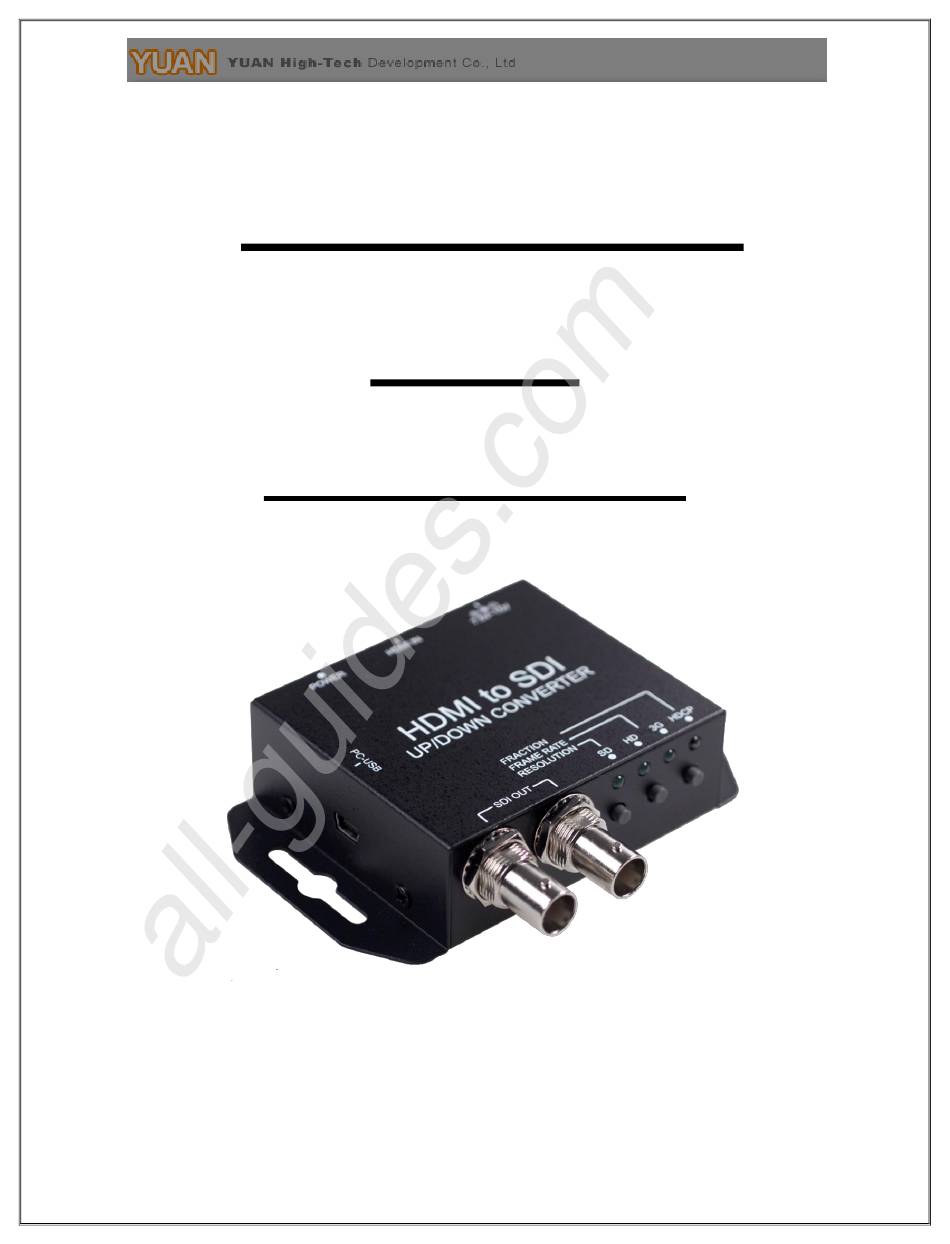

  • Page 1 All manuals and user guides at all-guides.com HD2SDI-S User Manual Ver. 1.1...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Content Feature ................... 3 Front Panel ................4 Rear Panel ................4 Side Panel ................5 Button/LED Indicate ..............6 Installation ................9 Package Contents ............... 9 Specifications ................10 Firmware Upload ..............12 Update List ................

  • Page 3: Feature

    All manuals and user guides at all-guides.com Feature  SDI Supports HD formats :  720p50 & 60  1080i50 & 60  1080p24, 25, 30, 50 & 60  SDI Support 525i & 625i SD D1 format  Auto 3G/HD/SD-SDI detection ...

  • Page 4: Front Panel

    All manuals and user guides at all-guides.com Front Panel Component Function From your SDI Display Device plug into SDI Output Port these ports ( Pass Through) The LEDs is indicate Output Format LEDs indicate (SD/HD/3G/HDCP) Mode Buttons Select Format/TV Wall/TV Ratio Rear Panel Component Function...

  • Page 5: Side Panel

    All manuals and user guides at all-guides.com Side Panel Component Function Upgrade Firmware/Control Box by USB Connector...

  • Page 6: Button/Led Indicate

    All manuals and user guides at all-guides.com Button/LED Indicate 1. Switch Format: Chick the button 1, the box will be setting to Output Format Mode and change Frame Rate by button 2 and 3. FRAME RATE FRACTION By Pass 720x480 B -59.94i (BT.656) C- 59.94i (CEA-861) 720x576...

  • Page 7: Func Button

    All manuals and user guides at all-guides.com : LED OFF ○ 2. Aspect Ratio Mode: Check the button 3 , the box will be seting to Aspect Ratio Mode Mode Display 16:9 (Default) (dot by dot) 3. Function Button Mode: Hold on the button 3 until show the Func button Mode FUNC BUTTON UN-LOCK...

  • Page 8: Firmware Version

    All manuals and user guides at all-guides.com 4. LED Mode: a. Output Mode: Resolution SD LED HD LED 3G LED HDCP LED ● ○ ○ ○ NTSC / PAL 720p / 1080i / ○ ● ○ ○ 1080 [24p, 25p, 30p] ○...

  • Page 9: Installation

    2. Connect Video Source (HDMI) to the HDMI Connector. 3. Connect SDI Equipment to the BNCs connector 4. Connect the +12DC adaptor to the converter. Package Contents The HD2SDI-S package contains the following items:  User Manual x 1 ...

  • Page 10: Specifications

    All manuals and user guides at all-guides.com Specifications DESCRIPTION SDI Format SD-SDI, HD-SDI & 3G-SDI SDI Transition Rate 2.970Gb/s, 1.485Gb/s and 270Mb/s Audio Support Stereo 2-Channel Audio Sample Auto Ra-sample to 48Khz (For Stereo) RG6/RG59(75Ω) Coaxial Cable Type 3G: 120m of RG6/ 100m of RG59 HD: 200m of RG6/ 140m of RG59...
  • Page 11 All manuals and user guides at all-guides.com  Support CEA-861/VESA Format 720x480i60 720x576i50 720x480 p60 720x576 p50 1280x720p60 1280x720p50 1920x1080i60 1920x1080i50 1920x1080p24 1920x1080p25 1920x1080p30 1920x1080p60 1920x1080p50 640x350p85 640x400p85 720x400p85 640x480p60 640x480p72 640x480p75 640x480p85 800x600p56 800x600p60 800x600p72 800x600p75 800x600p85 848x480p60 1024x768p50 1024x768p59 1024x768p60 1024x768p70...

  • Page 12: Firmware Upload

    All manuals and user guides at all-guides.com Firmware Upload  Firmware is upgradable in the field using the integrated USB port How to Firmware upgrade: Step 1. Open Upload Firmware Program tools.exe and connect box to PC by USB Cable. Step 2.
  • Page 13 All manuals and user guides at all-guides.com Step 3. Plug and un-plug “DC adapter” again (the connection check status will be changed to “Connected”) and Please click the Open File button to select the firmware bin file. Step 4. Please click “Start’ Button to proceed with new firmware programming. The PASS message will appear when the procedures finished.

  • Page 14: Update List

    All manuals and user guides at all-guides.com Update List Data Version Command 2013.12.02 V1.0 1. Release 2015.03.20 V1.1 1. Change Box Pic...
