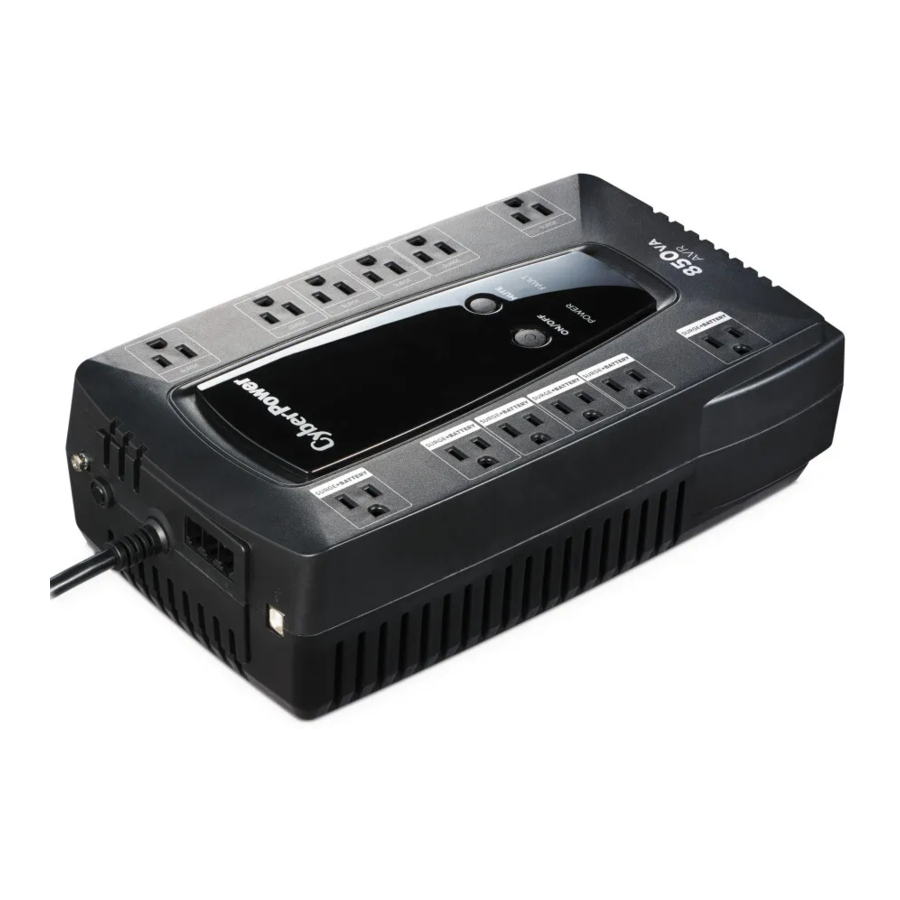

CyberPower LE850G, LE1000DG, Standby UPS Series Manual

FEATURES

1. Battery and Surge Protected Outlets
2. Full-Time Surge Protection Outlets
3. Power Switch
4. Power On Indicator
5. Mute Button (LE850G)
6. Fault Indicator (LE850G)
7. Mode Switch (LE1000DG)
8. LCD Module Display (LE1000DG)
9. USB Port
10. Communication Protection Ports
11. Circuit Breaker
12. Ground Screw
13. Outlets Designed for AC Adapters

INSTALLING YOUR UPS SYSTEM

UNPACKING

Inspect the UPS upon receipt.
The box should contain the following:

1. UPS unit
2. User's manual
3. USB device cable

PowerPanel^® software is available on our website. Please visit www.cyberpowersystems.com and go to the Software Section for a free download.

AUTOMATIC VOLTAGE REGULATOR

The LE850G/LE1000DG stabilizes inconsistent utility power to nominal levels that are safe for equipment. Unstable utility power can be damaging to important data and hardware. With Automatic Voltage Regulation (AVR), damaging voltage levels are corrected to safe levels. AVR automatically increases low utility power to a consistent and safe 110/120 volts.

DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT

1. Ensure that the equipment plugged into the UPS does not exceed the UPS unit's rated capacity. If the rated capacities of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.
2. There are many factors that can affect the amount of power that your electronic equipment will require. For optimal system performance keep the load below 80% of the unit's rated capacity.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, after receiving a new UPS, to ensure the battery's maximum charge capacity, it is recommended that you charge the battery for at least 8 hours. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the battery will automatically charge whether the UPS is turned on or turned of.
2. With the UPS unit turned of and unplugged, connect your equipment requiring battery backup into the battery power supplied outlets. Plug the other peripheral equipment (printer, scanner, speakers) into the full-time surge protection outlets. DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical device into the "Battery and Surge Protected Outlets". The power demands of these devices will overload and possibly damage the unit.

3. Plug the UPS into a 2-pole, 3-wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc.). The warranty prohibits the use of extension cords, outlet strips, and surge strips.
4. Press the power switch to turn the unit on. The Power On indicator light will illuminate green and the unit will "beep" twice.
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS of and unplug at least one piece of equipment from the battery power supplied outlets. Make sure the circuit breaker is depressed and then turn the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store the UPS for an extended period of time, cover it and store with the battery fully charged. While in storage, recharge the battery every three months to ensure optimal battery life.
8. Ensure the wall outlet and UPS are located near the equipment being attached for proper accessibility.
9. Lay the UPS horizontally or use the keyhole mounting slots to affix the UPS to the wall in the proper orientation. DO NOT stand the UPS up vertically.

SYSTEM FUNCTION BLOCK DIAGRAM

BASIC OPERATION

1. Battery and Surge Protected Outlets
   The unit has six battery powered and surge protected outlets to ensure temporary uninterrupted operation of your equipment during a power failure. (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump pump, or other large electrical device into the "Battery and Surge Protected Outlets." The power demands of these devices will overload and possibly damage the unit.)
2. Full-Time Surge Protection Outlets
   The unit has six surge suppression outlets.
3. Power Switch
   Used as the master on/of switch for equipment connected to the battery power supplied outlets. To turn the UPS ON, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release after a short beep. To turn the UPS OFF, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release after two short beeps.
   Alarm setting (LE1000DG): The audible alarm can be turned Of or On by quickly pressing the POWER button twice. The default setting is for the Alarm On. To turn the Alarm Of, quickly press the power button twice. You will hear two short beeps when the Alarm is turned Of. To turn the Alarm back On, quickly press the power button twice. You will hear a single short beep when the Alarm is turned On. *When the Alarm is turned Of, there will be no audible notification when the UPS reaches a low battery state.
4. Power On Indicator
   This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and spikes.
5. Mute Button (LE850G)
   Press the button for 2 seconds to enable the audible alarm (beeps once) or disable (beeps twice) the audible alarm.
6. Fault Indicator (LE850G)
   This LED is illuminated if there is a problem with the UPS.
7. Mode Switch (LE1000DG)
   Press the Mode Switch for approximately 3 seconds to enter setup mode to select three functions: Utility High Voltage Range, Utility Low Voltage Range, and LCD sleep ON/OFF. When a function is selected, press Mode Switch for 3 seconds to view options. When an option is selected, wait for 8 seconds for the setting to be confirmed. After the setting has been confirmed the LCD screen will leave setup mode and go back to status display. If there is no action for 8 seconds during setup, the LCD will also leave setup mode and go back to the status display.
   1. Utility High Voltage Range:
      Adjust the value of high voltage range.
   2. Utility Low Voltage Range:
      Adjust the value of low voltage range.
   3. LCD: L1/L0 (ON/OFF):
      • When LCD is set to L1, LCD will be always ON. When LCD is set to L0, LCD will dim if untouched for 1 minute.
      • In battery mode, LCD is always on regardless if the setting is L1 or L0.
8. LCD module display (LE1000DG)
   LCD display shows all the UPS information using icons and messages. For more information please review the "Definitions for Illuminated LCD Indicators" section.
9. USB Port
   The USB port allows connection and communication between the USB port on the computer and the UPS unit.
10. Communication Protection Ports
    Communication protection ports will protect any standard modem, fax, or telephone line. (RJ11)
11. Circuit Breaker
    Located on the side of the UPS, the circuit breaker provides overload and fault protection.
12. Ground Screw
    The ground screw is used for any equipment that needs a chassis ground connection.
13. Outlets Designed for AC Adapters
    The UPS unit has four widely-spaced outlets. AC power adapters can be plugged into the UPS without overlapping or blocking adjacent outlets.

REPLACING THE BATTERY

Replacement of batteries located in an OPERATOR ACCESS AREA

1. When replacing batteries, replace with the same number of the following battery: CyberPower/RB1270B for LE850G; CyberPower/RB1290A for LE1000DG.
2.
   Risk of Energy Hazard, 24 V, maximum 9 Ampere-hour battery. Before replacing batteries, remove conductive jewelry such as chains, wrist watches, and rings. High energy conducted through these materials could cause severe burns.
3.
   Do not dispose of batteries in a fre. The batteries may explode
4.
   Do not open or mutilate batteries. Released material is harmful to the skin and eyes. It may be toxic.
5.
   A battery can present a risk of electrical shock and high short circuit current. The following precautions should be observed when working on batteries:
   1. Remove watches rings, or other metal objects.
   2. Use tools with insulated handles.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATIONS

BATTERY REPLACEMENT PROCEDURE

1. Turn of and unplug all connected equipment.
2. Unplug it from the AC power source.
3. Turn the UPS upside down.
4. Remove the 1 retaining screw.
5. Slide the battery compartment cover completely of of the unit.
6. Remove the battery from the compartment.
7. Disconnect the battery wires from the battery.
8. Install the replacement battery by connecting the red wire and black wire to the positive (+) and negative (-) terminal of the battery.
9. Put the battery back into the compartment.
10. Slide back the battery compartment cover and tighten the retaining screw.
11. Charge the unit for 8 hours to fully charge the battery.

REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell lead-acid batteries collect used batteries for recycling, as required by local regulations.

TROUBLESHOOTING

Additional troubleshooting information can be found at "Support" at www.CyberPowerSystems.com

DEFINITIONS FOR LED INDICATORS & AUDIBLE ALARMS

POWER	FAULT (LE850G)	ALARM	CONDITION
On	Of	Of	Normal
On*	Of	Beep twice every 30 seconds	Utility Failure - The UPS is providing power to battery power-supplied outlets from its battery.
On*	Of	Rapid beeping every 1/2 second	Utility Failure - The UPS is providing battery power. Rapid beeping indicates the unit will run out of power soon
On/Of	Flash once every 5 seconds	Constant tone	Battery Mode or AC/Utility Power Mode Overload Fault - Occurs when connected equipment exceeds the rating of battery outlets of the unit. Please unplug at least one piece of equipment from battery outlets.
Of	Flash once every 5 seconds	Constant tone	Battery Output Short Fault - Please unplug at least one piece of equipment from battery outlets and turn on the UPS again. If the fault still exists, please contact CyberPower Systems for support.
On	Flash 3 times every 5 seconds	Constant tone	Charger Fault - Contact CyberPower Systems for support.

* The Power On LED will fash when UPS alarm is beeping.

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

INPUT Voltage Meter:
This meter measures the AC voltage that the UPS system is receiving from the utility wall outlet. The UPS is designed to continuously supply connected equipment with stable output voltage. In the event of a complete power loss, severe brownout, or over-voltage, the UPS relies on its internal battery to supply consistent 110/120 output voltage. The INPUT voltage meter can be used as a diagnostic tool to identify poor-quality input power.

OUTPUT Voltage Meter:
This meter measures, in real time, the AC voltage that the UPS system is providing to the computer during normal AC/Utility Power mode, and battery backup mode.

ESTIMATED RUNTIME:
This displays the run time estimate of the UPS with the current battery capacity and load.

NORMAL Icon:
This icon appears when the UPS is working under normal conditions.

BATTERY Icon:
During a severe brownout or blackout, this icon appears and an alarm sounds (two short beeps followed by a pause) to indicate the UPS is operating from its internal batteries. During a prolonged brownout or blackout, the alarm will sound continuously to indicate the UPS's batteries are nearly out of power. You should save fles and turn of your equipment immediately or allow the software to shut the system down.

OVER LOAD Icon:
This icon appears and an alarm sounds to indicate the battery-supplied outlets are overloaded. To clear the overload, unplug some of your equipment from the battery supplied outlets until the icon turns of and the alarm stops.

BATT. CAPACITY Meter:
This meter displays the approximate charge level of the UPS's internal battery in 20% increments. During a blackout or severe brownout, the UPS switches to battery power (the BATTERY icon appears) and the battery charge level decreases.

LOAD CAPACITY Meter:
This meter displays the approximate output load level of the UPS battery outlets in 20% increments.

FAULT:
The following number appears if there is a problem with the UPS. Press the POWER button to turn the UPS of.
E22: Battery Mode or AC/Utility Power Mode Overload fault (Unplug at least one piece of equipment from battery outlets and turn the UPS on again.)
E21: Battery Output Short fault (Unplug at least one piece of equipment from battery outlets and turn the UPS on again.)
E01: Charger Fault (Contact CyberPower Systems for support)
E24: Internal Fault (Contact CyberPower Systems for support)

TECHNICAL SPECIFICATIONS

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY

Advanced Energy-Saving Design
The GreenPower UPS™ has a high-efciency charger, which makes it the most energy-efcient UPS in its class. The advanced high-frequency charging system signifcantly improves charging efciency and conserves energy. As a result of this advanced design, the GreenPower UPS™ uses less energy compared to competitive models. The GreenPower UPS™ is manufactured in accordance with the Restriction on Hazardous Substances (RoHS) directive making it one of the most environmentally-friendly UPS systems on the market today.

IMPORTANT SAFETY WARNINGS

This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.

To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (Please see specifcations for acceptable temperature and humidity range).

To reduce the risk of electric shock, do not remove the cover. There are no user- serviceable parts inside.

Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.

The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the unit.

To avoid electric shock, turn off the unit and unplug it from the AC power source before connecting equipment to the unit.

To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current protection in accordance with the National Electric Code, ANSI/NFPA 70.

Not for use in a computer room as defned in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Do not dispose of batteries in a fre. The batteries may explode.

Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.

DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would afect operation and safety of life support equipment, any medical applications or patient care.

DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock, do not use with or near an aquarium.
Condensation from the aquarium can cause the unit to short out.

DO NOT USE THE UPS ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do not use the unit on any transportation such as airplanes or ships. The efect of shock or vibration caused during transit and the damp environment can cause the unit to short out.

PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration.
Registration certifes your product's warranty, confrms your ownership in the event of a product loss or theft, and entitles you to free technical support. Register your product now to receive the benefts of CyberPower ownership.

Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400
Shakopee, MN 55379
CyberPowerSystems.com
