Summary of Contents for Draper 55375

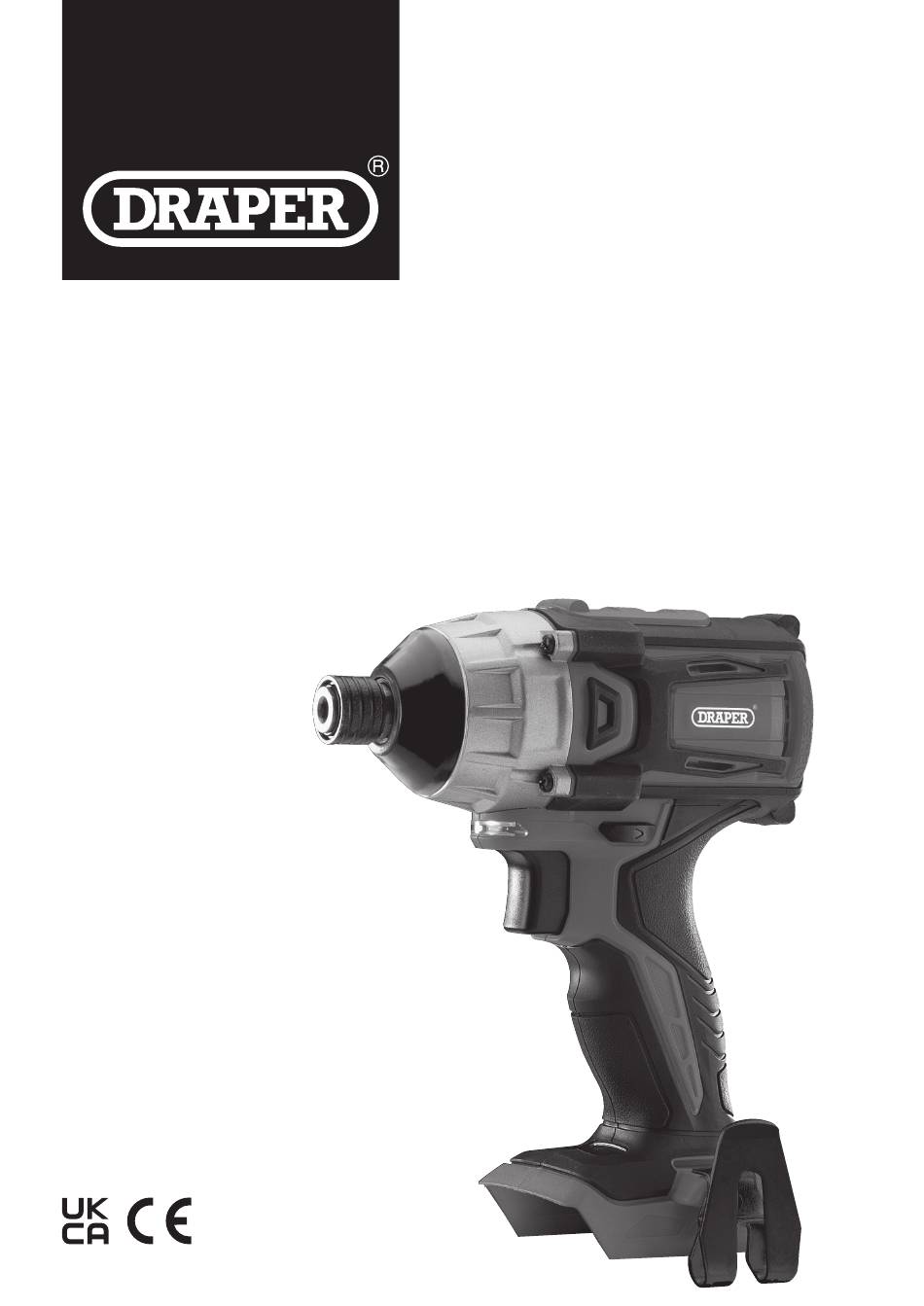

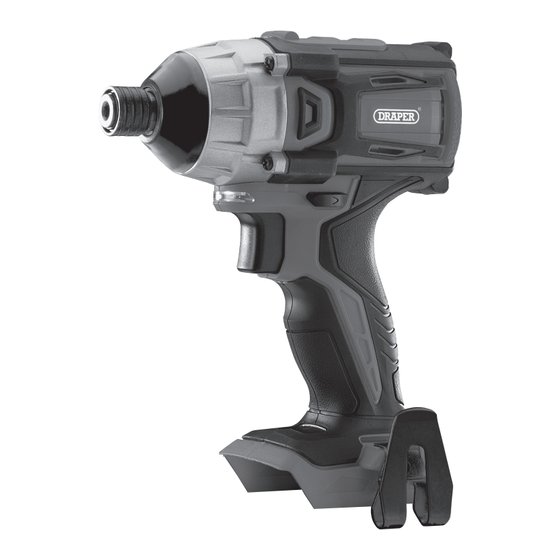

- Page 1 Original Instructions Version 4 – May 2025 20V BRUSHLESS 1/4" HEX. IMPACT DRIVER 55375 & 86958...
-
Page 2: Product Reference
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 General Power Tool Safety Warnings 4.2 Additional Safety Warnings for Impact Drivers 4.3 ... -
Page 4: Product Introduction
Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. -
Page 5: Health And Safety Information
4. Health and Safety Information 4.1 General Power Tool Safety Warnings • When operating a power tool outdoors, use an extension cord suitable for outdoor use. WARNING! Read all safety warnings, − Use of a cord suitable for outdoor use reduces the ... - Page 6 4. Health and Safety Information • DO NOT let familiarity gained from frequent use of Service tools allow you to become complacent and ignore • Have your power tool serviced by a qualified repair tool safety principles. person using only identical replacement parts. −...
-
Page 7: Additional Safety Warnings For Impact Drivers
The battery may degrade at high temperatures. mains socket outlet that is not switched. • Charge battery in conditions between 5°C to 30°C • Use the correct Draper charger in conjunction with its with the designated charger for the battery. corresponding battery pack (Visit drapertools.com for more information). -
Page 8: Connection To The Power Supply (Charger)
If the power supply cord is damaged, it must be replaced by Draper Tools, an authorised service agent or similarly qualified personnel in order to avoid a hazard. The damaged or incomplete plug, when cut from the cord, shall be disabled to prevent connection to a live electrical outlet. -
Page 9: Identification And Unpacking
Please examine it for any signs of damage that may have contact the Draper Helpline; contact details can be occurred during shipment. If any part is damaged or found at the back of this manual. -
Page 10: Preparation Instructions
2. Plug in the charger (9) and the red LED (9.1) light • This power tool is either supplied; will illuminate. ‘Bare’ (55375) without battery pack or charger. ‘Kit’ (86958) with charger and battery packs. 3. Slide the battery into the charger (the battery is designed to fit into the charger one way only). -
Page 11: Battery Pack Charge Status
6.2 Battery Pack Charge Status 6.3 Battery Pack Protection Features • Overcharging protection: This ensures that the battery pack can never be overcharged. When the battery pack reaches full charge capacity, the charger will automatically shut off, protecting the internal components from being damaged. • Over-discharging protection: This stops the battery pack from discharging beyond the recommended lowest safety voltage. -
Page 12: Operating Instructions
7. Operating Instructions 7.2 Rotational Drive Selection Important: Before operating this product, read and understand all the safety instructions listed in this manual. Note: • This tool is equipped with an electric brake. • NEVER use any bits or accessories that are not hardened for impact use. -
Page 13: Variable Speed Trigger
7.3 Variable Speed Trigger 7.5 Worklight Fig. 7 Fig. 9 • Press and hold the trigger (3) to start the driver. • Use in confined and poorly lit spaces. • The speed will increase depending on how far the • The light (2) will come on automatically when the trigger is pressed in. -
Page 14: Maintenance And Troubleshooting
Battery or charger malfunctioning. Allow temperature of battery to normalise (5 to 30°C). (0.2 second If still faulty contact Draper Tools for advice. intervals). 9. Disposal Battery Pack disposal At the end of its working life, dispose of the product responsibly and in line with local regulations. -
Page 15: Warranty
10. Warranty 36 months extended warranty registration required - Visit drapertools.com/warranty for more information. 11. Explanation of Symbols For indoor use only; Read the instruction manual do not expose to rain 130° Warning! Fuse protective device Polarity indication Do not incinerate or throw onto fire Class II construction Do not abandon in the environment (Double insulated) -
Page 16: Contact Details
Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
