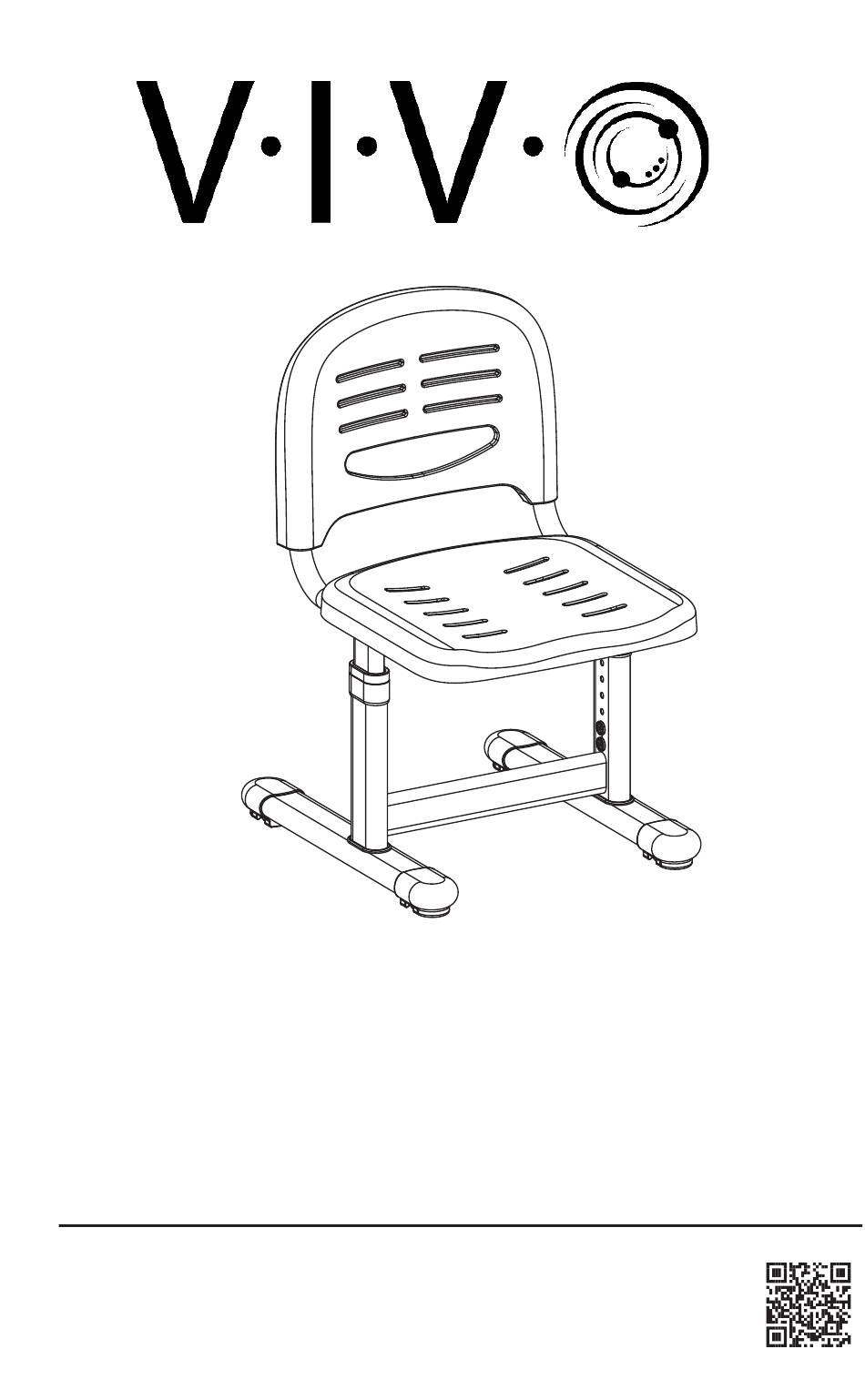

- Page 1 Kids’ Height Adjustable Chair SKU: DESK-V201B-CH/G/P Instruction Manual Assembly Video & Product Info https://vivo-us.com/products/desk-v201b-ch...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents D (x1) A (x1) B (x2) C (x1) Left Support Chair Leg Foot Right Support G (x1) E (x1) F (x1) Seat Back Straight Seat Bottom Support Included Hardware & Tools S-A (x4) S-B (x10) S-C (x4) S-D (x4) M6 Lock Washer M6x20mm Screw Plastic Washer...
- Page 4 ASSEMBLY STEPS STEP 1 Place Chair Leg (A) into Feet (B). Secure Feet to Chair Leg using M6x20mm Screws (S-B), Metal Lock Washers (S-A), and 4mm Allen Wrench (T-A). S-A (x4) S-B (x4)
- Page 5 STEP 2 Secure the Right Support (C) uptop the right side of Chair Leg (A) using M6x20mm Screws (S-B), Plastic Washers (S-C), and 4mm Allen Wrench (T-A). S-C (x2) Assembly Note: Vertical Section of Right Support should overhang the long portion of Foot. S-B (x2) Slide Straight Support (E) into Left and Right Support (C,D).
- Page 6 STEP 3 Place Seat Bottom (F) over Right and Left Supports (C,D). Secure using ST4.8x25mm Screws (S-D) and a Phillips screwdriver. S-D (x4) Slide the Seat Back (G) onto the Right and Left Supports (C,D).
- Page 7 STEP 4 Secure the Seat Back (G) to the Right and Left Supports (C,D) using M6x20mm Screws (S-B) and 4mm Allen Wrench (T-A). If needed, chair can be leveled using pads on Feet (B). S-B (x2) ADJUSTING CHAIR & DESK HEIGHT To adjust the chair height, remove the 4 pre-installed screws on Chair Legs (A) using the 4mm Allen Wrench (T-A).
- Page 8 LAST UPDATED: 10/24/2023 REV2L DESK-V201B-CH v2.2 DESK-V201G-CH v4.2 DESK-V201P-CH v2.2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
