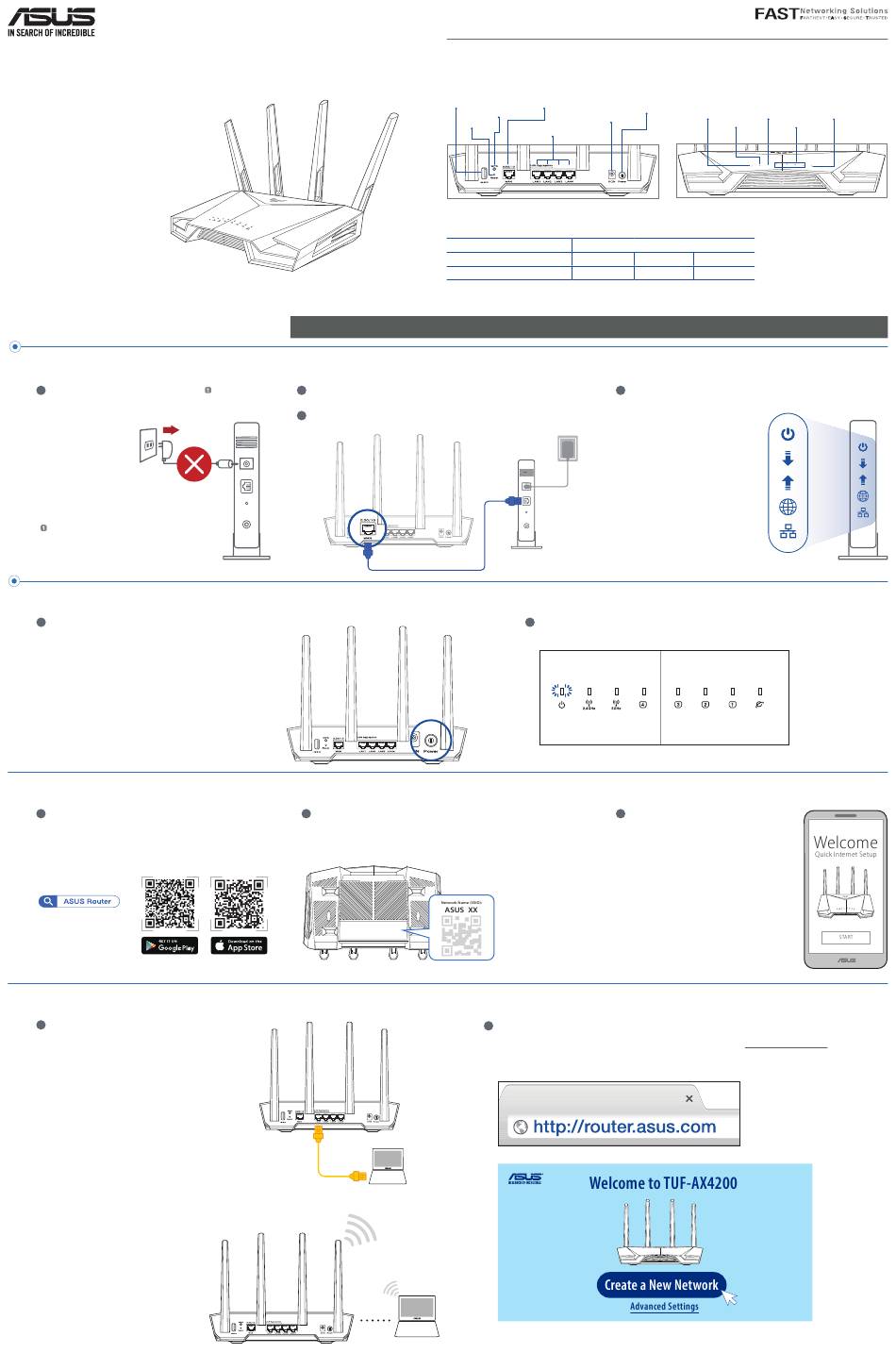

Quick
Start Guide
TUF-AX4200
TUF Gaming AX4200 Dual
Band WiFi Router
Router Setup Steps
01
Prepare your Modem
Unplug the power of cable / DSL modem.
1
Unplug
If you are using DSL for internet, you will
need your username / password from
your Internet service provider (ISP) to
properly configure your router.
02
Install your Router
Plug the adapter into the DCIN port, and press the Power button.
1
– via App
[App] On your iOS or Android mobile device, go to the app
3
store, search for ASUS Router, and download the app.
– or via Web Browser
[Wired] Connect your PC to a LAN port at the back
3
side of the router using an additional network cable.
[Wireless] Connect to the network with default SSID shown on the product label on the back side of your
router "ASUS_XX".
Connect your modem to WAN port at the back side of the router with the
2
network cable provided.
Power on the modem. Plug modem to the power outlet and power on.
3
Modem back
[App] On your iOS or Android mobile device, tap Settings > Wi-Fi, connect
4
to the default network SSID shown on the product label on the bottom
side of the router. Or scan the QR code on the product label to connect the
default network SSID.
Hardware Explanations
I/O Ports Overview
USB 3.2 Gen 1x1 port
2.5G/1G WAN (Internet) port
WPS button
Power (DCIN) port
Reset button
LAN 1~4 ports
Specifications:
DC Power adapter
DC Output: +12V with 1.5A current
Operating Temperature
0~40
o
C
Operating Humidity
50~90%
Modem back
The power LED will light up when the hardware is ready.
2
* XX refers to the last two
_
digits of MAC address.
You can find it on the
label on the back of
your router.
[Wired / Wireless] Open a web browser.
4
You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.com.
Follow the instructions to complete the setup.
LED Lights Overview
Power button
5GHz LED
Power LED
2.4GHz LED
LAN 1~4 LEDs
Storage
0~70
o
C
Storage
20~90%
Check the modem LED lights to ensure the connection is active.
4
[App] Launch ASUS Router App and follow
5
the instructions to complete the setup.
2.5G WAN (Internet) LED
Modem front
