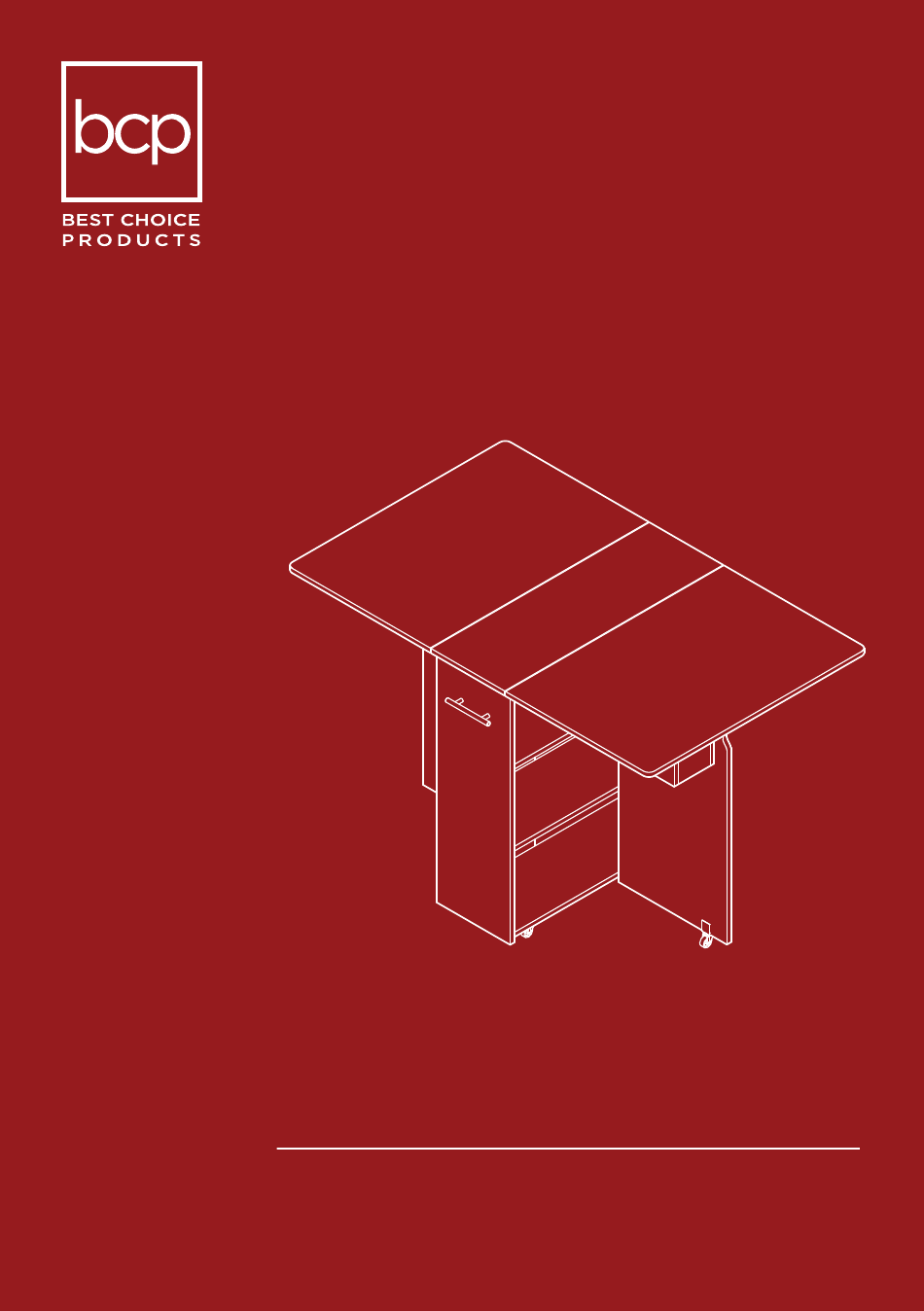

INSTRUCTION
MANUAL
Mobile Dining Table
SKY6581 + SKY6582 + SKY7631 + SKY7632 + SKY7633
Ver. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY6581 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BCP SKY6581

  • Page 1 INSTRUCTION MANUAL Mobile Dining Table SKY6581 + SKY6582 + SKY7631 + SKY7632 + SKY7633 Ver. 2...
  • Page 2: Tools Required

    NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws, and knobs before use. •...
  • Page 3 HARDWARE Ø4 X 12MM TABLE JOINER HANDLE Ø4 X 22MM SCREW SCREW 16 PCS 2 PCS 1 PC 2 PCS TABLE TOP CABINET HINGE Ø4 X 25MM SHELF SUPPORT FASTENER SCREW 2 SETS 10 PCS 4 PCS 4 PCS TIGHTENING CAMLOCKS Screw cam bolt Insert cam bolt and cam lock into Screw cam lock...
  • Page 4 PARTS MAIN TABLE TABLE EXTENSION I TABLE EXTENSION II 1 PC 1 PC 1 PC TABLE BACK PANEL TABLE FRONT PANEL FIXED SIDE PANEL 1 PC 1 PC 2 PCS TOP SHELF BOTTOM SHELF MIDDLE SHELF 1 PC 1 PC 1 PC SIDE DOOR I SIDE DOOR II...
  • Page 5: Product Assembly

    PARTS CUBBY FRONT CUBBY BACK CUBBY BOTTOM 1 PC 1 PC 1 PC PRODUCT ASSEMBLY Insert seven part A cam bolts each into the part 4 table back panel and the part 5 table front panel , fourteen bolts total. Attach the part I handle to the part 5 table front panel with two part J screws .
  • Page 6 PRODUCT ASSEMBLY Insert four part C dowels each into the part 7 top shelf and part 8 bottom shelf , eight dowels total. Attach the part 7 & 8 shelves to one part 6 fixed panel . Attach the part 6 fixed panels , then insert four part B cam locks into each shelf panel, eight locks total, then turn to secure.
  • Page 7 PRODUCT ASSEMBLY Place the assembly on its side, then Insert six part C dowels into the part 4 back panel , then attach to the part 6, 7, and 8 panels . Insert two part B cam locks into the part 8 bottom shelf , twist to secure. Insert two part B cam locks into the part 7 top shelf , twist to secure.
  • Page 8 PRODUCT ASSEMBLY Flip the assembly so the bottom of the part 8 shelf is facing upward. Attach two part G caster sets to the bottom of the part 8 shelf with sixteen part K screws , four screws per caster. NOTE: Arrange the casters in the four corners of the panel so that the locking and non-locking casters are on opposite angles.
  • Page 9 PRODUCT ASSEMBLY Insert two part A cam bolts and four part C dowels into the part 14 cubby back . Insert two part B cam locks into two part 12 cubby sides , four locks total. Attach the part 12 cubby sides to the part 14 cubby back then turn the locks to secure.
  • Page 10 PRODUCT ASSEMBLY Secure the part 14 cubby back to the part 11 left side door with four part O screws , then attach the part 15 cubby bottom with two part C dowels . Insert two part A cam bolts into the part 13 cubby front , then attach to the part 15 cubby bottom , and part 12 cubby sides with six part C dowels , two dowels per panel.
  • Page 11 PRODUCT ASSEMBLY Attach the part 10 right side door by securing the open hinges to the part 6 fixed panel with six part D screws . Attach two part M table top fasteners (female) to the part 4 back panel with four part D screws .
  • Page 12 PRODUCT ASSEMBLY Attach two part M table top fasteners (male) to the part 2 & 3 table extensions with four part D screws . Insert eight part A cam bolts into the bottom of the part 1 main table, then attach six part N hinges with eighteen part D screws .
  • Page 13 PRODUCT ASSEMBLY Open the part 10 & 11 doors , then attach two part H door casters with four part E bolts and four part F nut per caster.
  • Page 14 PRODUCT ASSEMBLY Insert two part B cam locks into each part 6 fixed side panel , four locks total. Insert two part B cam locks in the part 5 front , and the part 4 back panel , four locks total. Attach the table top assembly with eight part C dowels , then secure by turning the cam locks.
  • Page 15 PRODUCT ASSEMBLY Insert four part P shelf supports into the part 4 & 5 front and back panels . Place the part 9 middle shelf onto the supports. Open the part 2 & 3 side panels and secure them with the part L table joiners .
  • Page 16: Help Center

    HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
