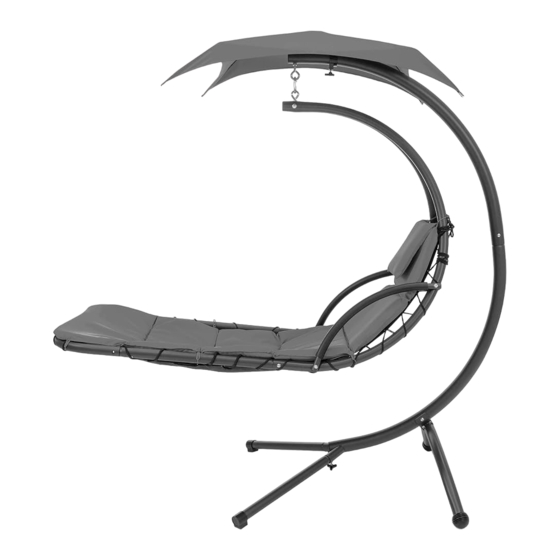

- Page 1 INSTRUCTION MANUAL Hanging Chaise Lounge Chair SKY1831 + SKY5871 + SKY5872 + SKY5873 + SKY6579 + SKY6580 SKY6668 Ver. 9...
- Page 2 NOTICE Please retain these instructions for future reference. • Do not stand on or use any part of this product as a step ladder. • Firmly secure all bolts, screws and knobs before use. • Reconfirm that all bolts, screws, and knobs are secure every 90 days. •...
- Page 3 PARTS TOP CURVED CURVED BACK MIDDLE CURVED SEAT FRAME PIPE PIPE CURVED PIPE (L/R) 1 PC 1 PC 1 PC 2 PCS SEAT SEAT FRAME SEAT FRAME FRONT LEG PIPE U-SHAPE PIPE FRAME SMALL CROSSBAR 2 PCS 1 PC 2 PCS 1 PC SEAT CANOPY FRAME...
- Page 4 PRODUCT ASSEMBLY Use a wrench to attach the part 10 eye bolt set to the part A top curved bar. Before Use a wrench to attach the part 10 eye bolt set to the part A top curved bar. Before proceeding, it is critical that the lock nut is fully engaged onto the eye bolt;...
- Page 5 PRODUCT ASSEMBLY Assemble the outer frame. Attach the part E legs with the knobs provided on the legs. Insert two part Q end caps into the part A and part C curved pipes. Attach two part P leg caps to the part B leg. Place part 8 between the two part D seat frame curved pipes and secure with the part 1 bolt set.
- Page 6 PRODUCT ASSEMBLY REAR VIEW Assemble the seat frame. Lay the part I seat inside the seat frame. Using the part 9 rope, tie a firm knot joining the frame and seat together. Continue weaving the rope in and out until the entire seat is attached, making sure the rope is pulled tight and snug. Tie several firm knots to secure the seat.
- Page 7 PRODUCT ASSEMBLY Secure the part M canopy onto the part J canopy frame. Use the carabiner to hang the seat frame from the outer frame. Tie the part N cushion to the seat frame. TIGHTEN CLOSE & SECURE...
- Page 8 HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
