Summary of Contents for BCP SKY6513

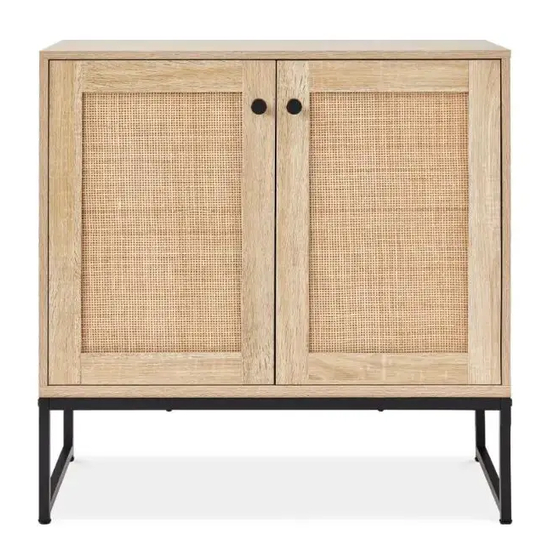

- Page 1 INSTRUCTION MANUAL 2-Door Storage Cabinet SKY6513 + SKY6891 + SKY6892 Ver. 2...
-
Page 3: Tools Required
NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Be aware that some parts are heavy and have sharp edges. • Do not stand on or use any part of this item as a step ladder. •... - Page 4 PARTS CABINET TOP CABINET BOTTOM CABINET LEFT SIDE 1 PC 1 PC 1 PC CABINET RIGHT SIDE CABINET BACK PANEL CABINET SHELF 1 PC 2 PCS 1 PC LEFT DOOR RIGHT DOOR BASE SIDE FRAME 1 PC 1 PC 2 PCS BASE FRAME CONNECTOR 2 PCS...
-
Page 5: Product Assembly
PRODUCT ASSEMBLY Insert four part A cam bolts into the part 3 & 4 left & right side panels , two bolts per panel. Insert four part B cam locks into the part 6 cabinet shelf . Attach the part 3 & 4 side panels with four part C dowels . - Page 6 PRODUCT ASSEMBLY Insert four part A cam bolts into the bottom of the part 1 cabinet top. Place the board on a level, padded surface with the cam bolts facing upward. Insert four part B cam locks and eight part C dowels into the part 3 & 4 side panels , two locks and four dowels per side.
- Page 7 PRODUCT ASSEMBLY Attach two part I hinges to each door with eight part J screws , two screws per hinge. Secure the part 8 right door by attaching the hinges to the part 4 side panel with eight part J screws , four screws per hinge.
- Page 8 PRODUCT ASSEMBLY Attach two part 10 base frame connectors to one part 9 base side frame with two part E bolts , connect the remaining side frame with two more part E bolts . Screw four part M foot caps into the side panels, adjust so all feet are level.
- Page 9 PRODUCT ASSEMBLY Attach the base assembly to the cabinet assembly with six part F bolts . Attach the two part 10 frame connectors to the part 2 bottom with four bolts, and the part 9 side frames with two bolts.
- Page 10 Check out more great products: bestchoiceproducts.com...
- Page 11 Earn points while you shop. Join today! Give your friends 15% o their first order! For each successful referral you’ll receive 100 points. bestchoiceproducts.com...
-
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Orders FAQ Chat Support Product Inquiry Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
