INSTALLATION, CARE & USE MANUAL
LZO Series Barrier-Free Water Coolers
35
19
24
36
5
8
9
Uses HFC-134A refrigerant
6
See FIG. 3
7
1
23
15
LZO8*1E
T M
39
34
3, 4
Sensor Eye
Adjustment screw
31, 32, 33
12
27, 28, 29
FIG. 1
Page 1
18
13
16, 17
23
44
43
See FIG. 4
37
7
38
25
26
30
98959C (Rev. B - 11/12)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elkay LZO8 1E Series
Summary of Contents for Elkay LZO8 1E Series

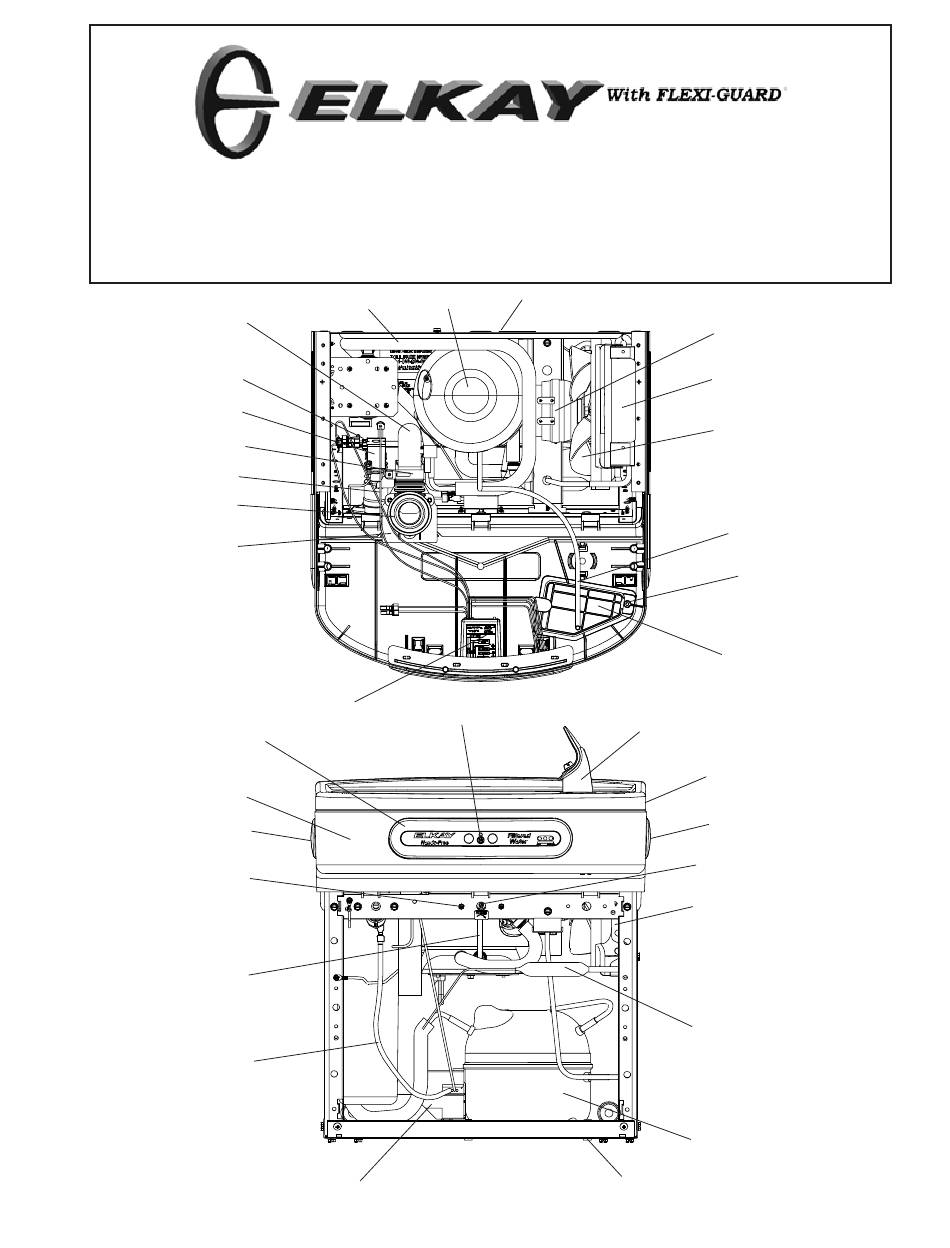

- Page 1 LZO8*1E INSTALLATION, CARE & USE MANUAL LZO Series Barrier-Free Water Coolers 16, 17 Uses HFC-134A refrigerant 3, 4 Sensor Eye See FIG. 4 Adjustment screw See FIG. 3 27, 28, 29 31, 32, 33 FIG. 1 Page 1 98959C (Rev. B - 11/12)
