INSTALLATION, CARE & USE MANUAL
LZOTL Series Barrier-Free Water Coolers
44
51
36
8
9
Uses HFC-134A
refrigerant
12
33
LZO8TL*1D
LZO8TL*2D
T M
19
35
48
5
23
24
38
21

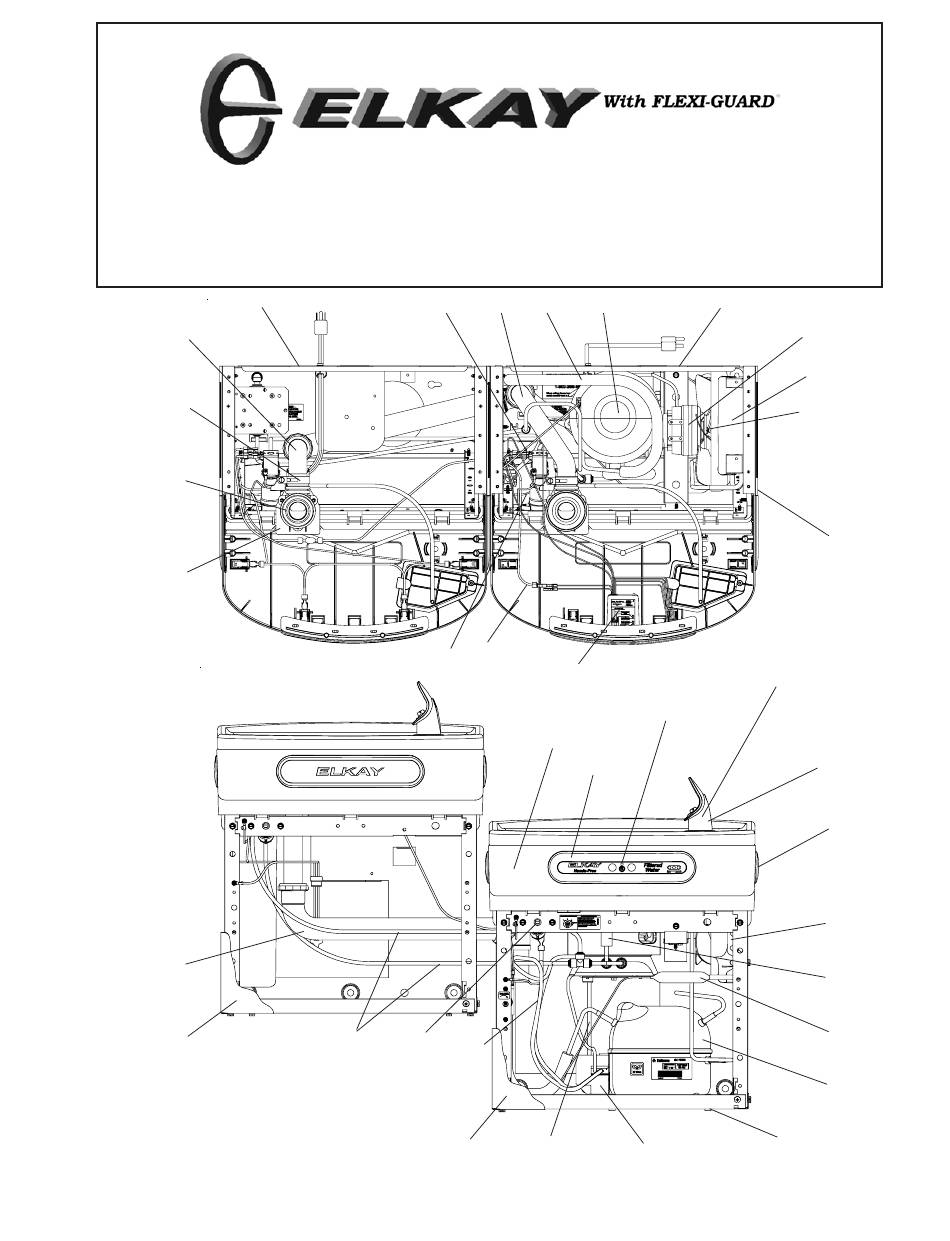

FIG. 1
Page 1
LZO8TL*3D
34
39
3, 4
Sensor Eye
Adjustment screw
See FIG. 3
6
15
31, 32, 43
44
18
13
16, 17
46
See FIG. 4
37
7
25
20
26
30
27, 28, 29
98574C (Rev. C - 6/11)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elkay LZO8TL 1D Series
Summary of Contents for Elkay LZO8TL 1D Series
- Page 1 LZO8TL*1D LZO8TL*2D LZO8TL*3D INSTALLATION, CARE & USE MANUAL LZOTL Series Barrier-Free Water Coolers 16, 17 3, 4 Uses HFC-134A See FIG. 4 Sensor Eye refrigerant Adjustment screw See FIG. 3 27, 28, 29 31, 32, 43 FIG. 1 98574C (Rev. C - 6/11) Page 1...
- Page 2 LZO8TL*1D LZO8TL*2D LZOTL8*3D 98574C (Rev. C - 6/11) Page 2...
- Page 3 LZO8TL*1D LZO8TL*2D LZO8TL*3D HANGER BRACKETS & TRAP INSTALLATION 1) Remove hanger bracket fastened to back of cooler by removing one (1) screw. 2 ) Mount the hanger bracket as shown in Figure 2. NOTE: Hanger Bracket MUST be supported securely. Add fixture support carrier if wall will not provide adequate support. Anchor hanger securely to wall using all six (6) 1/4 in.
- Page 4 LZO8TL*1D LZO8TL*2D LZOTL8*3D Service Instructions Bubbler Lower and Upper Shroud Assembly To access the refrigeration system and plumbing connections, remove four screws from bottom of cooler to remove the lower shroud. To remove the upper shroud for access to the pushbars, regulator, solenoid valve or other components located in the top of the unit, remove lower shroud, disconnect drain, remove four screws from tabs along lower edge of upper shroud, unplug two wires and water tube.
- Page 5 LZO8TL*1D LZO8TL*2D LZO8TL*3D WIRING DIAGRAM - LZOTL 230V BLACK 230V PARTS LIST LED PCB WHITE GREEN ITEM NO. PART NO. DESCRIPTION 36066C Power Cord YELLOW SENSOR PURPLE PURPLE JUMPER 31431C Fan Motor 33133000 Adapt - Tab .250 TO DUMMY UNIT 36092C Compressor Serv.
- Page 6 PARA PIEZAS, CONTACTE A SU DISTRIBUIDOR LOCAL O LLAME AL 1.800.323.0620 IMPRIMÉ AUX É.-U. POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.323.0620 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 98574C (Rev. C - 6/11) Page 6...
