- Page 1 User Manual ENGLISH AC/DC Current Probe Model SL361 CURRENT MEASUREMENT PROBES...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com/calibration. Serial #: Catalog #: 2153.09 Model #: SL361 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc. ®...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ..............6 1.1 INTERNATIONAL ELECTRICAL SYMBOLS ......6 1.2 DEFINITION OF MEASUREMENT CATEGORIES ....7 1.3 PRECAUTIONS FOR USE ..........7 1.4 RECEIVING YOUR SHIPMENT ..........8 1.5 ORDERING INFORMATION ............. 8 1.5.1 Accessories and Replacement Parts ......... 8 2. - Page 5 5. MAINTENANCE ..............22 5.1 CLEANING ................22 5.2 REPLACING THE BATTERY ..........23 5.3 REPAIR AND CALIBRATION ..........24 5.4 TECHNICAL ASSISTANCE ............ 24 5.5 LIMITED WARRANTY ............. 25 5.5.1 Warranty Repairs .............. 25...
-
Page 6: Introduction
Analysis of the complete lifecycle has enabled us to control and optimize the effects of the product on the environment. In particular this instrument exceeds regulation requirements with respect to recycling and reuse. AC/DC Current Probe Model SL361 - User Manual... -
Page 7: Definition Of Measurement Categories
■ Do not expose the current probe to sprays of water. ■ All troubleshooting and metrological checks must be done by competent, accredited personnel. ■ Use ONLY a wall plug adapter rated ≤1 A. AC/DC Current Probe Model SL361 - User Manual... -
Page 8: Receiving Your Shipment
Save the damaged packing container to substantiate your claim. 1.5 ORDERING INFORMATION AC/DC Current Probe Model SL361 ..........Cat. #2153.09 Includes (1) 9 V (6LR61) alkaline battery and a user manual. 1.5.1 Accessories and Replacement Parts Adapter - US Wall Plug (5 V) to USB .......... -
Page 9: Product Features

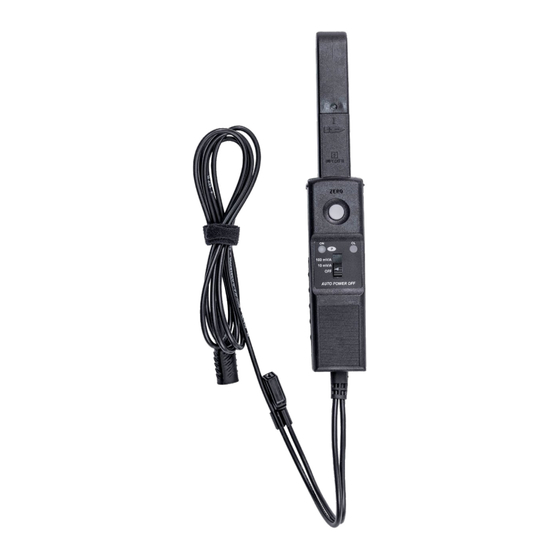

2. PRODUCT FEATURES 2.1 DESCRIPTION The AC/DC Current Probe Model SL361 can be used to measure current from 100 mA to 100 A without breaking the circuit in which it is flowing. peak It measures the waveform and amplitude of the current, in the form of a voltage. -
Page 10: Features
100 mV/A 10 mV/A Mode AUTO POWER OFF Indicator Battery Compartment Cover Battery Fixed Arm Type B Micro-USB Compartment Connector Screw Three-position Range Slide Switch WARNING: Always keep hand behind the guard. AC/DC Current Probe Model SL361 - User Manual... -
Page 11: Operation
In this case, check that the probe is not on any conductor and that its jaws are correctly closed, then press the zero adjustment button again. Or switch the probe off and back on, and it is the last adjustment stored that will be used. AC/DC Current Probe Model SL361 - User Manual... -
Page 12: Measurement
■ The value measured is displayed on the measuring instrument. If the OL indicator lights, it means that the current is too strong to be measured. If you are in the 100 mV/A range, switch to the 10 mV/A range. AC/DC Current Probe Model SL361 - User Manual... -
Page 13: Auto Off
When the probe is switched off (switch set to OFF), the auto off function is re-activated. AC/DC Current Probe Model SL361 - User Manual... -
Page 14: Instrument Indicators
600 V CAT III. This makes it possible to connect the clamp, without risk, to measuring instruments having inputs that are not insulated. WARNING: The type B mico-USB connector must not be in contact with conductors or uninsulated parts at dangerous voltage. AC/DC Current Probe Model SL361 - User Manual... -
Page 15: Specifications
≤ ± (3 % R + 5 mV) ≤ ± (4 % R + 0.5 mV) ≤ ± 15 % R Phase Shift ≤ 1.5 ° ≤ 1 ° ≤ 1 ° (DC to 65 Hz) AC/DC Current Probe Model SL361 - User Manual... -
Page 16: Typical Curves
-10,00 -12,00 -14,00 -16,00 -18,00 Current (A 4.2.2 Noise Typical Noise Level at Output 10 mV/A range ± 600 µV to peak peak 100 mV/A range ± 5 mV to peak peak AC/DC Current Probe Model SL361 - User Manual... -
Page 17: Zero Adjustment
-6dB (Hz) 1000 10000 100000 1000000 Typical amplitude error curve at 1 A versus frequency, 100 mV/A range Error (dB) -1dB -2dB -3dB -4dB -5dB Frequency (Hz) -6dB 1000 10000 100000 1000000 AC/DC Current Probe Model SL361 - User Manual... - Page 18 Typical phase shift error curve as a function of frequency, I = 1 A, 100 mV/A range Phase Shift (°) 0,00 -20,00 -40,00 -60,00 -80,00 -100,00 Frequency -120,00 (Hz) 1000 10000 100000 AC/DC Current Probe Model SL361 - User Manual...
-
Page 19: Frequency Characteristics
100 Adc ± 450 mAdc Immunity to 10 V/m 80 MHz; 280 MHz 400 mAdc Radiated Field 460 MHz; 1 GHz 100 mV/A Range 280 MHz; 460 MHz 2 Adc DC Measurement AC/DC Current Probe Model SL361 - User Manual... -
Page 20: Power Sources
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 Indoor use. Pollution degree: 2 Altitude: < 6562 ft, < 2000 m Transport altitude: ≤ 39,370 ft, ≤ 12,000 m AC/DC Current Probe Model SL361 - User Manual... -
Page 21: Mechanical Specifications
EN 61010-2-032 Type of current sensor per IEC/EN 61010-2-032 or BS EN 61010-2-032: Type A 4.8 ELECTROMAGNETIC COMPATIBILITY The device is in conformity with standard IEC/EN 61326-1 or BS EN 61326-1. AC/DC Current Probe Model SL361 - User Manual... -
Page 22: Maintenance
■ Do not use alcohol, solvents or hydrocarbons. ■ The air gaps of the clamp must always be kept clean. ■ Do no leave the probe in very damp places, or exposed to splashes of any liquid substances. AC/DC Current Probe Model SL361 - User Manual... -
Page 23: Replacing The Battery
5. Slide the battery compartment cover back in place; make sure that it is completely and correctly closed. 6. Screw the battery compartment cover screw back in place. Œ Ž AC/DC Current Probe Model SL361 - User Manual... -
Page 24: Repair And Calibration
Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com AC/DC Current Probe Model SL361 - User Manual... -
Page 25: Limited Warranty
(603) 749-6434 (Ext. 360) Fax: (603) 742-2346 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC/DC Current Probe Model SL361 - User Manual... - Page 26 NOTES:...
- Page 27 NOTES:...
- Page 28 05/25 99-MAN 100619 v00 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: +1 (603) 749-6434 • +1 (800) 343-1391 • Fax: +1 (603) 742-2346 www.aemc.com © 2024 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ®...
