Summary of Contents for AEMC instruments SL306
- Page 1 User Manual ENGLISH AC/DC Current Probe Model SL306 CURRENT MEASUREMENT PROBES...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com/calibration. Serial #: Catalog #: 2153.08 Model #: SL306 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc. ®...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ..............6 1.1 INTERNATIONAL ELECTRICAL SYMBOLS ......6 1.2 DEFINITION OF MEASUREMENT CATEGORIES ....7 1.3 PRECAUTIONS FOR USE ..........7 1.4 RECEIVING YOUR SHIPMENT ..........8 1.5 ORDERING INFORMATION ............. 8 1.5.1 Accessories and Replacement Parts ......... 8 2. - Page 5 5. MAINTENANCE ..............22 5.1 CLEANING ................22 5.2 REPLACING THE BATTERY ..........23 5.3 REPAIR AND CALIBRATION ..........24 5.4 TECHNICAL ASSISTANCE ............ 24 5.5 LIMITED WARRANTY ............. 25 5.5.1 Warranty Repairs .............. 25...
-
Page 6: Introduction
Analysis of the complete lifecycle has enabled us to control and optimize the effects of the product on the environment. In particular this instrument exceeds regulation requirements with respect to recycling and reuse. AC/DC Current Probe Model SL306 - User Manual... -
Page 7: Definition Of Measurement Categories
■ Do not expose the current probe to sprays of water. ■ All troubleshooting and metrological checks must be done by competent, accredited personnel. ■ Use ONLY a wall plug adapter rated ≤ 1 A. AC/DC Current Probe Model SL306 - User Manual... -
Page 8: Receiving Your Shipment
Save the damaged packing container to substantiate your claim. 1.5 ORDERING INFORMATION AC/DC Current Probe Model SL306 ..........Cat. #2153.08 Includes (1) 9 V (6LR61) alkaline battery and a user manual. 1.5.1 Accessories and Replacement Parts Adapter - US Wall Plug (5 V) to USB .......... -
Page 9: Product Features

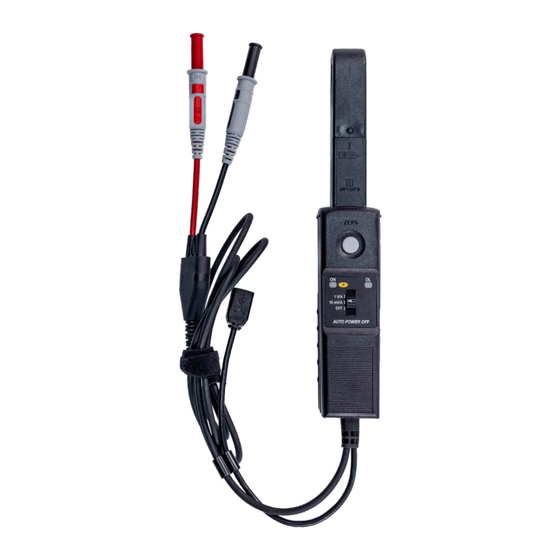

2. PRODUCT FEATURES 2.1 DESCRIPTION The AC/DC Current Probe Model SL306 is used to measure currents from 5 mA to 80 A or 60 A without breaking the circuits in which they flow. It measures the waveform and amplitude of the current, in the form of a voltage. -
Page 10: Features
1 V/A 10 mV/A Mode Indicator AUTO POWER OFF 3-position Range Slide Switch Battery Compartment Cover Battery Fixed Arm Compartment Type B Micro-USB Screw Connector WARNING: Always keep hand behind the guard. AC/DC Current Probe Model SL306 - User Manual... -
Page 11: Operation
In this case, check that the clamp is not on any conductor and that its jaws are correctly closed, then press the zero adjustment button again. Or switch the probe off and back on, and it is the last adjustment stored that will be used. AC/DC Current Probe Model SL306 - User Manual... -
Page 12: Measurement
■ The value measured is displayed on the measuring instrument. If the OL indicator lights, it means that the current is too strong to be measured. If you are in the 1 V/A range, switch to the 10 mV/A range. AC/DC Current Probe Model SL306 - User Manual... -
Page 13: Auto Off
Blinking green: The Lighted red for 3 seconds: battery will have to be The zero adjustement is in replaced in less than 4 h. progress. Lighted orange: Permanent operation (auto off deactivated) AC/DC Current Probe Model SL306 - User Manual... -
Page 14: Power Adapter (Optional)
600 V CAT III. This makes it possible to connect the clamp, without risk, to measuring instruments having inputs that are not insulated. WARNING: The type B micro-USB connector must not be in contact with conductors or uninsulated parts at dangerous voltage. AC/DC Current Probe Model SL306 - User Manual... -
Page 15: Specifications
≤ ± (2 % R + 5 mV) ≤ ± (4 % R + 0.5 mV) ≤ ± 12 % R Phase Shift ≤ 1 ° ≤ 1 ° ≤ 1 ° (DC to 65 Hz) AC/DC Current Probe Model SL306 - User Manual... -
Page 16: Typical Curves
2,00 0,00 -2,00 -4,00 -6,00 -8,00 -10,00 -12,00 -14,00 Current (A 4.2.2 Noise Typical Noise Level at Output 10 mV/A range ±120 µV 180 µV 1 V/A range ±8 mV 4 mV AC/DC Current Probe Model SL306 - User Manual... -
Page 17: Zero Adjustment
100000 1000000 Typical amplitude error curve as a function of frequency, I = 0.5 A, 1 V/A range Error (dB%) -5dB -10dB -15dB -20dB -25dB Frequency -30dB (Hz) 1000 10000 100000 1000000 AC/DC Current Probe Model SL306 - User Manual... - Page 18 10000 100000 Typical amplitude error curve as a function of frequency, I = 0.5 A, 1 V/A range Phase Shift (°) 0,00 -50,00 -100,00 -150,00 -200,00 Frequency -250,00 (Hz) 1000 10000 100000 AC/DC Current Probe Model SL306 - User Manual...
-
Page 19: Frequency Characteristics
Load RL=10 kΩ -2.1 % Common Mode AC voltage at 50 Hz ±1 mA/100 V 10 V/m Radiated Fields ±4 A 80 MHz to 1 GHz Remanence for 80 A ±370 mA AC/DC Current Probe Model SL306 - User Manual... -
Page 20: Power Sources
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 Indoor use. Pollution degree: 2 Altitude: < 6562 ft, < 2000 m Transport altitude: ≤ 39,370 ft, ≤ 12,000 m AC/DC Current Probe Model SL306 - User Manual... -
Page 21: Mechanical Specifications
EN 61010-2-032 Type of current sensor per IEC/EN 61010-2-032 or BS EN 61010-2-032: Type A 4.8 ELECTROMAGNETIC COMPATIBILITY The device is in conformity with standard IEC/EN 61326-1 or BS EN 61326-1. AC/DC Current Probe Model SL306 - User Manual... -
Page 22: Maintenance
■ Do not use alcohol, solvents or hydrocarbons. ■ The air gaps of the clamp must always be kept clean. ■ Do no leave the probe in very damp places, or exposed to splashes of any liquid substances. AC/DC Current Probe Model SL306 - User Manual... -
Page 23: Replacing The Battery
5. Slide the battery compartment cover back in place; make sure that it is completely and correctly closed. 6. Screw the battery compartment cover screw back in place. Œ Ž AC/DC Current Probe Model SL306 - User Manual... -
Page 24: Repair And Calibration
Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com AC/DC Current Probe Model SL306 - User Manual... -
Page 25: Limited Warranty
(603) 749-6434 (Ext. 360) Fax: (603) 742-2346 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC/DC Current Probe Model SL306 - User Manual... - Page 26 NOTES:...
- Page 27 NOTES:...
- Page 28 05/25 99-MAN 100618 v00 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: +1 (603) 749-6434 • +1 (800) 343-1391 • Fax: +1 (603) 742-2346 www.aemc.com © 2024 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ®...
