12' x 10' pavilion
Hide thumbs

Advertisement

Table of Contents

PLATEAU
12' X 10' PAVILION
PRODUCT NO. 188-0293-6
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 188-0293-6 and is the answer not in the manual?

Questions and answers

Related Manuals for Canvas 188-0293-6

Summary of Contents for Canvas 188-0293-6

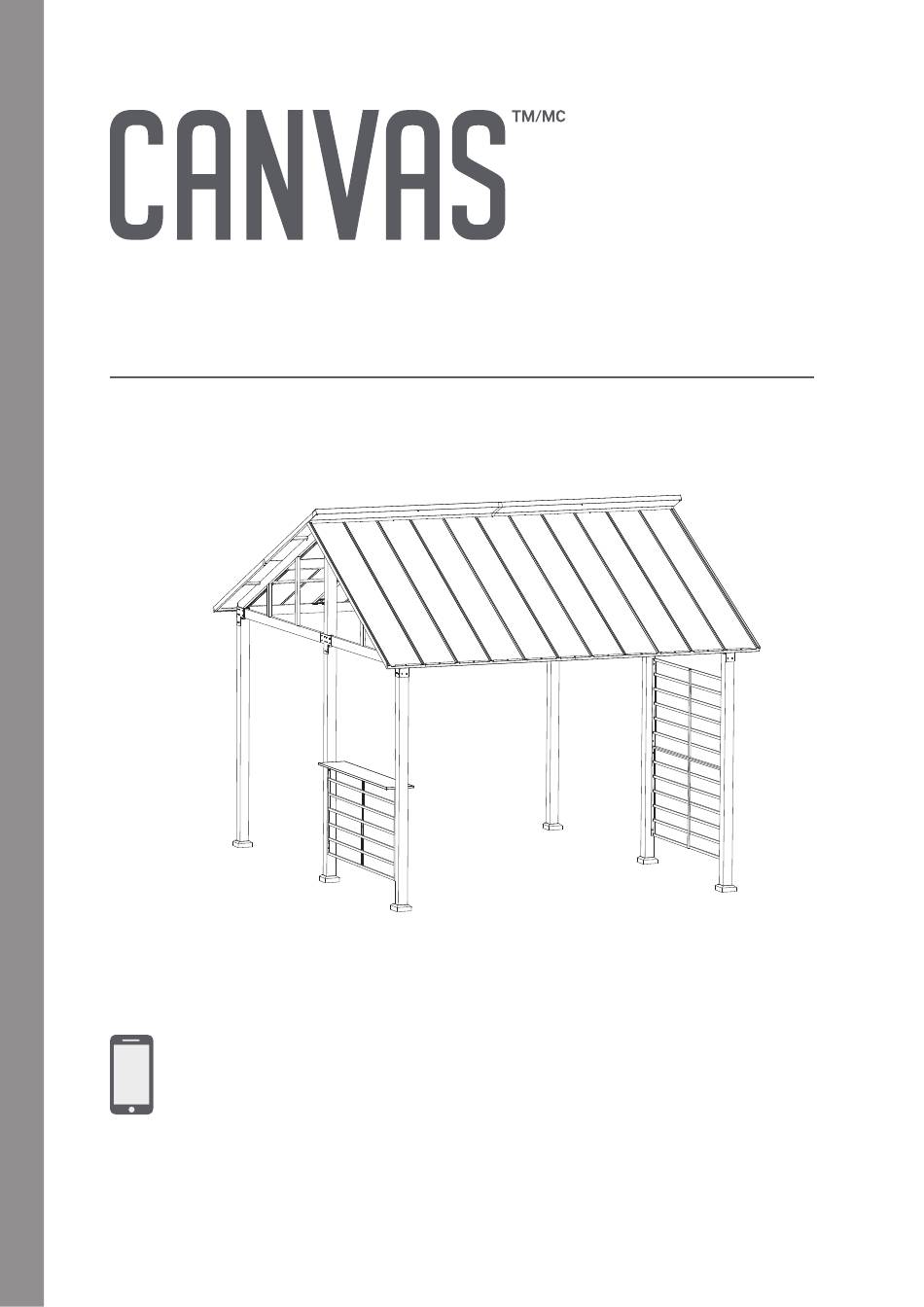

  • Page 1 PLATEAU 12’ X 10’ PAVILION PRODUCT NO. 188-0293-6 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
  • Page 2 To the trend seekers and design mavens, CANVAS™ is the furniture and décor brand that helps you imagine and create a space you can be proud of. That’s because CANVAS™ ease with products that are made for real life and Canadian inspired.

  • Page 3: Tools Required

    TABLE OF CONTENTS Parts List Before You Begin Assembly Step-by-step Guide Technical Data Troubleshooting Caring for Your Item Warranty WARNING! To reduce the risk of serious injury, read the following safety instructions before assembling and using the pavilion. CAUTION! Always keep children and pets under close supervision while they are using or around this product.
  • Page 4 TABLE OF CONTENTS CAUTION! • Proper placement of your pavilion is essential. Do not place the product underneath electrical lines. • Keep children away during assembly.This product contains small parts which can be swallowed by children. • Keep fingers away from places where they can be pinched or trapped. •...
  • Page 5 Post 1 P00020083401 Post 2 P00020083501 Post 3 P00020083601 Post 4 P00020083701 P00020083801 Post 5 Post 6 P00020083901 Post 7 P00020084001 A8 P00020086001 Post P00610028901 Base Cover Post Base P00010053701 P00040156701 Short Cross Beam 1 Short Cross Beam 2 P00040156801 P00040156901 Long Cross Beam 1 PLATEAU 12' x 10' PAVILION...
  • Page 6 D4 P00040157001 Long Cross Beam 2 P00050198901 Cross Beam Connector P00050199001 Top Beam Connector 1 P00050199101 Top Beam Connector 2 P00560054201 Support Beam Cap P00050199201 Side Beam Connector Corner Post Cap P00560054301 P00560054401 Middle Post Cap Cap 1 P00560054501 P00560054601 Cap 2 P00500079301 Brace 1...
  • Page 7 G4 P00500079601 Brace 4 P00500079701 Brace 5 Brace 6 P00500079801 Brace Connector P00050199301 Middle Beam Connector 3 P00050199401 Table Top Connector J3 P00050199501 Top Beam K1 P00060270201 Top Beam 2 P00060278801 Roof Panel Connector 1 P00050199601 Roof Panel Connector 2 P00050199701 Hook P00580015401...
  • Page 8 N3 P00060270501 Long Rafter 1 Long Rafter 2 P00060270601 P00060270701 Side Beam 1 P00060270801 Side Beam 2 P00060270901 Side Beam 3 P00060271001 Side Beam 4 Support Beam P00500079901 Middle Beam 1 P00060271101 P00060271201 Middle Beam 2 P00060271301 Middle Beam 3 P00060271401 Middle Beam 4 P00060271501...
  • Page 9 R1 P00050199801 Middle Beam Connector 1 P00050199901 Middle Beam Connector 2 Small Beam 1 P00060271701 Small Beam 2 P00060271801 Small Beam 3 P00060271901 P00060272001 Small Beam 4 P00060272101 Small Beam 5 Small Beam 6 P00060272201 P00070130501 Roof Panel (Short Side) 1 P00070130601 Roof Panel (Short Side) 2 P00070130701...
  • Page 10 P00080046101 Middle Roof Cap 2 P00060272301 Panel Flashing 1 Panel Flashing 2 P00060272401 Fence P00620003401 Table Top P00210057201 P00500080001 Top Beam Brace PLATEAU 12' x 10' PAVILION...

  • Page 11: Exploded Parts

    EXPLODED PARTS PLATEAU 12' x 10' PAVILION...
  • Page 12 EXPLODED PARTS PLATEAU 12' x 10' PAVILION...
  • Page 13 Bolt M6x +1 Spare Spare Bolt M6x95 H100040019 Double End Spare H020100001 Studs M6* Spare H050030001 Flat Washer M6 Spare Nut M6 H040010004 Nut M6 H040040001 Spare Bolt M6x15 H100010090 8+1 Spare Spare H050050018 M6 Rubber Washer Stake Φ8*180 H070010003 Hex Key M6 H090030002 H090010017...

  • Page 14: Before You Begin Assembly

    BEFORE YOU BEGIN ASSEMBLY MAKE SURE ALL PARTS ARE PRESENT ASSEMBLE IN A CLEARED AREA REMOVE PACKAGING MATERIALS READ EACH STEP CAREFULLY 1-888-670-6684 PLATEAU 12' x 10' PAVILION...
  • Page 15 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 16 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 17 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 18 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 19 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 20 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 21 d1 =d2 Assembly Tip: We advise measuring the distances d1 and d2 to ensure Rt∠90 that they are equal and the structure is square. In addition, use a bubble level gauge to ensure all the posts are upright. NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts.
  • Page 22 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 23 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 24 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 25 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 26 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 27 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 28 STEP NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 29 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 30 STEP NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 31 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 32 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 33 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 34 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before PLATEAU 12' x 10' PAVILION moving on to the next step.
  • Page 35 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 36 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 37 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 38 please note these are H8 bolts, not H1. NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 39 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 40 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 41 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 42 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 43 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before PLATEAU 12' x 10' PAVILION moving on to the next step.
  • Page 44 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before PLATEAU 12' x 10' PAVILION moving on to the next step.
  • Page 45 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 46 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 47 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 48 NOTE: Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are installed loosely, then secure the bolts before moving on to the next step. PLATEAU 12' x 10' PAVILION...
  • Page 49 PLATEAU 12' x 10' PAVILION...
  • Page 50 12' x 10' x 10' 4" 3.6 x 3 x 3.16 m 350 lb 8 oz 218 kg PLATEAU 12' x 10' PAVILION...
  • Page 51 1-888-670-6684 If you have questions regarding your product or require warranty assistance, please call our customer service helpline. CAUTION! CHECK ALL SCREWS AND NUTS PERIODICALLY FOR TIGHTNESS, TIGHTENING THEM AGAIN AS REQUIRED. Do not light any fires below or near the product. Clean the pavilion with mild soap and water.

  • Page 52: Warranty Information

    WARRANTY INFORMATION 3 YEAR LIMITED WARRANTY* This CANVAS product carries a three (3) year warranty against defects in workmanship ™ and materials on the frame and a one (1) year warranty for the remaining parts. Trileaf Distribution agrees to replace a defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
