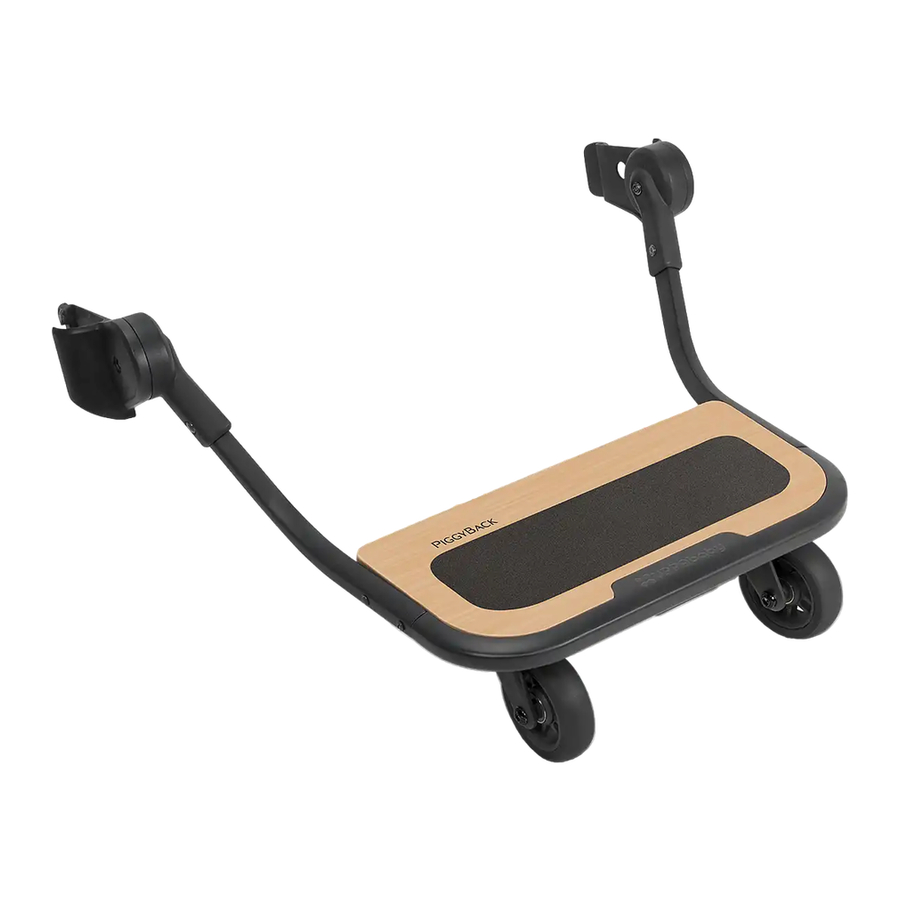

UPPAbaby PiggyBack Manual

PARTS LIST

PIGGYBACK ASSEMBLY

PIGGYBACK SET-UP

Attaching Clamshell Mounts: Position clamshell mount under interior wheel hub and squeeze shut until an audible "click" is heard. Repeat on other side.

NOTE: Tab should face back of stroller for easier removal.

Attaching Latch: Unsnap button on back of stroller basket to expose aluminum bar. Snap latch over aluminum bar and rotate down. Re-snap basket over center opening of latch.

NOTE: Select appropriate latch based on your stroller manufacture date.

1. Latch for CRUZ 2014 or Earlier
2. Latch for CRUZ 2015 or Later

ATTACHING PIGGYBACK TO CRUZ FRAME

Attaching Piggyback: With Piggyback attachments facing up, place over clamshell mounts and slide down into place until an audible "click" is heard on both sides.

PIGGYBACK OPERATION

USING/STORING PIGGYBACK

To Store: Lift board up and snap into latch.

To Move into Active Riding: Press latch down with hand or foot to release Piggyback.

REMOVING PIGGYBACK FROM CRUZ FRAME

1. With the board in the down position, pull Piggback attachment out and slide up to release. Repeat on opposite side.

2. Rotate latch up and remove from aluminum bar.

3. Push tab out to release clamshell mount from wheel hub. Repeat on other side.


FOLDING STROLLER WITH PIGGYBACK ATTACHED

1. Place PiggyBack in use position.

2. Extend stroller handlebar fully.

3. Move seat recline to position where seat frame aligns parallel with stroller frame.

4. Fold stroller, lay flat.


GENERAL SAFETY INFORMATION

• FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. READ ALL INSTRUCTIONS BEFORE USE.
• NEVER leave child unattended on this product.
• For use with UPPAbaby CRUZ strollers only.
• Maximum Weight Limit: 55 lbs (25 kg).
• Intended for use with only one child at a time.
• Stroller can tip if child attempts to hang from stroller handle.
• Always keep your hands on the stroller when your child is standing on the PiggyBack.
• Make sure that your child is always standing with both feet on the anti-slip portion of the PiggyBack and holding onto the handlebar to avoid any possible injury during use.
• Before each use, check PiggyBack attachment to stroller by lifting up PiggyBack board and checking hinges.
• DO NOT use if any part of the PiggyBack is loose, missing or broken.
