Braun Satin Hair 7 ST780 Manual

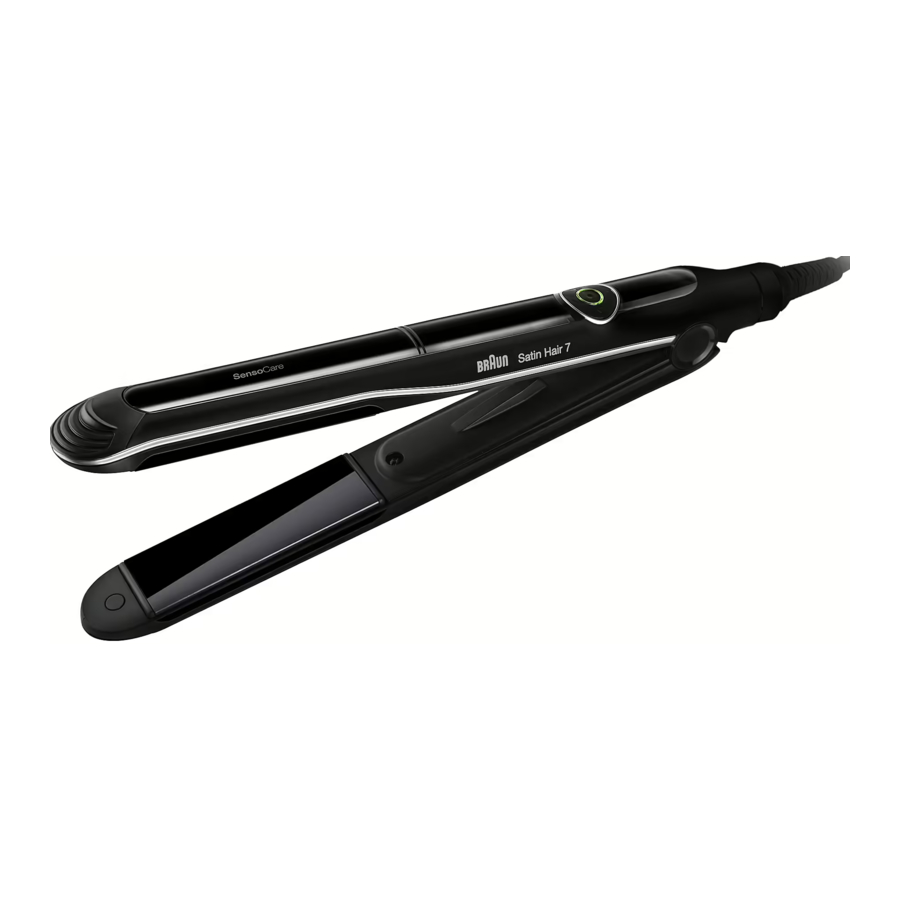

Description

1. Cool touch
2. Screen
3. Swivel cord with anti-kink sleeve
4. Control pad: center button (on/off; confirm), arrow buttons

5. Active forming area
6. Styling plates with integrated temperature sensors

Using the control pad

Connect the appliance to an electrical outlet. To switch on, push the center button for at least 2 seconds. To move the cursor on the screen, push the respective arrow.
To confirm your selection, press the center button . To return to the previous screen, press .
In order to prevent an unintended change of settings, the control pad is provided with an automatic lock feature. When the control pad is locked and you try to press any button, the symbol appears on the screen. To unlock the control pad, press the center button for at least 1 second.

Before first use

Select your language and the operation mode:
Using the arrows, select your language and confirm. Select and confirm.
Next, select one of the operation modes: SensoCare or Manual Mode, then confirm.

SensoCare

In SensoCare mode, intelligent sensor technology enables continuous temperature adaptation according to the specific needs of your hair type. The styling temperature is not shown on the display, but continuously optimized based on your hair profile. This feature prevents hair damage caused by high styling temperatures.

Set your profile / first use
To set your profile, go through the hair length, thickness and coloration screens and select according to your hair type. Confirm each setting with the center button and save your settings by selecting a profile name (e.g. Profile 1). Confirm and select «Continue» if you want to use your profile right away.
The flashing thermometer symbol shows that the appliance is heating up. Once the thermometer symbol stops flashing, the optimum styling temperature is reached and you can start styling.

Next use
Once a profile has been saved (e.g. Profile 1), the screen will show it right after switching on the next time. Just confirm and the appliance starts heating up.

Edit profiles
You can add new profiles or delete existing profiles. Up to 3 profiles can be saved.
You can modify your profile (e.g. if your hair length or colour have changed).

Reset All
If you want to reset all settings (language and all profiles) choose «Reset All» on the «Delete Profile» screen.

Manual Mode

Manual Mode allows you to select the styling temperature. This temperature will remain the same throughout the styling process since the sensor-based automatic temperature adaptation is deactivated in manual mode.
Move the cursor to «Manual Mode» and confirm. The default temperature setting of 160°C is displayed. Using the arrows, you may change the temperature setting in a range from 120 to 200°C. While the appliance heats up, the temperature screen flashes. When the flashing stops, the selected temperature is reached and you can start styling.

Recommended temperature settings

Using the appliance

Preparation

• Make sure your hair has been dried completely and evenly before using the appliance.
• Comb your hair with a wide toothed comb to remove tangles.
• Section your hair off. Starting close to the roots, take a thin strand (2-3 cm maximum or 2 fingers wide) and clamp it firmly between the styling plates.

How to straighten your hair

• Gently run the appliance through the entire length of the hair, slowly and steadily, from roots to the ends without stopping for longer than 2 seconds. This will ensure best straightening results without damaging your hair. The styling plates ensure easy and smooth gliding.
• For improved control when gliding along a strand, you may stabilise the appliance by holding it with the other hand on the cool touch points (1).
• You can create flicks at the hair ends by slowly turning the appliance either outwards or inwards before releasing a strand.

How to form loose curls and waves

• Clamp a thin strand at the roots,
• rotate the appliance half a turn so that the strand glides through the styling plates and then over the active forming area,
• then slowly move the appliance horizontally towards hair tips. When pulling the appliance beyond the hair tips, the strand will turn into curl.

Feedback

The SensoCare mode provides feedback on the straightening performance after each stroke.

Speed (of stroke) Has the stroke been performed slowly enough?	Right		Good, go on like this.
	Fast		Move appliance more slowly
	Very Fast		Move appliance slowly.
Moisture (level of hair) Is your hair evenly dry?	Dry		Good, go on like this.
	Damp		You will get better results on evenly dry hair.
	Wet

In both SensoCare and Manual Mode, the screen will show a hair dryer symbol if wet hair is detected during styling. As a safety feature, the temperature will decrease.
This means that you should dry your hair before straightening. To deactivate the hair dryer symbol, push the center key.

After use

Turn off the appliance by pushing the center button for 2 seconds. The screen shows two options:

To switch off, select and confirm with the center button. The «cooling down» screen is shown provided the appliance is still plugged in. When the temperature has dropped below 60°C, the screen turns off and you can touch the appliance without any risk.
Select if you want to resume styling later on. In sleep mode, the temperature decreases to 100°C. To quit sleep mode, press any button. After 30 minutes in the sleep mode, the appliance will switch off automatically.

Auto-shut-off

After 30 minutes of operation, the appliance switches off automatically. The cooling down screen is shown as long as the temperature is above 60°C.
As long as the cooling down screen is shown, you can resume styling: Press the center button and the previous screen will be shown.
When the screen has turned off, you can touch the appliance without any risk.

Cleaning

Always unplug before cleaning. Never immerse the appliance in water.
Clean the appliance with a damp cloth and use a soft cloth to dry.
Subject to change without notice.

Safety

Please read these use instructions carefully before use and keep them for future reference. For product videos, please go to www.braun.com.

Plug your appliance into an alternating current outlet only and make sure that your household voltage corresponds to the voltage printed on the appliance.

This appliance must never be used near water (e.g. a filled wash basin, bathtub or shower). Do not allow the appliance to get wet. Always unplug after use. Even when switched off the appliance presents a hazard when near water.
Using the hot appliance on wet hair may cause hair damage. Always dry your hair completely and evenly before using the appliance. Do not use the appliance on permed hair.
Do not touch the hot styling plates (6) nor the active forming area (5) of the appliance. When hot, do not place on surfaces that are not heatresistant.
For additional protection, it is advisable to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the electrical circuit of your bathroom. Ask your installer for advice.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
Do not wrap the mains cord around the appliance. Do not bend the anti-kink sleeve excessively during use or storage. Regularly check the mains cord for wear or damage. If the cord is damaged, stop using the appliance and take it to an authorized Braun Service Centre. Unqualified repair work can lead to extreme hazards for the user.
If the screen shows , unplug the appliance and have it repaired at a Braun Service Centre.
