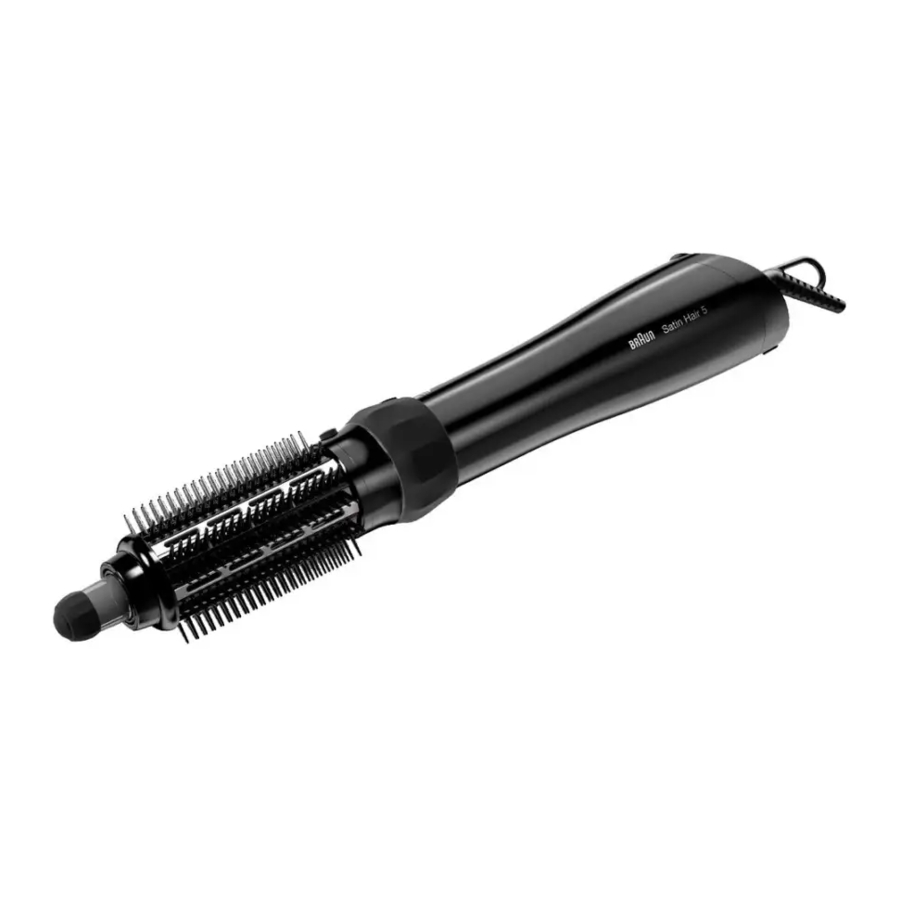

Braun Satin Hair 5 AS530, 3536 - Hair Styler Manual

Introduction

Carefully read the use instructions before use.
Braun Satin·Hair 5 with integrated steam function is suitable for pre-drying wet hair and styling towel dry or damp hair as well as for styling and refreshing dry hair.

Description

1. Water reservoir
2. Release button for attachments
3. Switch ring (works with warm or cold air, depending on the setting):
   = Heating system for the steam function is activated and working after approx. 2 minutes.
   «1» = Warm air setting to style a medium and small amount of hair and to create volume at the roots.
   «2» = Drying/styling setting to style a big amount of hair.
   «3» = Power setting for fast pre-drying wet hair, especially with the volumizer attachment.
   = Cool shot setting for styles to last longer (is activated on all settings («1», «2», «3») when pulling and holding the switch ring).
4. Removable filter
5. Power control light
6. Hanging hook
7. Big brush attachment
8. Small brush attachment
9. Volumizer attachment

Before use

Each time before filling with water unplug the appliance.

1. Pull the water reservoir off the appliance.

2. Turn to open the water reservoir.

3. Fill the water reservoir with tap water to the top of the black rubber ring and close tight the water reservoir.

4. Re-insert the water reservoir until it snaps into place.

5. Plug into an electrical outlet. The power control light lights up. Let the appliance heat up on the «»-setting. Ready for steaming after 2 minutes.


After use
Always empty the water reservoir.

Styling

• Big brush attachment for big curls (g)

• Small brush attachment for medium and small curls (h)

• Volumizer attachment (i)


Steam function

The steam function can be used with all attachments. To add steam to a streak of hair press the top of the water reservoir (you will hear a click). Steam will be released from the openings of the tong, giving the hair additional heat and just the required amount of natural moisture for a longer lasting style.

Use of the appliance in dry hair with steam

6. Put on the wanted attachment.

7. Take a streak and wind it around the brush. Activate the steam function by pushing the top of the water reservoir for about 5 seconds while on the «»-setting and style the streak on setting «1» or «2» for about 15 seconds.

8. For long lasting results and a better elasticity activate the cold shot by pulling and holding the switch ring about 5 seconds. Remove brush carefully from the curl.


Use of the appliance in damp hair

9. Pre-dry the hair on setting «3» with the volumizer attachment. Continue with volumizer on setting «1», «2» or replace the volumizer attachment with one of the brushes.

10. To change attachments press the release button (b).
    (As in step 8: For long lasting results and a better elasticity activate the cold shot by pulling and holding the switch ring for about 5 seconds. Slowly remove brush from the streak.)


Cleaning

11. After use unplug the appliance. Clean the attachments with a damp cloth and the motor part with a dry cloth. Remove dust from the filter with your finger. In case of intensive dust remove the filter and clean under water.


• Plug your appliance into an alternating current outlet only and make sure that your household voltage corresponds to the voltage marked on your appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• This appliance must never be used near water (e.g. a filled wash basin, bathtub or shower). Do not allow the appliance to become wet.
• Never fill water directly in the heating tube.
• For additional protection, it is advisable to install a residual current device (RCD) with a rated residual operating current not exceeding 30mA in the electrical circuit of your bathroom. Ask your installer for advice.
• Do not wrap the mains cord around the appliance. Regularly check the mains cord for wear or damage. If the cord is damaged, it must be replaced by an authorized Braun Service Centre in order to avoid a hazard.
• Always unplug after use. If plugged in, the appliance will continue to heat even on the «»-setting. Even switched off, the appliance presents a hazard when near water.
• The maximum environmental temperature for operating the appliance is 30°C.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).
