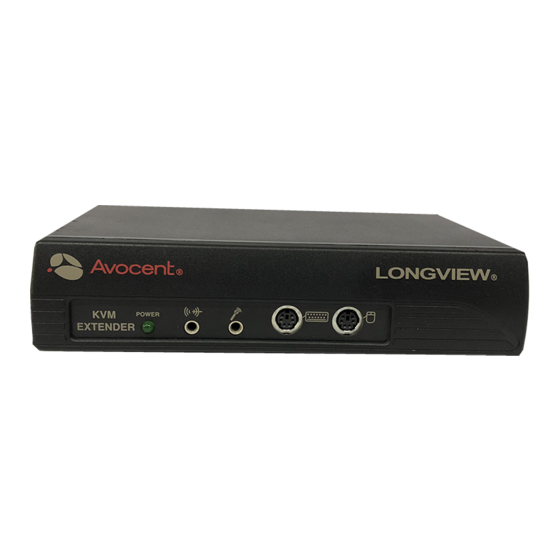

CHA PTER Product Overview Features and Benefits ® ® The LongView and LongView Companion Keyboard/Video/Mouse (KVM) extenders allow you to extend the distance between your server and your VGA monitor, PS/2 keyboard, PS/2 mouse, stereo speakers, microphone and serial port device. All of these signals can be extended up to 500 feet (152 meters) using a single inexpensive and commonly available CAT 5 Unshielded Twisted Pair (UTP) cable - the type used in most Local Area Networks.
Page 12
LongView x30 Series Installer/User Guide High resolution video The LongView and LongView Companion extenders support SVGA resolutions up to 1600 x 1200. See Appendix C for further details. Serial port The LongView and LongView Companion extenders can extend a server’s serial COM port to the desktop for use with devices such as touchscreens, modems or serial printers.
Chapter 1: Product Overview extender Figure 1.1: A Typical LongView Extender Configuration Compatibility PS/2 peripherals The LongView extender requires a PS/2 mouse and keyboard for proper operation. The LongView extender offers support for many PS/2 mice including: • IBM Scrollpoint •...
LongView x30 Series Installer/User Guide Safety Precautions To avoid potential video and/or keyboard problems when using Avocent products, please observe the following precautions: • If the building has 3-phase AC power, ensure that the server and monitor are on the same phase.
CHA PTER Installation Getting Started Before installing your LongView extender system, refer to the lists below to ensure that you have all the items that shipped with the LongView extender as well as all other items necessary for proper installation. Supplied with the LongView and LongView Companion extenders •...
LongView x30 Series Installer/User Guide Installing the LongView transmitter The following diagram illustrates one possible configuration for your LongView extender. Follow the step-by-step procedures To install a LongView transmitter and Installing the Receiver to properly install your new equipment. For more installation examples see Appendix A. Local user LongView receiver (front) LongView receiver (back)
Page 17
Chapter 2: Installation To install a LongView transmitter: Power down the server that will be included in your LongView extender system. Unplug the peripherals (keyboard, mouse, monitor, speakers with built-in amplifiers, microphone and serial device if applicable) from your server. Prepare locations for your LongView extender equipment, server and peripherals.
LongView x30 Series Installer/User Guide Installing the LongView Companion transmitter The following diagram illustrates one possible configuration for your LongView Companion extender. Follow the step-by-step procedures To install a LongView Companion transmitter and Installing the Receiver to properly install your new equipment. Local user LongView receiver (front) LongView receiver (back)
Page 19
Chapter 2: Installation WARNING: To reduce the risk of electric shock or damage to your equipment: - Do not disable the power cord grounding plug. The grounding plug is an important safety feature. - Plug the power cord into a grounded (earthed) outlet that is easily accessible at all times. - Disconnect the power from the unit by unplugging the power cord from either the electrical outlet or the unit.
LongView x30 Series Installer/User Guide Configuring the DIP switch (LongView Companion extender only) The DIP switch can be used to configure six different options on the LongView Companion extender. There are eight switches that can be set to On or Off. Figure 2.3: LongView Companion Extender DIP Switch Table 2.1: DIP Switch Configurations When switch...
Chapter 2: Installation DIP switch settings • Mouse movement: Switch 1 controls whether the mouse will activate a user during sharing mode. When this switch is On, the user must use the keyboard to activate the server. When this switch is Off, a user may take control of the server by moving the mouse. The default set- ting is Off.
LongView x30 Series Installer/User Guide Configuring privacy settings for your LongView Companion extender The three position slide switch on the front of the LongView Companion transmitter is used to configure your privacy options. The privacy switch enables two users to share the server or allows you to lock out either the remote or local user.
Page 23
Chapter 2: Installation NOTE: If you configured the transmitter for a serial mouse, connect your serial mouse into the serial COM port on the rear of the receiver. If you are using a PS/2 mouse and you are extending your server’s serial COM port for some other peripheral, connect this peripheral into the receiver’s serial COM port.
Page 24
LongView x30 Series Installer/User Guide...
A P P EN D IC ES Appendices Appendix A: Additional Configuration Examples The following figures illustrate other possible configurations for your LongView extender system. Local user LongView receiver (front) LongView receiver (back) Avocent switch LongView transmitter Figure A.1: LongView Extender Installation Example with Avocent Switch...
LongView x30 Series Installer/User Guide Local user Avocent switch LongView receiver (front) LongView receiver (back) LongView transmitter Remote server Figure A.2: LongView Extender Installation Example with Remote Server Connected to Local Avocent Switch...
LongView x30 Series Installer/User Guide Appendix B: Technical Specifications Table B.1: Product Specifications LongView Transmitter and Receiver Specifications Dimensions Dimensions (H x W x D) 1.9” x 8.1” x 4.8” (4.8 x 20.6 x 12.2 cm) Weight 1.0 lbs (.45 kg) Environmental/Power Operating Temperature 32°...
Appendices Appendix C: Video Resolution The following diagram illustrates maximum video resolution at typical distances using Comtran 2819 UTP cable. Figure C.1: Typical Distances Using Comtran 2819 UTP Cable Table C.1: EIA-568B Pin Assignments Standard four-pair wiring codes White/Blue Pair 1 Blue/White White/Orange Pair 2...
LongView x30 Series Installer/User Guide Appendix D: Technical Support Our Technical Support staff is ready to assist you with any installation or operating issues you encounter with your Avocent product. If an issue should develop, follow the steps below for the fastest possible service.
Appendices Appendix E: Troubleshooting Table E.1: Troubleshooting No status light Verify that the unit is turned on. Check the power cable. Turn off the unit and check the fuse located under the power cord connector. Contact Technical Support. No keyboard or video Check POWER indicators on the transmitter and receiver.
Page 32
LongView x30 Series Installer/User Guide No mouse Ensure that the mouse cable is connected to the proper port on the receiver and reboot the server. Re-test the mouse by connecting it to the server and rebooting the server. If the mouse does not operate when plugged directly into the server, replace the mouse.
Appendices Appendix F: Advanced Questions Is there anything I should do to optimize the video quality for my particular cable? LongView extender automatically tunes its circuits to optimize video performance for your specific cable length. However, for optimum performance at the maximum distances, particularly for high video resolutions, Comtran 2819 cable is recommended.
LongView x30 Series Installer/User Guide Figure F.1: Example of an Adaptor Built to Extend RI Using the LongView Extender’s DSR In some applications, DSR (at the server) may need to be active for your application’s software to work, but end-to-end DSR signaling may not be necessary. For these applications you can still extend DCD or RI as shown below and tie DSR to DTR in your adaptor at the server.
Appendices Appendix G: CAT 5 Cable For optimal video, particularly at maximum distances, LongView extender works best with Comtran 2819 cable. This cable should be terminated to the EIA (TIA) 568B standard, which is commonly used for 10BaseT Ethernet. Sending KVM signals over a single CAT 5 cable limits LongView extender to a 500 foot range.
LongView x30 Series Installer/User Guide the pairs of wires. LongView extender will be functional using EIA-568A, but the colors may be slightly misaligned on longer lines. Table G.1: EIA-568B (Preferred for LongView Extender) White/Blue Pair 1 Blue/White White/Orange Pair 2 Orange/White White/Green Pair 3...
Page 40
Instructions Ce symbole est destiné à attirer votre attention sur la présence de consignes importantes liées au fonctionnement et à la maintenance (entretien) dans la documentation accompagnant le matériel. Tension dangereuse Ce symbole est destiné à vous avertir de la présence de « tensions dangereuses » non isolées à l’intérieur de l’appareil pouvant être suffisamment élevées pour constituer un risque de choc électrique pour les individus.
Page 41
T A B L E D E S MAT I È R E S Liste des Figures ....................... v Liste des Tableaux ....................vii Chapitre 1 : Présentation du produit ..............1 Caractéristiques et avantages..................... 1 Compatibilité ........................3 Mesures de sécurité ........................4 Chapitre 2 : Installation....................
Page 42
Guide d’installation et d’utilisation du LongView série x30...
Page 43
L I S T E D E S F IG U R E S Figure 1.1 : Configuration classique du système d’extension LongView ........3 Figure 2.1 : Exemple d’installation du système d’extension LongView........6 Figure 2.2 : Exemple d’installation du système d’extension LongView Companion ....8 Figure 2.3 : Micro-interrupteur du système d’extension LongView Companion.....
Page 44
Guide d’installation et d’utilisation du LongView série x30...
L ISTE DES TABLEAUX Tableau 2.1 : Configuration du micro-interrupteur DIP ............10 Tableau 2.2 : Réglage du délai d’expiration ................11 Tableau 2.3 : Options série ...................... 11 Tableau B.1 : Spécifications du produit ................... 18 Tableau C.1 : Affectations de broches conformes à la norme EIA-568B......... 19 Tableau E.1 : Dépannage ......................
Page 46
viii Guide d’installation et d’utilisation du LongView série x30...
Page 47
CHAPITRE Présentation du produit Caractéristiques et avantages Les systèmes d’extension KVM (clavier, moniteur et souris) LongView® et LongView Companion® permettent d’accroître la distance entre un serveur et un ensemble pouvant comprendre un moniteur VGA, un clavier PS/2, une souris PS/2, des haut-parleurs, un microphone et un périphérique sur voie série.
Page 48
Guide d’installation et d’utilisation du LongView série x30 Installation facile Il n’est pas nécessaire de poser des cavaliers ou de régler des interrupteurs selon les longueurs de câble ou les vitesses de transmission des données de voie COM. Aucune installation ou configura- tion logicielle n’est nécessaire.
Chapitre 1 : Présentation du produit Mise à jour FLASH La fonctionnalité FLASH permet de mettre à jour le firmware du système d’extension LongView Companion afin de bénéficier des développements les plus récents d’Avocent. Pour de plus amples informations sur la mise à jour FLASH du système d’extension LongView Companion, veuillez consulter le site web d’Avocent.
Guide d’installation et d’utilisation du LongView série x30 Il est possible que les souris d’autres fabricants soient également compatibles avec le système d’extension LongView. Si vous rencontrez des problèmes lors de l’utilisation d’une souris non testée, contactez l’équipe d’assistance technique d’Avocent et ayez à portée de main le numéro de modèle de la souris ainsi que le nom du fabricant.
CHAPITRE Installation Démarrage Avant d’installer le système d’extension LongView, reportez-vous aux listes ci-dessous afin de vous assurer que vous disposez bien de tous les éléments livrés avec le système ainsi que de tous les éléments nécessaires à son installation. Éléments livrés avec les systèmes d’extension LongView et LongView Companion •...
Guide d’installation et d’utilisation du LongView série x30 Installation de l’émetteur LongView Le schéma ci-dessous illustre l’une des configurations possibles du système d’extension LongView. Pour installer correctement ce nouvel équipement, suivez les instructions détaillées des parties intitulées Installation de l’émetteur LongView et Installation du récepteur. Pour obtenir des exemples d’installation supplémentaires, consultez l’Annexe A.
Page 53
Chapitre 2 : Installation Installation de l’émetteur LongView : Mettez hors tension le serveur à inclure dans le système d’extension LongView. Déconnectez les périphériques du serveur (clavier, souris, moniteur, haut-parleurs à amplificateurs intégrés, microphone et périphérique série, le cas échéant). Préparez l’emplacement du système d’extension LongView, du serveur et des périphériques.
Guide d’installation et d’utilisation du LongView série x30 Installation de l’émetteur LongView Companion Le schéma ci-dessous illustre l’une des configurations possibles du système d’extension LongView Companion. Pour installer correctement ce nouvel équipement, suivez les instructions détaillées des parties intitulées Installation de l’émetteur LongView Companion et Installation du récepteur. Utilisateur local Récepteur LongView (face avant) Récepteur LongView (face arrière)
Page 55
Chapitre 2 : Installation AVERTISSEMENT : Pour éviter d’endommager le matériel et écarter tout risque d’électrocution : - Ne retirez pas la prise de terre. Cette prise est un élément de sécurité essentiel. - Branchez le cordon d’alimentation à une prise reliée à la terre et facilement accessible à tout moment. - Coupez l’alimentation de l’unité...
Guide d’installation et d’utilisation du LongView série x30 Configuration du micro-interrupteur (système d’extension LongView Companion uniquement) Le micro-interrupteur permet de configurer jusqu’à 6 options différentes du système d’extension LongView Companion. Huit interrupteurs peuvent être réglés sur « On » (marche) ou « Off » (arrêt). Figure 2.3 : Micro-interrupteur du système d’extension LongView Companion Tableau 2.1 : Configuration du micro-interrupteur DIP Lorsque cet interrupteur est...
Chapitre 2 : Installation Réglages du micro-interrupteur • Mouvement de la souris : l’interrupteur 1 contrôle l’activation de l’utilisateur en cas de mouvement de la souris en mode partagé. Si cet interrupteur est sur « On », l’utilisateur doit utiliser le clavier pour activer le serveur. Si cet interrupteur est sur « Off », l’utilisateur peut prendre le contrôle du serveur en déplaçant la souris.
Guide d’installation et d’utilisation du LongView série x30 • Moniteur local : l’interrupteur 7 indique si un moniteur est présent sur la voie locale de l’émetteur LongView Companion. Le cas échéant, cet interrupteur doit être réglé sur « Off ». Dans le cas contraire, ce micro-interrupteur doit être réglé...
Chapitre 2 : Installation Installation du récepteur Installation du récepteur LongView ou LongView Companion : Connectez un câble UTP CAT5 standard (pouvant mesurer jusqu’à 150 m de long) à la voie marquée Remote I/O située à l’arrière de l’émetteur. Nous vous conseillons d’utiliser un câble Comtran 2819, Belden 1583A ou Belden 1585A pour obtenir une qualité...
Page 60
Guide d’installation et d’utilisation du LongView série x30...
A NNEXES Annexes Annexe A : Exemples de configuration supplémentaires Les schémas ci-dessous illustrent d’autres configurations possibles avec un système d’extension LongView. Utilisateur local Récepteur LongView (face avant) Récepteur LongView (face arrière) Commutateur Avocent Émetteur LongView Figure A.1 : Exemple d’installation du système d’extension LongView avec un commutateur Avocent...
Page 62
Guide d’installation et d’utilisation du LongView série x30 Utilisateur local Commutateur Avocent Récepteur LongView (face avant) Récepteur LongView (face arrière) Émetteur LongView Serveur distant Figure A.2 : Exemple d’installation du système d’extension LongView avec un serveur distant relié à un commutateur local Avocent...
Page 63
Annexes Utilisateur Commutateur Avocent Récepteur LongView (face avant) Récepteur LongView (face arrière) Commutateur Avocent distant Émetteur LongView Figure A.3 : Exemple d’installation du système d’extension LongView avec plusieurs commutateurs Avocent...
Guide d’installation et d’utilisation du LongView série x30 Annexe B : Spécifications techniques Tableau B.1 : Spécifications du produit Spécifications de l’émetteur et du récepteur LongView Dimensions Dimensions (H x L x P) 4,8 x 20,6 x 12,2 cm Poids 0,45 kg Environnement/Alimentation Température de fonctionnement 0 °C à...
Annexes Annexe C : Résolution vidéo Le schéma ci-dessous illustre la résolution vidéo maximale qu’il est possible d’obtenir sur des distances typiques avec un câble UTP Comtran 2819. 640 x 480 800 x 600 1 024 x 768 1 280 x 1 024 1 600 x 1 200 Actualisation 60 Hz 152,4 m 152,4 m 152,4 m...
Guide d’installation et d’utilisation du LongView série x30 Annexe D : Assistance technique Notre équipe d’assistance technique se tient à votre disposition en cas de problème d’installation ou de fonctionnement susceptible de se produire avec un produit Avocent. Si vous rencontrez une difficulté, suivez les procédures ci-dessous afin de bénéficier d’une aide le plus rapidement possible.
Annexes Annexe E : Dépannage Tableau E.1 : Dépannage Le voyant d’état est éteint Vérifiez que l’unité est sous tension. Vérifiez le cordon d’alimentation. Éteignez l’unité et vérifiez le fusible situé en dessous du connecteur du cordon d’alimentation. Contactez le service d’assistance technique. Pas de clavier ou de vidéo Vérifiez les voyants d’alimentation de l’émetteur et du récepteur.
Page 68
Guide d’installation et d’utilisation du LongView série x30 Pas de souris Assurez-vous que le câble de la souris est connecté à la voie adéquate sur le récepteur puis redémarrez le serveur. Pour vérifier de nouveau la souris, connectez-la directement au serveur puis redémarrez celui- ci.
Annexes Annexe F : Questions techniques Comment optimiser la qualité vidéo obtenue avec un câble spécifique ? Le système d’extension LongView configure automatiquement ses circuits afin d’optimiser les performances vidéo en fonction de la longueur du câble utilisé. Cependant, pour optimiser ces performances à...
Page 70
Guide d’installation et d’utilisation du LongView série x30 Voie COM Votre adaptateur Émetteur LongView 1 DCD 1 ---- Pas de connexion 2 RD 2 --------- 2 3 TD 3 --------- 3 4 DTR 4 --------- 4 5 TERRE 5 --------- 5 6 DSR 6 ---- Pas de connexion...
Annexes Annexe G : Câble CAT 5 Pour obtenir une qualité vidéo optimale, en particulier aux distances maximales, il est recommandé d’utiliser un câble Comtran 2819 avec le système d’extension LongView. Ce câble doit être raccordé conformément à la norme EIA (TIA) 568B, généralement appliquée pour les réseaux Ethernet 10BaseT.
Guide d’installation et d’utilisation du LongView série x30 Normes EIA-568A et EIA568B Le système d’extension LongView a été conçu pour être utilisé avec des câbles CAT 5 dont les terminaisons sont conformes à la norme EIA-568B standard. Cependant, d’autres types de terminaison sont également disponibles sur ce type de câble.
Page 74
