Aviosys IP Power 9820MT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

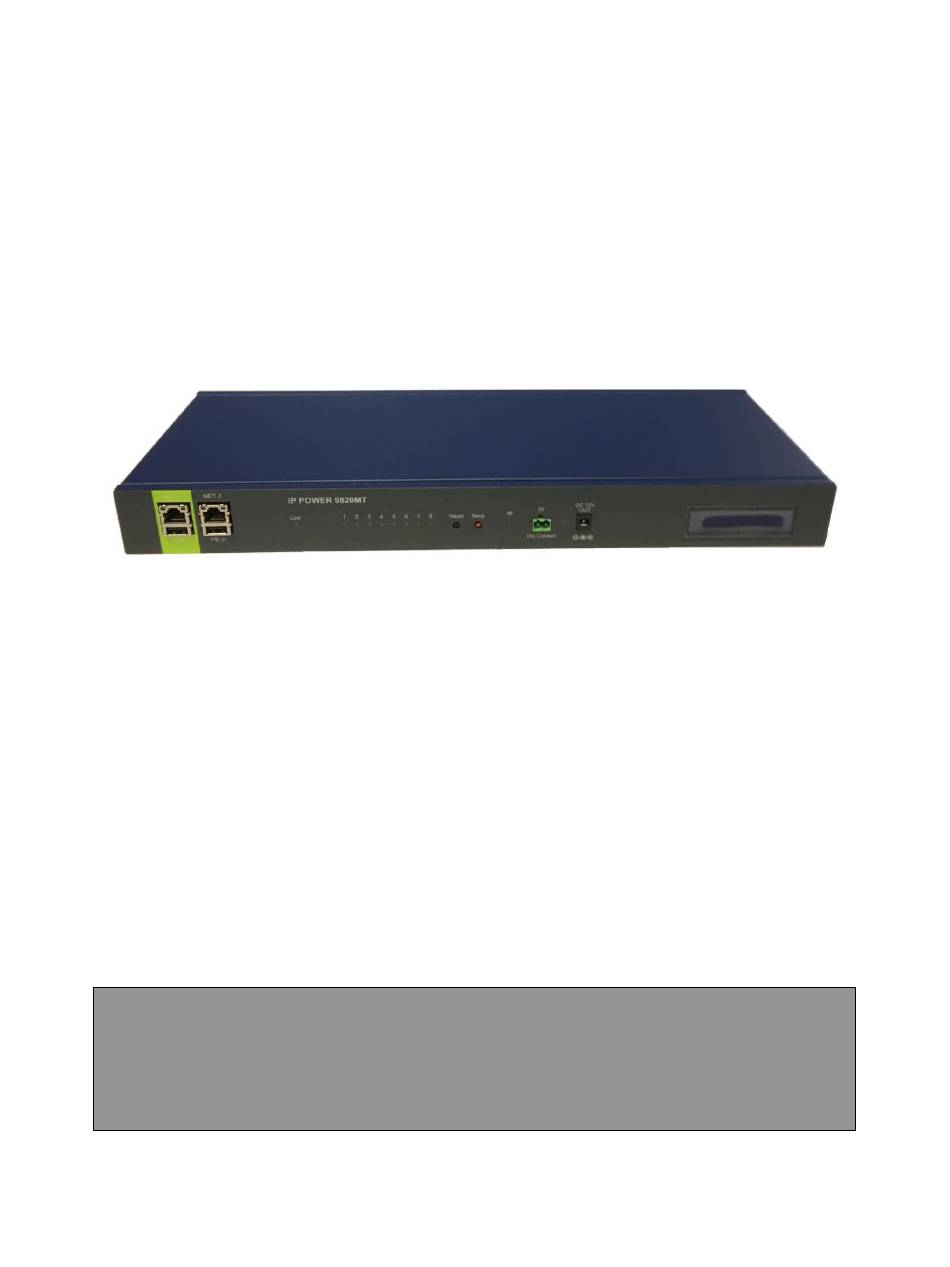

IP Power 9820MT
User Manual
Version: V1.01
Date Released: May. 2025
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Power 9820MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aviosys IP Power 9820MT

Summary of Contents for Aviosys IP Power 9820MT

  • Page 1 IP Power 9820MT User Manual Version: V1.01 Date Released: May. 2025 - 1 -...
  • Page 2 Warning: Any changes made to this equipment without permission may cause damages to the device! IMPORTANT NOTICE 1. IP Power 9820MT was designed for indoor use, we carry no responsibility for possible damages caused by outdoor use, especially in the rain.

  • Page 3: Table Of Contents

    Table of Content 1. Introduction ....................... 5 2. Product information ....................6 2.1 Features ................................6 2.2 Specification ................................7 2.3 Minimum System Requirements ......................... 7 2.4 Package Contents ..............................8 2.5 Interface ................................8 3. Setting up your device ................... 10 3.1 Before Starting ..............................
  • Page 4 4.5.1 Management ..............................54 4.5.2 Information ..............................58 4.5.3 System Log ..............................58 4.4.4 Firmware ..............................59 5. Other ways to control ..................... 60 5.1 CGI HTTP Commands ........................... 60 5.2 Telnet Control ..............................62 6. FAQ : ........................65 - 4 -...

  • Page 5: Introduction

    1. Introduction IP Power 9820MT is a new generation of the Power Distribution Unit (PDU) & Remote Power Control (RPC) system. Its able to control in the network With embedded web server and HTTPS protection, 9820MT supports higher grade security as working on Internet.

  • Page 6: Product Information

    2. Product information 2.1 Features 1. 8 ports individual Remote power switch for power On, Off and Reboot. 2. Web Server built-in design, directly control by web browser in PC & Smartphone ( WIN, Android & iOS) , like Edge, Google Chrome , Safari. 3.

  • Page 7: Specification

    19. Specific software developed by Aviosys and provided free of charge : - Web API Available : HTTP Command ( Compatible with 9820MT ) - IP Power Center - control multiple Aviosys IP devices in same AP. - CNT software ( Cross Network Technology )- allows user eliminate set up work on any Router without port forwarding- No Need to do Port Forwarding, simply Plug &...

  • Page 8: Package Contents

    2.4 Package Contents 9820MT, EARs (with screws), DI connector and Cable adapter. 2.5 Interface Front View From Left side to right side Network & USB : Network Connection : For 10/100 Mbps network . There are 2 network RJ45 connect : NET1 - Green - for network connection NET2 –...

  • Page 9: Rear View

    Temp : This is the Temperature Sensor ( RED , on board ) to detect the temperature around of 9820MT. -20 ~ 70 ℃ / - 4 ~ 158℉ . The detect range is IR : This area is for receiving the signal from handheld IR remote controller DI : Dry Contact...

  • Page 10: Setting Up Your Device

    3. Setting up your device 3.1 Before Starting *Before setting up the device make sure of the following: All the package contents are all included if anything is missing please contact the dealer where the device was purchased from. Check the power input cable is working correctly. Check all cables to make sure there are no problems with it.
  • Page 11 B. 9820MT ------------- PC ( with Web browser ) or HUB If you select to connect to PC directly, please connect the RJ45 cable to 9820MT after 1 minutes as power on of the 9820MT device. power hear the beep sound of 9820MT DO NOT connect the RJ45 as power ON 1.) Connect the power cable to 9820MT and press the power switch to ON 2.) After 9820MT power on for around 60 seconds, there is a short beep sound for 9820MT...

  • Page 12: Software Installation

    IP Edit ( Required) IP Power Center *( For multiple IP Power devices control purpose ) 1.) Select the IP Power 9820MT 2.) All the available downloads for the 9820MT will be shown 3.) Download the required software – IPEdit.exe - by clicking on the download button.

  • Page 13: Lan Connect By Ip Search Software " Ipedit

    3.3.1 LAN connect by IP Search software “ ” IPEDIT IP Edit is a search tool designed to search, configure, or access the IP Power 9820MT from a local networked computer. IP Power 9820MT Default Login / Password Default IP: 192.168.1.168 ( if there is...
  • Page 14 Notice : If can’t see the IP in the area of Local Devices of IPEDIT.exe. Please check the following situation 1. Boot up successfully : Please reboot the 9820MT and check if there are 1 short beep after 1 minutes. This beep means the device boot up successfully. If not, the device may have issue.
  • Page 15 Since the IP Address of the 9820MT is : 192.168.100.34 User will need to make sure that the first 3 segments of user 9820MT IP Address must match the first 3 segments of user gateway IP. First 3 Segment of Gateway Address: 192.168.1.X So user new IP Address for the 9820 MT should be: 192.168.1.X New Network Information...

  • Page 16: Internet Setup

    1~252 ) , user PC can get into the webpage of 9820MT. 3.3.2 Internet Setup To connect the IP Power 9820MT on Internet, there are two ways ⚫ Setup Port Mapping / Port Forwarding in your router. Please check your Router owner’s manual.
  • Page 17 1.) Open IP Edit and select the server that user’s 9820MT is designated to. 2.) Hit the Green Connect button on the top of IP Edit. 3.) Then type in the 9820MT Name that user have selected for the device and press the Search button.

  • Page 18: Mdns Connection

    3.3.4 mDNS connection You can log in to your IP9820MT without using its IP address. With mDNS support, you only need to type: “ippowerXX.local” to access the 9820MT web UI. Please locate your MAC address, which is on the side of your device. Or find the MAC address in “System →...

  • Page 19: Web Interface

    Password: 12345678 The Control Console The Right side Menu of the Web Interface control the functionality and setup of the IP Power 9820MT. The IP Power 9820MT Console consists of six main sections which will be explained in details below.

  • Page 20: Top Column

    This section show the device name. You can change the device name here : Application → IP Service → Device name Change name “ IP POWER 9820MT ” as “Enjoy 9820MT “ Notice : Please do not use symbol like !@#$%^&*()_+ as the character of the device name .

  • Page 21: Column Display

    4.1.2 Column Display For Smartphone user to control 9820MT easily, user can select to show or to hide the left control section by pressing the blue area near device name for Smartphone control : - With left control section : - Without left control section : - 21 -...

  • Page 22: Time

    4.1.3 Time In this section, it shows Time at Year – Month – Date Hours : Minutes : Seconds. To setup the Time , Please go to “ System → Management → NTP Settings ”, please press “Apply” to save the new setting. There are 3 time sync solution: Time - Manual setting, Current time - sync with Local PC or NTP Server 1.

  • Page 23: Power Control

    4.2 Power Control The IO Control Section allows you to directly / automatically control the outlets of the 9820MT as well as schedule Daily, Weekly, and Monthly power cycles. There are 4 sections: Control, Schedule, Ping and M2M mode 4.2.1 Control There are 2 setting pages in this Section.
  • Page 24 User can do the following 3 basic operation in this page : 1. Manually Control : Each port ON or OFF directly by pressing the button. For example : The following pictures means that Power #1 & #4 is ON, Power #2 & #3 is OFF Power Cycle : Manually Control the relay delay some times to turn ON or OFF.
  • Page 25 Original Outlet as “ ON ” , select final status as “ OFF ” & fill 3 sec. After press “ power cycle ” button, the outlet will be ON for 3 seconds and then turn OFF. ON ( 3 sec ) → OFF Original Outlet as “...

  • Page 26: Advance Setup

    B. Advance Setup : In this page, user can setup Name of each port, Notification, Power interval, Digit Input, LCD display, Shutdown On LAN Settings, Wake On Lan Settings etc.. - 26 -...
  • Page 27 Name of each port User can name each power by click the name above the power button. The number of character is max. 12 characters and Please change the name in English only and do not use symbol like !@#$%^&*()_+ Note : Please change the name in English only and do not use symbol like !@#$%^&*()_+ Example : Change the outlet #1 from “...
  • Page 28 For Example : Select the control in webpage of power 1 & power4 for be disable Then the page will be as following : ⚫ Forbidden power cycle : Select by port will disable the power cycle control in webpage. The disable is for the control in webpage only.
  • Page 29 ⚫ Email Alerts : Use can enable /disable the e-mail alarm here. The e-mail alarm section allows 9820MT to notify user by following situation : Receive E-mail with IP information & MAC Address as 9820MT device boot up. Receive E-mail as ON/OFF status change in each output. To get E-mail about of power status, please go to “...
  • Page 30 ⚫ Default Power Status : The control section allow user to set the power status on ON or OFF or LAST when the device get power rebooted . As select “Last “ , the output will be at the same status ON / OFF before the device power turn off . To save the setting here , please click “Apply “...
  • Page 31 ⚫ Digit Input (DI) Setting: Enable /disable the email / beep alarm as DI status change Setup Auto Control on one outlet to be ON/OFF /NONE as DI (Dry Contact ) status change . Do the Action at one time only For example : Outlet #1 is OFF.
  • Page 32 ⚫ Wake on Lan settings : This is a application for PC / Server / Main board which had been enable the “ WAKE ON LAN ” function in own setting. User need to know the MAC address of the PC /Server to do the wake up on LAN function.

  • Page 33: Schedule

    4.2.2 Schedule In this section, user can see the setting schedule list first up to 29 rules. To setup each schedule, please press “ Schedule Setting ”, then user can get the “ Schedule List ” page as following : Please click the button to switch between “...
  • Page 34 3. Select the Time Period. 4. Choose the Action : Enable power # by clicking in the small square to mark “ v “ , and select one from the power action of OFF/ON/RESET as you need. . Once the scheduler has been Set Up , hit the “ ADD No.:X Power Schedule “ button and you will see your setting located on the bottom of the Action section .

  • Page 35: Ping

    4.2.3 Ping The Ping function allows the device to Ping an IP Address automatically to act as a watchdog to make sure the device getting Ping and working properly. Please Click the button to switch between “ Ping Setting ” & “ Ping List ”. User can hide the setting section by press “ Ping List ” There are 4 rules for Ping.
  • Page 36 2. Ping Base Setting : ⚫ Ping Interval : The number of seconds ( Sec. ) between each ping. ⚫ Respond Time Out : The number of milliseconds (= ms.) of the device will wait for a response from the Pinged device if no ping is detected within this time it will be considered a Ping failure.
  • Page 37 OR : 9820MT will Ping 2 IP address. Either one IP fail times reach to the setting times. Action (ON/OFF/RESET) will be activated . AND : 9820MT will Ping 2 IP address. Both IP fail reach to the setting times. Action (ON/OFF/RESET) will be activated.
  • Page 38 The setting times range is 1 to 999 sec. Select the number of Ping Failures that user prefer to do before the action is activated. EX: Result of setting - 38 -...

  • Page 39: M2M Mode

    4.2.4 M2M mode ⚫ This is a function to control another 9820MT automatically. There are two directions : Control in LAN or Control through Internet – MQTT 1.M2M- Local ( LAN ): In this function , device B is a SLAVE device . User need to select enable , filled the IP address and login information of the HOST / Master device.

  • Page 40: Network

    4.3 Network There are 3 sections in this port : LAN Network, DNS setting and Port setting LAN Network Settings : The network status is connected by ether cable with RJ45 connector. There are 3 network connection way : Static IP / DHCP / UPNP A.
  • Page 41 User can only revise the Host Name under DHCP mode. This is also the default setting for fast LAN connection solution. As the IP from DHCP Service of user`s router will be changed by router. 9820MT will remember last IP of 9820MT assigned by user`s router in “Last DHCP state”for information Please do fill up the correct gateway / port for login from Internet.
  • Page 42 D. UPNP With UPNP function, user can log in webpage through Internet without setting Port forwarding / port mapping in your router. No matter use “ FIX IP ” or “ DHCP”, user can enable this UPNP function. Notice : It support to pass through one router and may not work as 9820MT under multiple routers. Please do fill up the correct gateway / port for login from Internet.

  • Page 43: Application Settings

    4.4 Application Settings 4.4.1 Email There are 2 sections in this part -- E-mail setting and POP3 Control : • Email Setting : User can get e-mail advice as one of the following situation happen : • Receive E-mail with IP information & MAC Address as 9820MT device boot up. •...
  • Page 44 The 9820MT allows user to send from public e-mail account , such as @gmail or @hotmail or @yahoo.com • SMTP Server: This is the mail server of sender. If user select @gmail or @hotmail account as SMTP Server, 9820MT will fill the SSL & Port automatically •...

  • Page 45: Can't Send To Gmail

    App password in 2 Step Vertification to connect with gmail. Please refer to the tutorial below: Aviosys mail setting video tutorial link, start gmail in 0:58: https://www.youtube.com/watch?v=xSjtSuQz2Rg Move to your (1) Google accounts → (2) login→ (3) manage your google account → (4) Security →...
  • Page 46 POP3 Server: This is receiver’s mail server • From : Sender’s email address. Ex.: aviosys@gmail.com • Port : This is the port of POP3 Server. If user select @gmail or @hotmail account as SMTP Server , 9820MT will fill the SSL & Port automatically.
  • Page 47 • CTRL format : Control format by subject or by body (e-mail contents) For example : Use Gmail as sender and receiver • Sender`s e-mail : 123@gmail.com • Username to log in sender`s @gmail : 123@gmail.com abc@def.com • Password to log in sender`s @gmail : 12345678 Command format &...
  • Page 48 There are 2 section of the command 1. IPPOWERCTRL:TAG=Test This is command part. Beside the tag message part ( like Test on above example) user can change in setting section , the other command must be CAPITAL and are fixed content . 2.

  • Page 49: Ddns

    4.4.2 DDNS The DDNS section allows user to setup the 9820MT with a DDNS server (i.e. www.dyndns.com). After the server has been setup correctly, enter the necessary information into the 9820 MT DDNS settings. Note : The DNS server will have extra change as apply new account. Account : the Username / account name of DDNS account Password : the Password of DDNS account Domain name : The DDNS name user apply.
  • Page 50 SNMP This section is for development of system integrator who is familiar with SNMP knowledge. In community Authority , user can select “ Read only” or “Read / Write” In “Trap” type ,user can select “ v1 trap “ , “ v2c trap “ or “ v2c inform” In MIB file section, user can get MIB information.

  • Page 51: Modbus Tcp

    Modbus TCP Modbus: We supply the TCP models of ModBus control BACnet TCP In this section is for development of system integrator who is familiar with Telnet to enable / disable the function and to setup it`s port. - 51 -...

  • Page 52: Ip Service

    4.4.4. IP SERVICE In this section, user can setup IP Server & CNT ( Cross Network Technology ) , CNT ( MQTT ) A. IP Service & CNT Setting : The IP SERVICE allow 9820MT to be accessed easily on the internet by our IP Power Center or IPEDIT. With this feature anyone can find its device with no problems.
  • Page 53 Please refer page for the function of IP Server B. CNT ( MQTT) – For developing only. 9820MT supports MQTT fucniton. Please contact with your distributor for the details if you would like to develop own system. mDNS User can decide to “Enable” or “Disable” the mDNS connection, to see how mDNS work, please refer to P.18 (3.3.4) - 53 -...

  • Page 54: System Setting

    4.5 System Setting 4.5.1 Management In this section there are 5 settings: Administrator setting, Langrage Settings , NTP settings , Import Configuration files and System Reset. Administrator setting In this section allows user to change password for 3 different authorization level. The account name and password can be changed, but each Authorities only support one Account name &...

  • Page 55: Web Server Settings

    1. Administrator (Admin) : The Administrator has the authority to create other users, remove users, and control the device. 9820MT will ask to log in again if change the Default Setting here. 2. Operator : The operator can only control the setting of “IO Control” section but cannot see other page of 9820MT.

  • Page 56: Ntp Setting

    NTP setting In this section, user can setup the date, time, current time, time zone, NTP server and sync with NTP to get the time synchronization. SYNC with NTP : User can setup the time gap ( 1~300 hours ) for 9820 MT to check the time with the NET server.

  • Page 57: System Reset

    System Reset User can click one button to set back the setting to default or restart the 9820MT without device nearby user side. Note : The factory default setting of 9820MT IP is assigned by DHCP. It will change the IP if load factory defaults. Export configuration file : Export the settings into DAT file for import to other 9820MT Factory Reset : set back to factory default.

  • Page 58: Information

    4.5.2 Information User can get the system information here, mDNS appears in the System section. 4.5.3 System Log In this section, user can get the 9820MT system operation information and send the information to assign Server IP address ( not support name ). The system information will be deleted after 9820MT device power reboot.

  • Page 59: Firmware

    4.4.4 Firmware Please only use the file supply from Aviosys distributor or Aviosys. There are two sections: Bootloader & Firmware The firmware update function only support in LAN connection . Before update, please DO READ THE HI-LITE MESSAGE BLOW : It takes about 1 minute to upload upgrade flash and be patient please.

  • Page 60: Other Ways To Control

    5. Other ways to control Besides webpage control, there are several ways to control the outlets : by HTTPS/CGI command or by Telnet. 9820MT also support SNMP ( MIB), Modbus /TCP and BACnet /TCP. Please check page #41 to check and enable the function. 5.1 CGI HTTP Commands CGI Commands allow you to easily integrate the 9820MT with other systems and programs.
  • Page 61 2.4 To get Current ： getcurrent http://192.168.1.18/set.cmd?cmd=getcurrent System return： CGI Command : Data follows c61=0.000000, c62=0.000000, c63=0.000000, c64=0.000000, c65=0.000000, c66=0.000000, c67=0.000000, c68=0.000000, temp=22.700001 C61 to C68 means 8 currents ，temp is temperature （as Celsius ） 2.5 To get temperature （Celsius）: gettemp http://192.168.1.18/set.cmd?cmd=gettemp System return：...

  • Page 62: Telnet Control

    5.2 Telnet Control Please enable the telnet function in “Application ” → “ Communication ” Or Check page #49(4.4.3) to check and enable the function Notice: The command “ –C ” & “ -T ” are for models 9820MT & 9828-P only. C =Current .
  • Page 63 Command example: command: help *Note: Power 1~Power 8 display from left to right. command: setpower On: p6x=1, Off:p6X=0 On: Power 1~8 Off: Power 1~8 - 63 -...
  • Page 64 command: getpower command: voltage *Note: This command only for IP9820MT. - 64 -...

  • Page 65: Faq

    6. FAQ : Q1: Why can`t I see the 9820MT`s IP address in IPEDIT.exe? Ans.: Please check the PC you use is under same LAN/ network / segment as 9820MT. Please turn off some Anti-Virus / online chatting software. If there are more than 1 network card, include dynamic network card, please disable one and make sure the one you selected is under the same segment with IP9820MT.
  • Page 66 Q4: How can I reset to default: Ans : Keep pressing the button of“ RESET ”for 10 seconds at least To reset to original manufacture settings : press the reset button with a sharpen pin for 10 seconds then RELEASE. There will be 3 beeps sound which means reset start and 9820MT will be rebooted itself -there is one beep after reboot ) and most information go back to default setting ( LAN IP ).
