FERREX F-RTW12 User Manual

FERREX F-RTW12 User Manual

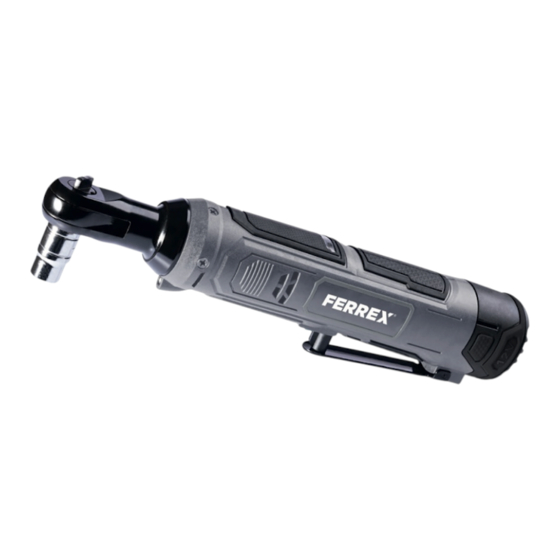

12v cordless ratchet wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALDI GUARANTEES THAT OUR EXCLUSIVE BRAND PRODUCTS ARE DEVELOPED TO
OUR STRINGENT QUALITY SPECIFICATIONS. IF YOU ARE NOT ENTIRELY SATISFIED
WITH THIS PRODUCT, PLEASE RETURN IT TO THE NEAREST ALDI STORE WITHIN
60 DAYS FROM THE DATE OF PURCHASE, FOR A FULL REFUND OR REPLACEMENT,
OR TAKE ADVANTAGE OF OUR AFTER SALES SUPPORT BY CALLING THE
SUPPLIER'S CUSTOMER SERVICE HOTLINE.
AU
Made in China
FERREX® is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
5
AFTER SALES SUPPORT
835396
1300 855 831
AU
support@scheppach.com.au
YEAR
MODELL:
WARRANTY
F-RTW12
07/2024
User Manual
12V CORDLESS RATCHET WRENCH
F-RTW12
Translation of original instruction manual
Contents

Table of contents:

Page:
1.
2.
Introduction .......................................................................... 8
3.
Device description ................................................................ 9
4.
Proper use ............................................................................. 10
5.
Safety instructions ............................................................... 10
6
Technical data ....................................................................... 15
7.
Unpacking ............................................................................. 17
8.
Operation ............................................................................... 17
9.
Cleaning ................................................................................. 20
10.
Maintenance .......................................................................... 21
11.
Repairs ................................................................................... 21
12.
Storage ................................................................................... 21
14.
Troubleshooting ................................................................... 22
15.
Transport ................................................................................ 22
16.
Disposal and recycling ......................................................... 22
17.
Warranty details .................................................................... 23
18.
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-RTW12 and is the answer not in the manual?

Questions and answers

Related Manuals for FERREX F-RTW12

Summary of Contents for FERREX F-RTW12

  • Page 1: Table Of Contents

    Transport ................22 Disposal and recycling ............22 Warranty details ..............23 Repair and Refurbished Goods or Parts Notice ....24 Made in China FERREX® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au...
  • Page 2 Scope of delivery 1 x Cordless Ratchet Wrench 1 x Battery 1 x USB-C Charging cable 1 x Operating manual 1 x Warranty card...

  • Page 3: Explanation Of The Symbols On The Device

    Explanation of the symbols on the device Explanation of the symbols on the device Warning - Read the operating manual to reduce the risk of injury. Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the device can cause sight loss. Wear hearing protection.

  • Page 4: Introduction

    Introduction 1. Introduction Congratulations on your purchase of this FERREX® product. All FERREX® products, are manufactured to the highest standards of performance and safety and are secured by our comprehensive 5-year warranty as part of our cus- tomer service. We hope you will enjoy your purchase for many years to come.

  • Page 5: Device Description

    Device description 2. Device description (Fig. 1) Cordless ratchet wrench: 1. Rotation direction switch 2. Battery charge indicator 3. Handle 4. Release button (battery) 5. Battery 6. Battery mount 7. ON/OFF switch 8. Locking switch 9. LED work lamp 10. Tool holder 11.

  • Page 6: Proper Use

    Proper use/Safety instructions 3. Proper use This appliance is intended for tightening and loosening hexagonal bolts and nuts. An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

  • Page 7: Electrical Safety

    Safety instructions c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (ground- ed) power tools.
  • Page 8 Safety instructions switch when carrying the electric tool or having the device already switched on when connecting it to the power supply may result in accidents. d) Remove any adjusting key or screwdriver before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.
  • Page 9 Safety instructions f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working con- ditions and the work to be performed.

  • Page 10: Residual Risks

    Safety instructions work during which the attached tool could contact hidden power ca- bles. Contact with a live wire may electrify exposed metal parts of the tool and could give the operator an electric shock. • Secure the workpiece. A workpiece securely held by a clamping de- vice or vice is much safer than one held in your hand.

  • Page 11: Technical Data

    Safety instructions /Technical data Technical data Cordless ratchet wrench Model: F-RTW12 Rated voltage: 12V (direct current) Idle speed n 300 min Max. torque: 45 Nm Square drive: 3/8“ (9.5 mm) Operation: -20°C - 50°C Temperature: Storage: 5°C - 30°C Battery...
  • Page 12 Safety instructions Technical data The noise and vibration values have been determined in accordance with EN 62841-1. Noise data Sound pressure L 80 dB Measurement uncertainty K 3 dB Sound power L 91 dB Measurement uncertainty K 3 dB Vibration data Vibration a 11.64 m/s²...

  • Page 13: Unpacking

    Unpacking 5. Unpacking • Open the packaging and carefully remove the device. • Remove the packaging material, as well as the packaging and transport safety devices (if present). • Check whether the scope of delivery is complete. • Check the device and accessory parts for transport damage. In the event of com- plaints the carrier must be informed immediately.
  • Page 14 Operation Operation Information about the battery (5) (Fig. 1) m NOTE! A new battery (5) or one that has not been used for a long time must be charged be- fore it is used for the first time/again. • The battery is partially charged on delivery. Li-ion rechargeable batteries can be charged at any time without affecting their service life.

  • Page 15: Battery Status

    Operation Switching on/off (Fig. 1) Turn on • Use the locking switch (8) to unlock the ON/OFF switch (7). • Press and hold the ON/OFF switch (7) to start the machine. • The LED work lamp (9) lights up automatically. This provides illumination of the work area in poor lighting conditions.

  • Page 16: Cleaning

    Cleaning 9. Cleaning m WARNING! Switch off the product and allow the product to cool down before carrying out inspec- tion, maintenance or cleaning work! Have the product repaired by the service centre or a qualified electrician and only with original spare parts.

  • Page 17: Maintenance

    Maintenance/Repairs/Storage Maintenance 10. Maintenance The product is maintenance-free. Before and after each use: Check the product and its accessories for wear and dam- age. Replace the accessories if necessary. Observe the technical requirements (see “Technical data”). 11. Repairs There are no parts which can be repaired by the user within this product. Contact a qualified professional to have the product checked and repaired.

  • Page 18: Troubleshooting

    Troubleshooting/Transport/Disposal and recycling 13. Troubleshooting Fault Possible cause Remedy The battery power is too weak. Charge the battery. The product cannot Push the battery into the be started. The battery is not properly battery mount. The inserted. battery clicks into place audibly.

  • Page 19: Warranty Details

    AFTER SALES SUPPORT YEAR   1300 855 831 support@scheppach.com.au WARRANTY AUS Hotline Costs: Local rate for landline calls* MODEL: F-RTW12 PRODUCT CODE: 835396 07/2024 *Charges may vary dependent upon network operator or mobile network provider.

  • Page 20: Repair And Refurbished Goods Or Parts Notice

    Telephone: 1300 855 831 (Monday - Friday 8:00am-6:00pm) Email: support@scheppach.com.au AFTER SALES SUPPORT YEAR   1300 855 831 support@scheppach.com.au WARRANTY AUS Hotline Costs: Local rate for landline calls* MODEL: F-RTW12 PRODUCT CODE: 835396 07/2024 *Charges may vary dependent upon network operator or mobile network provider.
