User Manual
BURNISHING MACHINE
5
YEARS
Original instructions
Warning: Read the instructions before using the machine
Contents
Overview .............................................................................. 03
Utilisation .............................................................................04
Contents of Box ....................................................................06
Explanation of symbols ....................................................... 07
Introduction .........................................................................08
Device description ...............................................................09
Scope of delivery .................................................................09
Proper use ............................................................................ 10
Safety information ............................................................... 10
Technical data ...................................................................... 16
Before commissioning ......................................................... 18
Assembly .............................................................................. 18
Commissioning ..................................................................... 19
Transport...............................................................................21
Maintenance and cleaning ...................................................21
Storage ................................................................................. 22
Electrical connection ........................................................... 22
Disposal and recycling ......................................................... 23
Troubleshooting .................................................................. 24
Warranty Details .................................................................. 25
Overview
A
1
2
3
4
5
10
7
6
9
8
11
B
15
16
12
17
18
14
19
9
1
8
13
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-URM1300-S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FERREX F-URM1300-S2

  • Page 1: Table Of Contents

    Warranty Details ..............25 MINCHINBURY NSW 2770 Repair and refurbished goods or parts notice ....26 www.aldi.com.au AFTER SALES SUPPORT 714785 1300 855 831 support@scheppach.com.au YEARS MODEL: WARRANTY Original instructions F-URM1300-S2 03/2024 Warning: Read the instructions before using the machine...
  • Page 2: Utilisation

    Utilisation Contents of Box Burnishing machine Front handle Brushing roller brass wire Nylon brush Allen screw Allen key Phillips screw Feather key Big washer Flat washer Clamping screw Small washer Warranty Certificate Manual...
  • Page 3: Explanation Of Symbols

    Explanation of symbols Explanation of Symbols Read the operating and safety instructions before start-up and follow them! Wear hearing protection. If dust builds up, wear respiratory protection Wear eye protection. Wear protective gloves. Protection class II (double insulation) Warranty period. Complies with the Australian EMC requirements and safety standards.
  • Page 4: Introduction

    Introduction Introduction Dear customer, We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this de- vice assumes no liability for damage to the device or caused by the device arising from: •...
  • Page 5: Device Description

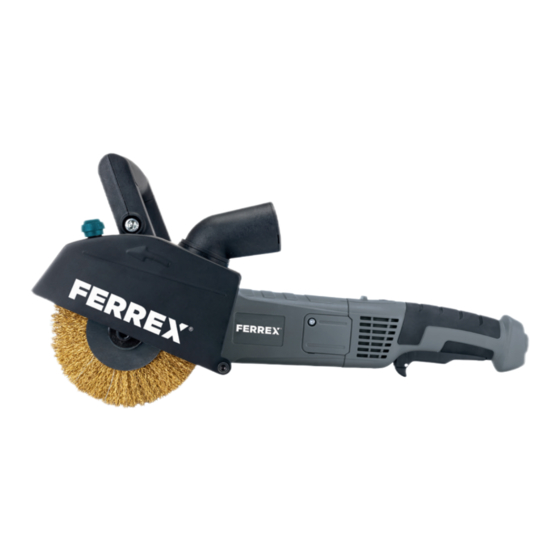

    Device description/Scope of delivery Device description (Fig. A, B) Front handle Extraction port Sealing cap Setting wheel for speed preselection Rear handle On/Off switch Switch lock Brushing roller Cover 10. Fixing screw 11. Shaft interlock 12. Allen screw 13. Allen key 14.
  • Page 6: Proper Use

    Proper use/Safety information Proper use With the appropriate accessories for the respective application, the machine can be used to process metal, plastic and wood surfaces, i.e. grinding, deburring, smoothing, structuring, matting, satin-finishing and polishing. The applications range from coarse sanding to fine sanding and high gloss polishing. The machine may only be used in the intended manner.
  • Page 7 Safety information b) Avoid body contact with earthed or grounded surfaces, such as pipes, ra- diators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 8 Safety information h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4. Power tool use and care a) Do not force the power tool.
  • Page 9 Safety information Safety instructions for all applications Common safety instructions for grinding, working with wire brushes, polish- ing: a) This electric tool is to be used as a grinder, wire brush, polishing. Read all safety warnings, instructions, illustrations and data that are received with the device.
  • Page 10 Safety information high intensity noise may cause hearing loss. i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
  • Page 11 Safety information pinching. Abrasive wheels may also break under these conditions. Kick-back is the result of incorrect use of the electric tool and/or deficient working conditions. It can be prevented by suitable precautionary measures, as described in the following. a) Maintain a firm grip on the power tool and position your body and arm to al- low you to resist kickback forces.
  • Page 12: Technical Data

    Safety information/Technical data Residual risks The electric tool has been built according to state-of-the-art and the recog- nised technical safety rules. However, individual residual risks can arise dur- ing operation. • Health hazard due to electrical power, with the use of improper electrical connec- tion cables.
  • Page 13 Technical data Noise/vibration information m WARNING! Working without hearing protection or protective clothing can result in damage to health. • Wear hearing protection and appropriate protective clothing when working. Measured as per AS/NZS 62841.1 and AS/NZS 62841.2.4. The noise at the work place can exceed 85 dB.
  • Page 14: Before Commissioning

    Before commissioning/Assembly VII. Before commissioning • Open the packaging and carefully remove the device. • Remove the packaging material, as well as the packaging and transport safety de- vices (if present). • Check whether the scope of delivery is complete. •...
  • Page 15: Commissioning

    Commissioning brushing roller (8) has feather key grooves, make sure that the feather keys (15) are in the grooves of the motor shaft (B) and the big washer (16) is mounted. Secure the brushing roller (8) by actuating the shaft interlock (11) and tightening the clamping screw (18) with the spring washer (17).
  • Page 16 Commissioning Setting the speed (fig. A) 1. Use a speed adapted to the application in order to prevent damage to the material. 2. Select the desired speed for the speed preselection (4) using the setting wheel. 3. The required speed is dependent on the material and the working conditions and can be determined with a practical trial.
  • Page 17: Transport

    Transport/Maintenance and cleaning Transport Always switch off the power tool before transport and disconnect it from the power supply. To transport the power tool, lift it by the centre struts. Protect the electrical tool from impacts, shocks and severe vibrations, e.g. during vehicular transport.
  • Page 18: Storage

    Maintenance and cleaning/Storage/Electrical connection Service information With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables. Wearing parts*: Carbon brushes, brushing roller * may not be included in the scope of supply! Spare parts and accessories can be obtained from our service centre.
  • Page 19: Disposal And Recycling

    Electrical connection/Disposal and recycling Check the electrical connection cables for damage regularly. Ensure that the connec- tion cables are disconnected from electrical power when checking for damage. Electrical connection cables must comply with the applicable local electrical regula- tions. Only use connection cables with designation H05VV-F. The printing of the type designation on the connection cable is mandatory.
  • Page 20: Troubleshooting

    Troubleshooting XVI. Troubleshooting Fault Possible cause Remedy Arrange for inspection of the ma- chine by a specialist. Motor, cable or plug Motor does not work Never repair the motor yourself. defective, fuses burnt Danger! Check fuses and replace if necessary Contact the utility provider to The engine runs Voltage too low, coils...
  • Page 21: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT  support@scheppach.com.au 1300 855 831  MODEL: F-URM1300-S2 PRODUCT CODE: 714785 03/2024...
  • Page 22: Repair And Refurbished Goods Or Parts Notice

    Please telephone us on 1300 855 831 or write to us at: RossMac Pty. Ltd. Unit 6, 4 Ovata Drive, Tullamarine, Victoria, 3043 support@scheppach.com.au AFTER SALES SUPPORT  support@scheppach.com.au 1300 855 831  MODEL: F-URM1300-S2 PRODUCT CODE: 714785 03/2024...
