Summary of Contents for FERREX TD9511

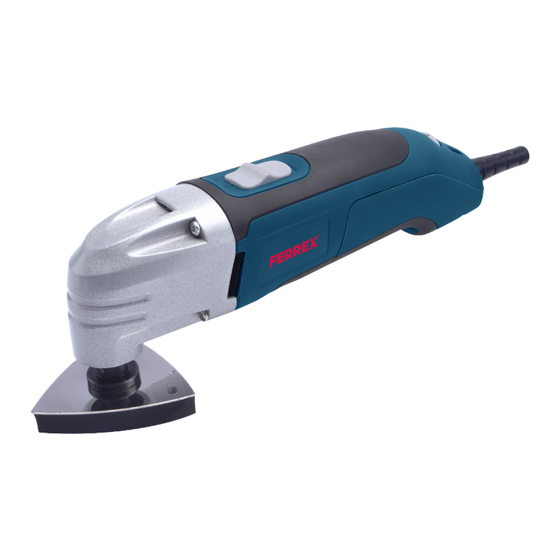

- Page 1 User Manual W MULTIFUNCTION-TOOL TD9511 Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Overview ....................3 Use ......................4 Pack contents/device parts ..............5 General information ................6 Reading and storing the user manual ............6 Explanation of symbols .................6 Safety .......................7 Proper use ....................... 7 Residual risks ....................8 General power tool safety instructions ............8 Operational safety instructions for your multifunction-tool .... -
Page 5: Pack Contents/Device Parts
Pack contents⁄device parts On/Off switch Speed control Holder Plunge-cut saw blade for metal Plunge-cut saw blade for wood Scraper Segment saw blade Sanding sheet, 9x (various grain sizes) Sanding plate Washer Allen head screw Allen wrench... -
Page 6: General Information
300W multifunction-tool General information General information Reading and storing the user manual This user manual accompanies this 300W multifunction-tool. It contains important information on start-up and handling. For improved readability, the 300W multifunction-tool will be referred to only as the “multifunction-tool” below. Before using the multifunction-tool, read the user manual carefully. -
Page 7: Safety
Safety 300W multifunction-tool Wear a dust mask. Wear ear protection. Wear suitable protective gloves. Read the user manual! The multifunction-tool complies with protection class II. Safety Proper use The multifunction-tool is only designed for private users in connection with hobby and DIY projects for the following purposes: •... -
Page 8: Residual Risks
300W multifunction-tool Safety • Use of the multifunction-tool for commercial or industrial applications as well as in connection with the trades; • Operation or maintenance of the multifunction-tool by persons not familiar with how to handle the multifunction-tool and/or who are not aware of the related risks. - Page 9 Safety 300W multifunction-tool Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
- Page 10 300W multifunction-tool Safety g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
-
Page 11: Operational Safety Instructions For Your Multifunction-Tool
Safety 300W multifunction-tool Operational safety instructions for your multifunction-tool − Hold the multifunction-tool by the insulated handles when performing work where there is a risk of the fitted tool being used coming into contact with hidden power lines. Contact with a live line could also energise metallic parts of the device and inflict an electric shock. -
Page 12: Safety Instructions For Sanding Paint
300W multifunction-tool Safety Safety instructions for sanding paint − Do not sand paints that contain lead. Determine whether the paint you intend to sand contains lead before beginning work. Dust from paints containing lead may cause lead poisoning. − A special test or a commercial painting contractor can determine whether a paint contains lead. -
Page 13: Safety Precaution For Fire Prevention
Preparation 300W multifunction-tool − Observe the regulations in your country that apply to the materials you intend to work on. − When disposing of dust, be particularly careful as the dust of some materials may be explosive. Do not dispose of sanding dust in fire. Mixtures of dust particles containing oil or water could spontaneously ignite over time. -
Page 14: Familiarising Yourself With The Functional Principle
300W multifunction-tool Preparation Familiarising yourself with the functional principle The multifunction-tool does not rotate the fitted tool; instead, it oscillates it back and forth. Familiarising yourself with permissible materials You can use the following tools to process the listed materials: Plunge-cut saw blade •... - Page 15 Preparation 300W multifunction-tool Mounting tools CAUTION! Risk of injury! If you mount the tools incorrectly and they are therefore able to come into contact with your hand during use, there is a risk of injury. − Do not mount the tools such that there is a possibility of them coming into contact with your hand.
-
Page 16: Operation
300W multifunction-tool Operation Operation Getting started 1. Make sure that the multifunction-tool has been properly prepared as described in the chapter “Preparing the multifunction-tool”. 2. Connect the multifunction-tool to a mains socket. 3. Switch the extractor on. to switch the multifunction-tool on. (see fig.H) 4. -
Page 17: Cleaning And Maintenance
Cleaning and maintenance 300W multifunction-tool Cleaning and maintenance WARNING! Burn hazard! Some tools become hot during operation. You could burn yourself. − Always let them cool off completely before cleaning! NOTICE! Risk of short circuit! Water that has penetrated the housing may cause a short circuit. −... -
Page 18: Storage And Transport
300W multifunction-tool Storage and transport Storage and transport NOTICE! Risk of damage! Improper storage or transport of the multifunction-tool could damage it. − Store and transport the multifunction-tool in a clean, dry and frost-free location. Always use the enclosed storage bag to store and transport the multifunction-tool and the accessories. -
Page 19: Troubleshooting
Repairs 300W multifunction-tool Troubleshooting Some problems may be caused by minor faults that you can fix yourself. To do so, follow the instructions in the following table. If it is still not possible to resolve the problem with the multifunction-tool, contact After Sales Support. -
Page 20: Technical Data
300W multifunction-tool Technical data Technical data Product-specific data Model number: TD9511 Article number: 703588 Electrical data Supply voltage: 230–240 V~ Mains frequency: 50 Hz Power consumption: 300 W Idle speed n 15000-22000 rpm Physical data Dimensions without accessories and cords: 270 × 62 × 90 mm Weight without tools: 1.28 kg... -
Page 21: Noise/Vibration Information
Noise/vibration information 300W multifunction-tool Noise⁄vibration information WARNING! Health hazard! High levels of noise and vibrations may result in injury. − Wear ear protection and suitable protective clothing when working with the device. Noise emission values Measured as per DIN EN 60745-1. The noise at your workplace may exceed 85 dB (A); protective measures are necessary in this case (wear suitable ear protection). - Page 22 300W multifunction-tool Noise/vibration information ATTENTION! The aforementioned vibration emission level (vibration value) has been measured in accordance with a test method standardised in DIN EN 62841 -1 and can be used to compare one power tool to another. It is also suited for preliminary estimation of loading by vibration.
-
Page 23: Disposal
Disposal 300W multifunction-tool Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and foils via the recyclable material collection service. Widely Not Yet recycled Recycled Disposing of old devices (Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials) Old devices must not be disposed of with household waste! -
Page 24: Service Notes
• Store the multifunction tool, the user manual and, if applicable, the accessories in the original packaging provided. • FERREX® devices are largely maintenance-free. For notes on cleaning and maintenance, refer to the chapter “Cleaning and maintenance”. • FERREX® devices undergo strict quality controls. If, however, the functioning of the device is disrupted, send the multifunction tool to the manufacturer as described in the chapter “Checking the multifunction tool and package contents”. -
Page 25: Declaration Of Conformity
1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 This declaration of conformity is issued under the sole responsibility of the manufacturer. EU Declaration of Conformity 300W MULTI FUNCTION TOOL We declare with sole TD9511 responsibility, that the product listed below … FERREX® 703588· 08/2020 2011/65/EU and 2015/863(RoHS) …... -
Page 26: Warranty Card
01904 727506 01247 5150 product please return the completed www.coreservice.co.uk warranty card together with it. MODEL: TD9511 PRODUCT CODE: 703588 / 08/2020 SUMEC UK CO.,LTD. Unit A&B Phone lines available Escrick Business Park, Escrick... -
Page 27: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits: Warranty period: 3 years from date of purchase. Costs: Free repair/exchange. No transport costs. Hotline: Free hotline. ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors. - Page 28 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 703588 01904 727506 01247 5150 www.coreservice.co.uk YEAR MODEL: 703588 WARRANTY TD9511 / 08/2020...
