Summary of Contents for FERREX FAPS 20-I

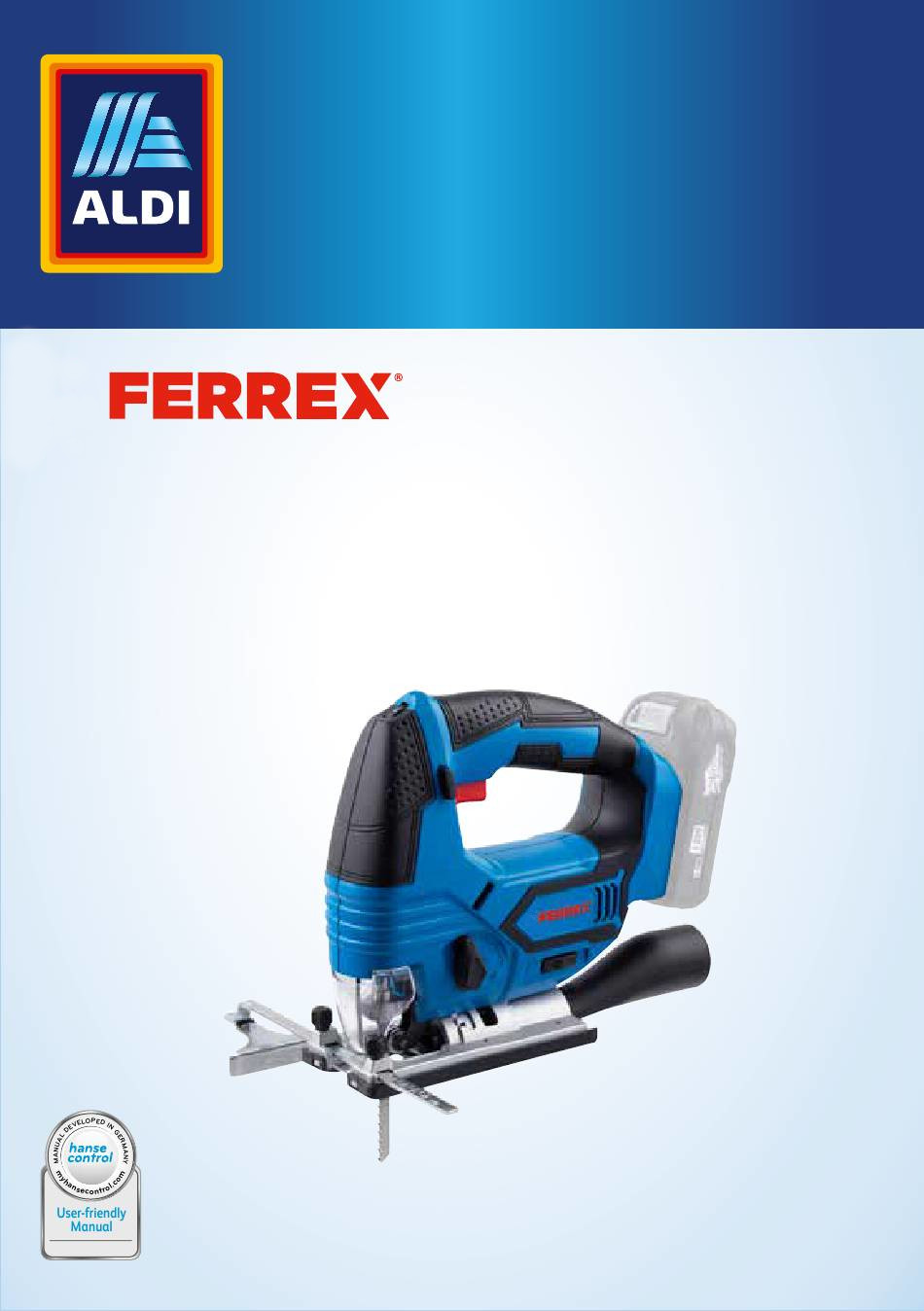

- Page 1 User Manual 20 V LI-ION CORDLESS JIGSAW Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Package contents ................ 3 Components ..................6 General information ..............7 Reading and storing the user manual ........... 7 Explanation of symbols ..............7 Safety ...................8 Explanation of notes .................8 Proper use ...................8 Residual risks ..................9 General safety notes for power tools ..........9 Using and handling the power tool .......... -
Page 3: Package Contents
Package contents Package contents... - Page 4 Package contents...
- Page 5 Package contents...
-
Page 6: Components
Package contents Components Dial for the stroke rate control Locking key for On/Off switch On/Off switch Handle Battery holder Sliding switch for dust blower function Saw shoe Sliding shoe Pendulum stroke adjustment Guide roller Saw blade holder Locking screws (Parallel guide) Protective cover Locking lever for saw shoe Saw blade... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 20 V Li-ion cordless Jigsaw (referred to below only as the ‘product’). It contains important information on safety, usage and care. Before using the product, read the user manual carefully. Pay particular attention to the safety instructions and warnings. -
Page 8: Safety
Safety Wear suitable protective gloves. Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. WARNING! Designates a dangerous situation that may result in minor or moderate injury if not avoided. -
Page 9: Residual Risks
Safety • failure to comply with any regulations relating to accident prevention, occupational health or safety, which specifically and/or generally apply to the use of the product; • use of accessories and spare parts not intended for the product; • changes to the product; •... - Page 10 Safety Work place safety a) Keep your work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not work with the power tool in areas with a risk of explosion where flammable liquids, gases or dusts are present. Power tools create sparks which may ignite the dust or fumes.
-
Page 11: Using And Handling The Power Tool
Safety any power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Wear personal protective gear and always wear safety glasses. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. -
Page 12: Cordless Tool Use And Care
Safety c) Disconnect the plug from the power source and/or remove the rechargeable battery from the power tool before making any adjustments, changing insertion tools or storing the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Page 13 Safety c) Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metallic objects that could bridge the contacts. A short circuit between the contacts of the rechargeable battery could result in burns or fire. d) If used improperly, liquid may leak out of the rechargeable battery.
-
Page 14: Preparation
Preparation b) Fasten and secure the workpiece to a stable surface using clamps or in another manner. If you only hold onto the workpiece with your hand or put it against your body, it will remain unstable and could lead to loss of control. Preparation WARNING! Choking hazard! -
Page 15: Attaching The Sliding Shoe
Preparation Attaching the sliding shoe 1. Push the product and both retaining collars into the two recesses on the (see Fig. I). sliding shoe 2. Push the product downwards until the sliding shoe’s rear retaining collars click into place. 3. To remove the sliding shoe from the saw shoe, separate the retaining collars at the rear end of the sliding shoe and pull it downwards. -
Page 16: Adjusting The Saw Shoe For Mitre Cuts
Preparation Adjusting the saw shoe for mitre cuts CAUTION! Risk of injury! Improper handling of the product can lead to severe injury. − Never saw with a saw shoe which hasn’t been secured. − Before sawing, always make sure that the saw blade’s locking lever is pushed firmly back. -
Page 17: Dust Blower Function
Preparation Dust blower function A vacuum cleaner cannot be used to suck up shavings/chips when the dust blower function is switched on. − In order to switch on the dust blower function, move the slider for the dust blower function towards the right, in the direction of the rechargeable battery (not included in the package contents). -
Page 18: Attaching The Parallel Guide
Preparation Attaching the parallel guide • The parallel guide can be attached to both sides of the saw blade. The parallel guide makes it possible to make a straight cut parallel to the workpiece’s stop edge. • You can always saw without a parallel guide. Using a parallel guide is not absolutely necessary. -
Page 19: Charging The Rechargeable Battery
Operation Charging the rechargeable battery − To charge the battery, follow the instructions described in the user manual for the battery pack and charger used. Inserting and removing the rechargeable battery − To insert the rechargeable battery, slide it into the battery holder . -
Page 20: Setting The Pendulum Stroke
Operation Level Stroke rate low stroke rate medium stroke rate high stroke rate • The stroke rate should be high enough to make smooth cuts in the material. • When sawing hard materials, you should select a lower stroke rate and a saw blade with fine toothing. -
Page 21: Switching The Product On And Off
Operation The best stroke rate setting and pendulum stroke adjustment combination depends on the material to be machined. For determining the ideal setting, we recommend that you always carry out a sample cut using a scrap piece. Switching the product on and off The LED light makes it possible to additionally illuminate the cut surface. -
Page 22: Sawing Out Sections
Operation In doing so, only apply light pressure to the saw blade. Cover the cutting line with a suitable coolant when cutting metal. Make sure to pay attention to the maximum material thickness to be machined: • Wood: 80 mm •... -
Page 23: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Solution Device does not The rechargeable battery is Insert the rechargeable battery. work not inserted. The saw’s cutting The saw blade is dull. Have the saw blade sharpened power is poor. or replace it with a new one. The cuts are The angle settings have Readjust the angles. -
Page 24: Storage
Storage Cleaning − Use a soft cloth or brush to clean the housing. − Clean the LED light with a soft, dry brush. − Clean the vents and area around the saw blade holder − Remove dust or chips by blowing them out with compressed air. −... -
Page 25: Technical Data
Technical data Technical data Article number: 98760 Model: FAPS 20-I Model number: WU5420153/WU5420154 Motor voltage supply: 20 V Stroke rate: 500–3,000 min Stroke height: 20 mm Cutting depth wood: 80 mm Mitre cuts: 15°, 30°, 45° (left and right) Operating temperature: 4°C to 40°C... -
Page 26: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! Health hazard! Working without ear protection and suitable protective clothing poses a health hazard. − Wear ear protection and suitable protective clothing when working with the device. WARNING! The vibration and noise emission values may differ from the level specified while actually using the power tool. - Page 27 Noise/vibration information Cutting chipboard • Vibration level a 9.1 m/s² • Uncertainty K 1.5 m/s² Sawing sheet metal • Vibration level a 7.2 m/s² • Uncertainty K 1.5 m/s² WARNING! The above vibration emission level (vibration value) has been measured in accordance with a test method standardised in EN 62841-1 and EN 62841-2-11 and can be used to compare one power tool with another.
-
Page 28: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with wastepaper and plastics with recyclable waste. Disposing of the product − Dispose of the product in accordance with the applicable disposal regulations for your country. -
Page 29: Declaration Of Conformity
Oberkamper Straße 37 - 39 42349 Wuppertal Germany EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS JIGSAW FAPS 20-I that the product listed below … WU5420153/5420154 • 98760 • 10/2019 … meets all of the requirements 2011/65/EU (RoHS) of the listed directives. - Page 30 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 98760 00800 34 99 67 53 meister-service@conmetallmeister.de YEAR MODEL: WARRANTY FAPS 20-I / WU5420153/WU5420154 10/2019...
