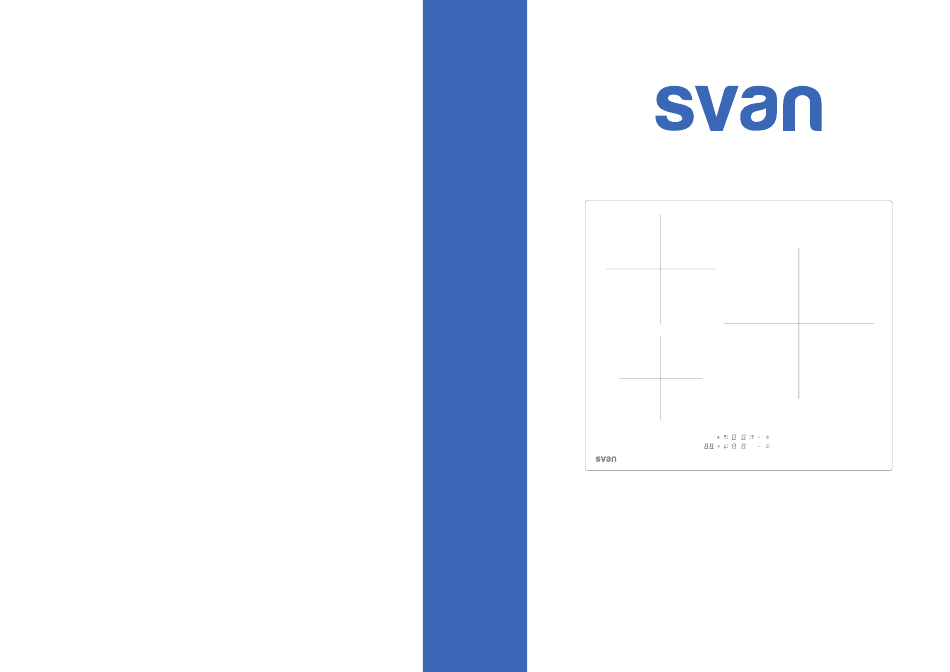

MANUAL DE USUARIO
PLACA DE INDUCCIÓN
SI3602B
SVAN TRADING S.L.
Imported by B73737553
Av. Altos Hornos S/N. Pto. Sagunto (46520).
Lea atentamente este manual y guárdelo para futuras consultas.
Valencia, España.
Llegiu atentament aquest manual i deseu-lo per a futures consultes.
Read this manual carefully and keep it for future reference.
info@svanelectro.com
Leia este manual com atenção e guarde-o para referência futura.
960600034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI3602B and is the answer not in the manual?

Questions and answers

Related Manuals for Svan SI3602B

Summary of Contents for Svan SI3602B

  • Page 1 MANUAL DE USUARIO PLACA DE INDUCCIÓN SI3602B SVAN TRADING S.L. Imported by B73737553 Av. Altos Hornos S/N. Pto. Sagunto (46520). Lea atentamente este manual y guárdelo para futuras consultas. Valencia, España. Llegiu atentament aquest manual i deseu-lo per a futures consultes.

  • Page 3: Table Of Contents

    THANK YOU LETTER Thank you for choosing Svan! Before using your new Svan product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer.

  • Page 5: Safety Warnings

    SAFETY WARNINGS Your safety is important to us. Please read this information before using your cooktop. INSTALLATION Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. •...
  • Page 6 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...

  • Page 7: Operation And Maintenance

    OPERATION and MAINTENANCE Electrical Shock Hazard • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. •...
  • Page 8 • Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, • Never use your appliance for warming or heating the room. this manual (i.e. by using the touch controls). Do not rely on the pan •...

  • Page 9: Specifications

    SPECIFICATIONS Cooking Hob SI3602B Cooking Zones 3 Zones Supply Voltage 220-240V~ 50Hz or 60Hz Installed Electric Power 6200W Product Size L×W×H(mm) 590X520X62 Building-in Dimensions A×B (mm) 560X490 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

  • Page 10: Product Overview

    PRODUCT OVERVIEW Top View Glass plate Max. 2300/ 2600W zone Max. 2300/ 2600W zone Max. 1300/ 1500W zone ON/OFF control Control panel Control Panel Heating zone Power / Timer Keylock Boost selection controls regulating key control Timer control ON/OFF control NOTE All the pictures in this manual are for explanation purpose only.

  • Page 11: Working Theory

    Working Theory Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate...

  • Page 12: Quick Start Guide 1

    QUICK START GUIDE Take care when frying as the oil and fat heat up very quickly, particularly if you’re using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips •...

  • Page 13: Detection Of Small Articles

    Detection of Small Articles When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

  • Page 14: Product Installation 1

    PRODUCT INSTALLATION Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate.
  • Page 15 WARNING: Ensuring Adequate Ventilation Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob.

  • Page 16: Before Locating The Fixing Brackets

    Before Locating the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Adjusting the Bracket Positio Fix the hob on the work surface by screw brackets on the bottom of hob(see picture) after installation.

  • Page 17: Connecting The Hob To The Mains Power Supply

    Connecting the Hob to the Mains Power Supply This hob must be connected to the mains power supply only by a suitably qualified persol Before connecting the hob to the mains power supply, check that: 1. The domestic wiring system is suitable for the power drawn by the hob. 2.

  • Page 18: Operation Instructions 1

    OPERATION INSTRUCTIONS Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. •...
  • Page 19 • Do not use cookware with jagged edges or a curved base. • Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency.

  • Page 20: If The Display Flashes

    3. Touching the heating zone selection control, 4. Select a heat setting by touching the “-” or “+” and an indicator next to the key will flash. control. • If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off.

  • Page 21: Using The Boost Function

    3. Using the Boost Function Activate the boost function 1. Touching the heating zone selection control. 2. Touching the boost control , the zone indicator show “P” and the power reach Max. Cancel the Boost function 1. Touching the "Boost" control or the “-” 2.
  • Page 22 a) Using the Timer as a Minute Minder If you are not selecting any cooking zone 1. Make sure the cooktop is turned on. 2. Set the time by touching the “-” or “+” control Note: you can use the minute minder at least of the timer.

  • Page 23: Default Working Times

    3. Set the time by touching the or control of the 4. Touching the “-” and “+” together, the timer is timer. cancelled, and the “00” will show in the Hint: Touch the “-” or “+” control of the timer minute display.

  • Page 24: Cleaning And Maintenance

    CLEANING AND MAINTENANCE What? How? Important! • When the power to the cooktop is switched off, there will be no ‘hot 1. Switch the power to the cooktop off. surface’ indication but the cooking zone Everyday soiling on 2. Apply a cooktop cleaner while the may still be hot! Take extreme care.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center. Problem Possible causes What to do...

  • Page 26: Failure Display And Inspection

    Failure Display And Inspection The induction hob is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface. (1) Troubleshooting Failure code Problem Solution...
  • Page 27 (2) Specific Failure & Solution Failure Problem Solution A Solution B Check to see if plug is secured tightly in outlet No power supplied. and that outlet is working. The LED does not come on when unit is The accessorial power plugged in.

  • Page 28: Disposal And Recycling

    DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
