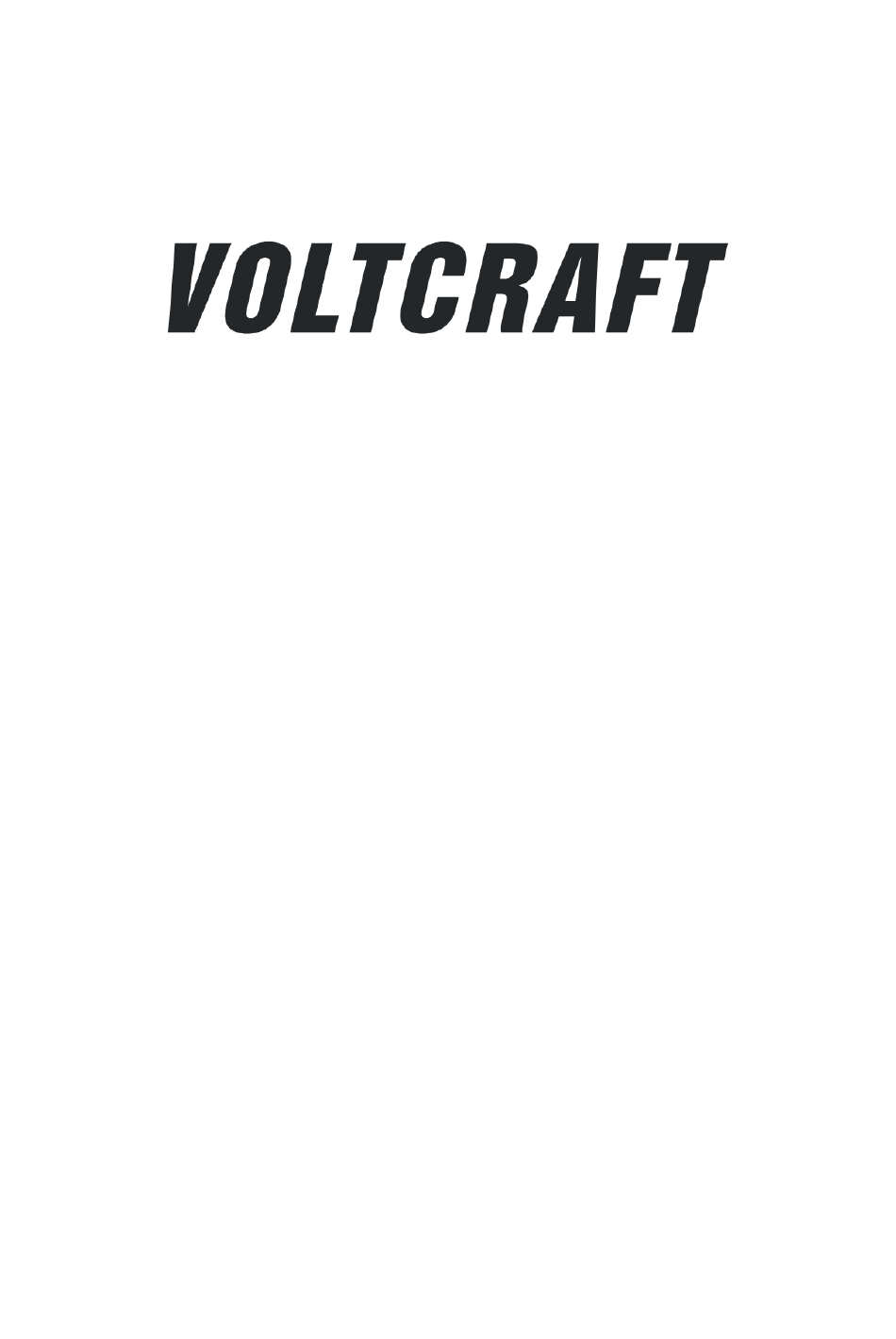

- Page 1 Handheld Oscilloscope User Manual Item No.: 2380256 (DSO-2072H) Item No.: 2687724 (DSO-2202H + AFG)
-
Page 2: Table Of Contents
Table of Contents Safety Information ··································································· 1 How to Implement the General Inspection ·································· 4 How to Use the Oscilloscope ···················································· 5 Power the Oscilloscope ······················································································ 5 The Structure of the Oscilloscope ·········································································· 5 Front Panel and Keys ························································································· 5 Side Panel ·······································································································... -
Page 3: Safety Information
1. Safety Information (Before using this product, please read the safety information in advance) Safety Terms Terms in this manual (The following terms may appear in this manual): Warning: Warning indicates conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property. - Page 4 Warning: To prevent electric shock or fire, use a suitable power adapter. Refer to section "General Technical Specifications" for further information relating to the power supply. Warning: The two channels of the oscilloscope are non-isolated channels. Note that the channel should use a common reference when measuring, and the ground wires of the two probes cannot be connected to two non-isolated places with different DC electrical levels, otherwise it may cause a short circuit due to the ground wire connection of the oscilloscope probe.
- Page 5 Warning: If the input port of the oscilloscope is connected to a voltage with a peak value higher than 42V (30vrms) or a circuit with a peak value of more than 4800 VA, the following measures shall be taken to avoid electric shock or fire: ...
-
Page 6: How To Implement The General Inspection
Only a qualified person should perform internal maintenance. Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and markings on this product. Refer to the user manual for more information about ratings before connecting to the instrument. ... -
Page 7: How To Use The Oscilloscope
3. How to Use the Oscilloscope Oscilloscope Power the The device can be powered three ways: 1) Input: USB-C® (5 V/DC, 2 A) 2) Rechargeable batteries 3) Input: USB-C® (5 V/DC, 2 A) + internal rechargeable batteries inserted Note: Use the supplied USB-C® to USB- A cable. Any replacement cable should be of the correct type and specification. - Page 8 Description: 1. CH1 and CH2 input connectors. 2. Waveform generator output connector (optional). 3. Display area. 4. The F1 - F4 keys are multi-function keys. In each menu mode, press the corresponding key to select the corresponding menu item. 5. After pressing the HOR key, through the key , you can change the horizontal time base setting, and observe the change of the state information caused by it;...
-
Page 9: Side Panel
15. Enter the system settings key. 16. Switch key for working state of oscilloscope and multimeter. 17. CH1 / CH2 - channel switch key. Side Panel Description: 1. Probe compensation: 3.3V/1kHz square wave signal output 2. Charging or USB communication interface 3. -
Page 10: Introduction To The User Interface Of The Oscilloscope
Introduction to the User Interface of the Oscilloscope 1 2 3 Figure 3-2: Oscilloscope Interface Description: 1. The trigger status indicates the following information: Auto: Automatic mode. The waveform is being collected without triggering. Trig: A trigger has been detected and post trigger information is being collected. -
Page 11: Functional Check
8. Battery power and external power supply indication. 9. Channel 1 waveform. 10. The pointer indicates the trigger electrical level position of the channel. 11. Channel 2 waveform. 12. The icon indicates trigger-related information, including trigger channel, coupling mode, trigger type and trigger electrical level. For details, please refer to P16 Trigger System. -
Page 12: Probe Compensation
2. The switch on the oscilloscope probe is set to 10X and connected with the CH1 channel. Align the slot on the probe with the plug on the bayonet nut connector (BNC) of the CH1 connector and insert it, then turn the probe to the right and tighten it. Connect the probe tip and ground clamp to the connector of the probe compensator. -
Page 13: Probe Attenuation Coefficient Setting
and connect the reference wire clamp to the ground wire connector of the probe compensator, and then press the Auto key on the front panel. 2. Check the displayed waveform and adjust the probe until the compensation is correct. See Figure 3-4 and Figure 3-5. Overcompensation Correct compensation Under-compensation Figure 3-4: Display Waveform of Probe Compensation... -
Page 14: Safe Use Of Probe
Note: The preset setting of the probe attenuation coefficient in the menu when the oscilloscope is delivered is 10X. Make sure that the attenuation switch setting value on the probe is the same as the probe attenuation coefficient option in the oscilloscope menu. -
Page 15: Vertical System
Warning: To prevent electric shock when using the probe, please keep your fingers behind the safety ring on the probe body. To prevent electric shock when using the probe, do not touch the metal part of the probe head when the probe is connected to a voltage source. -
Page 16: Horizontal System
Disconnect the input signal. Choose one of the values according to the probe 100X attenuation factor to keep the vertical scale Probe 1000X reading accurate. 10000X Limit the bandwidth to 20MHz to reduce display noise. Bandwidth Full bandwidth The bandwidth of the oscilloscope. Horizontal System Press the HOR key to enter the horizontal system setting menu. -
Page 17: Measuring System
Measuring System Automatic Measurement Press and the F1 key to realize automatic measurement. The description of the automatic measurement Function Menu is as follows: Function Menu Description Turn automatic measurement on or off. Source Set the source. Frequency (F)□ Add or delete the selected Period (T)□... -
Page 18: Trigger System
Function Description Setting Menu CH1 voltage Select to display the CH1 cursor and menu. CH2 voltage Select to display the CH2 cursor and menu. Type Time Select to display the time measurement cursor and menu. None Turn off the cursor measurement. When the type is selected as CH1 or CH2, press the arrow keys to move the cursor line A;... - Page 19 The trigger mode of the oscilloscopes is edge trigging. The edge trigging mode is to trigger on the trigger electrical level of the edge of the input signal, that is, trigger on the rising and falling edges of the input signal.
-
Page 20: Save Settings
Save Settings Press the Save key to enter the save function menu. By operating the save function menu, oscilloscope settings, reference waveforms, and files can be stored. Settings Any setting can be saved inside the oscilloscope, and restore settings can also be called. -
Page 21: System Settings
address, the waveform will be displayed, and the address number and waveform related information will be displayed in the upper left corner; if the current address is not stored, it will display "Address No.: No waveform saved". Save the reference waveform of the source to th Save e memory. -
Page 22: Default Settings
Function Description Setting Menu Set the screen backlight to increase in a 10% Brightness 10% - 100% cycle. Backlight Set the screen backlight luminance time. time 120s Unlimited means always on. Unlimited Menu time Set the menu display time. Turned on 00h：00m Display how long it has been powered on. -
Page 23: How To Use The Multimeter
USB Connection Press the System key to enter the system setting menu. Select F4 to enter the next page. Press F1 to select HID or MSC. 1) MSC [Mass Storage Class] is used to make USB read the files stored in the built-in memory. - Page 24 Multimeter interface: Multimeter Interface Description: 1. Measurement type indication: ------ DC voltage measurement ～ ACV ------ AC voltage measurement ------ DC current measurement ～ ACA ------ AC current measurement Resist ------ Resistance measurement Diode ------ Diode measurement Cont ------ On/Off measurement ------ Capacitance measurement 2.Range indication: Manual means manual range;...
- Page 25 4. Indicating that there is a USB cable inserted. 5. Battery power indication. 6. “Hold” can keep the current reading on the display. 7. Measurement value and unit. 8. Display of switching resistance, buzzer, diode and capacitance measurement function. 9. The selected range V or mV in voltage measurement; the selected current range A or mA in current measurement.
-
Page 26: How To Use The Waveform Generator (Optional)
5. How to Use the Waveform Generator (optional) The instrument can provide 4 basic waveforms, sine wave, square wave, ramp wave, pulse wave, and 8 arbitrary waveforms. Connect the output Press the Mode button to switch the instrument interface to the waveform generator function interface. -
Page 27: Output The Sine Waveform
is 50Ω). Note: To change the load value, after selecting *Ω, press direction key to move the cursor left and right; press direction key to change the value. The load range is 1 Ω - 10 kΩ. Output the sine waveform The sine waveform setting menu includes: Frequency/Period, Amplitude/High Level, Offset/Low Level. -
Page 28: Output The Square Waveform
Output the square waveform Press the F1 key to enter the square waveform setting interface. square waveform setting menu includes: Frequency/Period, Amplitude/High Level, Offset/Low Level. For the setting frequency/period, amplitude/high level, offset/low level, please refer to Output the sine waveform on page 25. Output the ramp waveform Press the F1 key to enter the ramp waveform setting interface. -
Page 29: Output The Arbitrary Waveform
column. Press F2 to switch between Rise Time / Fall Time. Output the Arbitrary waveform Press the F1 key to enter the arbitrary waveform setting interface. arbitrary waveform setting menu includes: Frequency/Period, Amplitude/High Level, Offset/Low Level, Type. For the setting frequency/period, amplitude/high level, offset/low level, please refer to Output the sine waveform on page 25. -
Page 30: Communication With Pc
6. Communication with PC The oscilloscope supports communications with a PC through USB. You can use the Oscilloscope communication software to store, analyze, display the data and remote control. For the latest version of the software: – visit: www.conrad.com/downloads – search the item number Here is how to connect with PC. -
Page 31: Troubleshooting
7. Troubleshooting 1. The oscilloscope cannot be turned on. It may be that the battery is completely exhausted. At this time, even if the oscilloscope is powered by the power adapter, the oscilloscope cannot be turned on. You need to charge the battery first, and do not turn on the oscilloscope. -
Page 32: Technical Specifications
(see automatic correction in "System Settings"). All specifications are guaranteed except those marked "typical". Oscilloscope Characteristics Description DSO-2072H : 70 MHz Bandwidth DSO-2202H + AFG : 200 MHz Channel Sampling method Sampling, peak detection Real-time sampling DSO-2072H rate 125 MSa/s (Dual channel) - Page 33 400 V (DC + AC, PK - PK) voltage Bandwidth limit 20 MHz, Full bandwidth Sampling rate range DSO-2072H : 0,25 Sa/s - 250 MSa/s DSO-2202H + AFG : 0,25 Sa/s – 1 GSa/s Waveform (Sinx)/x interpolation Horizontal Sweep speed range...
-
Page 34: Multimeter
Characteristics Description DSO-2072H : Period, Frequency, Mean, PK-PK, Max, Min, Amplitude DSO-2202H + AFG : Automatic Period, Frequency, Mean, PK-PK, Max, Min, Amplitude RMS, Rise Time, Fall Time, +PulseWidth, -PulseWidth Source CH1, CH2 Type Edge Coupling DC, AC Trigger type... - Page 35 Basic Minimum Range Accuracy function resolution 200.00mV 0.01mV ±(0.43%+14dig) 2.0000V 0.1mV DC voltage 20.000V ±(0.43%+7dig) 200.00V 0.01V 1000.0V 0.1V ±(0.71%+7dig) 200.00mV 0.01mV 2.0000V 0.1mV ±(1.14%+14dig) 20.000V AC voltage 200.00V 0.01V 750.0V 0.1V ±(1.43%+14dig) frequency range：40Hz-1000Hz 200.00mA 0.01mA ±(1.14%+14dig) 10.000A ±(3.57%+14dig) DC current Overload protection: mA function: self-healing fuse 400 mA/250 V;...
-
Page 36: Arbitrary Waveform Generator (Optional)
Basic Minimum Range Accuracy function resolution On/Off test √ (<50Ω) Diode test √(<0-2V) Others Auto range √ TRMS √ Arbitrary Waveform Generator (Optional) Characteristics Description Sine 0.1Hz~25MHz Square 0.1Hz~5MHz Waveform Frequency Ramp 0.1Hz~1MHz Pulse 0.1Hz~5MHz 0.1Hz~5MHz Sampling 125MSa/s Amplitude(50Ω 0.01Vpp ~ 2.5Vpp DC offset (High Z) ±(2.5V –... -
Page 37: General Technical Specifications
DSO-2072H : <5 W consumption DSO-2202H + AFG : ≤ 6 W Battery DSO-2072H : 2200 mAh x 2 (3,7 V,18650) DSO-2202H + AFG : 2600 mAh x 2 (3,7 V,18650) Surroundings: Characteristics Description Working temperature: 0℃ - 40℃ Temperature Storage temperature: -20℃- +60℃... -
Page 38: Appendix
9. Appendix Appendix A: List of Accessories Oscilloscope USB-C® to USB-A (data/charging) cable Probe Probe adjust BNC to alligator clip cable Carrying bag Multimeter test leads (red & black) CD-ROM (software + manual + safety sheet + quick guide) ... -
Page 39: Battery Charging
2. Wipe the instrument with a damp but non-dripping soft cloth. Please disconnect the power supply. It can be scrubbed with soft detergent or water. Do not use any abrasive chemical cleaning agent to avoid damaging the instrument or probe. Warning: Please make sure the instrument is dry before re-energizing to avoid electrical short circuit or personal injury caused by moisture. -
Page 40: Battery Replacement
Charge the oscilloscope through the USB interface: Connect the oscilloscope to a computer or other equipment through a USB data cable for charging (pay attention to the load capacity of the power supply equipment to avoid abnormal operation of the equipment). Note To avoid overheating of the battery during charging, the ambient temperature must not exceed the allowable value given in the technical specifications. -
Page 41: Appendix C: Fuse Replacement
Appendix C: Fuse Replacement Warning: Only use fuses of the correct type and rating. - Never use repaired fuses or bypass the fuse holder. a) Preparation 1) Switch the product OFF. 2) Disconnect any measuring leads and/or USB cable from the product. b) Replacing the fuse 1) Remove the 1x battery compartment cover screw located underneath the bracket stand.
