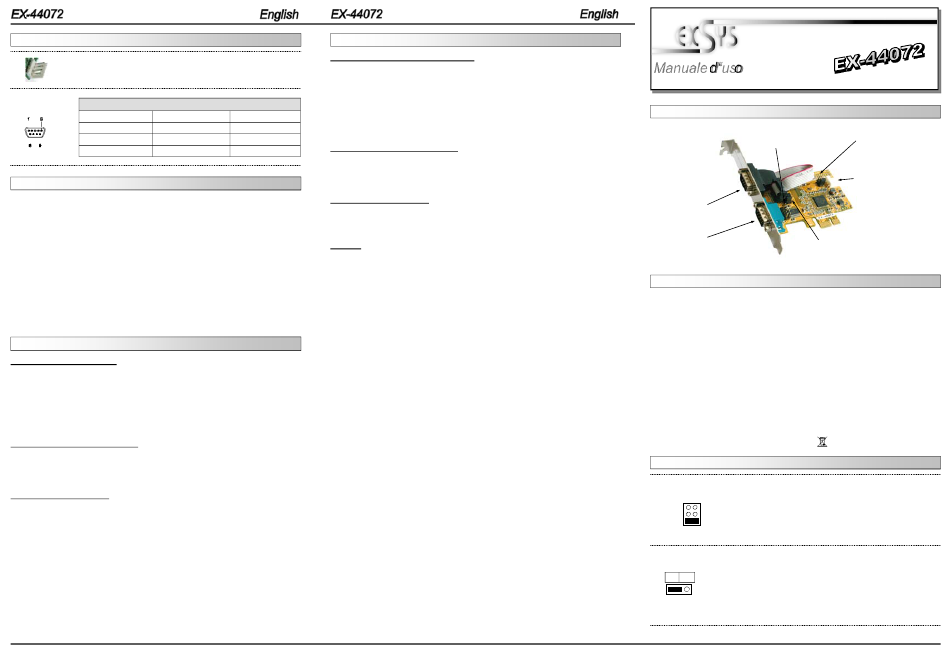

Exsys EX-44072 User Manual

JUMPER SETTING & CONNECTORS:
J6: 1 +5V
For aux power (JP2) J6 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Comput-
er and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 2000/XP/Vista:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system "2000" "XP32" "XP64" "Vista32" or "Vista64" into the box for the Path/
Source and click at >next/continue<. Now Windows searches for the drivers in the
specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you should
find a new „PCI Port" as sample (Com3). If you see this or similar entries the card is
installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
5
DRIVER INSTALLATION :
Windows Server 2000/2003/2008:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for Server
2008 "Vista32" or "Vista64" into the box for the Path/Source and click at >next/
continue<. Now Windows searches for the drivers in the specified directory.
Signal Pin Signal Follow the hardware assistant and finish the installation. If Windows recognizes other
new devices repeat the above described steps. Attention! Restart Windows in any case
DTR 7 RTS
after installing the drivers.
8 CTS
CHECK THE INSTALLED DRIVER:
DSR 9 RI
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you should
find a new „PCI Port" as sample (Com3). If you see this or similar entries the card is
installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
LINUX:
The drivers are located in the following folder on our driver CD:
"D:\IO\OXFORD2\LINUX"
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for stand-
ard IO ports from your Linux version! In some newer versions of Linux the card will
even be installed automatically after starting Linux.
S2 Connettore 9 Pin
maschio Seriale
S1 Connettore 9 Pin
maschio Seriale
L'EX-44072 è una scheda seriale RS-232 PCI-Express con 2 porte seriali FIFO
16C95x per il collegamento di periferiche seriali RS-232 ad alta velocità (come
terminale, modem, plotter, ecc.). Il bus seriale PCI Express supporta in modo
ottimale le prestazioni del chipset 16C95x veloce con cache FIFO da 128byte.
L'EX-44072 garantisce una trasmissione dei dati sicura e prestazioni eccellenti
fino a 921 Kbaud/s per ogni dispositivo collegato! Supporta tutti gli slot PCI Ex-
press da x1 a x16. Non è possibile impostare manualmente gli indirizzi I/O e gli
interrupt poiché le impostazioni della scheda vengono eseguite automaticamente
dal sistema (BIOS) e durante l'installazione dal sistema operativo. Con il jumper
JP2 e JP3, è possibile indirizzare 12V o 5V al pin 9 della porta seriale. Assicurati
che i dispositivi collegati supportino questo.
Compatibilità:
Sistema Operativo:
Connettori:
Confezione:
Certificati:
JP2:
JP3:
6
Manuale d'uso
Vers. 1.1 / 08.04.19
LAYOUT :
S1 Attacco interno
Seriale
JP3 Abilita l'alimentazione del connet-
tore a 9 pin
CARETTERISTICHE E DATI TECNICI :
PCI Express x1 fino a x16
WIN 2000/XP/Vista/Server 2000/2003/2008/Linux
2 x 9 Pin Sub-D Maschio
EX-44072, Driver CD, Manuale
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
INSTALLAZIONE JUMPER & COLLEGAMENTI:
Se si imposta il ponticello JP3 su PWR per S1 su S2, è possibile im-
postare il valore di tensione con JP2. Ci sono 3 diverse sorgenti di
tensione. (Solo in combinazione con JP3 su PWR !!!)
X5V
X12V X 5V = 5 Volt dall'alimentazione del PC
I12V
X 12V = 12 Volt dall'alimentazine del PCl
I 12V = 12 Volt dalla Piastra Madre (STANDARD)
DIS = Il pin 9 è collegato al segnale RI (Ring Indicator) come
definizione standard RS-232 (impostazione di fabbrica).
DIS PWR
PWR = Il pin 9 è collegato alla Alimetazione dallo Slot PCI Express
S1
o dal connettore Aux Power (J6)
La fonte di alimentazione è controllata dal ponticello JP2.
1
JP2 Ponticello per la fonte
di alimentazione
(alimentatore o bus PCI-
Express)
J6 Collegamento per
l'alimentazione, alimentazi-
one del PC
