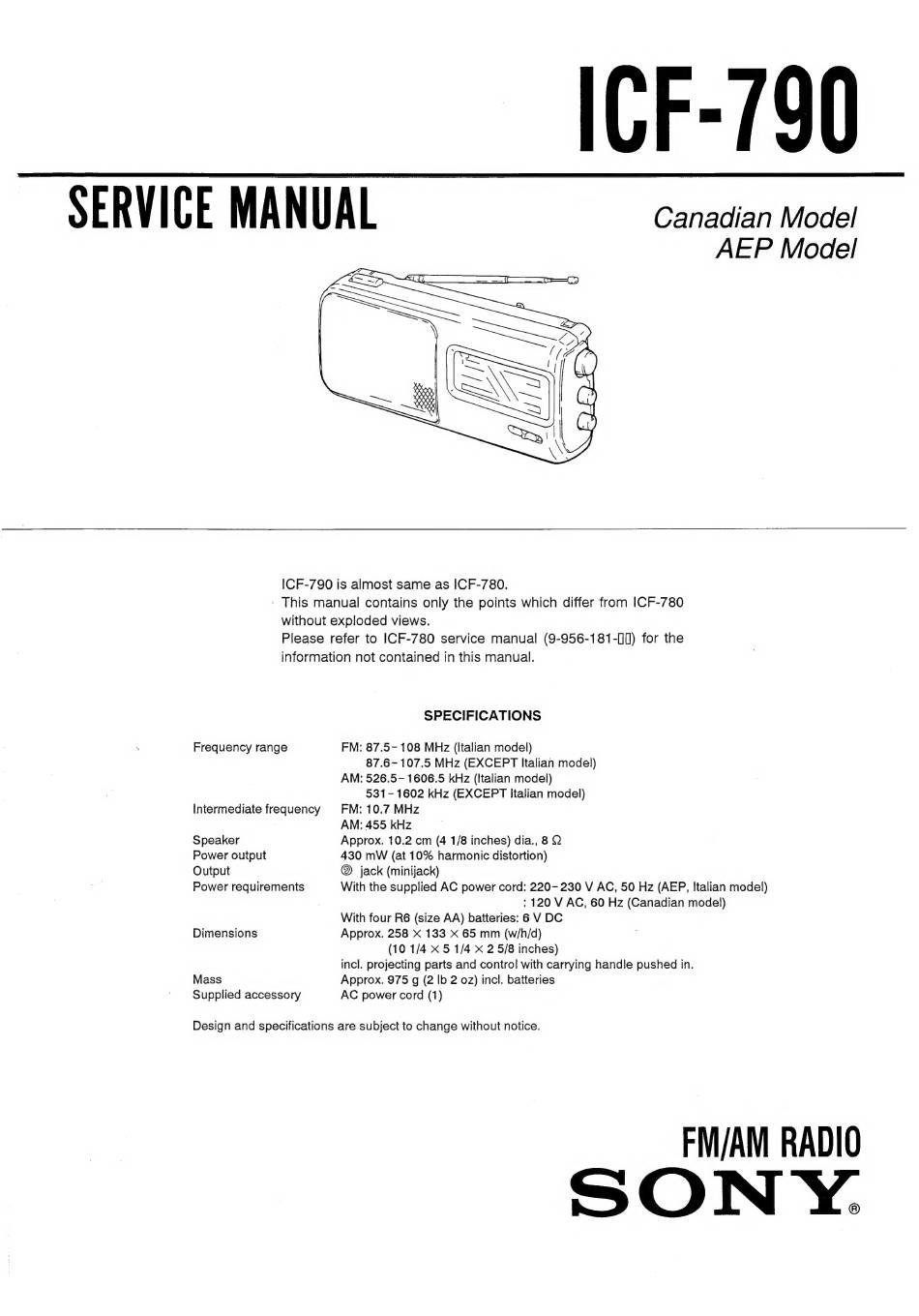

Sony ICF-790 Service Manual

— ICF-790
AEP Model
ICF-790 is almost same as ICF-780.
' This manual contains only the points which differ from ICF-780
without exploded views.
Please refer to ICF-780 service manual (9-956-181-{]f) for the
information not contained in this manual.
Frequency range
Intermediate frequency
Speaker
Power output
Output
Power requirements
Dimensions
Mass
Supplied accessory
SPECIFICATIONS
FM: 87.5- 108 MHz (Italian model)
87.6- 107.5 MHz (EXCEPT Italian model)
AM: 526.5- 1606.5 kHz (Italian model)
531-1602 kHz (EXCEPT Italian model)
FM: 10.7 MHz
AM: 455 kHz
Approx. 10.2 cm (4 1/8 inches) dia., 8 Q
430 mW (at 10% harmonic distortion)
® jack (minijack)
With the supplied AC power cord: 220- 230 V AC, 50 Hz (AEP, Italian model)
: 120 V AC, 60 Hz (Canadian model)
With four R6 (size AA) batteries: 6 V DC
Approx. 258 X 133 x 65 mm (w/h/d)
(10 1/4 xX 5 1/4 x 2 5/8 inches)
incl. projecting parts and control with carrying handle pushed in.
Approx. 975 g (2 |b 2 02) incl. batteries
AC power cord (1)
Design and specifications are subject to change without notice.
FM/AM RADIO
SONY.
