Summary of Contents for Electrolux ELFE7437AW

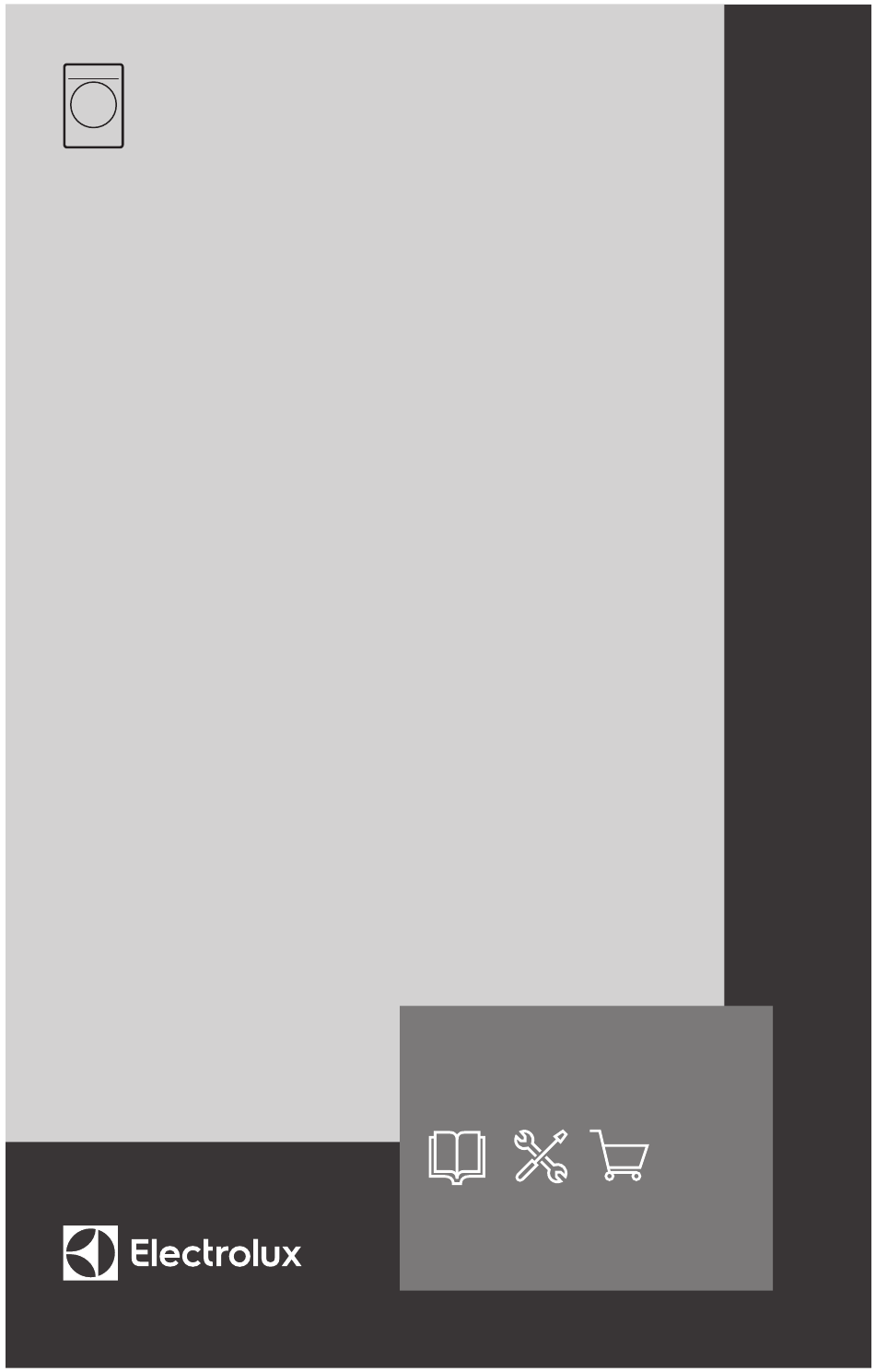

- Page 1 Use & Care Manual Clothes Dryer Manuel d’utilisation et d’entretien Sécheuse á Chargement Frontal Manual de uso y cuidado Secadora de ropa electrolux.com\register...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and save this manual Important Safety Information ......2 Thank you for choosing Electrolux, our premium brand in home appliances. This Use Features ..............8 & Care Manual is part of our commitment Pre-Installation Requirements ......9... -
Page 3: What To Do If You Smell Gas
IMPORTANT SAFETY INFORMATION Important safety instructions - gas dryer WARNING FIRE or explosion hazard Failure to follow safety warning exactly could result in serious injury, death, or property damage. DO NOT store or use gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance. -
Page 4: Risk Of Fire
IMPORTANT SAFETY INFORMATION WARNING RISK OF FIRE • Ensure the entire dryer exhaust system is clean and free of lint and debris prior to the installation of your new dryer. The entire exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. Failure to comply with cleaning your exhaust system will increase the RISK of FIRE. -
Page 5: Fire Hazard
IMPORTANT SAFETY INFORMATION Defi nitions DO NOT place items exposed to cooking oils in your dryer. Items contaminated This is the safety alert symbol. It is used with cooking oils may contribute to a to alert you to potential personal injury chemical reaction that could cause a hazards. -
Page 6: Protect Children
IMPORTANT SAFETY INFORMATION Conservation Program Offi ce or visit DO NOT use fabric softeners or products www.energystar.gov/recycle for more to eliminate static unless recommended by information on recycling your old washer or the manufacturer of the fabric softener or dryer. product. - Page 7 IMPORTANT SAFETY INFORMATION • Do not use replacement parts that DO NOT install or store the dryer where have not been recommended by the it will be exposed to standing water, manufacturer (e.g. parts made at home dripping water or outdoor weather using a 3D printer).
-
Page 8: Features
FEATURES Not all cycles, options, or features listed are available on every model. Door Latch 7. Serial Number and Model Number 2. Front-Mounted Moisture Sensor (on 8. 3 Drum Vanes select models) 3. Drum Light (on select models) 9. Wide-Angle Door Hinge 4. -
Page 9: Pre-Installation Requirements
PRE INSTALLATION REQUIREMENTS Installation Checklist Exhaust Venting Check for leaks Steam model dryers require use of Free-fl owing, clear of lint buildup ASSEMBLY HOSE Kit #5304495002 4 inch (102 mm) rigid metal or (not included) and must be purchased semi-rigid metal transition ducting separately. -
Page 10: Tools And Materials Needed For Installation
PRE INSTALLATION REQUIREMENTS Electrical system Tools and materials needed requirements for installation: NOTE Because of potentially inconsistent voltage capabilities, the use of this dryer Phillips, with power created by gas powered Adjustable Adjustable straight, & pliers wrench square bit generators, solar powered generators, screwdrivers wind powered generators or any other... -
Page 11: Gas Supply Requirements
PRE INSTALLATION REQUIREMENTS Electrical requirements for 3-wire power supply cord (not gas dryer: supplied) 3-wire receptacle CIRCUIT - Individual, properly polarized and (NEMA type 10-30R) grounded 15 amp. branch circuit fused with 15 amp. time delay fuse or circuit breaker. The dryer MUST employ a 3-conductor POWER SUPPLY - 2-wire, with ground, 120 power supply cord NEMA 10-30 type SRDT... -
Page 12: Exhaust System Requirements
PRE INSTALLATION REQUIREMENTS The gas service to the dryer must WARNING conform with local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1/ FIRE HAZARD Failure to follow these instructions can create NFPA 54, or in Canada, the Natural excessive drying times and fi... - Page 13 PRE INSTALLATION REQUIREMENTS WARNING WARNING FIRE HAZARD FIRE HAZARD Never exceed more than 4-90˚ elbows in the • A clothes dryer must be exhausted exhaust duct system. Exceeding the length outdoors. of duct pipe or number of elbows allowed DO NOT exhaust dryer into a chimney, in the “MAXIMUM LENGTH”...
-
Page 14: Manufactured Or Mobile Home Installation
PRE INSTALLATION REQUIREMENTS • Running the exhaust system through an NOTE uninsulated area may cause condensation and faster accumulation of lint. Use of 90° quick- • Compression or crimping of the exhaust turn elbow required system will cause an increase in vent to meet minimum restriction. -
Page 15: Clearance Requirements
PRE INSTALLATION REQUIREMENTS Clearance requirements NOTE IMPORTANT To achieve an installation with 0” (0 cm) clearance for the back of the dryer (for DO NOT INSTALL YOUR DRYER: other than straight back venting), a quick- 1. In an area exposed to standing water, turn 90°... - Page 16 PRE INSTALLATION REQUIREMENTS 120 sq. Inches min. Louvered Opening Bi-Fold louvered doors with 120 sq. in of ventilation 120 sq. Inches of wall venting Louvered Door MIN INSTALLATION CLEARANCES - Inches (cm) Sides Rear Front 0" 0" 0" Alcove/ Open recess (0 cm) (0 cm)
-
Page 17: Dryer Dimensions
PRE INSTALLATION REQUIREMENTS Dryer dimensions 53.1” (136 cm)* to clear open door 32” (81.25 cm)* 27.0” to front of closed door (68.5 cm) electrical 38.0” supply on (96.5 cm) rear of unit 1.5” 3.7” (4 cm) (9.5 53.25” (135.5 cm) centerline gas supply height of... -
Page 18: Installation
INSTALLATION Connecting the electrical The dryer, when installed, must be electrically grounded in accordance with system local codes and the National Electrical code ANSI/NFPA 70 or the Canadian Electrical The following are specifi c requirements for Code, Part 1, CSA C22.1. proper and safe electrical installation of your dryer. -
Page 19: Grounding Requirementselectric Dryer (Canada)
INSTALLATION Grounding requirements - Grounding requirements - electric dryer (Canada) gas dryer The dryer is equipped with a three- WARNING prong (grounding) plug for your protection against shock hazard and should be plugged directly into Improper grounding of the dryer may a properly grounded three-prong cause serious injury or death. -
Page 20: Electrical Connection (Non-Canada) - 3 Wire Cord
INSTALLATION Electrical connection IMPORTANT (non-Canada) - 3 wire cord 3-wire receptacle If moving dryer from a 4-wire system and (NEMA type 10-30R) installing it in a 3-wire system, move the internal ground from the center terminal back to the GREEN screw next to the WARNING terminal block. -
Page 21: Electrical Connection (Non-Canada) - 4 Wire Cord
INSTALLATION Electrical connection WARNING (non-Canada) - 4 wire cord ELECTRICAL SHOCK HAZARD 4-wire receptacle (NEMA type 14-30R) DO NOT make a sharp bend or crimp wiring/conductor at connections. 9. Follow manufacturer’s guidelines for fi rmly WARNING securing the strain relief and power cord. 10. -
Page 22: Connecting The Gas
INSTALLATION Connecting the gas This gas dryer comes from the factory with natural gas burner components installed. DO NOT operate this gas dryer, using LP (liquid propane) gas, unless the LP gas conversion kit has been properly installed by a qualifi ed service personnel. - Page 23 INSTALLATION Rubber Washer Short Hose Must be Present and Undamaged “Y” Connector Cold Inlet Hose Water Inlet to Washer on Dryer 2. Remove COLD inlet hose from COLD water supply and inspect for rubber washer. Replace washer if it is torn or worn out.
-
Page 24: Completing The Installation
INSTALLATION Completing the installation Plug the power cord into a grounded outlet. Connect the exhaust duct to the outside exhaust system. Use of a 4” (102 mm) clamp (item A) is WARNING recommended to connect the dryer to the exhaust vent system. Use metal foil Improper grounding of the dryer may tape to seal all other joints. -
Page 25: Reversing The Door
INSTALLATION Reversing the door NOTE Door reversibility is available on all dryer models. Tools needed for reversal: IMPORTANT BEFORE YOU REVERSE YOUR DRYER DOOR: Screwdriver with #2 1. Be sure you have adequate swing area square bit before reversing door. 2. -
Page 26: Removing Door Assembly
INSTALLATION Reinstalling latch and hole plugs Removing door assembly Completely open the door to expose Install door latch with screws removed all four hinge screws. earlier. Remove all four hinge screws with #2 square bit driver. Save for reinstalling later. Insert plastic hole plugs removed earlier. -
Page 27: Accessories And Replacement Parts
White - P/N 5304468812 the U.S. or 1-800-265-8352 in Canada, or Titanium - P/N 5304475700 visit our website, www.electrolux.com in the *Other colors may be available. Contact the U.S. or www.electrolux.ca in Canada for source where you purchased your dryer. -
Page 28: Controls And Settings
CONTROLS AND SETTINGS Model series 300 SERIES START PAUSE HIGH HIGH AUTO EXTENDED TUMBLE WRINKLE RELEASE NORMAL NORMAL 60 MIN CANCEL FAST DRY DELAY TIME 45 MIN DELICATES CONTROL LOCK TOWELS DRY BOOST ECO DRY DAMP 30 MIN CLEAN LINT TIME DRY SELECT TEMP... -
Page 29: Setting Chart - 300 Series Dryer
CONTROLS AND SETTINGS Setting chart - 300 series dryer START PAUSE HIGH HIGH AUTO EXTENDED TUMBLE WRINKLE RELEASE NORMAL NORMAL 60 MIN CANCEL FAST DRY DELAY TIME 45 MIN DELICATES CONTROL LOCK TOWELS DRY BOOST ECO DRY DAMP 30 MIN CLEAN LINT TIME DRY SELECT... -
Page 30: Setting Chart - 400 Series Dryer
CONTROLS AND SETTINGS Setting chart - 400 series dryer SANITIZE AUTO PERFECT STEAM START PAUSE HIGH HIGH 75 MIN WRINKLE RELEASE EXTENDED TUMBLE NORMAL NORMAL 60 MIN CANCEL FAST DRY DRUM LIGHT 45 MIN DELICATES DELAY TIME TIME DRY DRY BOOST ECO DRY DAMP 30 MIN... -
Page 31: Setting Chart - 500 Series Dryer
CONTROLS AND SETTINGS Setting chart - 500 series dryer ALLERGEN SANITIZE AUTO ANTI-STATIC HEAVY DUTY START PERFECT STEAM NORMAL PAUSE HIGH HIGH 75 MIN WRINKLE RELEASE ACTIVEWEAR PR E D I C TIV E D RY NORMAL NORMAL 60 MIN EXTENDED TUMBLE CALL SERVICE... -
Page 32: Setting Chart - 600 Series Dryer
CONTROLS AND SETTINGS Setting chart - 600 series dryer ALLERGEN SANITIZE AUTO ANTI-STATIC HEAVY DUTY START PERFECT STEAM NORMAL PAUSE HIGH HIGH 75 MIN WRINKLE RELEASE BA L A N C E D D RY NORMAL NORMAL 60 MIN EXTENDED TUMBLE CALL CANCEL SERVICE... - Page 33 CONTROLS AND SETTINGS Setting chart - 700 series dryer These temperature, dryness levels and options are available with the following cycles: CYCLE SELECTIONS TEMPERATURE (temp) Sanitize High Normal ...
-
Page 34: Cycle Selection
CONTROLS AND SETTINGS Cycle selection Selecting the right cycle to save energy This dryer has been specifi cally designed with options to help you save energy and at the same time utilize the optimal drying setting for your clothing. The energy effi ciency rating is based on the Normal Cycle using the Normal temperature setting and the normal dryness level. -
Page 35: Cycle Settings
CONTROLS AND SETTINGS Cycles LOAD LOAD TYPE CYCLE PRESET ALLERGEN Allergen removal • high temperature* (select models) (not for items prone to heat damage) • maximum dryness* • auto dry* BULKY Large loads and durable fabrics • high temperature (select models) (such as towels, jeans and overalls) •... -
Page 36: Cycle Options
CONTROLS AND SETTINGS the future, select high or max (on select With exception of the sanitize and perfect models). To decrease drying time for similar steam , adjustments made to cycle settings loads, select less (on select models). and options will be remembered and recalled each time that cycle is selected in the future. -
Page 37: Other Features
CONTROLS AND SETTINGS (models 300/400) or the cycle selector (models NOTE 500/600/700) to scroll to the desired delay time and press start. The delay time icon will It is not recommended to use fabric softener illuminate on the LED display to indicate the sheets with steam cycles or steam options delay time option is activated, The delay as it may cause staining on clothes. - Page 38 CONTROLS AND SETTINGS LuxCare Lint Shield fi lter The estimated cycle time for auto dry, the actual time for time dry, or the delay time The dryer is equipped with a clamshell style countdown will be displayed when the cycle LuxCare Lint Shield fi...
-
Page 39: Operating The Dryer
OPERATING INSTRUCTIONS Operating the dryer WARNING To reduce the risk of fi re, electric shock or injury to persons, read the Important Safety Information in this Use & Care Manual before operating your dryer. WARNING WARNING DO NOT operate dryer without lint fi lter in Clean the lint fi... - Page 40 OPERATING INSTRUCTIONS STEPS TIPS IMPORTANT 1. Select the • See Cycle Selection and Cycle Settings for Over-drying can cause wrinkles, appropriate detailed descriptions of cycle controls. cycle and shrinkage, lint, • See Cycle Setting Charts to determine which settings for harshness, and a settings are available for each cycle.
-
Page 41: Normal Operating Sounds
NORMAL OPERATING SOUNDS Normal operating sounds You may or may not hear the following sounds from your new dryer: WATER VALVE (Steam models only.) The fl ow of water is controlled by electric solenoids. During operation there may be a clicking sound as the valve opens and closes to control the water fl... -
Page 42: Care And Cleaning
CARE AND CLEANING 4. Snap the fi lter closed and place back WARNING into the dryer. To reduce risk of fi re or serious injury to IMPORTANT persons or property, comply with the basic warnings listed in the Important Safety •... - Page 43 CARE AND CLEANING • When cleaning chrome parts, it is best to thread the fi ttings. DO NOT allow the hose use only a damp cloth. to rub against sharp objects. Always ensure the hose fi tting rubber gasket is installed and •...
-
Page 44: Troubleshooting
TROUBLESHOOTING Common drying inquiries Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE SOLUTIONS PREVENTIVE CAUSES... -
Page 45: Before Calling
TROUBLESHOOTING Before calling Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this dryer. PROBLEM POSSIBLE CAUSES SOLUTIONS Dryer does •... - Page 46 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Drying cycle • Lint fi lter is clogged with lint. • Make sure all lint has been removed takes too long, from the dryer lint fi lter before starting outside of the each cycle. dryer feels too •...
-
Page 47: Limited Warranty
• All parts — One year including labor. In addition, your appliance is covered by a one year, parts only, limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay for parts needed for this appliance that have proven to be defective in materials or workmanship when your appliance is installed, used, and maintained in accordance with the provided instructions. - Page 48 electrolux.com...
