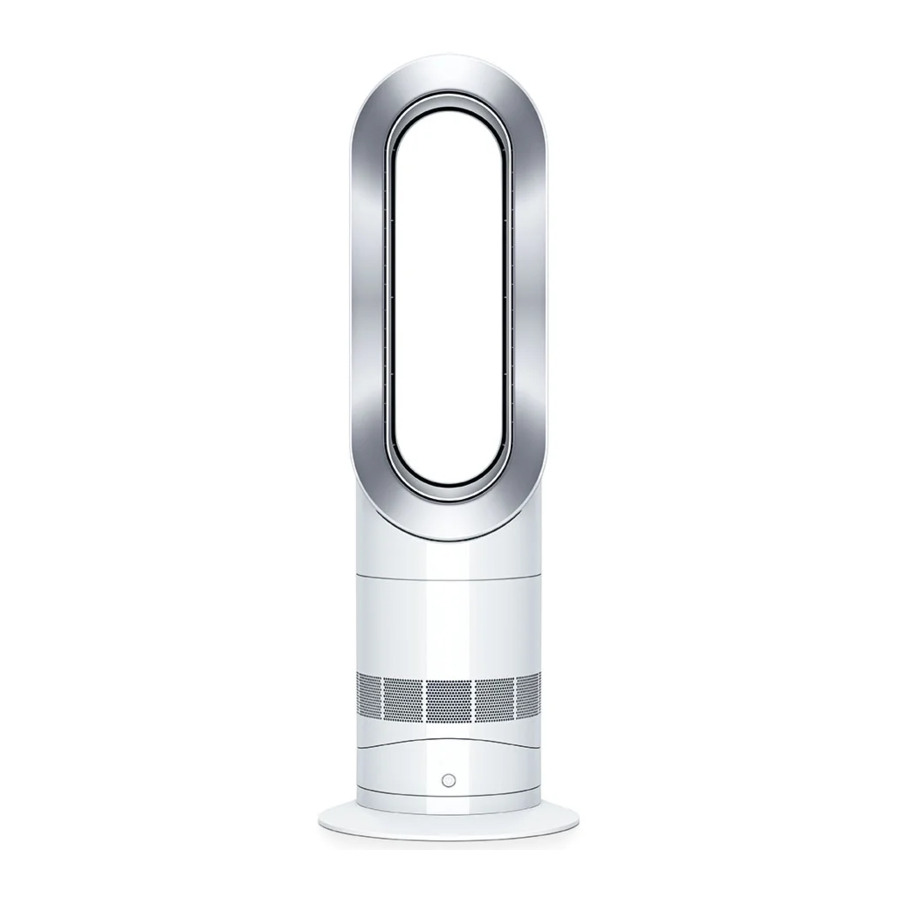

Dyson AM09 Manual

Assembly

Remote control docks magnetically.

Power

Each time the heating mode is selected, it conducts a short calibration cycle. Airflow will be automatically controlled during this cycle. Once the calibration cycle is complete, it will revert to the selected airflow speed.
On first use, the machine will default to a temperature 5°F higher than the detected room temperature. Thereafter, the machine will remember the last target temperature set.

Select the desired room temperature. Pressing the large red button on the remote control increases the target temperature by 1°F; the smaller red button on the remote control decreases it by 1°F. The machine will not operate in heater mode unless the target temperature is above the room temperature.

Remote control

Remote control docks magnetically. Attach the remote control to the top of the machine with the buttons facing down.

To operate, point the remote control toward the front of the base.

Heating mode
Press the red thermostat control button until the digital display shows the target room temperature. The power button light will change from blue to red to indicate that you have entered heating mode. The red circle will disappear when the target room temperature is reached. Once the target room temperature has been reached, the machine will stop heating the air. If the room temperature falls below the target room temperature, the machine will start to heat again.

Cooling mode
Press the blue cooling mode button to enter cooling mode. The power button light will change from red to blue to indicate that you
have entered cooling mode. To adjust the airflow speed use the airflow control button.

Sleep timer

To set the sleep timer, press and hold the timer button to select the desired time. When time reaches zero, the machine will go into standby mode. To cancel, reduce the time until two dashes appear.

Tilt function

Carefully hold the base and the main body. Tilt the amplifier forward or backward for the required airflow angle.

Diffused and focused modes

Diffused mode
Press the wide angle button to change from a personal directed airflow to a whole room airflow.
Heating and cooling modes work in this mode.

Focused mode
Press the narrow angle button to change from a whole room airflow to a personal directed airflow.
Heating and cooling modes work in this mode.

Oscillation and airflow speed control

Oscillation control
To start the machine oscillating, press the oscillation control button. To stop the machine oscillating, press it again. The machine will not oscillate when the control buttons are pressed.

Airflow speed control
To change the airflow speed press the airflow control button. The digital display will show the new fan speed. If in heater mode after 3 seconds it will change back to displaying the target temperature.

Clearing blockages

Unplug from the main power source. If the machine has been in use, leave for 1 to 2 hours in order to allow the machine to cool down completely. Look for blockages in the air inlet holes and in the small aperture inside the air loop amplifier. Use a soft brush to remove debris.

Cleaning

Unplug from the main power source. If the machine has been in use, leave for 1 to 2 hours before cleaning to allow the machine to cool completely. To clean, wipe with a dry or damp cloth. Do not use detergents or polishes.

Battery replacement

Battery type CR 2032.

Unscrew the battery compartment on the remote control. Loosen the base and pull to remove the battery.

USING YOUR PRODUCT

PLEASE READ THE "IMPORTANT SAFETY INSTRUCTIONS" IN THIS DYSON OPERATING MANUAL BEFORE PROCEEDING.

LOOKING AFTER YOUR PRODUCT

• Do not carry out any maintenance or repair work other than that shown and described in this Dyson Operating Manual, or advised by the Dyson Helpline.
• Always disconnect the plug from the main outlet before inspecting for problems. If the machine will not operate, first check the main outlet has electricity supply and that the plug is properly inserted into the outlet.

OPERATION

• Ensure machine is fully assembled in line with the instructions before use. Do not dismantle the machine or use without the loop amplifier fitted.
• The machine will not operate in heating mode unless the target temperature is above the room temperature.
• Each time the heating mode is selected, it conducts a short calibration cycle. Airflow will be automatically controlled during this cycle. Once the calibration cycle is complete, it will revert to the selected airflow speed.
• The machine will not oscillate when the control buttons are pressed.
• Do not lubricate any part of this machine.

CONTROL WITHOUT REMOTE

• Press the standby button on the machine to turn ON/OFF.
• Press and hold the standby button on the machine to adjust the target temperature. The target temperature will increase to a maximum before decreasing. If the target temperature is set at 32°F it will switch from heating to cool mode.
• The airflow, diffused and personal heating modes, oscillation function and sleep timer controls cannot be operated without the remote control.

TILT FUNCTION

• Carefully hold the base and the main body. Tilt the amplifier forward or backward for the required airflow angle.

STORAGE

• When not in use, unplug from the mains electricity supply.
• Store the machine in a dry location and arrange the cable away from traffic areas so that it will not be tripped over or damaged.

AUTOMATIC CUT-OUT

• For your safety this machine is fitted with automatic cut-out switches that operate if the machine tips over or overheats. If the switches operate, unplug the machine and allow it to cool. Before restarting the machine check and clear any blockages and ensure the machine is on a solid level surface.
• In heating mode the machine will automatically switch 'OFF' after 9 hours of continuous use and will return to standby mode. To restart the machine, press the power button on either the remote control or the base.

TROUBLESHOOTING

• Fault codes F4/F5/F6

If one of these appears on the display, unplug the machine, wait for 30 to 60 seconds and/or plug the machine into a different socket. If you continue to receive the fault code, please contact the Dyson Helpline.

• Fault codes F2/F3/F7

If one of these appears on the display, please contact the Dyson Helpline.

BATTERY REPLACEMENT

• Switch 'OFF' and unplug the machine before replacing the batteries.
• Unscrew the battery compartment on the remote control. Loosen the base and pull to remove the battery.
• Do not install backwards or short circuit the batteries.
• Do not attempt to dismantle or charge the batteries. Keep away from fire.
• Always replace the screw in the remote control.
• Follow battery manufacturers' instructions when installing new batteries (battery type CR 2032).
• Limited functionality is available without the remote control (see 'Control without remote').

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USING THIS MACHINE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE MACHINE
When using an electrical machine, basic precautions should always be followed, including the following:

THE FAN AND THE REMOTE CONTROL BOTH CONTAIN MAGNETS.

1. Pacemakers and defibrillators may be affected by strong magnetic fields. If you or someone in your household has a pacemaker or defibrillator, avoid placing the remote control in a pocket or near to the device.
2. Credit cards and electronic storage media may also be affected by magnets and should be kept away from the remote control and the top of the machine.

These warnings apply to the machine, and also where applicable, to all tools, accessories, chargers or mains adaptors.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

3.
   When used in heating mode the machine is hot when in use and for a short period after use. To avoid burns, do not let bare skin touch hot surfaces. When moving the machine hold it by the base, not the air loop amplifier.
4. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains, at least 0.9m (3 feet) from the front of the machine and keep them away from the sides and rear when the machine is plugged in.
5. Extreme caution is necessary when any machine is used by or near children or infirm persons and whenever it is left operating and unattended.
6. This Dyson machine is not intended for use by persons (including children) with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
7.
   Use only as described in this Dyson Operating Manual. Do not carry out any maintenance other than that shown in this manual, or advised by the Dyson Helpline. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
8. The base must be fitted securely before operating. Do not dismantle or use without the base fitted.
9. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Children should be supervised to ensure that they do not play with the machine or remote control.
10. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces. Do not use in bathrooms, laundry areas or similar indoor locations. Never locate the machine where it may fall into a bath or other water container. Do not use or store where it may get wet or in the immediate surroundings of a bath, a shower, or a swimming pool.
11. This machine has hot parts inside. Do not use it in areas where petrol, paint, or flammable liquids are used or stored or where their vapors are present. Do not use in conjunction with or directly next to an air freshener or similar products.
12. Do not locate directly below a main electricity supply socket.
13. Always plug directly into a wall socket. Never use with an extension cable as overloading may result in the cable overheating and catching fire.
14. Do not handle any part of the plug or machine with wet hands.
15. Do not use with a damaged cord or plug. If the supply cord is damaged it must be replaced by Dyson, its service agent or similarly qualified persons in order to avoid a hazard.
16. To disconnect the machine, turn the controls off, then remove the plug from the outlet. Always unplug the machine when not in use.
17. Do not unplug by pulling on the cable. To unplug, grasp the plug, not the cable.
18. Do not stretch the cord or place the cord under strain. Keep cord away from heated surfaces.
19. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
20.
    To prevent a possible fire, do not use with any opening or exhaust blocked, and keep free of dust, lint, hair, and anything that may reduce airflow. Do not put any object into the inlet grill or the exhaust opening as this may cause an electric shock or fire, or damage the machine.
21. Do not use on soft surfaces, such as a bed, where openings may become blocked.
22. In order to avoid overheating, do not cover the machine.

23. For the best performance, place on the floor, in the corner of the room, at least 1 meter (3 feet) from any wall and facing into the center of the room.
24. Turn off all controls before unplugging.
25. Do not use any cleaning agents or lubricants on this machine. Unplug before cleaning or carrying out any maintenance.
26. If there is a loose fit between the plug and the socket or the plug becomes very hot, the socket may need to be replaced. Check with a qualified electrician to replace the socket.
27.
    Chemical Burn and Choking Hazard. Keep batteries away from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
28. If the machine is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Dyson Helpline.
29.
    Contact the Dyson Helpline when service or repair is required. Do not disassemble the machine as incorrect reassembly may result in an electric shock or fire.

IMPORTANT SAFETY FEATURES
For your safety this machine is fitted with automatic cut-out switches that operate if it tips over or overheats. If the switches operate, unplug the machine and allow it to cool. Before restarting, check and clear any blockages and ensure the machine is on a solid level surface.

READ AND SAVE THESE INSTRUCTIONS
THIS DYSON MACHINE IS INTENDED FOR HOUSEHOLD USE ONLY

Do not pull on the cord.

In order to avoid overheating and fire hazard, do not cover the machine.

Do not store near heat sources.

Do not carry by the air loop amplifier. The air loop amplifier is not a handle.

Do not use near open flames.

2 YEAR LIMITED WARRANTY

WARRANTY SERVICE

• If your fan is not functioning properly, please call the Dyson Helpline at 866-277-9896. Most issues can be rectified over the telephone by our trained Customer Care staff.

PLEASE REGISTER AS A DYSON MACHINE OWNER
To help us ensure you receive prompt and efficient service, please register as a Dyson machine owner. There are three ways to do this:

• Online at www.dyson.com
• Telephone the Dyson Helpline, 866-277-9896.
• Complete the enclosed Warranty Form and mail it to us.
  This will confirm ownership of your Dyson machine in the event of an insurance loss, and enable us to contact you if necessary.
