Summary of Contents for Midea WQP4-2601

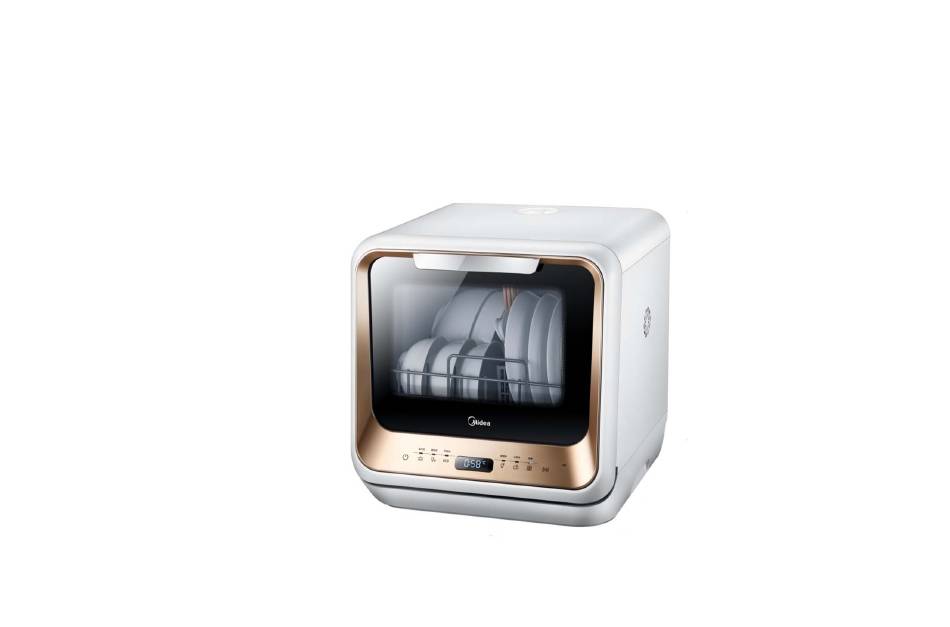

- Page 1 Technical Service Guide WQP4‐2601...
- Page 2 IMPORTANT SAFETY NOTICE The information in this service guide is intended for use by individuals possessing adequate backgrounds of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with it’s use. WARNING To avoid personal injury, disconnect power before servicing this product. If electrical power is required for diagnosis or test purposes, disconnect the power immediately after performing the necessary checks. RECONNECT ALL GROUNDING DEVICES If grounding wires, screws, strops, clips, nuts, or washers used to complete a path to ground are removed for service, they must be returned to their original position and properly fastened.
-
Page 3: Table Of Contents
Table of Contents Component Location Views……………………………………………………………………4 Control Board Connector Locator View ………………………………………………..9 Dishwasher Components …………………………………………………………………….10 Water Tank…………………………………………………………………………………………….11 Door Assembly .……………………………………………………………………………………13 Control Panel …………………………………………………………………………………………14 Door switch assembly ……………………………………………………………………………15 Indicator Lamp ………………………………………………………………………………………16 Fan Assembly…………………………………………………………………………………………17 Filter………………………………………………………………………………………………………18 Bottom Cover ………………………………………………………………………………………19 PCB ………………………………………………………………………………………………………20 Motor Pump Assembly …………………………………………………………………………21 Drain Pump Assembly ……………………………………………………………………………22 Steam Generator …………………………………………………………………………………23 Water Inlet Valve .…………………………………………………………………………………24 Thermistor ……………………………………………………………………………………………25 Heating Element ……………………………………………………………………………………26 Softener ………………………………………………………………………………………………27 Troubleshooting ……………………………………………………………………………………28 Schematics and Wiring Diagrams …………………………………………………………32... -
Page 4: Component Location Views
Component Location Views Front View Outer door Control Panel... - Page 5 Component Location Views Interior View Indicator Lamp Under Spray Arm Softener Upper Spray Arm Filter Assembly...
-
Page 6: Back View
Component Location Views Back View Note: The view that removes back shell Water Tank Filter... - Page 7 Component Location Views Light View Note: The view that removes light shell Fan Assembly...
-
Page 8: Bottom View
Component Location Views Bottom View Note: The view that removes bottom cover assembly PCB Box Water Inlet Valve softener Water Pump Assembly Steam Generator Drain Pump Heating Element Thermistor... -
Page 9: Control Board Connector Locator View
Control Board connecter Locator view CON1 L‐N CN1 Not used CON2 Door switch , motor pump , CN2 Connecter to display board water pump and steam generator CN3 Thermistor of steam generator CON3 Drain pump , water tank valve, CN4 Flow meter / water flood detective switch softener, water inlet valve CN5 Fan CN6 Indicator lamp PO1 PO2 Heater CN7 Not used CN8 Not used CN9 Not used... - Page 10 Schemastics and Wiring Diagrams Code Designation Code Designation Live (Alternating Current) Blue Neutro (Alternating Current) Yellow Earth Green Steam Temperature Detector White Drain pump Softener Valve Black Water Diverter/Steam Generator Pink IAQS Overflow Switch Gray Flow Meter Orange Dry Heating Protect Switch Brown Water Level Switch(135/115) Purple Salt Detector YE+GN Yellow + Green bicolor Wash Pump Capacitor Inlet Valve FUSE...
-
Page 11: Dishwasher Components
Dishwasher Components Water Tank The water tank stores water and provides water for the washing of machine. To remove water tank： 1、Disconnect the power supply 3、Remove 2 screws in the top 2、Open the door. to the dishwasher. of interior. 5、Remove the back shell. 4、Remove the top cover. 4、Remove the top shell. - Page 12 Dishwasher Components Water Tank 7、loosen 2 screws(mark 1). 6、Remove two side shells after 8、Disconnect 3 wire harnesses from water tank(mark 2). loosen 6 screws. 9、Disconnect pipe from water tank by removing snap ring(mark 3). 10、Disconnect 1 wire harness. 12、Water tank is got down. 11、Remove 2 screws.
-
Page 13: Door Assembly
Dishwasher Components Door Assembly: The door assembly consists of inner door ,outer door and control panel. To remove door assembly： 1、Disconnect the power supply to the 2、Remove 2 slides. 3、Remove 4 screws. dishwasher, and then open the door. 6、Door assembly is finished. 4、Split the frame by hands. 5、Remove the frame. -
Page 14: Control Panel
Dishwasher Components Control Panel: The control panel consists of PCB user interface board. To remove control panel： 1、Disconnect the power supply to the dishwasher, 2、Remove 3 screws. and then remove door assembly. PCB user interface board 3、Remove 10 screws. 4、Disconnect 1 wire harness... -
Page 15: Door Switch Assembly
Dishwasher Components Door switch assembly : The door switch is used to locking or unlocking door assembly. To remove Door switch assembly ： 1. Disconnect the power supply to the dishwasher. 2. Disconnect the 2 wiring harnesses from the door Switch(mark 1). 3.Remove 2 screws(mark 2). -
Page 16: Indicator Lamp
Dishwasher Components Indicator Lamp: The lamp is lit when the door opened. To remove indicator lamp： 1. Disconnect the power supply to the dishwasher. 2. Disconnect the wiring harnesses (mark 1). 3.unscrew the nut(mark 2). -
Page 17: Fan Assembly
Dishwasher Components Fan Assembly: Fan assembly is mounted on the right side of the tub. Its purpose is to provide swind for the dishwasher increase the effect of drying. To remove fan assembly： 1. Disconnect the power supply to the dishwasher and remove light shell. 2. Disconnect the wiring harnesses (mark 1). 3. Loosen 2 screws(mark 2). 4. Remove 2 snap rings(mark 3). -
Page 18: Filter
Dishwasher Components Filter: Filter can eliminate interference signal to make the machine work properly. To remove filter： 1. Disconnect the power supply to the dishwasher and remove shells. 2. Disconnect 6 wiring harnesses. 3. Remove filter upward. -
Page 19: Bottom Cover
Dishwasher Components Bottom Cover : The bottom cover is used to protect the bottom of dishwasher and judge whether overflowing or not. To remove bottom cover ： 1、Disconnect the power supply to the dishwasher, 2、Inverse the dishwasher and remove 1 screw. and then remove water tank. 3、Remove bottom cover according the arrow direction. 4、Disconnect 2 wire harnesses. -
Page 20: Pcb
Dishwasher Components PCB: Printed Circuit Board is the center of the dishwasher, which receive and process the signal from components, send order to components and deal with the feedback information, etc. To remove Printed Circuit Board： 1、Disconnect the power supply to the dishwasher, 2、Remove the snap‐fit. and then remove bottom cover. 4、Loosen 3 screws. 3、Remove 2 snap‐fits and disconnect all wire terminals of board. -
Page 21: Motor Pump Assembly
Dishwasher Components Motor Pump Assembly: The water is transported to the inner of dishwasher by motor pump. To remove motor pump assembly： 2. Disconnect 2 wiring harnesses (mark 1). 4. Drain Pump Assembly 1、Disconnect the power, and then remove 3. Rocate pump after pushing the is removed. bottom cover. snap joint (mark 2). -
Page 22: Drain Pump Assembly
Dishwasher Components Drain Pump Assembly: The drain pump forces water out of the drain line. To remove drain pump assembly： 2. Disconnect 2 wiring harnesses (mark 1). 4. Drain Pump Assembly 1. Disconnect the power supply to 3. Rocate pump after pushing the is removed. the dishwasher. snap joint (mark 2). -
Page 23: Steam Generator
Dishwasher Components Steam Generator : The steam generator can generate steaming. To remove steam generator ： 2. Disconnect 4 wiring harnesses (mark 1). 4. Steam Generator is removed. 1. Disconnect the power supply to 3. Loosen 2 screws (mark 2). the dishwasher. -
Page 24: Water Inlet Valve
Dishwasher Components Water Inlet Valve: The water inlet valve is electronically controlled and solenoid‐operated. The water valve has an approximate resistance value of 1 KΩ. To remove water inlet valve ： 1. Disconnect the power supply to the dishwasher and then remove bottom cover. 2. Disconnect 2 wiring harnesses(mark 1). 3. Remove the snap ring(mark 2). 4. Remove valve by rocating it. -
Page 25: Thermistor
Dishwasher Components Thermistor: During the hot wash cycle, the thermistor senses the water temperature and turns the heating element off. To remove Thermistor： 1. Disconnect the power supply to the dishwasher and then remove bottom cover. 2. Disconnect the wiring harness (mark 1). 3. Loosen 2 screws (mark 2). -
Page 26: Heating Element
Dishwasher Components Heating Element: The heating element maintains water temperature during the wash. To remove heating element： 1. Disconnect the power supply to the dishwasher and then remove bottom cover. 2. Disconnect 3 wiring harnesses (mark 1). 3. Loosen 3 screws (mark 2). -
Page 27: Softener
Dishwasher Components softener: The softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. To remove softener： 1、Disconnect the power supply to 3、Rocate out the next nut. 2、Rocate out the nut. the dishwasher, and open the door. 5、Disconnect 2 wire harnesses (mark 1). 4、 Inverse the dishwasher and remove bottom cover. 6、 Remove 3 snap rings (mark 2). -
Page 28: Troubleshooting
Troubleshooting Factory Diagnostic Mode: To enter the factory diagnostic mode: 1. Turn the dishwasher off and make sure no LEDs light. 2. Disconnect power to the dishwasher. 3. Pour 5L water into the water tank. 4. Within 60 seconds from reconnecting power, close the door and quickly press and hold both the Power and Start/Cancle button, then all LED lights and the digital screen are lighting and flashing with 1Hz frequency. At last, the machine operate after the door is open and closed. Then the dishwasher will run as below. Display Component Action board type code and F* Display board type code and F* each 1s (* stands for 0,1,2) Regenerator valve When the water tank level switch (ISB) is disconnected, the “EF” is displayed and open regenerator valve 5s. Drain valve and water pump Pour water 1.5L into interior Steam generator Open steam generator to heat the temperature to 105℃, and then turn off it. - Page 29 Troubleshooting Factory Diagnostic Mode: Component Action 03/Temperature Motor pump and heating elements Turn on the wash pump, after 10 seconds, the heater will turn on. The beeper will beep for one time when the temperature has rise for 3℃ for the first time. The dishwasher will stop when the temperature has arrived 57℃. Press " Start/cancel" to enter the next step. Drain pump The drain pump operate 10s.When the water tank level switch (ISB) is connected, the “EF” is displayed . Water inlet valve The water inlet valve open 10s. board type code and F* Drain valve ,water pump Open drain valve, meanwhile , operate water and drain pump pump and drain pump 180s. Operate fan until the end. the display will show board type code and F*, alternately. The beeper beep one time to End. Restart to enter standby mode.
-
Page 30: Error Code
Troubleshooting Error Code: Symptom Error Message Possible Reason During the water inlet step, if the flow meter 1. check the water supply 5. check the pressure switch can't detect the defined water after 4 2. check the inlet valve 6. check the drain Minutes , or can’t detect 30 pulse after 60s, 3. check the inlet 7. check the PCB the dishwasher will warning for E1. 4. check the flowmeter (only appeared in the factory mode) 1. check the heater when the temperature cant reached the 2. check the thermistor defined value after 30 minutes, the 3. check the PCB dishwasher will warning for E3. the water flood into the bottom and result in 1. check the use of the detergent the detective switch moves and keep 2s, the 2. check whether the appliance is level dishwasher will warning for E4. 3. check the micro‐switch 4. check the drain pump 5. check the amount of the filled water 6. find where leakage is (only appeared in the factory mode) 1. check the inlet water temperature E6 ‐ thermal sensor cut. 2. check the thermistor E7 ‐ thermal sensor short. 3. check the PCB... - Page 31 Troubleshooting Error Code: Symptom Error Message Possible Reason The buttons short. Check buttons If the following conditions occur, the 1. check the heating element of steam generator dishwasher will warning for EA: 2. check the steam generator thermistor 1. The temperature exceed 140℃(proceed to Next step); 2. The temperature exceed 140℃(stop washing); 3. Water inflow more than 5 times within 1 minute; 4. The steam generator thermistor is abnormal. Communication is abnormal 1. check buttons 2. check the control panel 3. check the PCB Water tank level switch does not move (only Check the water tank level switch appeared in the factory mode). When washing, water tank level switch does ...
-
Page 32: Schematics And Wiring Diagrams
Schemastics and Wiring Diagrams WARNING: Disconnect electrical power before servicing. Caution: Label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation. Verify operation after servicing. - Page 33 Schemastics and Wiring Diagrams Code Designation Code Designation Live (Alternating Current) Blue Neutro (Alternating Current) Yellow Earth Green Steam Temperature Detector White Drain Pump Softener Valve Black Water Diverter/Steam Generator Pink IAQS Overflow Switch Gray Flow Meter Orange Dry Heating Protect Switch Brown Water Level Switch(135/115) Purple Salt Detector YE+GN Yellow + Green bicolor Wash Pump Capacitor Inlet Valve FUSE...
