Summary of Contents for Lite-Puter PL-CP103

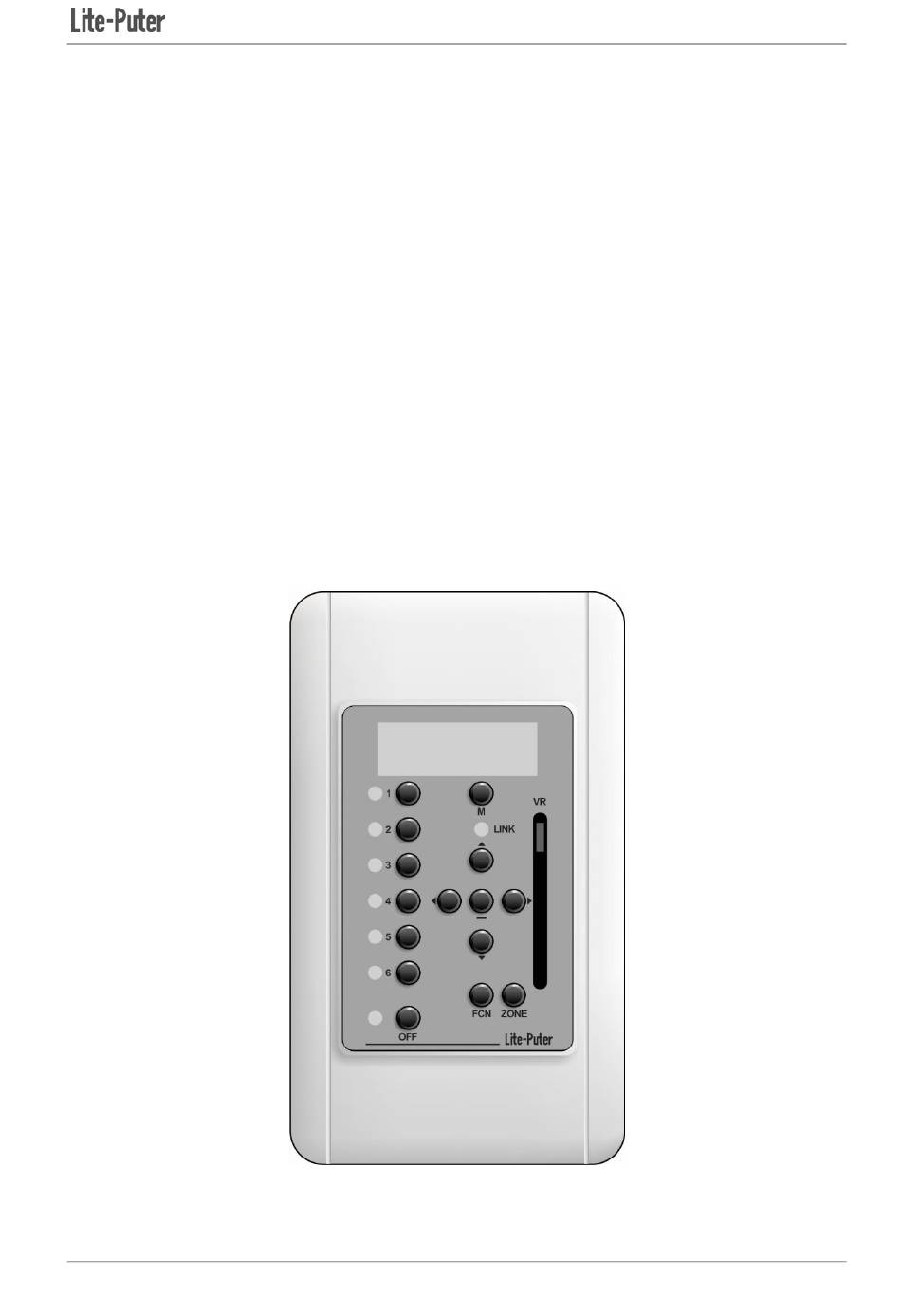

- Page 1 User Manual PL-CP103 PLC Control Panel PL-CP103 [EUM-A]...
-
Page 2: Table Of Contents
3-2 LEVEL Setting of Single Channel (1) ......................5 3-3 LEVEL Setting of Single Channel (2) ......................5 3-4 LEVEL Setting of Sequential Channels (1) ....................5 3-5 LEVEL Setting of Sequential Channels (2) ....................6 3-6 Scene Save ...............................6 Limited Warranty ................................7 PL-CP103 [EUM-A]... -
Page 3: Before Installation
■ PLC signal control. ■ Built-in knob and simple operation. ■ Short – cut protection. 2-2 Specifications ■ Power Input：DC 24V ■ Signal connector: 4-PIN terminal ■ Dimension: 120(W) x 70 (H) x 45(D) mm ■ Weight: 160Kg PL-CP103 [EUM-A]... -
Page 4: Dimensions
2-3 Dimensions 2-4 Functions LED screen SC indicator and call button SC save button Signal indicator Direction button ZONE setting button LEVEL bar PL-CP103 [EUM-A]... -
Page 5: Operations
3-4 LEVEL Setting of Sequential Channels (1) Press or to choose channel and press (－) as below (01 means the start channel, 02 means the last channel), and press or to choose the channel, shown as below: PL-CP103 [EUM-A]... -
Page 6: Level Setting Of Sequential Channels (2)
3-6 Scene Save After LEVEL of all channels are set (refer to 3-2～3-5), hold scene save button and choose the sc number button at the same time until the indicator of the scene blinks that the scene save is finished. PL-CP103 [EUM-A]... -
Page 7: Limited Warranty
Other Lite-Puter or non-Lite-Puter products or devices offered, packaged, or sold with the product. 5. Lite-Puter does not warrant that the product will operate without interruption or free of error. World Headquarters：...
