Page 1: Control Panel

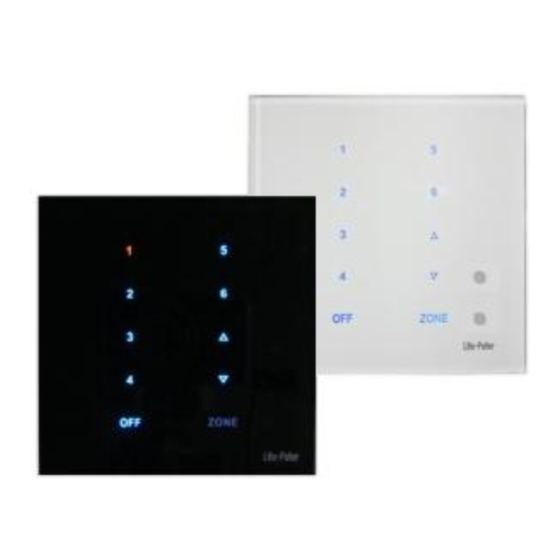

ISO 9001 CERTIFIED www.liteputer.com.tw ECP-110T Control Panel 【USER MANUAL】 Lite Puter Enterprise Co., Ltd. Website: www.liteputer.com.tw E-mail：sales@liteputer.com.tw Lite-Puter ECP-110T[EUM-B]... -
Page 2: Table Of Contents
..............................8 CENE ECALL 2-3 F ..........................8 DJUST IMMING EVEL 2-4 L ..............................8 NLOCK 2-5 IR R ............................9 EMOTE ONTROL 2-6 D ............................10 ONTACT NPUTS APPENDIX: BINARY CODE PRINCIPAL ....................11 LIMITED WARRANTY ............................12 Lite-Puter ECP-110T[EUM-B]... -
Page 3: Introduction
ISO 9001 CERTIFIED www.liteputer.com.tw 1. Introduction 1-1 Features In multi-zone mode, one ECP-110T can control up to 8 zones at the same time. Recall 6 scenes. Fine adjust the dimming level. 256 level dimming resolutions. Key Lock /unlock function. IR receiver. -
Page 4: Zone
ISO 9001 CERTIFIED www.liteputer.com.tw Rear side: Scene 1 ~ 6, scene OFF 【▼】: Down ; 【▲】: Up 【ZONE】: zone DIP switch Lite-Puter ECP-110T[EUM-B]... -
Page 5: How To Open
ISO 9001 CERTIFIED www.liteputer.com.tw 1-4 How to Open Front Cover ：Slotted Screwdriver 1-5 Wiring Lite-Puter ECP-110T[EUM-B]... -
Page 6: Operations
EDX devices can be recalled by ECP panels with the same zone number. For example, EDX devices configured as zone 1 can be controlled (recall scenes) by ECP panel configure as zone 1. Figure 1: One EDX device with one ECP scene panel Lite-Puter ECP-110T[EUM-B]... -
Page 7: Purpose Of Zone Setting
ISO 9001 CERTIFIED www.liteputer.com.tw 2-1-2 Purpose of Zone Setting The ECP-110T can control up to 8 zones at the same time. Before using it, be confirm the zones controlled by each panel. ECP-110T has 2 setting modes: panel setting and DIP setting. - Page 8 = 2, 1+2= 3 ) For example, to set zone number as “130” in single zone mode: Press 【2】,【▼】to make their backlight to red. 【 】 【 】 ▼ = 2, = 128, 2 + 128 = 130) Lite-Puter ECP-110T[EUM-B]...
- Page 9 Press 【1】and 【2】 to make their backlight to red. For example, to set zone number to “2 and 8” (to control zone 2 and 8 at the same time): Press 【2】and 【▼】 to make their backlight to red. Lite-Puter ECP-110T[EUM-B]...
-
Page 10: Zone Setting Of Dip
Press【1】~【6】once: the scenes will be recalled with fade in effect. Quick press【1】~【6】twice: the scenes will be directly recalled. 2-3 Fine Adjust Dimming Level Press【▼】and 【▲】to fine adjust dimming level. 2-4 Lock/Unlock 1. Hold【ZONE】, and then hold 【1】for 5 seconds till【▼】 or 【▲】is flickering. Lite-Puter ECP-110T[EUM-B]... -
Page 11: Ir Remote Control
3. Press【▼】/【▲】to unlock / lock. 【▲】: Lock 【▼】: Unlock 2-5 IR Remote Control ECP-110T can receive infrared signal from remote controller (IR-0501) to recall the scenes and adjust dimming level. 1. Hold【ZONE】, and then hold 【2】for 5 seconds till【▼】or【▲】is flickering. 【... -
Page 12: Dry Contact Inputs
ISO 9001 CERTIFIED www.liteputer.com.tw 2-6 Dry Contact Inputs The scene 1 will be recalled by actuating input 1. The scene 2 will be recalled by actuating input 2. Lite-Puter ECP-110T[EUM-B]... -
Page 13: Appendix: Binary Code Principal
00000100 10000100 01000100 11000100 00100100 10100100 01100100 11100100 00010100 10010100 01010100 11010100 00110100 10110100 01110100 11110100 00001100 10001100 01001100 11001100 00101100 10101100 01101100 11101100 00011100 10011100 01011100 10011100 00111100 10111100 … … 11111111 ※0 = DIP/OFF; 1= DIP/ON. Lite-Puter ECP-110T[EUM-B]... -
Page 14: Limited Warranty
Other products or devices which are offered by Lite-Puter or not by Lite-Puter. 5. Lite-Puter does not warrant the product will operate without interruption or being free of error. Revision Record Version Record First issued Add DIP function Issued: 2012/01 Lite-Puter ECP-110T[EUM-B]... - Page 15 Address: 11F, No. 189, Gangqian Rd., Neihu Dist., Taipei City 11494, Taiwan. Tel: +886-2-27998099 Fax: +886-2-27993828 Website: www.liteputer.com.tw E-mail: sales@liteputer.com.tw Shanghai Factory： Lite-Puter Technology（Shanghai）Co.,Ltd. Address: Building B5, No. 298, Lane 3509, Hongmei S. Road, Shanghai, China Zip Code:201108 Tel: +86-21-54408210 Fax: +86-21-64978079 Lite-Puter ECP-110T[EUM-B]...
