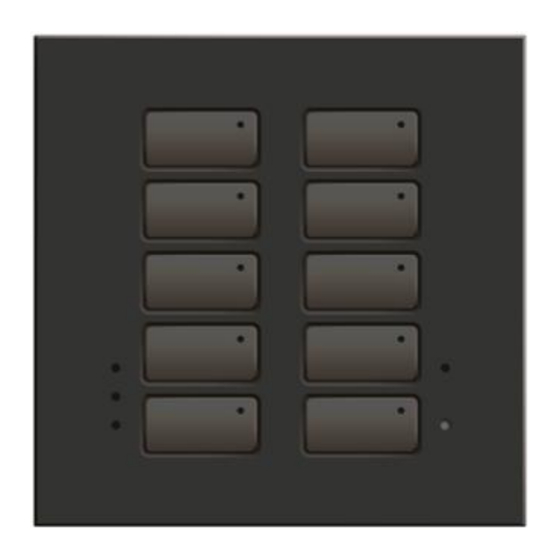

Lite-Puter PLA-CP310-BL User Manual

Ble to orbit.ac control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PLA-CP310-BL
BLE to ORBIT.AC Control Panel
PLA-CP310-BL [EUM-B]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLA-CP310-BL and is the answer not in the manual?

Questions and answers

Related Manuals for Lite-Puter PLA-CP310-BL

Summary of Contents for Lite-Puter PLA-CP310-BL

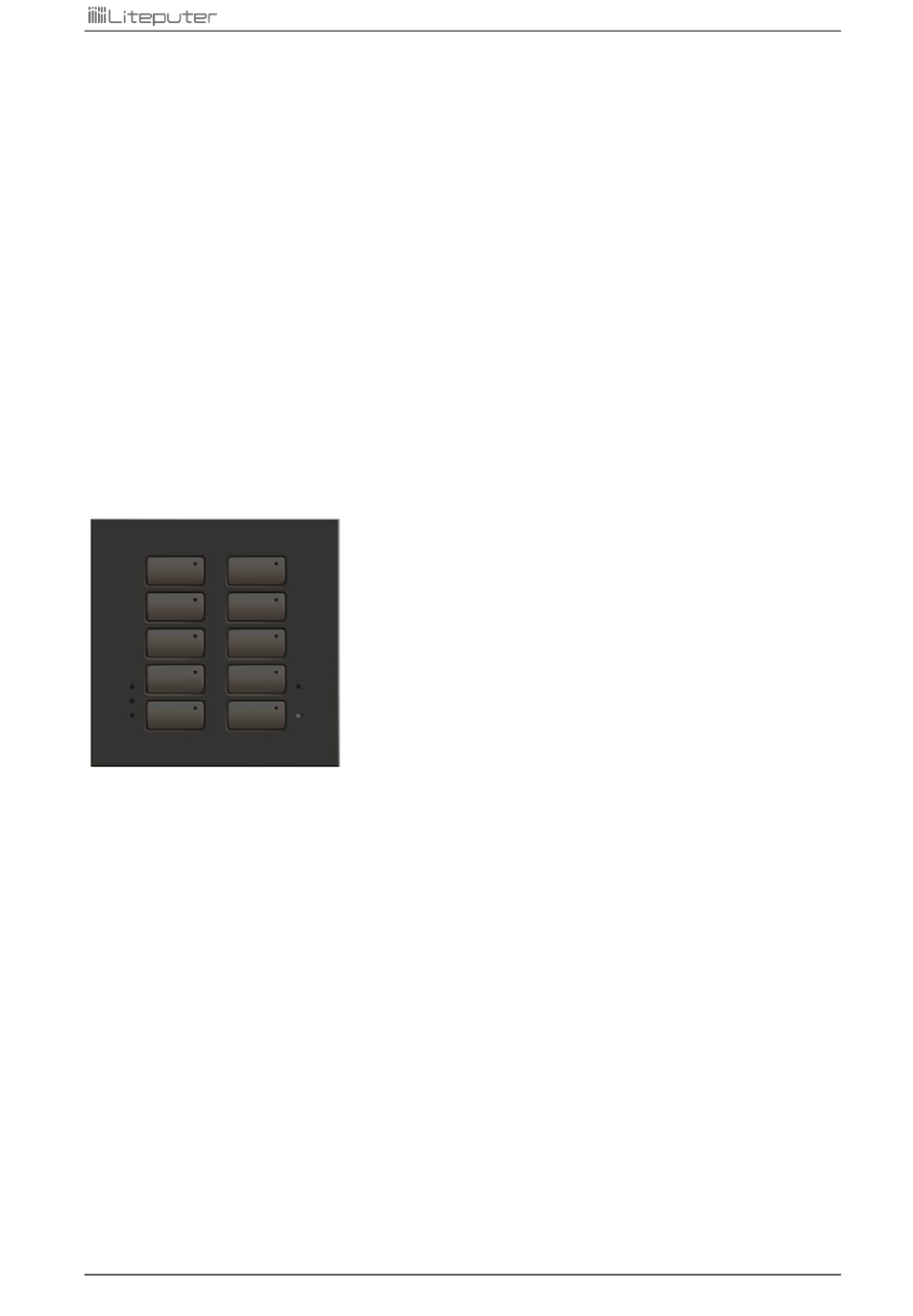

  • Page 1 User Manual PLA-CP310-BL BLE to ORBIT.AC Control Panel PLA-CP310-BL [EUM-B]...

  • Page 2: Table Of Contents

    ............................... 4 NTRODUCTION 1-5 W ..............................5 IRING IAGRAM 1-6 I ............................... 6 NSTALLATION 2 OPERATION ..............................8 2-1 I ..............................8 NITIALIZATION 2-2 C BLE ............................. 8 ONNECTING BY 2-3 K ............................. 9 ONFIGURATION LIMITED WARRANTY ............................12 PLA-CP310-BL [EUM-B]...

  • Page 3: Introduction

    3. Control up to 15 zones. 16 lighting scenes can be memorized in each zone. 1-2 Specifications  AC INPUT: ORBIT.AC (AC 100-240V)  Protocol: ORBIT, BLE.  Wireless Connection: Bluetooth Low Energy (BLE).  Distance of Transmission (BLE): 10M (no barrier).  Dimension: 87 * 87 * 33.9mm 1-3 Dimensions PLA-CP310-BL [EUM-B]...

  • Page 4: I/O Introduction

    1-4 I/O Introduction 1. Power Indicator 2. Signal Receiving Indicator 3. Signal Sending Indicator 4. BLE Indicator 5. Reset Button 6. 10 customizable keys. 7. ORBIT.AC Terminal PLA-CP310-BL [EUM-B]...

  • Page 5: Wiring Diagram

    1-5 Wiring Diagram PLA-CP310-BL [EUM-B]...

  • Page 6: Installation

    1-6 Installation Please insert slotted screw driver to the bottom of the panel to remove the cover. Please put the metal plate and metal pads (accessories) between the panel and the installation box. PLA-CP310-BL [EUM-B]...
  • Page 7 Metal pad Metal plate (recommended for cement wall) Metal plate (recommended for wooden wall) Without metal pads, the panel could be deformed after installing on the wall. Put the cover back to the panel. PLA-CP310-BL [EUM-B]...

  • Page 8: Operation

    1. Enable Bluetooth on Android mobile device. 2. Install “PLCMobile” on App Store or Google Play. 3. Run “PLCMobile” 4. Enter Bluetooth List, search BLE device by ID number. Click the device and enter the password to connect. PLA-CP310-BL [EUM-B]...

  • Page 9: Key Configuration

    * The ID number and password are printed on the stickers on the panel. If the password is lost, please contact Lite-Puter by email. 2-3 Key Configuration 1. Enter PLCMobile control view. Click “Info” button. All devices on ORBIT bus will be listed by ID number.
  • Page 10 The last 4 figures of BLE ID number is the ORBIT ID number. For example, if the BLE ID number is 00:15:83:00:B4:49. The ORBIT ID number is 83:00:B4:49. BLE ID number is hex number. Therefore, the ID number in decimal is 131.0.180.73. PLA-CP310-BL [EUM-B]...
  • Page 11 3. You can select scene number and multiple zone number for each key. After setting, click the key to recall corresponding scene. PLA-CP310-BL [EUM-B]...

  • Page 12: Limited Warranty

    1. Lite-Puter is only responsible for the product itself. 2. Lite-Puter warrants to repair any manufacturing defects within one year of distribution date. 3. Lite-Puter does not offer on-site service. Should a defect appear in Lite-Puter’s product, please deliver the product to local distributors or Taiwan Headquarters.
