Summary of Contents for Gravely 892049

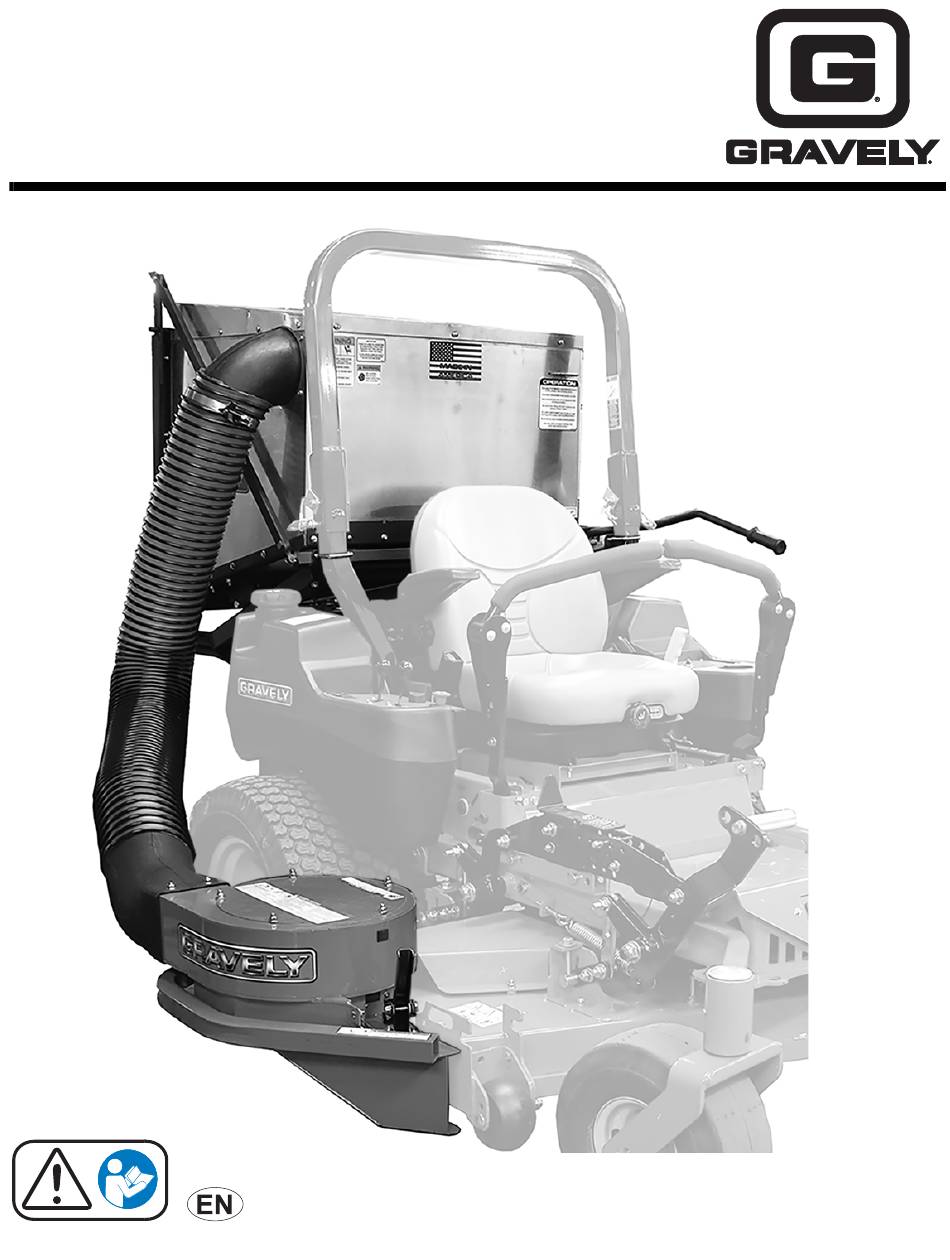

- Page 1 12 Cu. Ft. Hopper Bagger Owner/Operator & Parts Manual Model 892049 (SN 40000 +) 04824200A • 12/14 ENGLISH Printed in USA...
-
Page 2: Table Of Contents
See Figure 1. Use only Gravely replacement parts. The replacement of any part on this unit with anything other than an Gravely authorized replacement part may adversely affect the performance, durability and safety of this unit and may void the warranty. -
Page 3: Safety
3. Review control functions and operation of the unit. DISCLAIMER Do not operate the unit unless all controls function Gravely reserves the right to discontinue, change and as described in this manual. improve its products at any time without notice or 4. - Page 4 07742300B Figure 2 EN - 4...
- Page 5 1. DANGER! 5. IMPORTANT! Hoses are subject to normal wear and deterioration. To Avoid Serious Injury DO NOT operate mower unless Check hoses frequently and if they become defective, guards are in place or grass pump install new hoses. and entire bagger are attached. For best collection results, trim hoses so there is no more than 2 inches excess hose with mower deck lowered.
-
Page 6: Safety Rules
SAFETY RULES Children This cutting machine is capable of amputating hands and Tragic accidents can occur if the operator is not alert to feet and throwing objects. Failure to observe the the presence of children. Children are often attracted to following safety instructions could result in serious injury the machine and the mowing activity. - Page 7 Before Operating Keep all nuts and bolts tight to be sure the equipment is in safe working condition. Maintain the machine to be in compliance with the maintenance schedule. Clean grass and debris from unit, especially from around muffler and engine, to help prevent fires. Check parking brake operation frequently.
- Page 8 Disengage blade(s) when not mowing. Shut off engine Operation and wait for all parts to come to a complete stop before Be sure the area is clear of bystanders before operating. cleaning the machine, removing the grass catcher, or Stop machine if anyone enters the area. unclogging the discharge guard.
- Page 9 Operation on slopes may lead to loss of steering control. Remove gas-powered equipment from the trailer and When operating on slopes be prepared to react to an refuel it on the ground. If this is not possible, then refuel emergency situation: such equipment with a portable container, rather than from a gasoline dispenser nozzle.
- Page 10 NEVER attempt to make any adjustments to unit while Batteries engine is running (except where specifically Avoid Electric Shock. Objects contacting both battery recommended). Stop engine, remove key or spark plug terminals at the same time may result in injury and unit wire and wait for all moving parts to stop before damage.
-
Page 11: Assembly
ASSEMBLY Item Description Qty Part Number WARNING: AVOID INJURY. Read and understand the entire Safety section before 3/8-16 x 1" Hex Bolt 05948700 proceeding. Hopper Assembly 5/8 x 3 Detent Pin 00673600 TOOLS REQUIRED 5/8" Washers 06442800 5/32 x 2 5/8" Hair Pin Clips 06715000 •... - Page 12 Figure 3 EN - 12...
- Page 13 INSTALL HOPPER ASSEMBLY IMPORTANT: To prevent bumper assembly from dropping, do not remove all bumper bolts at the same time. WARNING: AVOID INJURY. Bumper assembly could drop quickly. Either securely support bumper or use extra caution when replacing mounting bolts. NOTICE: Four replacement bumper bolts (item 16) are included if needed.
- Page 14 7. Install 3/8 x 2" hex bolt (item 30) into lift handle (item 27) and retain with one 3/8 flange nut (item 31). Flange faces away from bolt head. See Figure 9. Figure 9 Figure 7 8. Insert lift handle through handle guide on hopper. Secure handle from inside hopper with one 3/8"...
- Page 15 35, 36 Figure 11 Figure 14 10. Attach latch rod to lift handle with 3/4" cotter pin (item 34). See Figure 12. 13. Ensure that hopper door is securely latched. Thread door linkage assembly up or down to achieve proper length to align with hole in hopper door frame.
- Page 16 14. Using a hacksaw, reciprocating saw or similar tool, carefully remove the 6" flange from the adapter Compression Spring Blower collector inlet (item 38). Smooth any rough edges. Idler Pulley Pulley See Figure 16. Remove Figure 16 15. Insert collector inlet (item 38) into opening in Figure 18 hopper and secure using four inlet clamps (item 39) and four 3/4"...
- Page 17 2. Install hose adapter (item 7) based on deck size. INSTALL DOUBLE PULLEY (72" DECKS Secure with two 5/16 x 1 round head square neck ONLY) bolts (item 45), two 5/16 x 3/4" round head square 1. Disconnect spring from idler to release tension on neck bolts (item 46) and four nylon locking flange mower belt and remove belt from spindle pulley.
-
Page 18: Install Blower Assembly
INSTALL BLOWER ASSEMBLY CAUTION: Make sure blower assembly covers the discharge chute opening so no debris can escape. 1. Remove discharge chute. 2. Position blower assembly at discharge chute opening. 3. Install blower assembly on mower deck as shown in Figure 25. -
Page 19: Install Counterweights
INSTALL COUNTERWEIGHTS 3. From under machine install cast iron counterweight (item 10) onto bolts and secure with two 17/32 x CAUTION: Always install counterweights on 1 1/16" flat steel washers (item 12) and two 1/2" front axle before operating unit with bagger locking flange nuts (item 13). -
Page 20: Operation
See Figure 30. 1. Check bagger parts for wear, deterioration or damage. Only replace with original Gravely service 4. Clean out hose. parts before operating. 5. Push the lift handle back and down to pivot the 2. -
Page 21: Maintenance
6. Clear grass from blower assembly. 7. Reinstall hose and tighten hose clamp. MAINTENANCE Clean Unit Gravely Dealers will provide any service or adjustments which may be required to keep your unit operating at Clear away grass build-up in bagger before and after peak efficiency. -
Page 22: Storage
Blower assembly stops or 1. Worn or damaged 1. See Replacing V-Belt on page 21. slows. V-belt. SPECIFICATIONS Model Number 892049 Description Hopper Bagger Added Length to Unit 13 inches (33 cm) Bagger Capacity 12 Cu. Ft. (9.65 Bushels) Added Width to Mower Deck... -
Page 23: Parts List
052255 07742300B Item Part No. Qty. Description 07735200 Decal, Danger 07742300 Decal, Warning 08088200 Decal, Caution, Grass Pump 05225500 Decal, Gravely 05360200 Decal, Warning 05360600 Decal, Important 05360300 Decal, Hearing Warning 05361000 Decal, Operation 05360500 Decal, Pinch Point Caution 10 05360700... - Page 24 COUNTERWEIGHTS Item Part No. Qty. Description 05962300 Bolt, Hex .50-13 x 4.50 04422451 Plate, Counterweight 00172000 Plate, Cast Iron 06441900 Washer, Flat Steel .531 x 1.06 x .095 06500010 Nut, Locking Nylon Flange .50-13 EN - 24...
-
Page 25: Hopper Assembly
HOPPER ASSEMBLY EN - 25... - Page 26 HOPPER ASSEMBLY Item Part No. Qty. Description 04813701 Frame, Main 04813702 Frame, Main Left Leg 04813703 Frame, Main Right Leg 00193700 Screen Support 00193500 Handle Mount 00193600 Box Back and Sides 00194000 Fill Gauge 00193400 Box Door/Frame 00193000 Plastic Door 10 00193300 Upper Door Member 11 00192900...
- Page 27 BLOWER HOUSING ASSEMBLY BOM ID Number Qty Description BOM ID Number Qty Description 00168100 BRKT, ADJUSTABLE IDLER 06224100 BLT-RDHDSQNK .38-16 X 1.25 00451953 COVER, BLOWER -BLACK 06433600 WSHR-FL-NYL .375 X .75 X .060 04714100 ADAPTER, HOSE 06436200 WSHR-FL-STL.406 X .812 X .065 00474251 LINK, IDLER RELEASE-BLACK 06439100...
-
Page 28: Warranty
Commercial Mowing Equipment Limited Warranty Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely and Countax brand products purchased on or after 1/1/2013 and designated or labeled commercial products by Ariens Company will be free from defects in material and workmanship for the time period noted in the chart below. -
Page 29: Limitation Of Remedy And Damages
Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty. - Page 30 655 West Ryan Street Brillion, WI 54110 920-756-4688 Fax 920-756-2407 www.gravely.com www.ariens.com.au...
