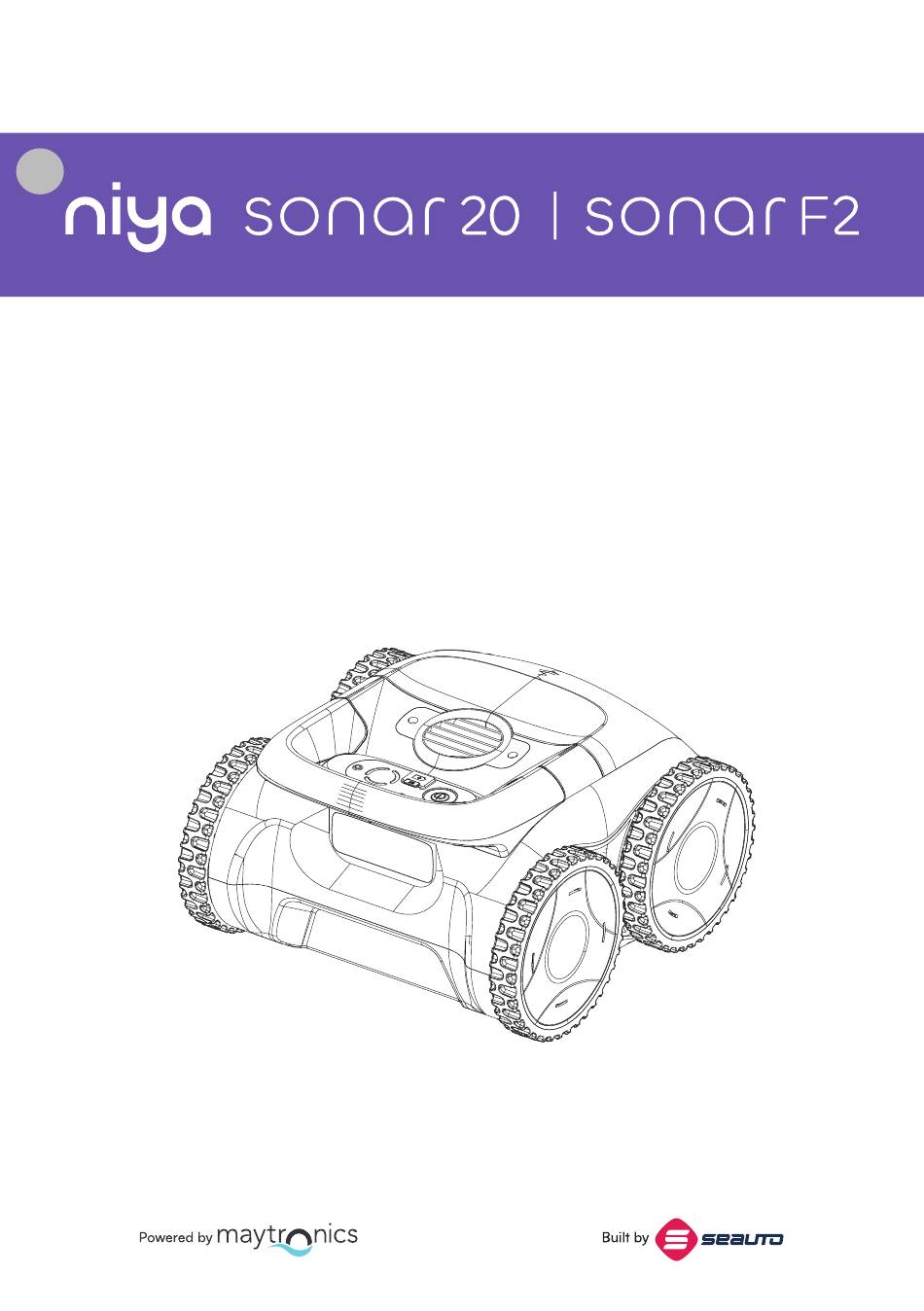

- Page 1 User Manual - Robotic Pool Cleaner...
-
Page 2: Table Of Contents
WHAT'S IN THE BOX Filter Basket Charger Niya Pool Cleaner Hook User Manual Warranty Hook x1 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 3 FIRST TIME USE ......................4 CLEANING MODE ......................5 CLEAN THE POOL CLEANER ..................5 LED INDICATORS ......................6 STORAGE ........................6 SPECIFICATIONS ...................... -
Page 3: Important Safety Instructions
Please adhere to the following warnings and cautions before you use the Niya Pool Cleaner. Use the device only according to these safety instructions. Maytronics is not liable for any loss or injury caused by improper use of the device. Use only the original battery and battery charger provided. -
Page 4: First Time Use
2 FIRST TIME USE Charge the robot until the Unplug the charger and press the flashing green LED becomes solid. button on the robot to activate. Put the robot in the pool Attach the hook to a pole until it finishes cleaning. and pull the robot to the waterline. -
Page 5: Cleaning Mode
3 CLEANING MODE The pool cleaner cleans the floor, for up to 1.5 hours. 4 CLEAN THE POOL CLEANER Place the pool cleaner on a solid surface at the poolside. Make sure it is switched OFF. Open the Take out the robot lid. -
Page 6: Led Indicators
5 LED INDICATORS The table below outlines the LED indicators on the robot and their significance. LED Color Solid Display Flashing Display Flashing 1 sec: Device Starting Blue Device Working Flashing 3 sec: Device Idle Red Device Error Green Device Charging Fully Charged Yellow Low Battery Device Stuck Purple... -
Page 7: Specifications
7 SPECIFICATIONS Specification Details Pool Length Up to 8m/ 26.2ft Water Depth 0.4 m–2.5 m (1.3 ft–8.2 ft) Power Adapter/AC Input 100–240 VAC, 50–60 Hz Power Adapter/DC Output 15 V, 2.4 A Power Adapter/Rated Power 36 W Lithium Battery 7800 mAh Cleaning Cycle Time Up to 1.5 hours Charge Time... -
Page 8: Impeller Cleaning Process
8 IMPELLER CLEANING PROCESS When the red LED indicator starts flashing, the likely cause could be a clogged impeller. This causes the robot to struggle to vacuum and climb even if the filter is clean. Please follow the instructions below carefully to resolve the issue. Turn OFF the robot: Press and hold Ensure the metallic out-of-water sensors are completely dry by... -
Page 9: Troubleshooting
9 TROUBLESHOOTING Question Answer What pool is the Sonar 20 suitable for? The Sonar 20 is suitable for flat surface above-ground pools and small in-ground pools, up to 26 feet/8 m long. The water should be at least 1.3 ft.− 8.2 ft/0.4-2.5 m deep. - Page 10 For support, please scan the QR code.
