Summary of Contents for Maytronics Niya Sonar 50

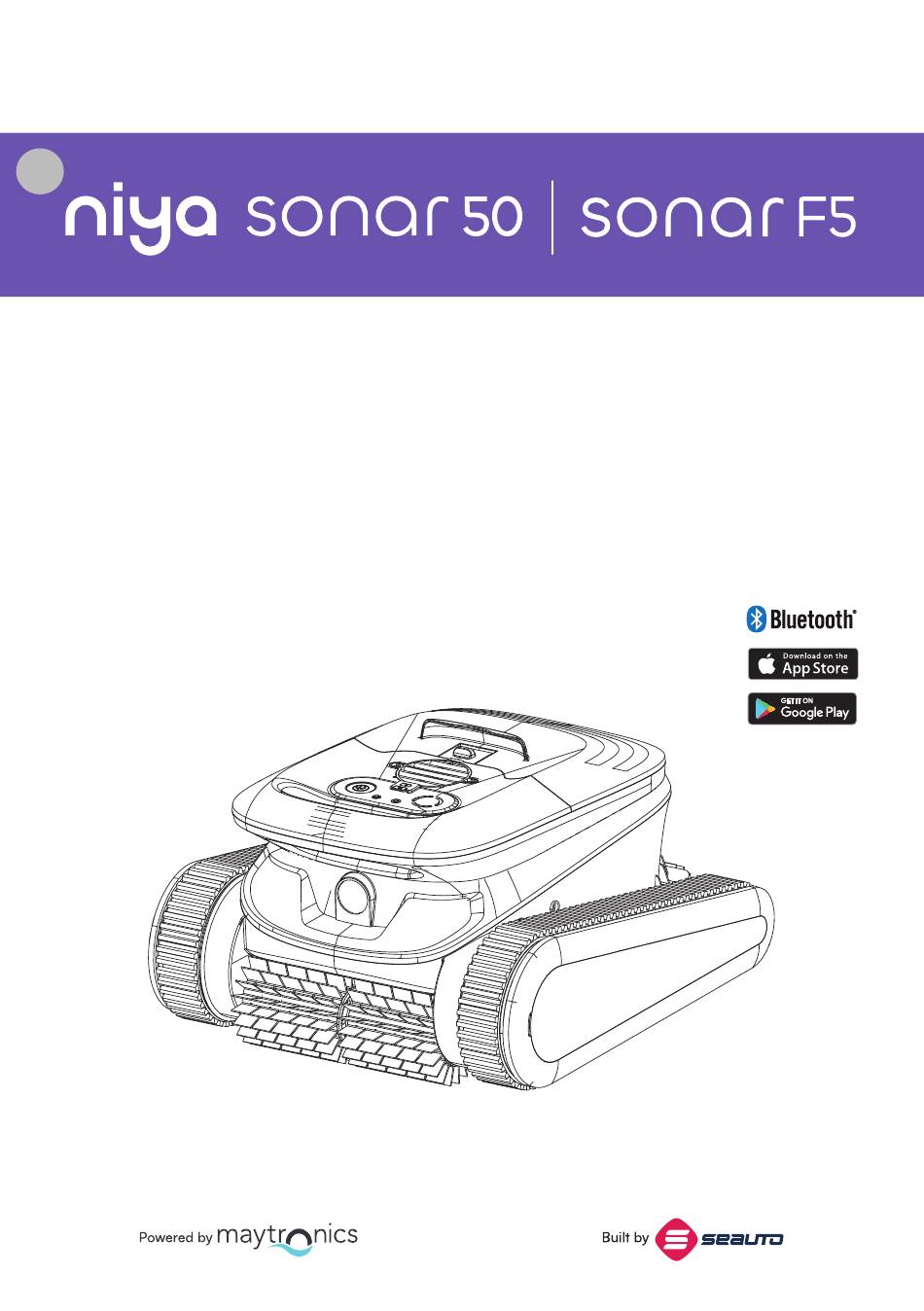

- Page 1 User Manual - Robotic Pool Cleaner...
-
Page 2: Table Of Contents
WHAT'S IN THE BOX Filter Basket Charger Filter Basket x1 Niya Pool Cleaner Sealx1 Hook User Manual Warranty Hook x1 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 3 FIRST TIME USE ......................4 CLEANING MODE SELECTION ................... 5 CLEAN THE POOL CLEANER ..................5 NIYA APPLICATION ...................... -
Page 3: Important Safety Instructions
Use the device only according to these safety instructions. Maytronics is not liable for any loss or injury caused by improper use of the device. Use only the original battery and battery charger provided. Keep the device out of the reach of children, vulnerable persons (with reduced physical, sensory, or mental abilities), and persons who lack the required knowledge and experience. -
Page 4: First Time Use
2 FIRST TIME USE Charge the robot until the Unplug the charger and press the flashing green LED becomes solid. button on the robot to activate. Put the robot in the pool Attach the hook to a pole until it finishes cleaning. and pull the robot to the waterline. -
Page 5: Cleaning Mode Selection
3 CLEANING MODE SELECTION The pool cleaner is set always by default to Standard Mode. Press the power button to activate the robot. Short press on the power button again will change the cleaning mode: • Standard mode- Cleans the floor, walls, waterline, up to 2.5 hours. • Floor mode - Cleans the pool floor, up to 2.5 hours. -
Page 6: Led Indicators
6 LED INDICATORS The table below outlines the LED indicators on the robot and their significance. LED Color Solid Display Flashing Display Flashing 1 sec: Device Starting Blue Device Working Flashing 3 secs: Device Idle Red Device Error Green Device Charging Fully Charged Yellow Low Battery Device Stuck Cleaning Mode Has Changed... -
Page 7: Specifications
8 SPECIFICATIONS Specification Details Pool Length Up to 12m / 39.4ft Water Depth 0.4 m–2.5 m (1.3 ft–8.2 ft) Power Adapter/AC Input 100–240 VAC, 50–60 Hz Power Adapter/DC Output 26 V / 28 V, 2.3 A Power Adapter/Rated Power 59.8 W / 64.4 W Lithium Battery 7800 mAh Cleaning Cycle Time... -
Page 8: Impeller Cleaning Process
9 IMPELLER CLEANING PROCESS When the red LED indicator starts flashing and the robot announces a "Pumping motor issue," the likely cause could be a clogged impeller. This causes the robot to struggle to vacuum and climb even if the filter is clean. Please follow the instructions below carefully to resolve the issue. -
Page 9: Battery Replacement
10 BATTERY REPLACEMENT Before inserting a new battery, clean up the water droplets and sand or other foreign objects from the device. Before replacement of the battery, ensure the complete evaporation of moisture. To replace the battery, proceed as follows: Remove the six screws fixed to the holding plate and extract the used battery. -
Page 10: Troubleshooting
11 TROUBLESHOOTING Question Answer What pool is the Sonar 50 suitable for? The Sonar 50 is recommended for standard pools up to 39.4 ft in length. The water should be at least 1.3 ft.− 8.2 ft/0.4-2.5 m deep. Why doesn’t the cleaner respond after The battery may have discharged due to turning on the machine? extended delivery or storage. - Page 11 11 TROUBLESHOOTING Question Answer How many smartphones can be connected Only one smartphone can be connected to one cleaner? to the cleaner at a time. To connect from a different device, please ensure the currently connected smartphone is disconnected first. Once disconnected, you can proceed to connect the cleaner to the new phone.
