Delta Electronics Delphi DNT04 Specification Sheet page 6

Delphi dnt04, non-isolated point of load dc/dc power modules: 2.4~5.5vin, 0.75~3.63vo, 3a out

Table of Contents

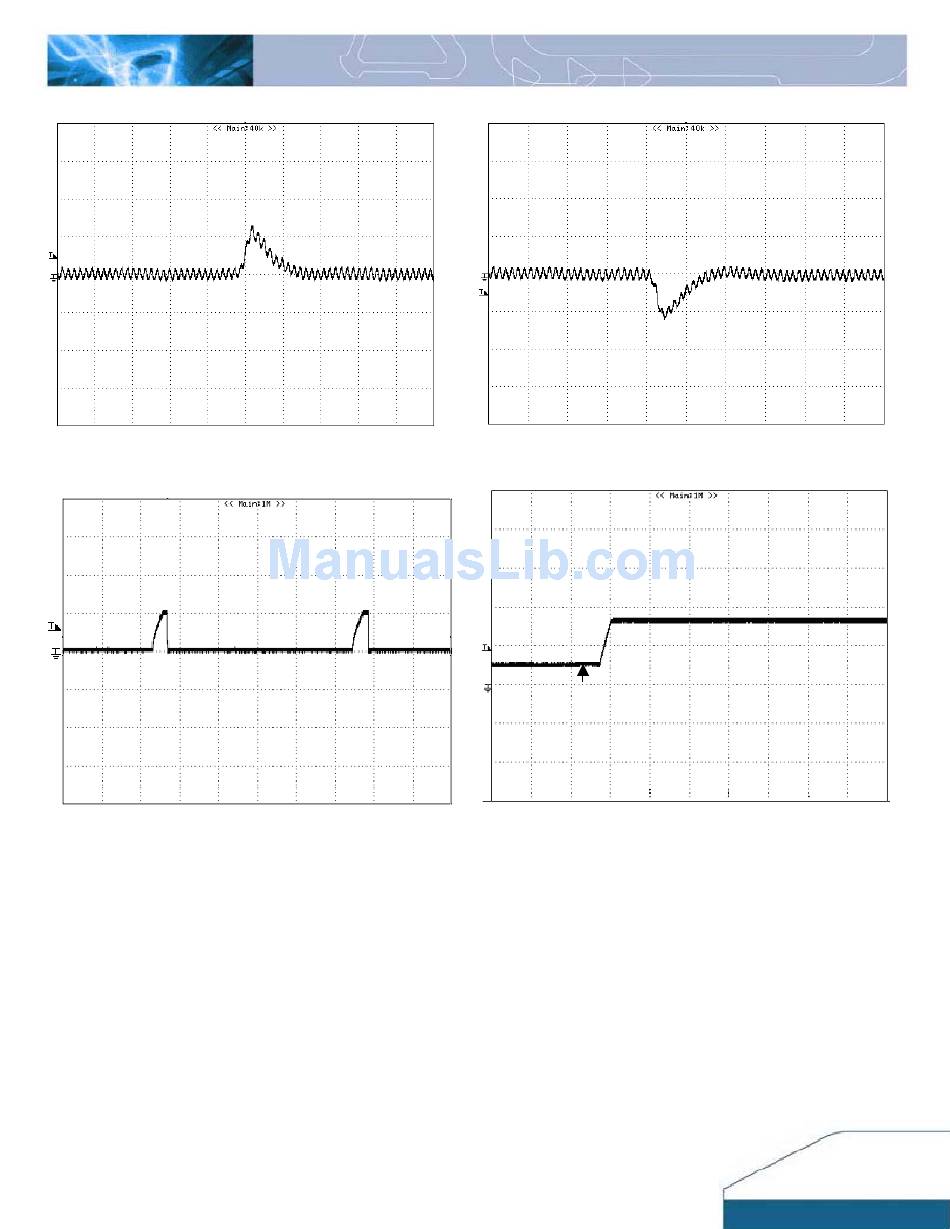

ELECTRICAL CHARACTERISTICS CURVES

Figure 19: Typical transient response to step load change at

2.5A/µS from 100% to 50% of Io, max at 5Vin, 3.3Vout

(Cout = 1uF ceramic, 10µF tantalum), 0.1V/div

Figure 21: Output short circuit current 5Vin, 0.75Vout

20A/div, 10mS/div

DS_DNT04SIP3A_09262007

Figure 20: Typical transient response to step load change at

2.5A/µS from 50% to 100% of Io, max at 5Vin, 3.3Vout

(Cout =1uF ceramic, 10µF tantalum), 0.1V/div

Vbias=1V

Figure 22:Turn on with Prebias 5Vin, 3.3V/0A out, Vbias =1.0Vdc

2V/div, 10mS/div
